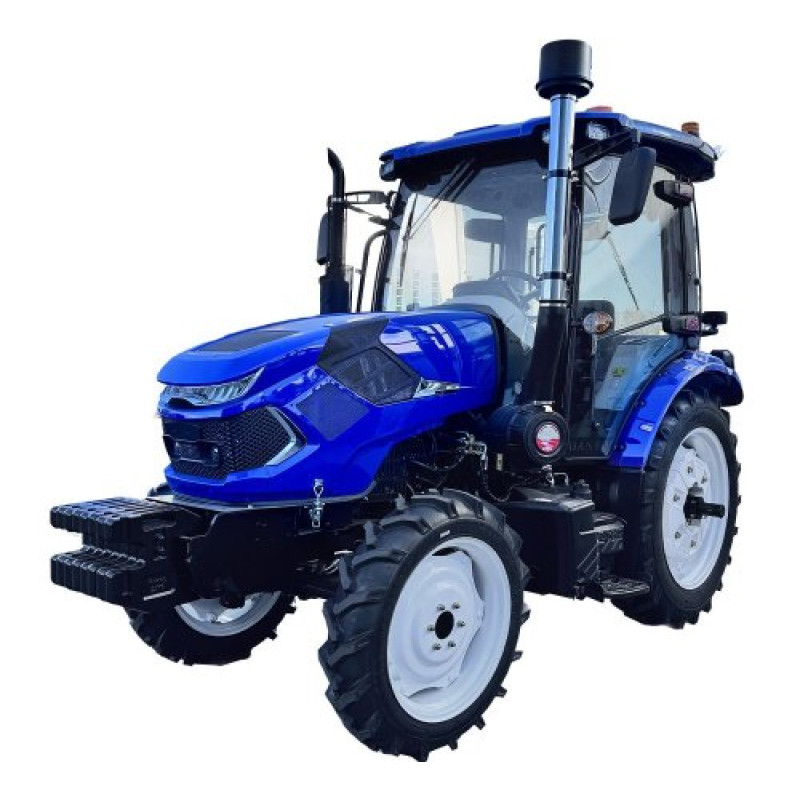

Mini Tractor KENTAVR H 504BCCU

KENTAVR H 504BCCU is a high-performance and reliable mini tractor from the manufacturer KENTAVR, designed for intensive use in agriculture, municipal services, and general utility work. This model combines a powerful diesel engine, robust transmission, and efficient hydraulics, making it a versatile solution for soil cultivation, pruning, material transport, and working with attachments.

At the heart of the tractor is a QC4102T50 diesel engine — a vertical 4-cylinder, 4-stroke unit with forced liquid cooling and direct injection. The nominal power is 50 hp (36.8 kW), engine displacement is 3857 cm3, and cylinder bore/piston stroke is 90x100 mm. Fuel efficiency is ensured by a nominal fuel consumption of ≤238 g/kWh.

The transmission features a (4+4)x3 gearbox with a rear differential lock, enhancing проходимость in challenging conditions. The clutch is a dry, single-disc mechanism, and the 4x4 all-wheel drive guarantees confident operation on various soil types. Maneuvering and control are facilitated by power steering with a separate pump and oil reservoir.

The hydraulic system is equipped with a gear pump, and the hydraulic lift is driven by two hydraulic cylinders. The maximum lifting capacity of the hitch mechanism is 850 kg, allowing for the use of a wide range of attachments. The power take-off (PTO) shaft speed is 540/1000 rpm, adding versatility when connecting various implements.

The cooling fan system is driven by a V-belt, and the brakes are of the drum type. The minimum ground clearance of the tractor is 350 mm, ensuring operation on uneven terrain without damaging components. For adaptation to various operating conditions, adjustable wheel tracks are provided: rear — 1220, 1280, 1440, 1540 mm, front — 1230, 1430 mm. Tire sizes: rear — 11.0-32.0, front — 8.30-24.0.

The fuel tank capacity is 140 L, the overall dimensions of the tractor (LxWxH) are 3470x1560x2050 mm, and the curb weight is 3100 kg. The combination of large fuel reserves, robust construction, and thoughtful ergonomics makes the KENTAVR H 504BCCU a reliable partner for long-term autonomous work in the field and on the farm.

Advantages of the model: high traction and coupling capability, economical and reliable QC4102T50 diesel engine, multi-position (4+4)x3 gearbox, rear differential lock for difficult terrain, efficient hydraulics with two hydraulic cylinders, ability to work with attachments thanks to two PTO modes (540/1000 rpm). This mini tractor is perfectly suited for a wide range of tasks: from soil cultivation to transport and working with attachments.

Technical Specifications

KENTAVR H 504BCCU is an optimal choice for those who need a productive and versatile mini tractor with a balance of power, lifting capacity, and fuel efficiency. Thanks to its robust construction and wide range of attachment options, this tractor meets modern requirements for reliability and effectiveness in various operating conditions.
