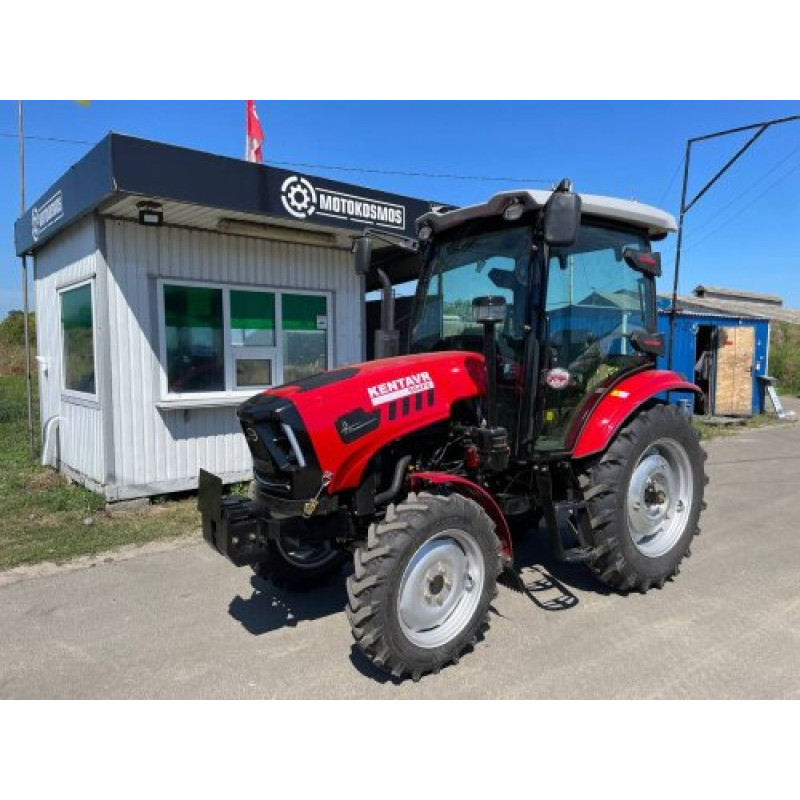

KENTAVR S 504CU Mini Tractor — Overview and Specifications

The KENTAVR S 504CU mini tractor from the manufacturer KENTAVR is a powerful and versatile mini tractor in the Tractors > Mini Tractors category, designed for a wide range of agricultural, municipal, and utility tasks. Thanks to its reliable 4-stroke, 4-cylinder KM495 liquid-cooled engine with a power output of 36.8 kW (50 hp), this tractor demonstrates stable operation under heavy loads. The electric starter ensures quick ignition, and the 50-liter fuel tank allows for long tasks without frequent refueling.

Technical Specifications:

The KENTAVR S 504CU features a well-designed and robust transmission: a dry dual-disc clutch ensures reliable torque transfer, and the differential lock enhances off-road capability in challenging conditions. The 350 mm ground clearance, combined with 4x4 all-wheel drive, makes this model suitable for working on uneven terrain, in orchards, and vineyards. Power steering provides easy maneuvering, and drum brakes ensure safety during operation.

The forced hydraulic system and a maximum lifting capacity of the hitch mechanism of 650 kg allow for the effective use of a wide range of attachments: plows, cultivators, seeders, mowers, and other implements. The power take-off (PTO) shaft with 540 and 1000 rpm modes ensures compatibility with most agricultural machinery. Compact dimensions of 3550x1500x2520 mm, a wheelbase of 1850 mm, and a weight of 1996 kg guarantee stability and maneuverability during field and municipal work.

Advantages and Applications

The KENTAVR S 504CU mini tractor is ideal for small and medium-sized farms, horticulture and vineyards, and municipal enterprises for snow removal, transport and earthmoving, haymaking, and soil cultivation on medium-sized fields. The reliable KM495 engine, efficient cooling system, and large fuel tank make this tractor economical in daily operation and durable for long tasks.

• Engine: 4-stroke, 4-cylinder KM495 — 36.8 kW (50 hp).
• Fuel tank: 50 L; engine start — electric starter; speed — 2350 rpm.
• Oil parameters: crankcase oil volume 8.5 L; cooling system volume 5 L; oil consumption 2.04 g/kW·h; oil pump plunger, in-line.
• Transmission and chassis: dry dual-disc clutch; differential lock; drum brakes; 4x4 wheel formula; ground clearance 350 mm; turning radius 4.2 m.
• Dimensions and tires: front 8.30-20, rear 12.40-28; front track 1230/1450 mm; rear track 1100/1260/1360/1450 mm; dimensions 3550x1500x2520 mm; weight 1996 kg.
• Hydraulics and PTO: forced hydraulic system included; PTO speed 540/1000; hitch mechanism lift up to 650 kg.

The KENTAVR S 504CU combines high engine performance, reliable power unit, and versatility in use with attachments, making it an effective solution for daily intensive work in both agriculture and the municipal sector. By choosing this model, you get a balance between power, off-road capability, and ease of control.
