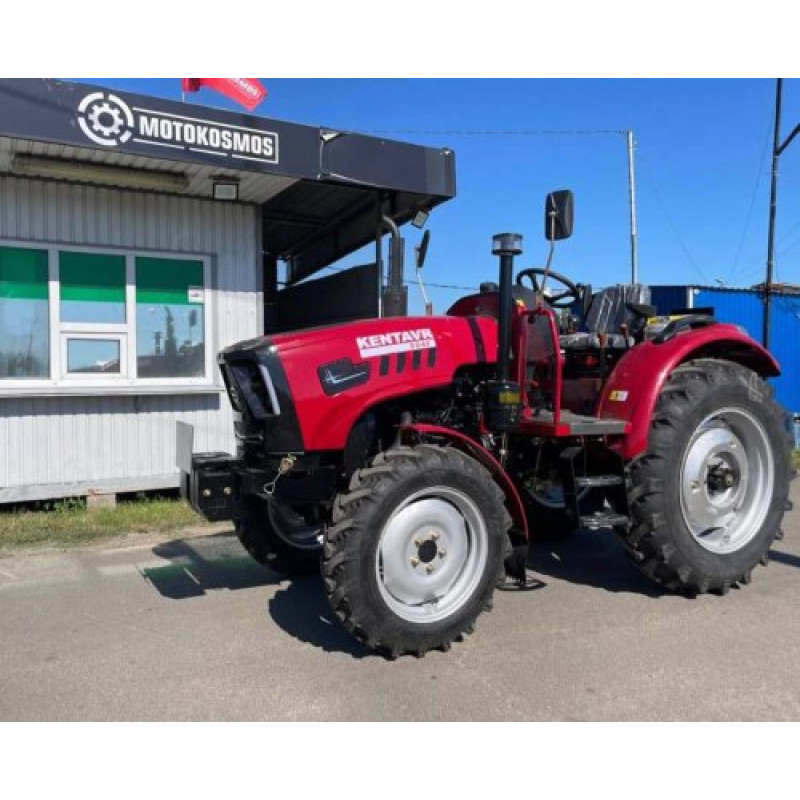

KENTAVR 504Ue Mini Tractor — A Reliable Helper for Your Farm
Brand: KENTAVR. Category: Tractors > Mini Tractors. The KENTAVR 504Ue mini tractor combines robust construction, high performance, and versatile application — ideal for agriculture, farm work, municipal services, transportation, and working with trailers and attachments.
At the heart of the unit is a 4-stroke, 4-cylinder KM495 liquid-cooled engine with a power output of 36.8 kW (50 hp). The fuel tank has a capacity of 65 liters, the nominal engine speed is 2350 rpm, and starting is via an electric starter. The oil volume in the crankcase is 8.5 liters, and the cooling system volume is 5 liters, ensuring reliable operation under intensive loads.
The gearbox has a (4+4)x2 scheme, providing a wide selection of speed modes for field and transport work. Fuel delivery is direct injection, the oil pump is a plunger, in-line type. The clutch type is dry, twin-disc. It features differential lock and a forced hydraulic system for working with heavy attachments. Power steering makes maneuvering easy and precise.
The 4x4 wheel formula (all-wheel drive) ensures проходимость in challenging soil and weather conditions. Front tires: 8.30-20, rear tires: 12.40-28. The front wheel track can be 1230 or 1450 mm; the rear wheel track — 1100, 1260, 1360, or 1450 mm. Turning radius — 4.2 m, wheelbase — 1850 mm. Overall dimensions L/W/H: 3550x1510x2065 mm, machine weight — 1775 kg, ground clearance — 350 mm.
The hydraulic power take-off (PTO) operates at 540/1000 rpm, allowing for the connection of a wide range of attachments. The maximum lifting capacity of the hitch mechanism is 650 kg. The braking system features drum brakes, which guarantee reliable braking in various operating conditions.
Key Advantages and Usage Possibilities
- Powerful and economical 4-cylinder KM495 engine (36.8 kW / 50 hp), providing power reserve for heavy work.
- Electric starter for easy and quick start in any conditions.
- 4x4 all-wheel drive with differential lock for confident movement over difficult terrain.
- Power steering and forced hydraulic system for comfortable operation with attachments.
- Versatile (4+4)x2 gearbox, allowing selection of optimal speeds for field and transport operations.
The KENTAVR 504Ue is designed for those who need reliable and multifunctional equipment: from soil cultivation and sowing to area cleaning, cargo transportation, and municipal work. This mini tractor combines a balance of power, endurance, and comfortable operation from the renowned manufacturer KENTAVR.
| Engine type: | 4-stroke, 4-cylinder, KM495 |
| Power, kW: | 36.8 |
| Power, hp: | 50 |
| Cooling: | liquid |
| Fuel tank capacity, L: | 65 |
| Engine speed, rpm: | 2350 |
| Engine start: | electric starter |
| Oil volume in crankcase, L: | 8.5 |
| Cooling system volume, L: | 5 |
| Gearbox: | (4+4)x2 |
| Fuel delivery: | direct injection |
| Oil pump: | plunger, in-line |
| Clutch type: | dry, twin-disc |
| Ground clearance, mm: | 350 |
| Differential lock: | yes |
| Braking system: | drum brakes |
| Front wheel track, cm: | 1230, 1450 |
| Rear wheel track, cm: | 1100, 1260, 1360, 1450 |
| Turning radius, m: | 4.2 |
| Wheel formula: | 4x4 (all-wheel drive) |
| Front tires: | 8.30-20 |
| Rear tires: | 12.40-28 |
| Overall dimensions L/W/H, mm: | 3550x1510x2065 |
| Steering: | with power steering |
| Forced hydraulic system: | yes |
| PTO shaft speed: | 540/1000 |
| Maximum lifting capacity of hitch mechanism, kg: | 650 |
| Wheelbase, mm: | 1850 |
| Weight, kg: | 1775 |
The KENTAVR 504Ue mini tractor is an excellent choice for farms, farmers, and municipal services who value power, reliability, and versatility.
