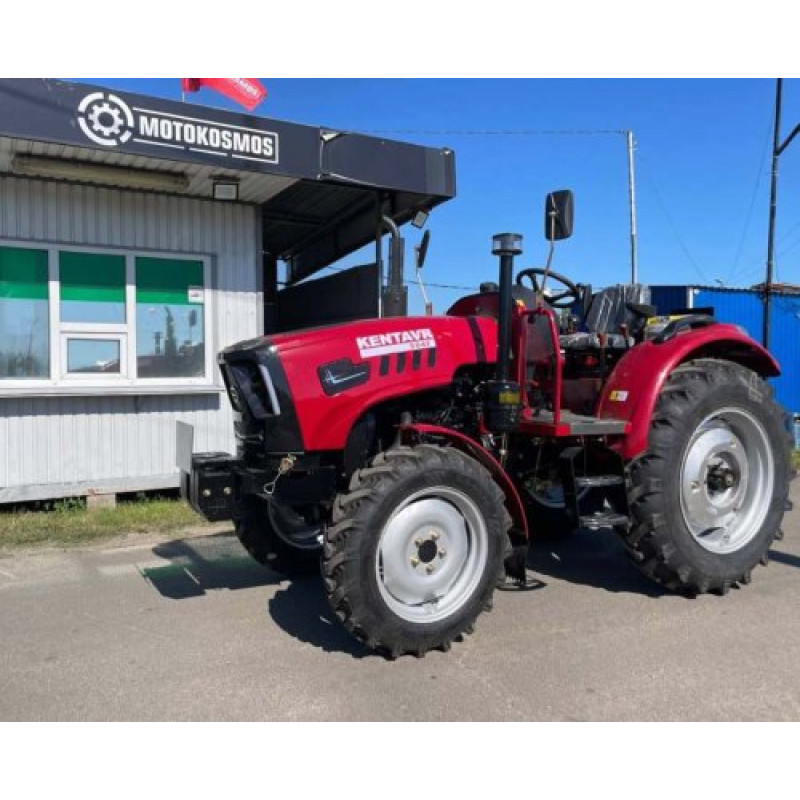

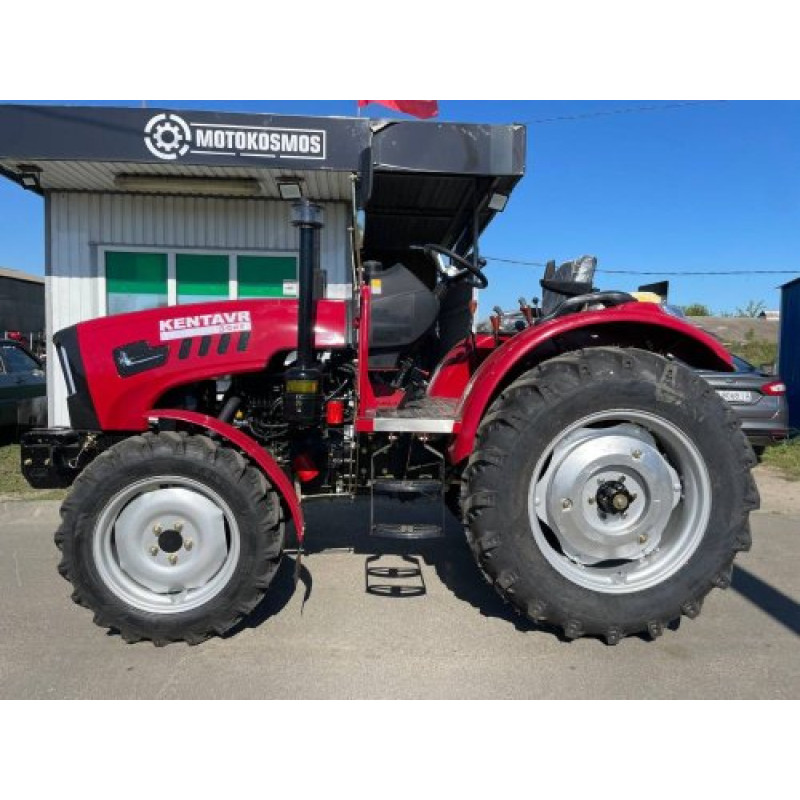

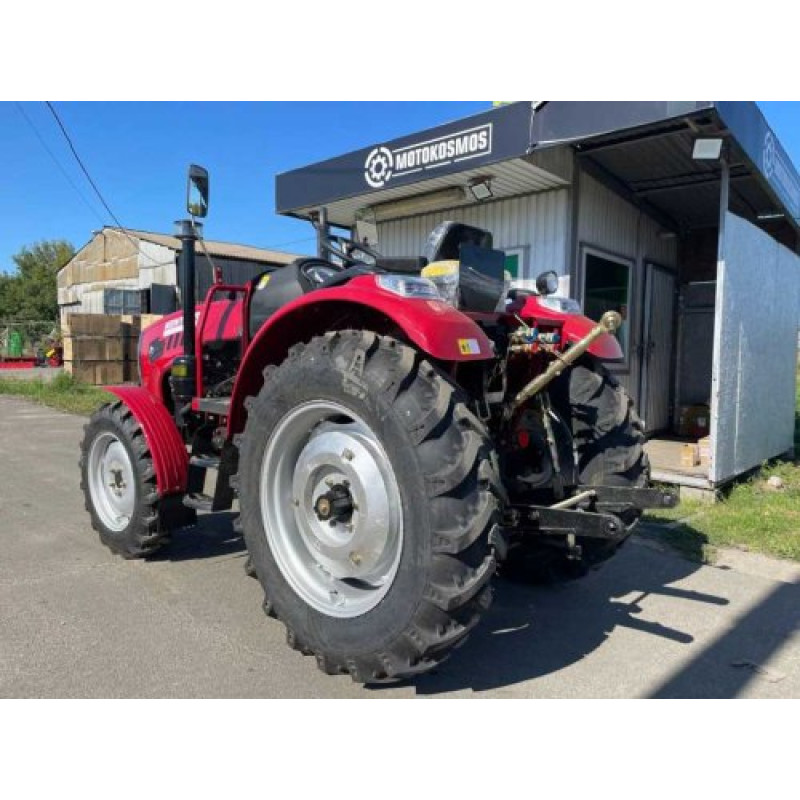

Mini Tractor KENTAVR 504F

The KENTAVR 504F mini tractor from the KENTAVR brand is a versatile 50 hp (50 hp / 36.75–36.8 kW) mini tractor with 4x4 all-wheel drive, designed for a wide range of agricultural and farm tasks: plowing, soil preparation, sowing, harvesting, cargo transportation, and caring for orchards and vineyards.

Briefly about the main parameters and options

• Engine power: 50 hp (36.75–36.8 kW)
• Wheel formula: 4x4 (all-wheel drive)
• Engine type: 4-cylinder diesel — various sources indicate Perkins 404D-22TA or KM495BT marking
• Engine displacement: for Perkins engine, 2210 cm3 is specified
• Clutch: dry, dual-disc
• Rear wheel size: sources mention 12.4-24 or 12.40-28
• Maximum lifting capacity of the hitch mechanism: 1000 kg or 650 kg in various sources
• Ground clearance: initial data indicates 320 mm, 350 mm, and up to 460 mm is also mentioned
• Wheelbase: 2050 mm or 1850 mm (different configuration options)

Features and equipment

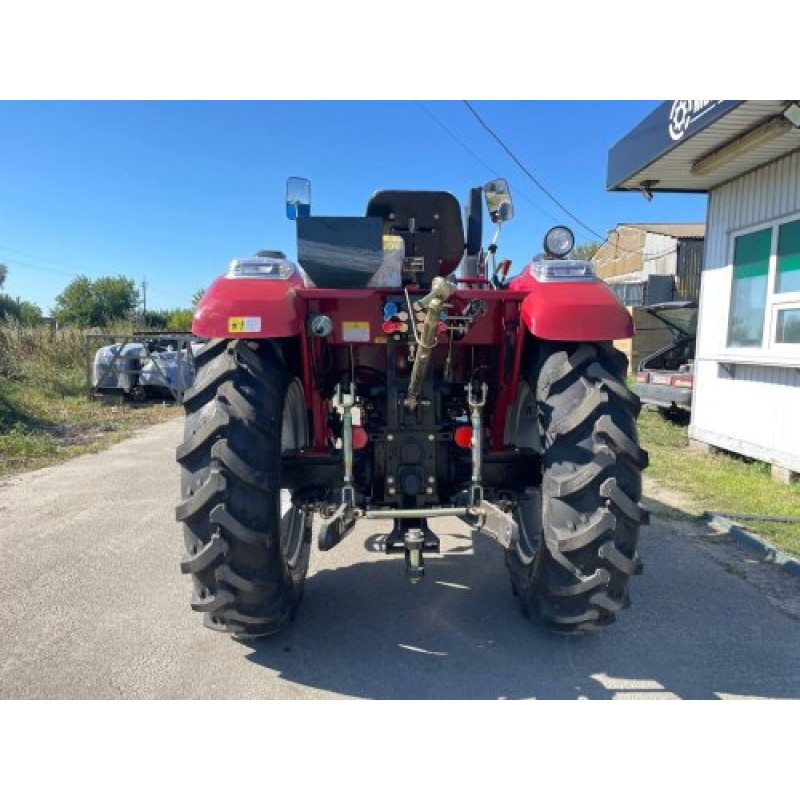

• Hydraulic system with two hydraulic outputs and a separate gear pump; two hydraulic pumps, three-point hitch
• PTO speed: 540/1000 rpm
• Cooling system: liquid (water cooling)
• Fuel tank capacity: sources indicate both 60 L and 25 L (all options are provided for informational purposes)
• Engine start: electric starter (sources also mention kickstarter, generator, and battery)
• Power steering
• Drum brakes, differential lock (available/optional), dual-disc dry clutch

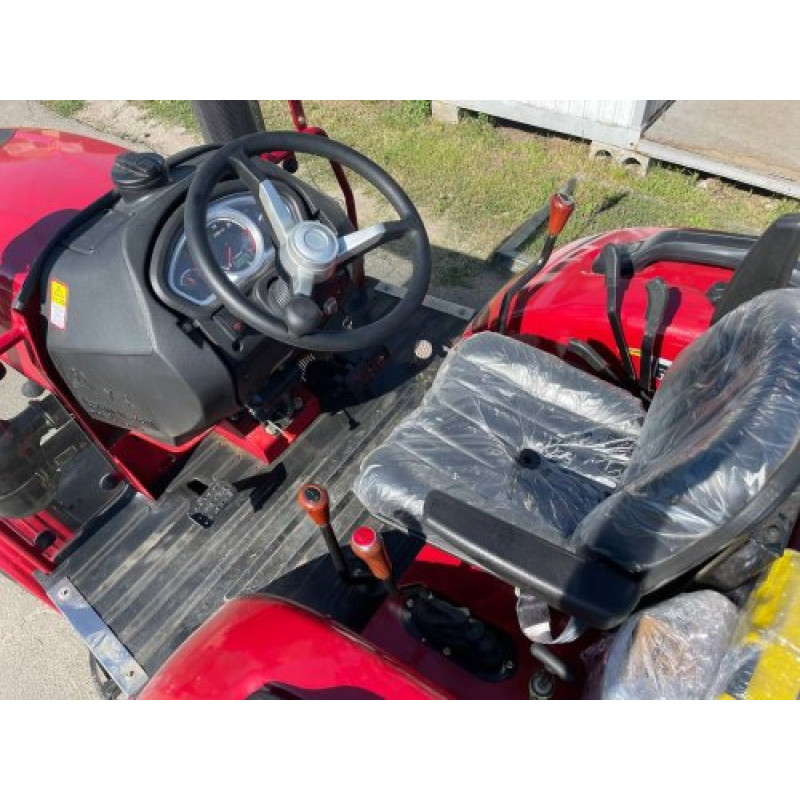

• Modern optics, comfortable seat, a pair of hydraulic outputs, electrical socket for trailer, spare parts kit, wheel fenders, rearview mirrors

Advantages of the model

• Powerful 50 hp unit, ensuring high productivity in the field and on the farm
• Engine reliability: documentation includes Perkins and KM495BT engines (Laidong manufacturer)
• Maneuverability: minimum turning radius from 4.0–4.2 m, all-wheel drive, and reversible mechanical gearbox (16 gears)
• Extended warranty and service: official support, warranty for repairs and components (e.g., 24 months according to store data)

Additional information from the manufacturer and seller

Chinese manufacturer DW has rebranded and produces equipment under the KENTAVR brand. The KENTAVR 504F model is positioned as a budget-friendly 50 hp mini tractor with a reversible mechanical gearbox (16 gears) and a reliable chassis. Flash Army online store is an official representative of KENTAVR in Ukraine: delivery across Ukraine, cash and cashless payment, credit or installment options are available.

Technical specifications

Equipment and options

• Reversible mechanical gearbox with 16 gears
• Two hydraulic pumps, two hydraulic outputs, three-point hitch
• Additional attachments: front loader, plow, tiller, cultivator, mower, snow removal attachments, and more

Order and warranty

You can order the KENTAVR 504F in the Flash Army online store: cash and cashless payment, credit or installment options available. Delivery across Ukraine according to store terms. Warranty for equipment and components — according to the terms of the manufacturer and official representative.

ATTENTION: the source data contains various technical designations and values (e.g., two engine options, two fuel tank capacities, different ground clearance and lifting capacity values). All listed options are included in the description for maximum information; for final equipment and specifications, we recommend clarifying details with the manager before purchase.
