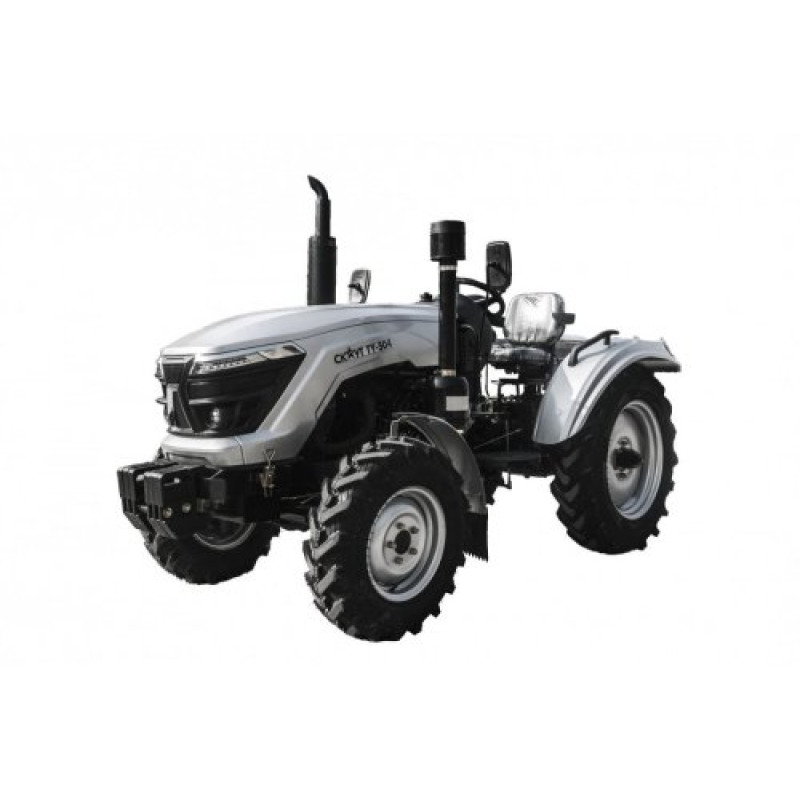

Mini Tractor Scout TY-504 is a reliable and powerful mini tractor from the Scout brand, belonging to the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. This machine combines economy, durability, and ease of maintenance, making it an excellent choice for farms, private homesteads, and utility services.
Description and Purpose
The Mini Tractor Scout TY-504 is equipped with a powerful KM495BT 4-stroke diesel engine and is designed for intensive work in the field, on pasture, or in communal farming. The declared engine power is 50 hp (33.1 kW), displacement is 3170 cm3; starting system is an electric starter, cooling system is liquid, closed with forced circulation, fan drive is a V-belt transmission. Thanks to its 4x4 all-wheel drive, the tractor demonstrates high cross-country capability and stability on difficult terrains, allowing it to effectively perform a wide range of agricultural and utility tasks.
Key Operating Capabilities
- Plowing and soil preparation for sowing;
- Sowing and harvesting of agricultural crops;
- Mowing and haymaking;
- Cargo transportation and trailer operation;
- Aggregating with various mounted and trailed equipment (plows, cultivators, mowers, seeders, etc.).
Advantages of the Model
- High power – 50 hp, ensuring efficient operation with mounted equipment;
- 4x4 all-wheel drive for enhanced cross-country capability and maneuverability;
- Reliable KM495BT 4-stroke diesel engine with electric starter;
- Robust mechanical transmission and easy-to-maintain design;
- Comfort and ease of control, enabling long hours of operation without operator fatigue;
- Rear differential lock capability and a compressor for additional service needs.
Technical Specifications
Below are the technical parameters of the Mini Tractor Scout TY-504, which allow evaluating its operational capabilities and compatibility with mounted equipment:
| Engine power, hp (kW) | 50 (33.1) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, KM495BT |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 3170 |
| Nominal engine fuel consumption, g/kW*h | ≤242 |
| Nominal traction force, kN | 13.5 |
| Gearbox (КП) | (4+1)х2 |
| Rear differential lock | + |
| Clutch | dry 1-disc constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, brake drums |
| Power Take-Off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump (НШ) for hitch drive / НШ for power steering operation |
| Hitch lifting capacity | 650 kg |
| Power Take-Off (PTO) speed, rpm | 540 / 1000 |
| Wheel track | front 1200-1500, rear 1200-1500 |
| Tire size | front 7.50-16, rear 11.2-24 |
| Ground clearance, mm | 290 |
| Number of hydraulic outlets | 1 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LхWхH, mm | 3450х1650х1770 |
| Curb weight, kg | 1590 |
These technical specifications confirm the balanced performance of the Scout TY-504 in terms of power, economy, and versatility. The presence of a rear PTO with two speed modes (540/1000 rpm), hydraulic lift with a lifting capacity of 650 kg, gear pumps, and the ability to lock the rear differential ensures compatibility with a wide range of mounted and trailed equipment, allowing it to perform tasks from pre-sowing preparation to harvesting and transportation.
The Mini Tractor Scout TY-504 is an optimal choice for those seeking a robust, easy-to-operate, and multifunctional machine for work in the field, on the farm, or in communal farming. High traction (nominal traction force 13.5 kN), the presence of a compressor, and a trailer socket enhance the versatility of this model.
