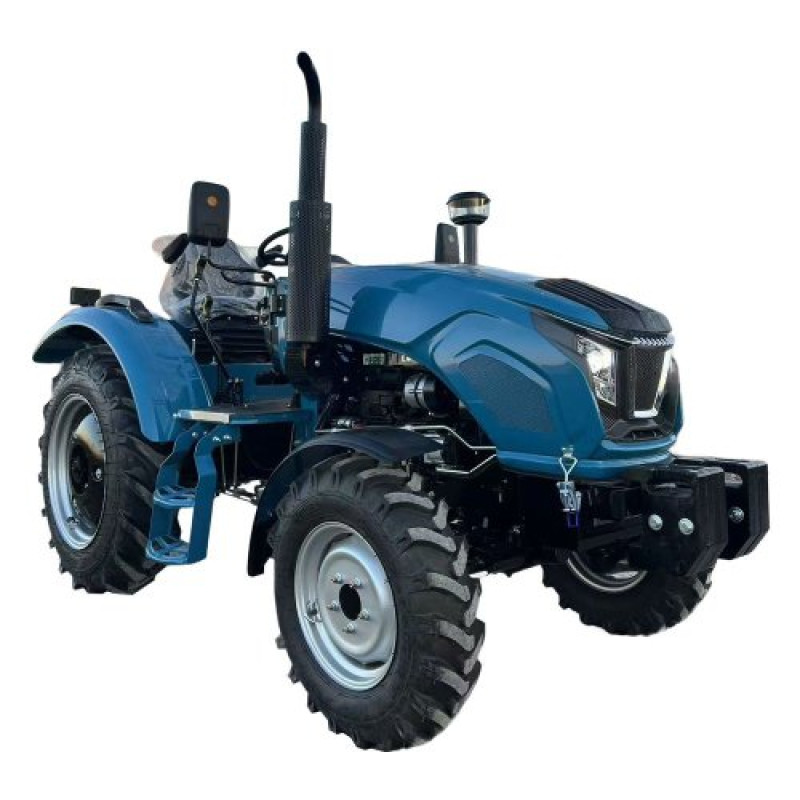

The HORST G244U mini tractor from manufacturer HORST is a reliable, compact mini tractor for agricultural, municipal, and private farm work. The HORST G244U model is equipped with an economical 24 hp (17.65 kW) diesel engine, 4x4 all-wheel drive, and a well-thought-out configuration, making it a versatile solution in the Tractors > Mini Tractors category.
Specifications:
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1530 |
| Cylinder diameter / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kW*h | ≤275 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 7.2 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kW*h | 2.31 |
| Gearbox (transmission) | (4+1)x2 |
| Gearbox and rear axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Front axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Rear differential lock | + |
| Clutch | dry, single-disc, constantly closed type |
| Main drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, drum brakes |
| Power take-off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump |
| Power take-off (PTO) speed, rpm | 540 / 1000 |
| Maximum lifting capacity of hitch mechanism, kg | 420 |
| Minimum ground clearance, mm | 350 |
| Wheelbase, mm | 1650 |
| Wheel track, mm | front 1150, rear 1200 |
| Tire size | front 7.50-16, rear 9.50-24 |
| Fuel tank capacity, L | 48 |
| Engine crankcase capacity, L | 4.5 |
| Gearbox and rear axle crankcase capacity, L | 14.0 |
| Front axle crankcase capacity, L | 3.0 |
| Engine cooling system capacity, L | 6.0 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Power steering | + |
| Overall dimensions (L x W x H), mm | 3400x1500x1680 |
| Curb weight, kg | 1350 |
Description and Advantages
The HORST G244U is equipped with a three-cylinder diesel engine with a displacement of 1530 cm3, a cylinder diameter of 85 mm, and a piston stroke of 90 mm, ensuring sufficient traction and durability in operation. The nominal fuel consumption does not exceed ≤275 g/kW*h, and oil consumption is 2.31 g/kW*h, making operation economical. The cooling system is liquid, closed, with forced circulation, and the fan is driven by a V-belt.
The reliable transmission with a (4+1)x2 gearbox, mechanical steering, and direct main drive ensures simple and efficient control. The clutch is a dry, single-disc, constantly closed type. The presence of a rear differential lock and 4x4 all-wheel drive significantly increases off-road capability on difficult terrain.
Key Technical Highlights
- 24 hp (17.65 kW) power — optimal for small and medium-sized plots;
- 4x4 all-wheel drive and rear differential lock for enhanced off-road capability;
- Electric starter for quick and convenient engine start;
- Power steering and 2 hydraulic outlets for working with attachments;
- Rear splined PTO at 540/1000 rpm — compatibility with a wide range of attachments;
- Maximum lifting capacity of hitch mechanism 420 kg — suitable for medium-class cultivators, plows, mowers;
- Brakes on rear wheels (drum) for reliable braking;
- Compact dimensions 3400x1500x1680 mm, ground clearance 350 mm, and curb weight 1350 kg — ease of maneuvering and stability on terrain;
- Convenient 48 L fuel tank capacity for long operation without frequent refueling;
- Trailer connectors and quality lubrication recommendations for the engine, gearbox, and axles ensure long service life.
The HORST G244U is an optimal solution for farmers, gardeners, municipal services, and private farms that need a robust, easy-to-maintain mini tractor with all-wheel drive and extensive attachment connection capabilities. Manufacturer: HORST. Category: Tractors > Mini Tractors.
