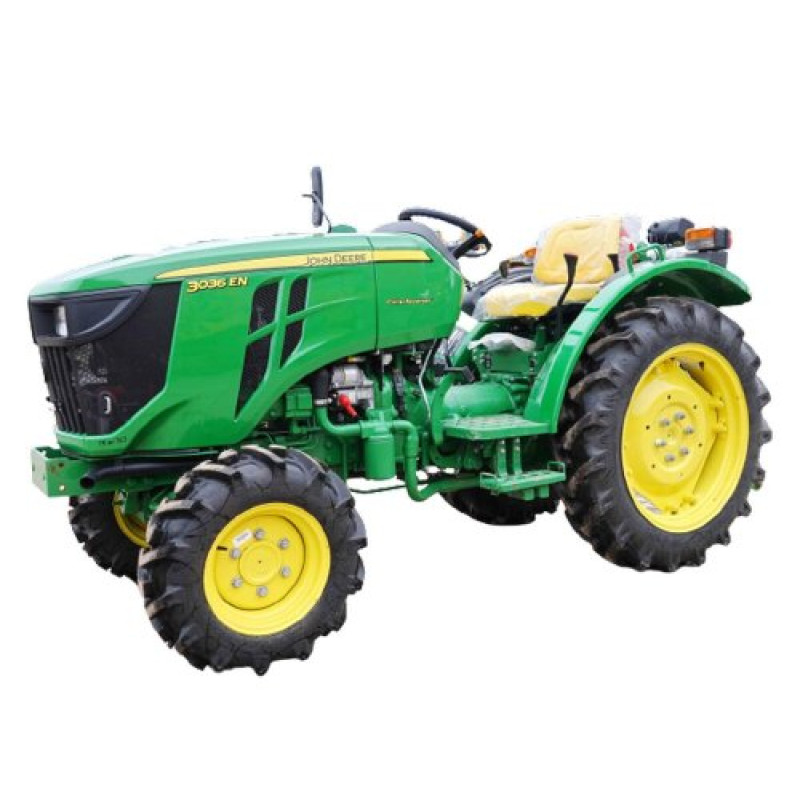

Mini Tractor John Deere 3036EN
The John Deere 3036EN mini tractor is a reliable and versatile machine from the renowned John Deere brand, designed for private farms, agricultural work, and municipal services. This compact yet powerful tractor combines convenient maneuverability with high productivity, allowing it to perform a wide range of tasks: soil cultivation, haymaking, cleaning, transportation, and working with various mounted and trailed equipment. Category: Mini Tractors.
Technical Specifications (Summary):
| Tractor power, hp (kW) | 36 (26.4) |
| Wheel formula | 4x4 |
| Engine type | vertical, 3-cylinder 4-stroke diesel |
| Engine displacement, cm3 | 1500 |
| Cylinder diameter / piston stroke | 84x90 |
| Fuel pump type | plunger, in-line |
| Nominal crankshaft speed | engine, rpm 2100 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Transmission (gearbox) | (4+1)x2 |
| Oil type in transmission, rear axle | transmission fluid |
| Oil type in front axle | transmission fluid |
| Rear differential lock | + |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 615 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1870 |
| Tire size | rear 8.3-24.0, front 6.0-16.00 |
| Minimum turning radius, m | with one-sided brake 2.8, without brake 3.1 |
| Fuel tank capacity, L | 32 |
| Overall dimensions (LxWxH), mm | 2950x1100x1350 |
| Curb weight, kg | 1070 |
Engine: A vertical 3-cylinder diesel engine with a displacement of 1500 cm3 and a cylinder diameter and piston stroke of 84x90 mm provides a nominal power of 36 hp (26.4 kW) at 2100 rpm. The fuel pump is an in-line plunger type. To extend engine life, it is recommended to use mineral or semi-synthetic oil for diesel engines.
Transmission and chassis: The (4+1)x2 gearbox allows changing modes for field and transport work; the front and rear axles are filled with transmission fluid. The presence of a rear differential lock increases off-road capability. The clutch is dry single-disc, and the brakes are drum type. The 4x4 wheel formula combined with front 6.0-16.0 and rear 8.3-24.0 tires ensures stability and confident movement on various terrains.
- Power steering with a separate pump and oil reservoir for comfortable control.
- Hydraulic system with a gear pump, lifting capacity of the mounted mechanism up to 615 kg.
- PTO operates at 540 rpm — compatible with standard mounted equipment.
- Minimum ground clearance of 300 mm allows working on uneven terrain.
- Fuel tank capacity of 32 L ensures long autonomous operation in the field.
Maneuverability and dimensions: Wheelbase 1870 mm, minimum turning radius 2.8 m with one-sided brake and 3.1 m without it. Overall tractor dimensions are 2950x1100x1350 mm, curb weight is 1070 kg, making the John Deere 3036EN convenient for working in confined spaces and transportation.
Additional advantages: Fan drive is a V-belt transmission, simplifying maintenance; reliable design and high-quality components from John Deere guarantee durability and efficiency in use. The mini tractor is suitable for multifunctional application with various mounted and trailed equipment.
A complete list of technical parameters is provided in the table above — from engine and transmission to hydraulics and dimensions, allowing you to assess the machine's capabilities for your farm.
