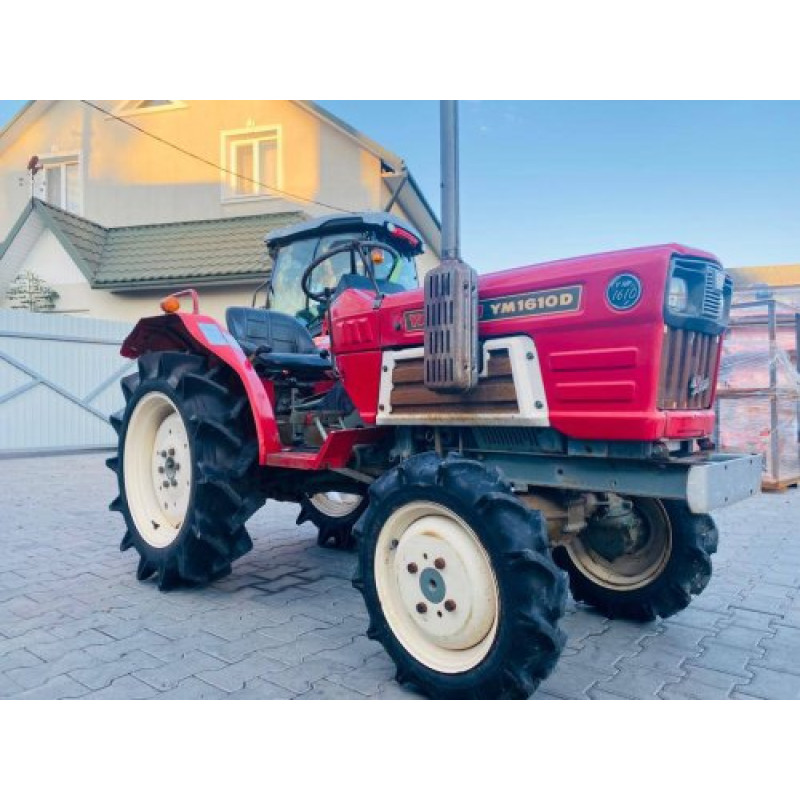

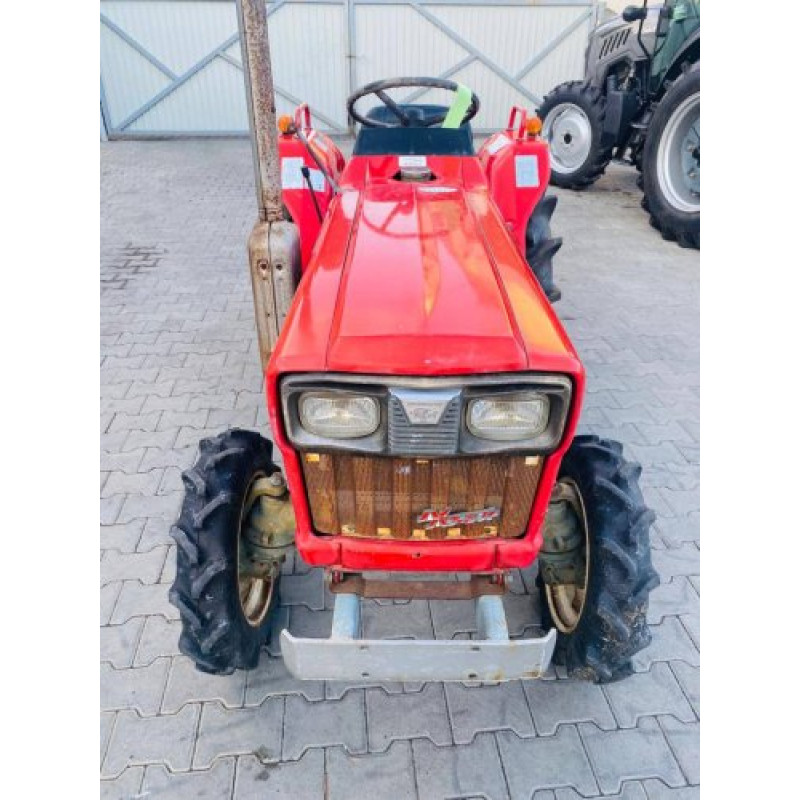

Yanmar YM 1610 Mini Tractor — A Reliable Compact Assistant
Brand: Yanmar. The Yanmar YM 1610 mini tractor combines Japanese reliability with compact dimensions, making it an ideal choice for small farms, gardens, orchards, and municipal work. This model is designed for users who value maneuverability, economy, and functionality in a compact package.
Brief Information
Model: Yanmar YM 1610. Type: Mini Tractors (Tractors > Mini Tractors). Engine: Diesel, 3 cylinders, 16 hp. Fuel tank capacity — 13 L for extended operation without frequent refueling. Transmission: 9+3, providing a wide range of speeds for field, transport, and special tasks.
Technical Specifications
| Engine power, hp: | 16 |
| Wheel formula: | 4x2 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Tank capacity, L: | 13 |
| Transmission: | 9+3 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum brake |
| Overall length, mm: | 2610 |
| Overall width, mm: | 1110 |
| Overall height, mm: | 1750 |
| Front wheel size: | 4.0-12 |
| Rear wheel size: | 8.3-22 |
| Minimum turning radius, m: | 1.7 |
| Lifting capacity of the lifting mechanism, kg: | 300 |
| PTO speed, rpm: | 540 |
| Weight, kg: | 679 |
The table above contains a complete list of factory parameters for the Yanmar YM 1610 model. The mechanical differential lock on the rear axle improves проходимость on difficult terrain, while drum brakes ensure reliable braking when working with trailed or mounted equipment.
Practical Application and Advantages
The Yanmar YM 1610 is suitable for cultivating small fields, gardens, and orchards, for park maintenance, work on private farms, and municipal service tasks. Compact dimensions (2610 mm length, 1110 mm width, 1750 mm height) along with a minimum turning radius of 1.7 m ensure high maneuverability in narrow passages.
- 16 hp power — sufficient for cultivation, plowing, mowing, and transporting small loads.
- Diesel 3-cylinder engine — economical and durable.
- 9+3 transmission provides flexible speeds for various tasks.
- 540 rpm PTO allows connection of standard mounted implements.
- 300 kg lifting capacity allows the use of various mounted equipment.
A weight of 679 kg provides good stability and reliable support when working with mounted or trailed equipment. Wheel sizes of 4.0-12 at the front and 8.3-22 at the rear ensure the necessary traction and проходимость during field work.
Conclusion
The Yanmar YM 1610 mini tractor is a functional and economical solution for those who need maneuverability, reliability, and ease of maintenance. The combination of a diesel three-cylinder engine, 9+3 transmission, mechanical differential lock, and a set of technical parameters makes this model attractive for a wide range of farm tasks.
