Jinma JMT 404 CN Mini Tractor — A Powerful All-Rounder for Your Farm

Model: Jinma JMT 404 CN. Manufacturer: Jinma (in partnership with Mahindra Yueda Tractor Company). Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. This mini tractor combines proven technical solutions and an affordable price, making it an ideal choice for agricultural, municipal, and construction work. Thanks to direct factory deliveries, Flash Army offers the model in stock in limited quantities with favorable purchasing conditions.

Brief Overview and Key Advantages

The Jinma JMT 404 CN is equipped with a vertical four-cylinder four-stroke diesel engine with pre-chamber injection and forced water cooling. Nominal power is 40 hp (29.4 kW), displacement 2545 cm3, bore/stroke 90/100 mm. Starting is provided by an electric starter with a safe start system. The 4×4 all-wheel drive, combined with large chevron-tread tires, provides excellent traction on wet soil and off-road.

Mechanics and Operational Characteristics

The transmission is multi-mode: 16 forward and 4 reverse gears, allowing optimal speed selection for various types of work — from soil cultivation to cargo transportation. The rear PTO is two-speed: 540/1000 rpm. The clutch is dry, dual-disc. The maximum lifting force of the hitch mechanism is 6.7 kN, and the traction force is 8.8 kN. A differential lock is available for difficult working conditions.

Operator Comfort and Safety

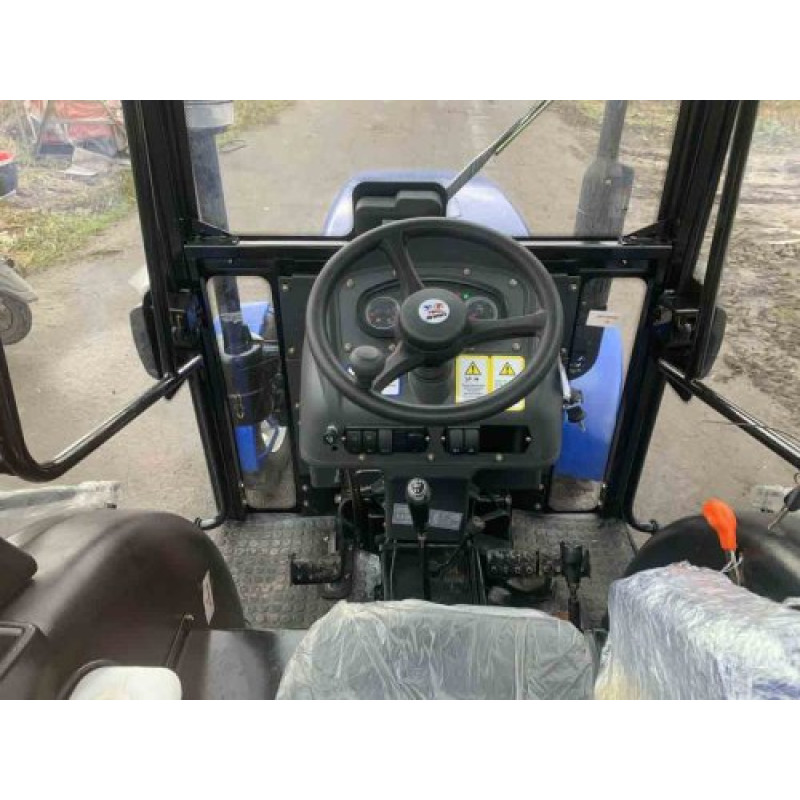

The glass cabin provides protection from dust and sand and offers 360° visibility. Power steering reduces physical strain and facilitates maneuvering; the minimum turning radius with brake on one wheel is 3.4 m, without brake is 4.2 m. The design emphasizes ergonomics and component reliability.

Technical Advantages and Consumption

• Pump type: plunger, inline; fan drive — V-belt transmission.
• Main drive: pair of bevel gears.
• Fuel consumption: 250 g/kWh; oil consumption: 2.72 g/kWh.
• Tractor frame: frameless.

Dimensions and weight: length × width × height — 3350×1500×2230 mm, weight — 1665 kg. Wheelbase — 1860 mm, ground clearance — 300 mm. Forward speed: 1.75-26.4 km/h; reverse: 2.28-11.02 km/h. Rear wheel track options: 1090 mm or 1350 mm, front — 1260 mm.

Lubricant types: in gearbox and axles — mineral oil for diesel engines; in engine — mineral or semi-synthetic for diesel engines. Technical fluid volumes: tank — 28 L, engine crankcase — 7 L, gearbox and rear/front axle crankcase — 14/6 L, lift housing — 9 L, engine cooling system — 7.2 L.

For convenient review of all technical parameters, a table with a complete list of characteristics is provided below.

How to order? The Jinma JMT 404 CN model is available in limited quantities at Flash Army store, delivery across Ukraine is free, and receipt time is up to two days after placing the order. Purchasing the Jinma JMT 404 CN mini tractor is a profitable investment for a farm or municipal enterprise, which quickly pays for itself with proper operation.
