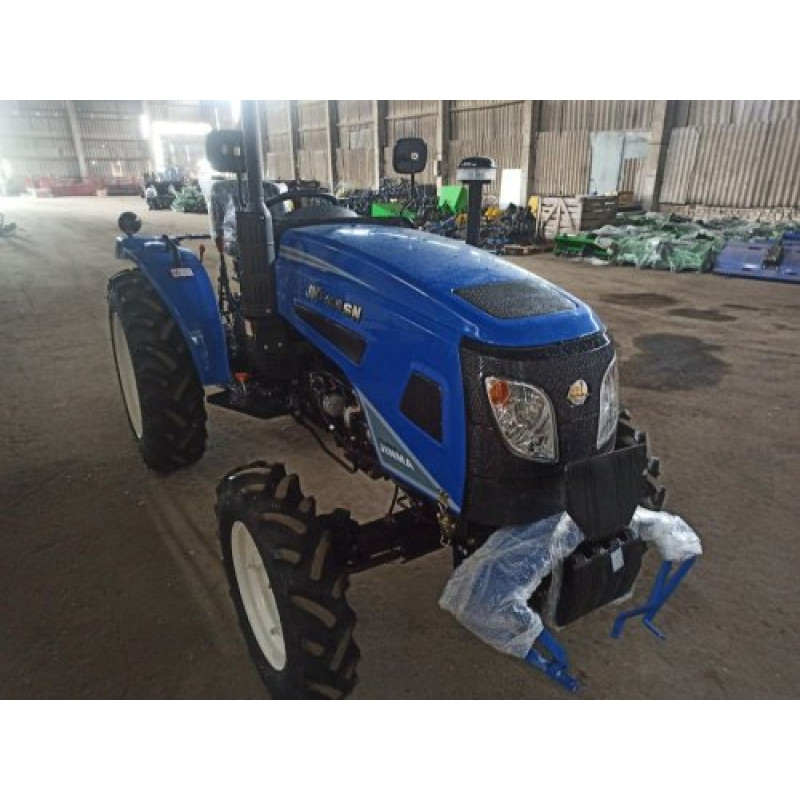

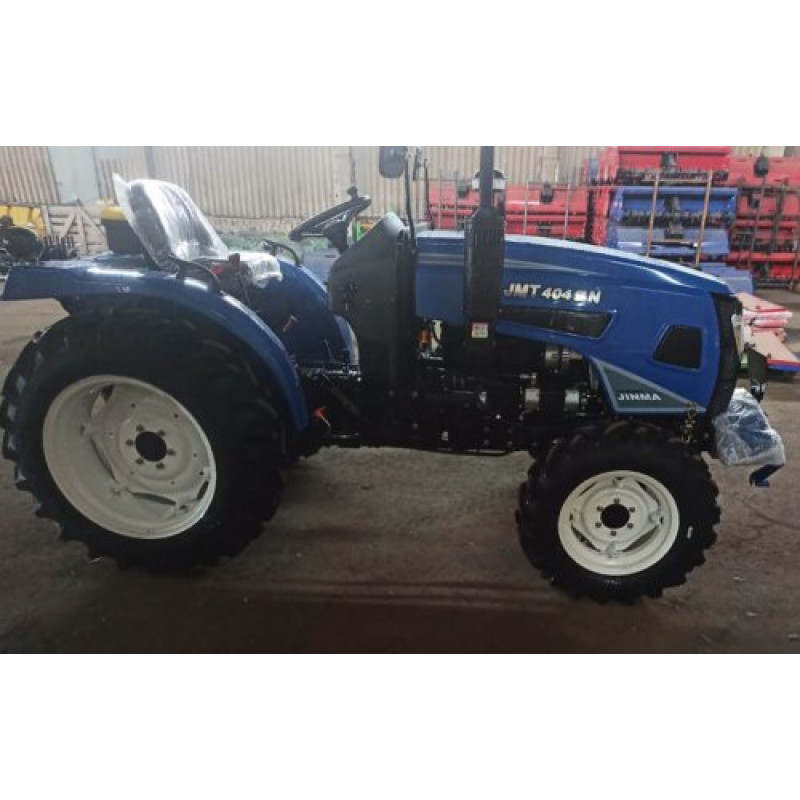

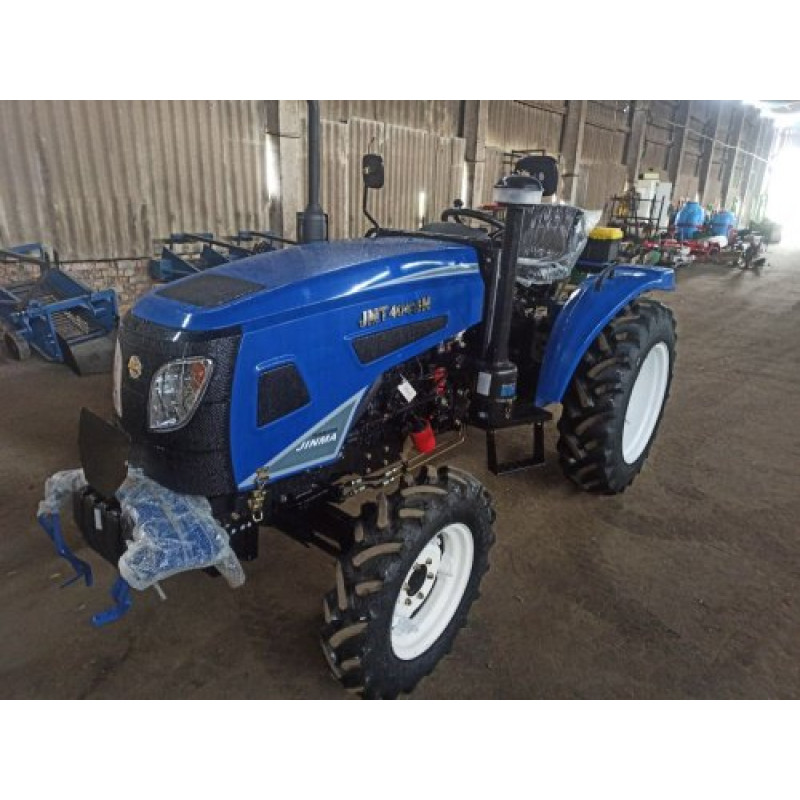

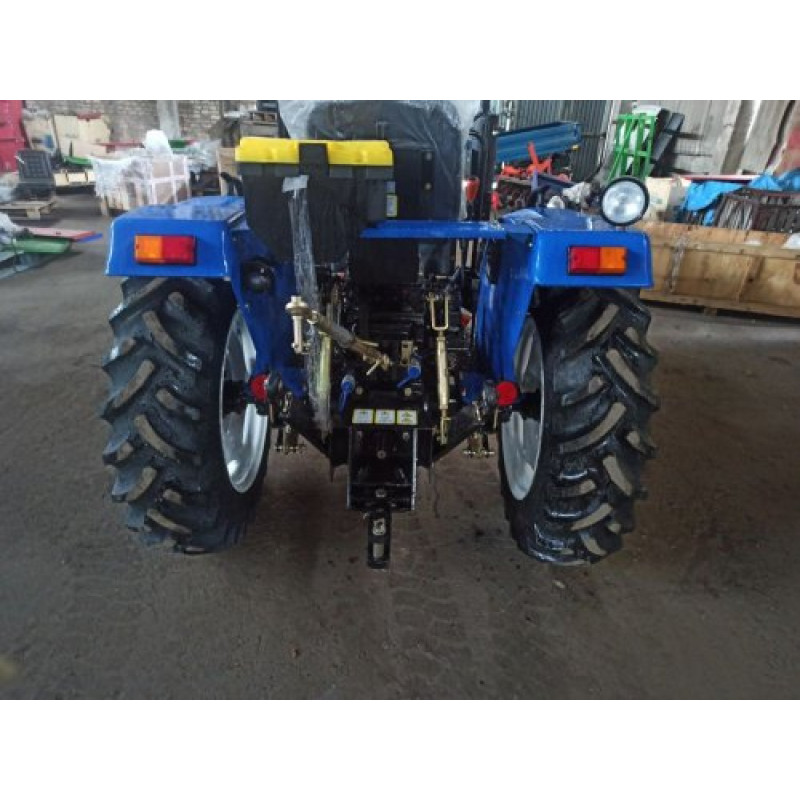

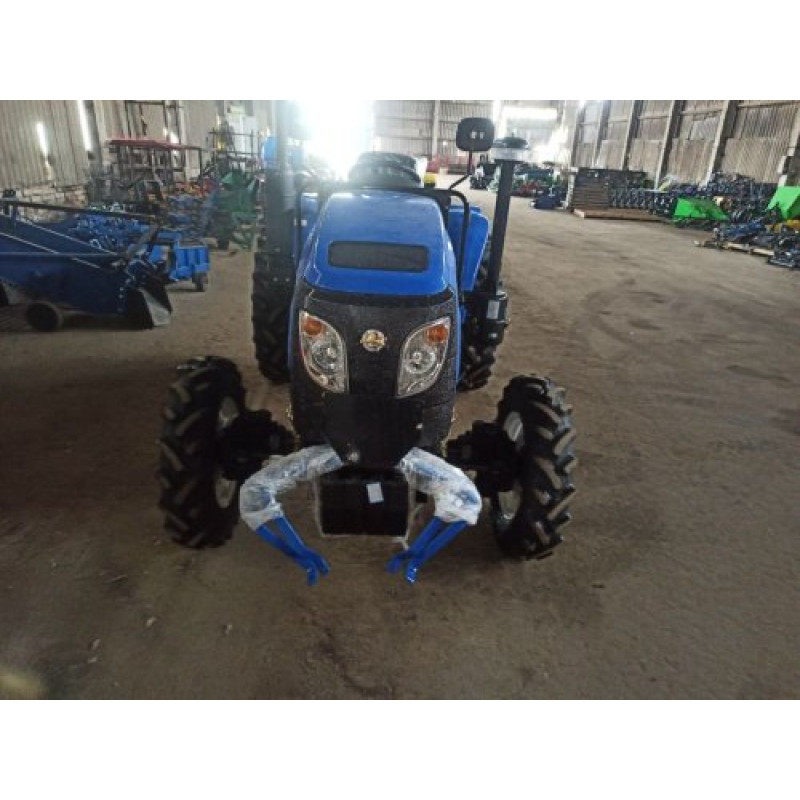

Mini Tractor Jinma JMT 404 SN is a reliable and multifunctional machine from the manufacturer Jinma, designed for private farms, agricultural work, and commercial use. The model combines a powerful four-cylinder diesel engine, 4×4 all-wheel drive, and a range of technical solutions that ensure high productivity in the field and on the homestead plot. The product belongs to the category: Tractors > Mini Tractors.
The Jinma JMT 404 SN is equipped with a vertical four-cylinder, four-stroke diesel engine with water cooling and pre-chamber injection. The nominal power is 40 hp (29.4 kW), and the engine displacement is 2543 cm3. The engine has 4 cylinders, a bore/stroke of 90/100 mm, and a crankshaft speed of 2200 rpm. Starting is performed by an electric starter with safe start, and the cooling system is driven by a V-belt fan drive.
Specifications:
| Engine type | vertical four-cylinder four-stroke diesel with water cooling, pre-chamber injection |
| Wheel formula | 4×4 (all-wheel drive) |
| Power steering | + |
| Engine power | 40 hp / 29.4 kW |
| Displacement, cm3 | 2543 |
| Bore / stroke | 90/100 |
| Number of cylinders | 4 |
| Pump type | plunger, inline |
| Crankshaft speed | 2200 rpm |
| Lockable differential | + |
| Engine start | electric starter with safe start |
| Cooling system fan drive | V-belt drive |
| Transmission | (16+4) |
| Main drive | pair of bevel gears |
| Rear axle differential | four-satellite, conical, closed type, with lock |
| Front axle differential | conical, satellite, self-locking |
| Minimum turning radius with brake on one wheel / without brake | 3.4/4.2 m |
| Fuel tank capacity | 28 L |
| Engine crankcase volume | 7 L |
| Transmission and rear / front axle crankcase volume | 14/6.6 L |
| Lift housing volume | 10 L |
| Engine cooling system volume | 9 L |
| Oil type in transmission, rear / front axle | mineral for diesel engines |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Wheelbase | 1910 mm |
| Track width | front wheels - 1170; 1250; 1370 mm, rear wheels - 1230; 1310; 1370 mm. |
| Ground clearance | 300 mm |
| Clutch | dry, dual-disc |
| PTO | 540 rpm |
| Dimensions, length * width * height | 3350x1500x1940 mm |
| Weight | 1440 kg |
The set of technical characteristics confirms the versatility and reliability of the design: 4×4 all-wheel drive combined with a rear axle differential lock and a self-locking front differential increases cross-country ability on difficult terrain. Power steering makes driving less tiring during long work. The transmission with a set of gears (16+4) allows for precise selection of speed and traction characteristics for specific tasks.
Advantages and applications
- Versatility: suitable for plowing, cultivation, haymaking, transportation, and other agricultural work.
- Economical diesel engine with a robust design and the ability to use mineral or semi-synthetic oil.
- Reliable axle drives and conical main drive ensure long service life.
- Compact dimensions of 3350x1500x1940 mm and a weight of 1440 kg allow working in confined areas and simplify tractor transportation when needed.
The Jinma JMT 404 SN mini tractor is an optimal choice for those seeking a balance between power (40 hp), maneuverability, and reliability. For selecting attachments, technical consultations, and service maintenance, please contact official Jinma brand dealers.
