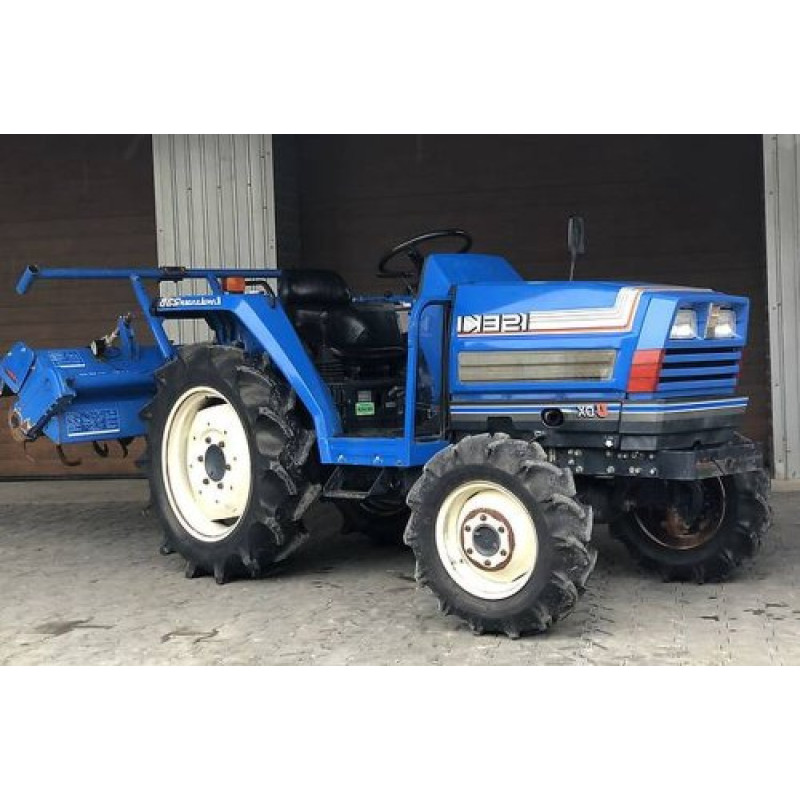

Mini Tractor Iseki TU 235
The Iseki TU 235 is a productive Japanese light-class mini tractor designed for multifunctional use on farms, in gardens, and for municipal services. Brand: Iseki. The TU 235 combines economy, reliability, and high cross-country capability thanks to its 3-cylinder diesel engine with a displacement of 1,498 cm3 and an output power of 23 hp (17 kW). The fuel tank capacity is 20 L, providing a sufficient operating range for various tasks.
Advantages and Purpose
The main advantage of the model is its hydraulic implement control system, which simplifies work on sloped areas. The TU 235 is adapted to difficult climatic conditions and is suitable for year-round operation in Ukraine. It is recommended to purchase from an official distributor to guarantee quality and transaction security.
Main Areas of Application
- hilling, plowing, loosening;
- sowing, harvesting, and crop removal;
- loading and unloading operations;
- snow and debris removal.
The gearbox is mechanical with a dual splitter: 5 forward and 5 reverse gears (designated as (4+1)x2 in the technical specification), providing a wide range of speeds and the ability to precisely select the operating mode. The minimum turning radius of 2.7 m ensures high maneuverability; "Quick turn" and "IQ-turn" systems are implemented for convenient work with implements on turns. The adjustable track width is 98 cm. For fuel economy, power can be transmitted only to the front wheels. The maximum travel speed is 23 km/h.
Technical and Operational Characteristics
The lifting capacity of the rear linkage is 650 kg, allowing the use of a wide range of mounted and trailed implements. The PTO has three speed modes: 540 / 830 / 1300 rpm, ensuring compatibility with various attachments. Differential lock is mechanical on the rear axle; brakes are drum type.
| Engine power, hp: | 23 |
| Wheel formula: | 4x4 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Engine displacement, cm3: | 1 498 |
| Fuel tank capacity, L: | 20 |
| Gearbox: | (4+1)x2, mechanical with dual splitter |
| Max. travel speed, km/h: | 23 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum |
| Overall length, mm: | 2900 |
| Overall width, mm: | 1200 |
| Overall height, mm: | 1900 |
| Front wheel size: | 6-14 |
| Rear wheel size: | 9.5-22 |
| Min. turning radius, m: | 2.7 |
| Lifting capacity of linkage, kg: | 650 |
| PTO speed, rpm: | 540/830/1300 |
| Weight, kg: | 890 |
Operator Comfort and Design Features
The cabin is designed with operator comfort in mind: a heater and air conditioner are installed, a wide glazing area provides almost 360° visibility, and sound-insulating cabin trim enhances comfort during long hours of work. Despite its compact dimensions of 2900x1200x1900 mm and a weight of about 890 kg, the tractor is easy to operate and simple to maintain.
Additional Functions and Implements
- universal three-point hitch;
- hydraulic cylinder for horizontal tilt;
- floating tiller with contour following and work memory;
- rotary tiller with a width of 1.5 m;
- tiller depth — 16 modes.
The Iseki TU 235 mini tractor is suitable for private farms, garden plots, and municipal work. The manufacturer conducts multi-stage quality control; warranty is 12 months, with a 14-day return option. Available payment options: credit, bank transfer, and cash. Purchasing from an official distributor guarantees a full machine inspection before handover to the buyer and service support.
The Iseki TU 235 mini tractor is an optimal choice for those seeking economical, reliable, and functional premium-class equipment ready for intensive field, garden, and municipal work.
