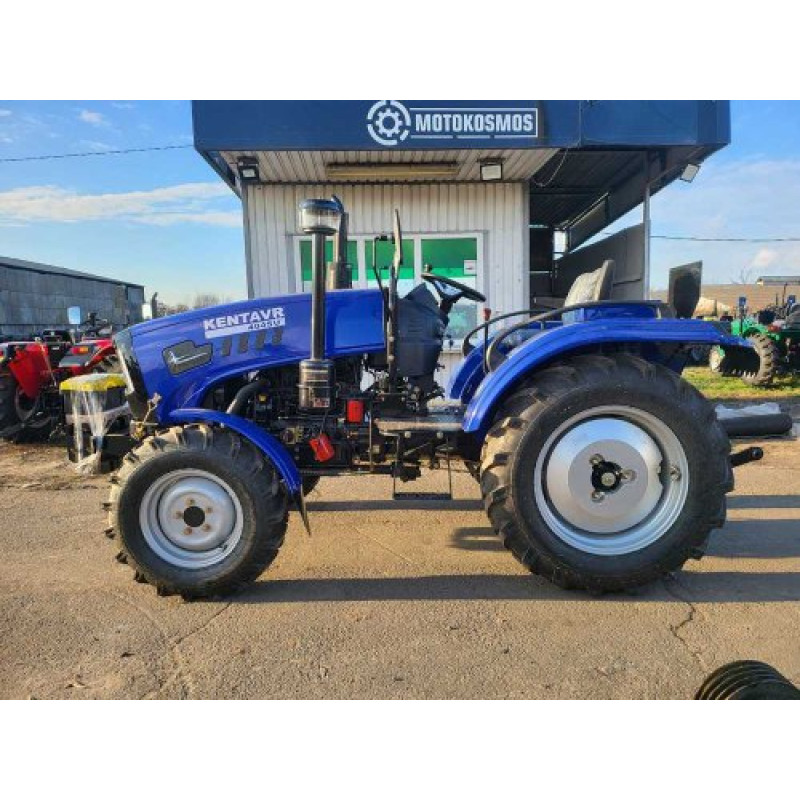

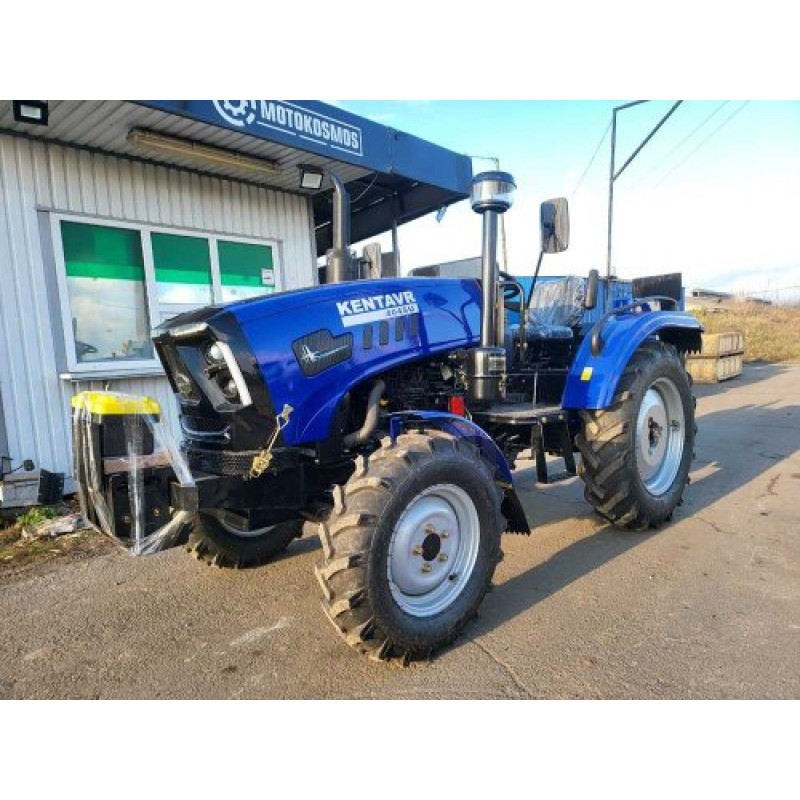

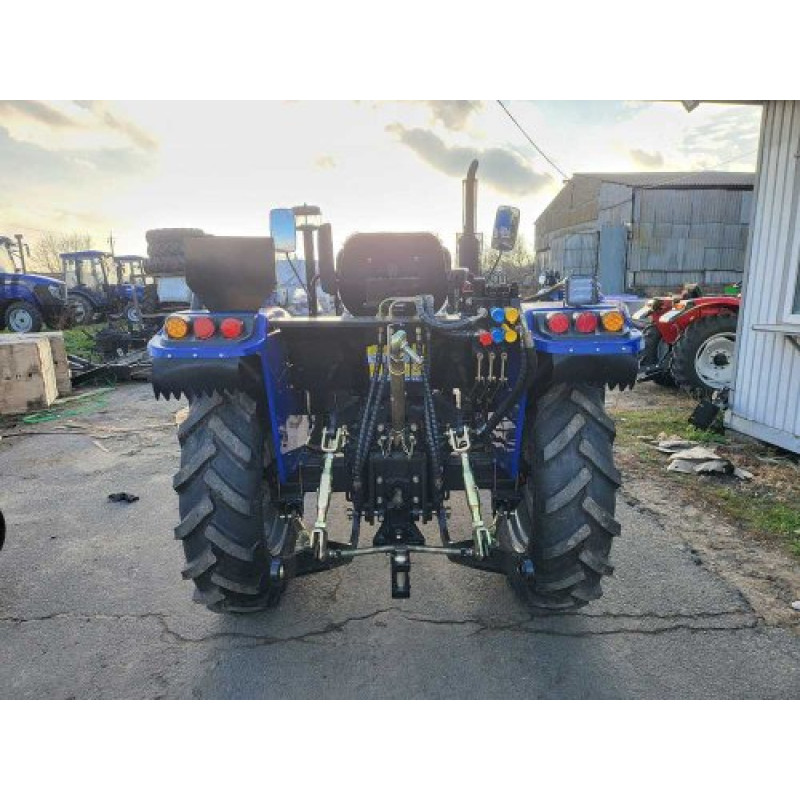

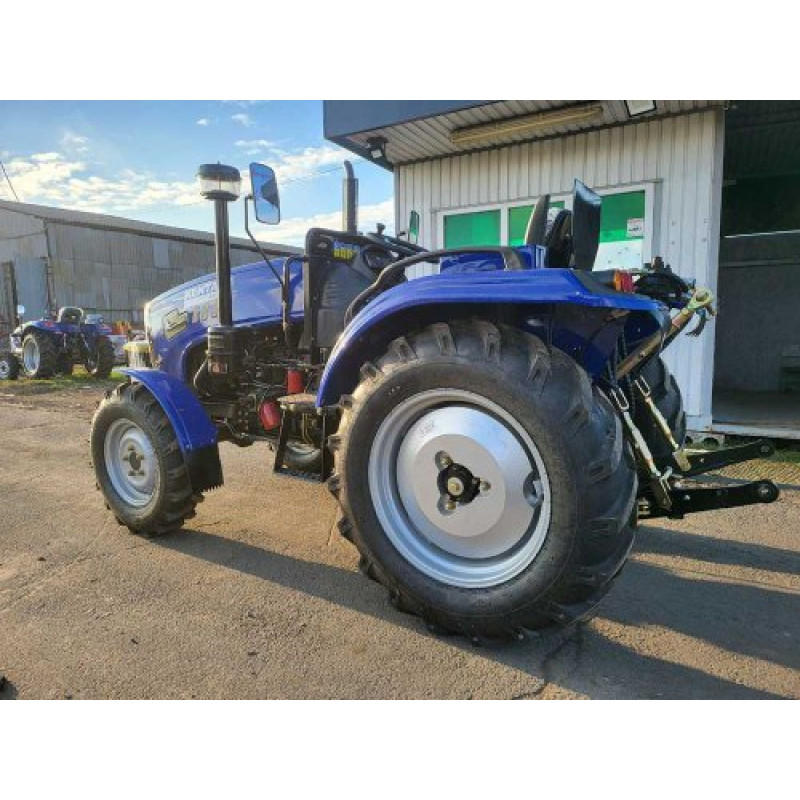

Mini Tractor KENTAVR 404 SU
The KENTAVR 404 SU mini tractor from the manufacturer KENTAVR is a powerful and durable unit designed for efficient work on private farms, agricultural plots, and in municipal services. The model features 4x4 all-wheel drive and a vertical 4-cylinder JDM490T3 diesel engine with a displacement of 2543 cm3, forced liquid cooling, and direct injection, providing a nominal power of 40 hp (29.3 kW). The reliable and economical operation of the engine is enhanced by an inline plunger fuel pump, with a nominal fuel consumption of ≤238 g/kWh at 2350 rpm.
Comfort and Control
The transmission is a (4+1)x2 gearbox, the clutch is dry single-disc, and steering is facilitated by power steering with a separate pump and oil reservoir. A drum mechanism provides reliable braking, and the cooling system fan is driven by a V-belt transmission. The power take-off (PTO) operates at 540/1000 rpm, making the tractor compatible with various mounted and trailed equipment.

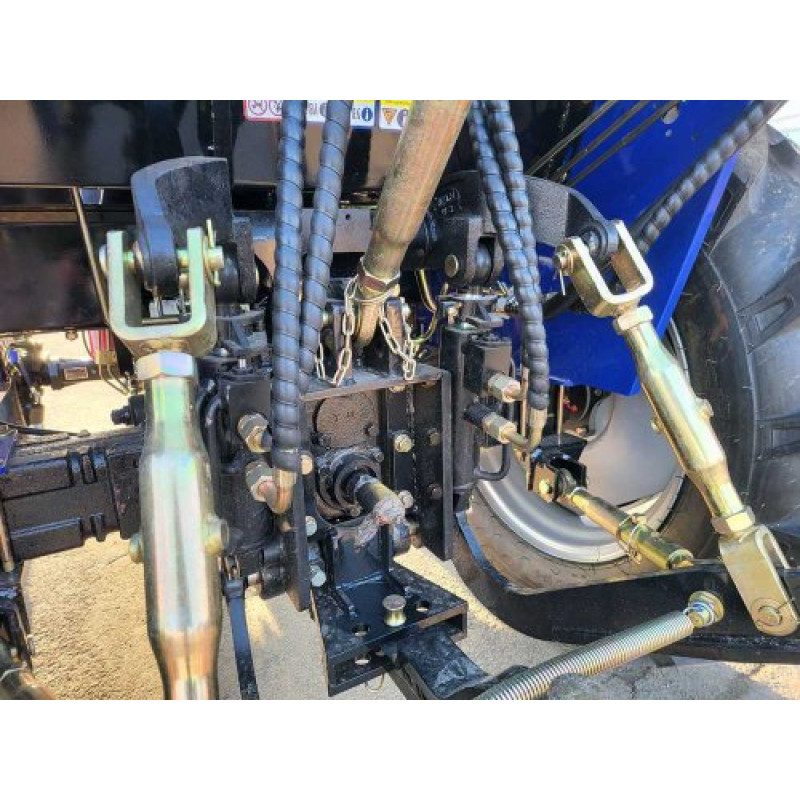

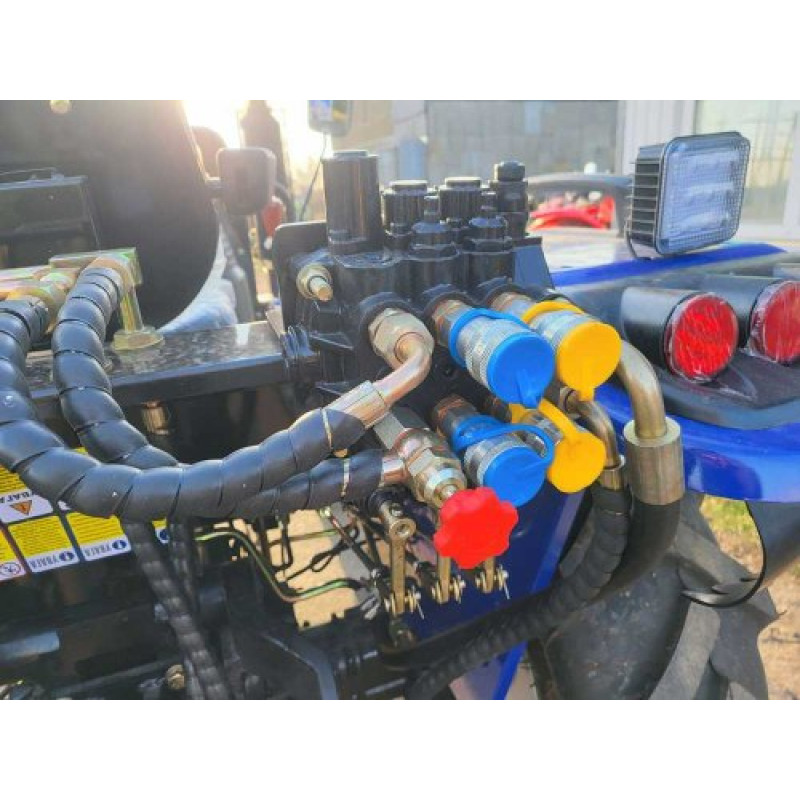

Hydraulics and Lifting Capacity
The integrated hydraulic system with a gear pump ensures stable operation of the mounted mechanism, which has a maximum lifting capacity of 550 kg. This allows the KENTAVR 404 SU to be effectively used with plows, cultivators, mowers, and other implements.
Dimensions and Operating Characteristics
The mini tractor has a minimum ground clearance of 310 mm, overall dimensions of 3540x1570x2050 mm, and an operating weight of 1440 kg, ensuring good cross-country capability and ease of transport and maneuvering on the site. The 35.0 L fuel tank guarantees long autonomous operation in the field.
Key Advantages:
- Powerful JDM490T3 40 hp (29.3 kW) diesel engine with direct injection;
- 4x4 all-wheel drive for working on challenging terrain;
- Reliable (4+1)x2 transmission and dry single-disc clutch;
- Power steering with a separate pump for easy control;
- Hydraulic system with gear pump and 550 kg lifting capacity for mounted mechanisms;
- PTO 540/1000 rpm – versatile for various mounted equipment.
Technical Specifications:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | JDM490T3 |
| Engine type | vertical, 4-cylinder 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder diameter / piston stroke | 90 x 1000 |
| Nominal fuel consumption, g/kWh | ≤238 |
| Fuel pump type | plunger, inline |
| Nominal engine crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | (4+1)x2 |
| Front axle oil type | transmission oil |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt transmission |
| Braking mechanism | drum type |
| PTO speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 550 |
| Minimum ground clearance, mm | 310 |
| Wheelbase, mm | 1820 |
| Wheel track, mm | front 1220, 1440; rear 1200, 1360, 1400 |
| Tire size | front 7.50-16.0; rear 11.2-24.0 |
| Minimum turning radius, m | with one-sided brake 4.15, without brake 4.45 |
| Theoretical travel speed, km/h | forward 0.39 - 31.97, reverse 0.51 - 12.76 |
| Fuel tank capacity, L | 35.0 |
| Engine crankcase volume, L | 6.0 |
| Gearbox, rear axle, and lift crankcase volume, L | 12.5 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3540x1570x2050 |
| Operating weight, kg | 1440 |
The KENTAVR 404 SU combines high power of 40 hp, a reliable JDM490T3 diesel engine, all-wheel drive, and a functional hydraulic system, making it an optimal choice for field cultivation, garden work, and general farming. Detailed specifications are presented in the table above.
