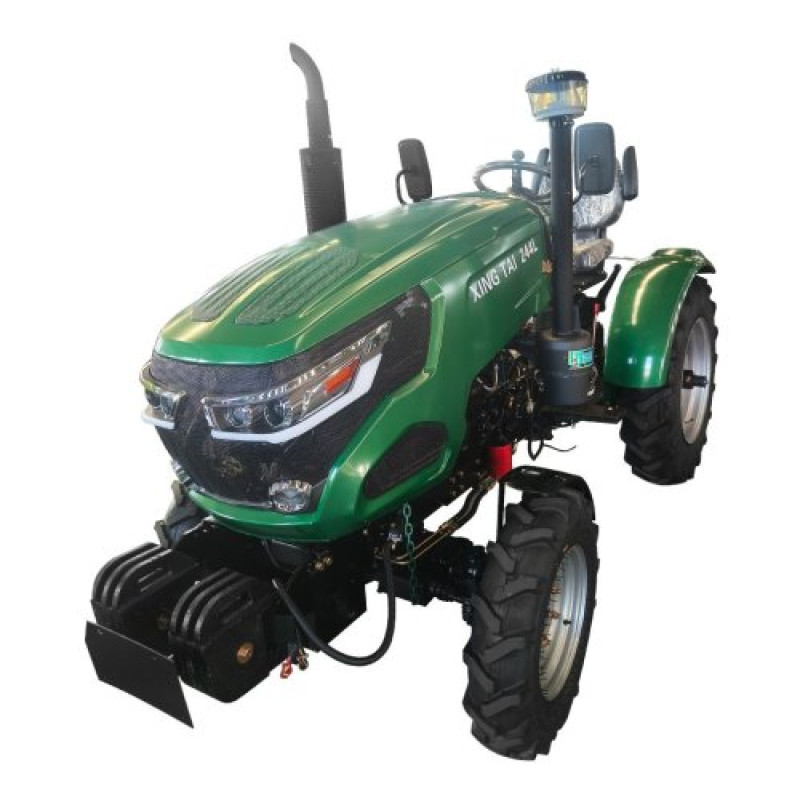

Xingtai 244L Mini Tractor
The Xingtai 244L model from the Xingtai brand is a compact and reliable 24 hp (17.6 kW) mini tractor designed for a wide range of tasks on homesteads, small farms, in gardens, and municipal utilities. The engine is a three-cylinder diesel, four-stroke, liquid-cooled unit that combines fuel efficiency with stable traction under various loads. The engine displacement is 1532 cm3, cylinder bore is 85 mm, piston stroke is 90 mm, and the engine's structural mass is 234 kg.
The tractor's design ensures excellent stability and maneuverability: a wheelbase of 1545 mm and overall dimensions of 2950x1250x1940 mm make it convenient for working in narrow passages and on uneven terrain. A ground clearance of 230 mm allows operations on uneven plots, while options for front wheel track (960, 1000 mm) and rear wheel track (1000, 1080, 1240 mm) enable adapting the machine to specific field or garden conditions.
The 4x4 drive guarantees high cross-country capability and traction. The transmission is a mechanical, non-synchronized gearbox with a (3+1)x2 gear configuration, allowing precise speed selection for sowing, cultivation, and transport operations. The clutch is a single-disc dry type. The power take-off (PTO) shaft operates at 540 rpm, ensuring compatibility with various attachments: mowers, plows, cultivators, and other agricultural implements.
Standard wheels: front 6.00x14, rear 9.50x20, which, combined with the tractor's specifications, provides reliable support and stability during work. Capacities meet daily operational needs: engine oil volume 6.5 L, engine cooling system volume 10 L, fuel tank volume 20 L.
The Xingtai 244L mini tractor is optimally suited for cultivating small fields, hilling and tilling, working in gardens and vineyards, clearing areas, and transporting goods within the farm. Its simple design and proven components make it easy to maintain and repair, which is important for private and commercial users.
Technical Specifications
| Engine type | Three-cylinder diesel, four-stroke, liquid-cooled |
| Engine displacement, cm3 | 1532 cm3 |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder bore | 85 mm |
| Piston stroke | 90 mm |
| Engine structural mass, kg | 234 kg |
| Wheelbase, mm | 1545 mm |
| Overall dimensions, mm | 2950x1250x1940 mm |
| Front wheel track, mm | 960, 1000 mm |
| Rear wheel track, mm | 1000, 1080, 1240 mm |
| Ground clearance, mm | 230 mm |
| Drive type | 4x4 |
| Gearbox type | Mechanical, non-synchronized |
| Number of gears (forward/reverse) | (3+1)x2 |
| Clutch | Single-disc dry |
| Power take-off (PTO) shaft, rpm | 540 |
| Front wheel size | 6.00x14 |
| Rear wheel size | 9.50x20 |
| Engine oil volume, L | 6.5 |
| Engine cooling system volume, L | 10 |
| Fuel tank volume, L | 20 |
Brand: Xingtai. Category: Tractors > Mini Tractors. The Xingtai 244L mini tractor is an optimal combination of power, cross-country capability, and compactness for farms where versatility and ease of operation are important. Thanks to its characteristics, it is suitable for a wide range of tasks and easily integrates with mounted and trailed equipment.
