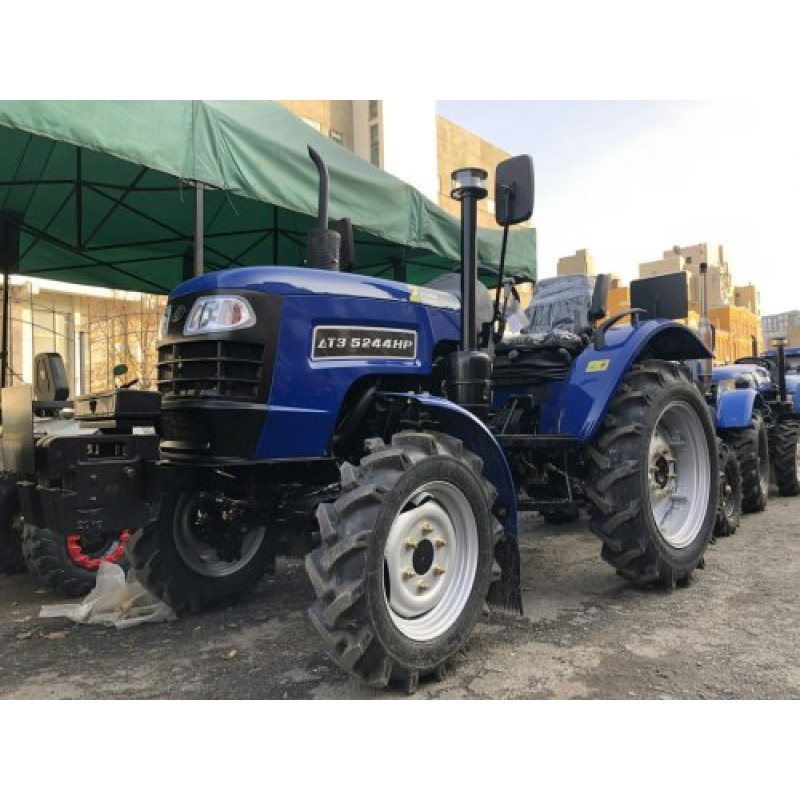

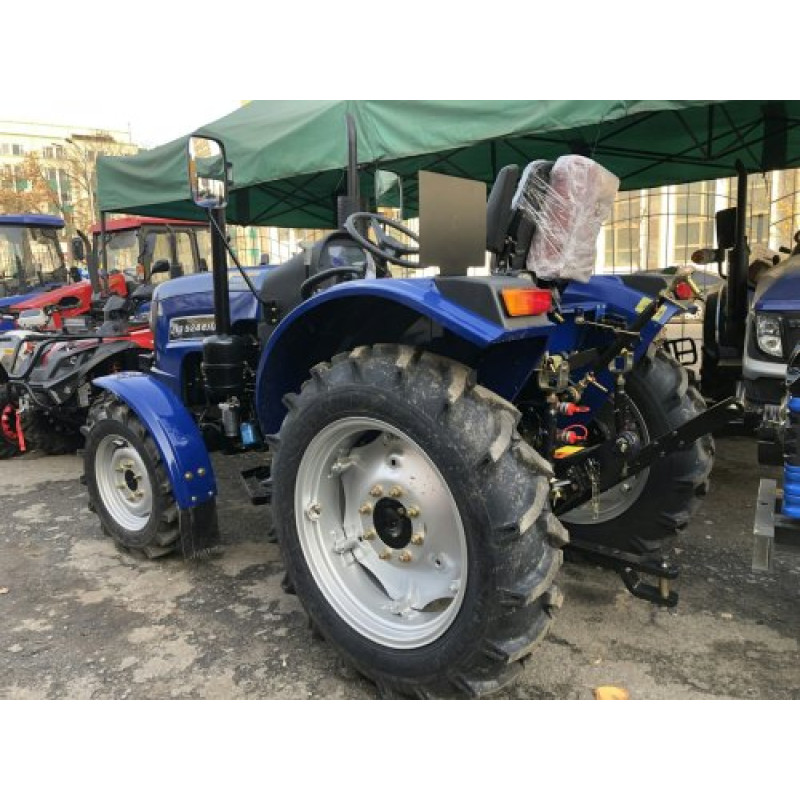

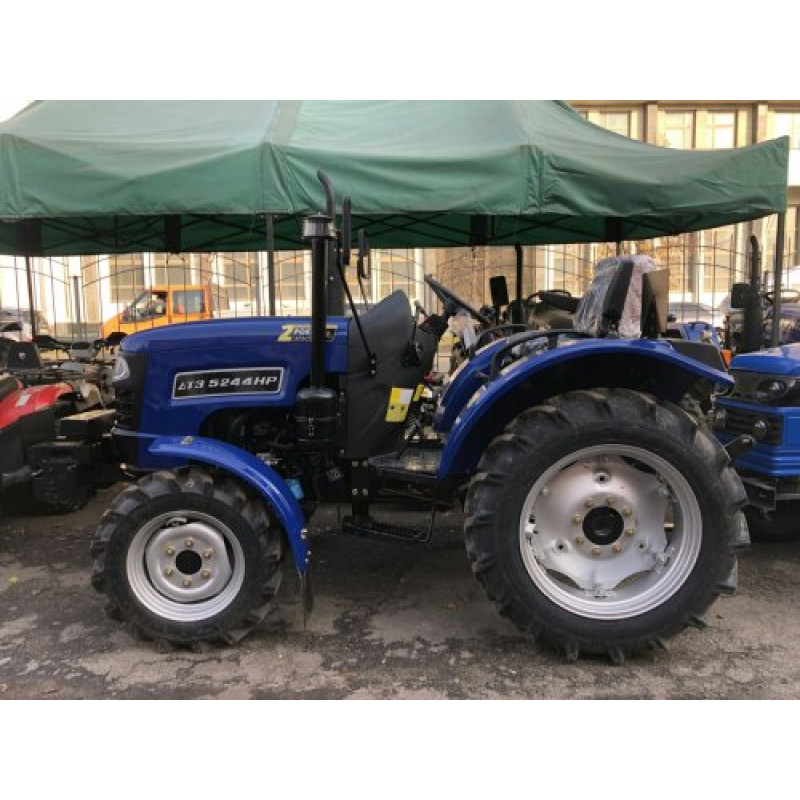

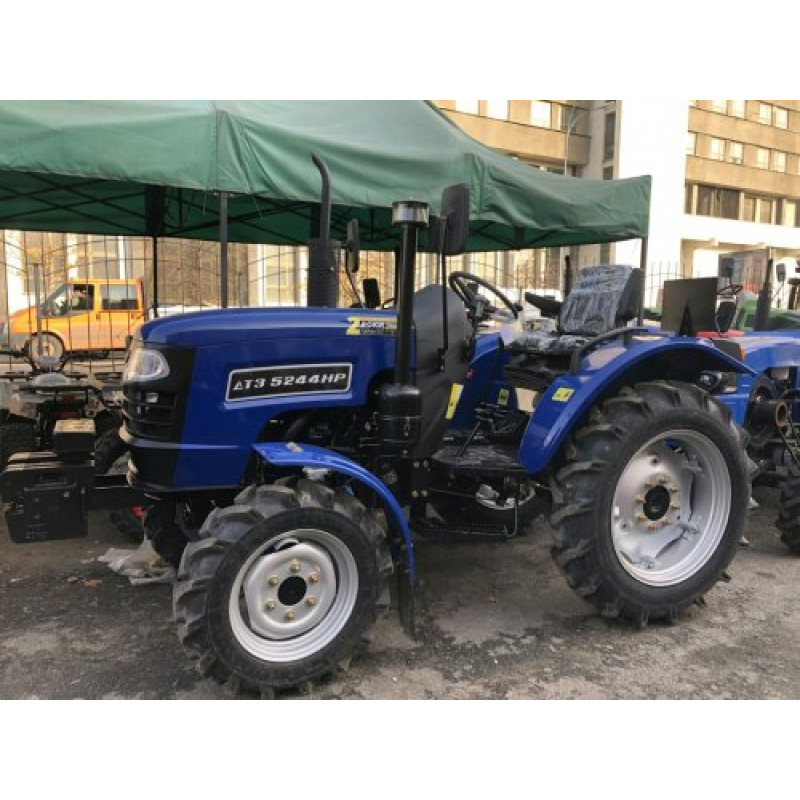

Mini Tractor DTZ 5244 HP — A Reliable Assistant for Private Households
The DTZ 5244 HP mini tractor from the manufacturer DTZ combines an affordable price, proven engineering solutions, and a wide range of applications: work on garden and dacha plots, small agricultural tasks, plowing, cultivation, sowing, mowing, and transportation. This SEO description compiles all technical specifications and practical advantages of the model, as presented in the original description and specifications table.
Engine and Operating Parameters
The mini tractor is equipped with a DD390 four-stroke diesel engine with direct injection, three-cylinder (3 cylinders, vertical arrangement). The engine displacement is 1908 cm3, nominal crankshaft speed is 2350 rpm, and power is 24 hp. The starting system is an electric starter. The cooling system is liquid-based, closed with forced circulation of coolant, ensuring stable operation even at high temperatures.
Drive, Transmission, and Speeds

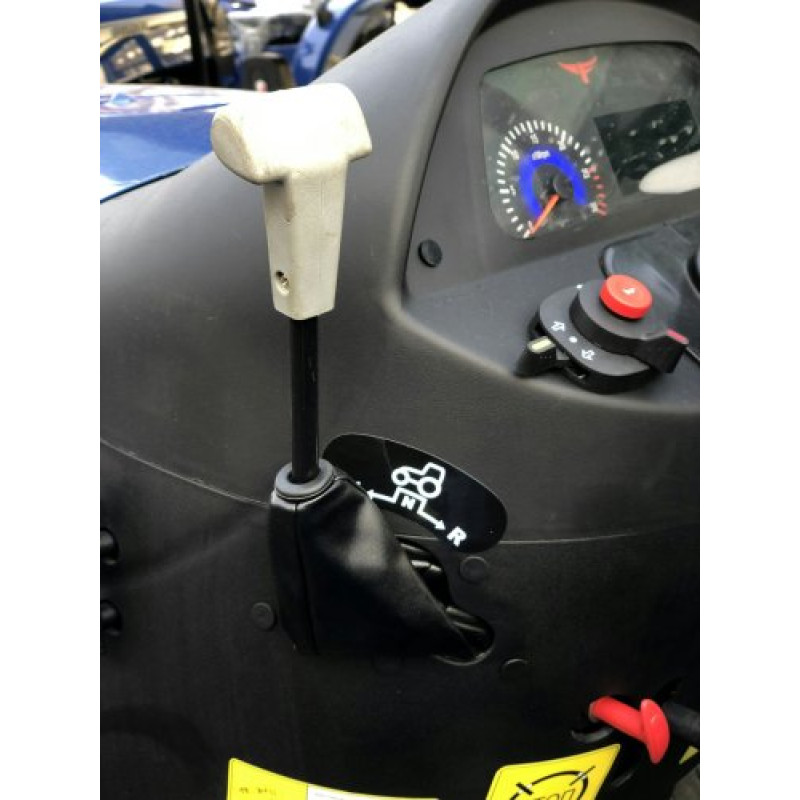

The model features a 4x4 all-wheel drive for improved cross-country capability on various soil types. The gearbox is 9+9 (9 forward and 9 reverse), allowing for optimal operating mode selection. Travel speed: forward from 3.1 to 42.7 km/h, reverse from 3.0 to 41.6 km/h. Minimum ground clearance is 350 mm, wheelbase is 1610 mm.
Tires, Track, and Attachments
The description includes two tire size options: the promotional text specifies front 6.50-16 and rear 11.20-24, while the specifications table lists front 6.00-16 and rear 9.5-24. Both sets of data are provided in the documentation — please pay attention when choosing the configuration. Adjustable track: front wheels in the range of 1170-1270 mm, rear wheels — 1150-1350 mm, and the table also indicates front options of 1170, 1370 mm and rear options of 1200, 1320, 1400 mm.

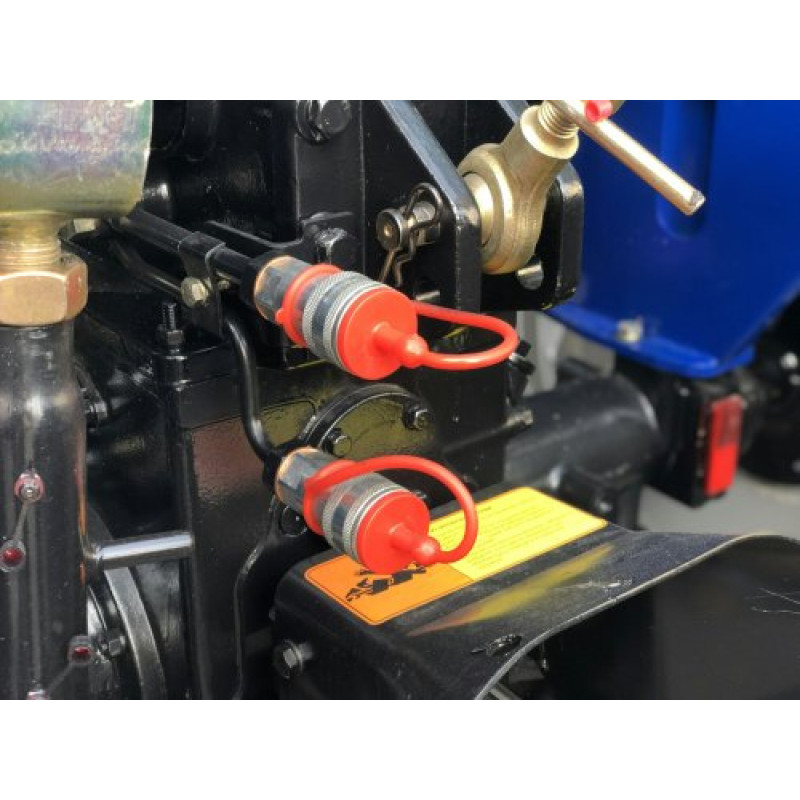

The power take-off (PTO) shaft is rear, splined, with PTO speed of 540 rpm. The maximum lifting capacity of the hitch mechanism is 414 kg. The hydraulic system pump type is a gear pump.
| Engine Model: | DD390 |
| Engine Power: | 24 hp |
| Drive: | 4x4 |
| Engine Type: | diesel, 4-stroke, with direct injection |
| Number and Arrangement of Cylinders: | 3, vertical |
| Starting System: | electric starter |
| Cooling System: | liquid, closed with forced circulation of coolant |
| Engine Displacement: | 1908 |
| Nominal Engine Crankshaft Speed rpm: | 2350 |
| Gearbox: | 9+9 |
| Power Take-Off (PTO) Shaft: | Rear, splined |
| Hydraulic System Pump Type: | Gear pump |
| PTO Speed, rpm: | 540 |
| Maximum Lifting Capacity of Hitch Mechanism, kg: | 414 |
| Minimum Ground Clearance, mm: | 350 |
| Wheelbase mm: | 1610 |
| Wheel Track, mm: | front 1170, 1370; rear: 1200, 1320, 1400 |
| Front Tire Size: | 6.00-16; Rear: 9.5-24 |
| Travel Speed, km/h: | forward 3.1-42.7; reverse 3.0-41.6 |
| Fuel Tank Volume, L: | 32.0 |
| Overall Dimensions (L x W x H), mm: | 3300x1470x2050 |
| Weight, kg: | 1450 |
Aggregation and Attachments
Thanks to its 540 rpm PTO and rear splined shaft, the DTZ 5244 HP is compatible with a wide range of mounted and trailed equipment: plows, tillers, seeders, planters, trailers, brushes, rakes, mowers, hay balers, and more. The maximum weight of mounted equipment the tractor can lift is 414 kg. The fuel tank capacity is 32 liters, ensuring long operation without refueling.
Dimensions, Weight, and Versatility
Tractor dimensions: 3300x1470x2050 mm, weight — 1450 kg. The minimum ground clearance of 350 mm and adjustable track make the tractor maneuverable and suitable for various operations in the field and on the plot.
How to Buy and Delivery Terms
You can buy the DTZ 5244 HP mini tractor on the website or by contacting a store manager. Available payment options: credit, cash payment, or non-cash payment with VAT. Delivery is free in Kyiv and throughout Ukraine. Discounts are possible for self-pickup. For clarification of terms, availability, and delivery times, please contact the manager.
Category: Tractors > Mini Tractors. Manufacturer: DTZ. Product Name: Mini Tractor DTZ 5244 HP.
