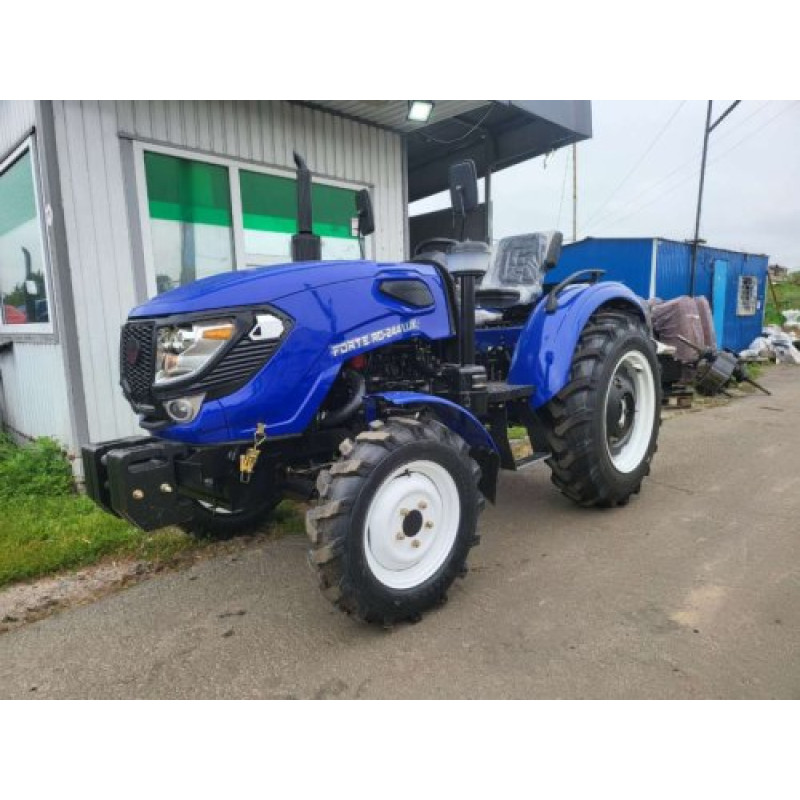

Mini Tractor FORTE RD-244R
Model: Forte RD-244R. Manufacturer: FORTE. Category: Tractors > Mini Tractors. A compact and reliable mini tractor with 24 hp (17.65 kW) power, designed for a wide range of agricultural and municipal tasks on small and medium-sized plots.
Description and Key Advantages
The Forte RD-244R is equipped with a 4-stroke diesel engine with direct injection, no turbocharging, and three vertically arranged cylinders. It starts with an electric starter, features liquid cooling with forced circulation, and the fan is driven by a V-belt transmission. The engine displacement is 1531.33 cm3, with a cylinder bore/piston stroke of 85/90 mm at a nominal 2350 rpm, ensuring stable operation in various modes. Nominal fuel consumption is no more than ≤275 g/kWh, and nominal oil consumption is 2.31 g/kWh. The tractor also boasts a robust frame design, simple maintenance, and high versatility for various attachments.
Technical Specifications and Equipment
- Engine power: 24 hp (17.65 kW).
- Drive: 4x4 for enhanced off-road capability and maneuverability.
- Transmission: (4+4)x2, with rear differential lock capability.
- Clutch: Dry, single-disc, constantly closed type.
- Final drive: Direct.
- Steering: Hydraulic with power steering.
- Braking system: On the secondary shaft of the transmission with brake drums.
- Power take-off (PTO) shaft: Rear splined, speeds 540/1000 rpm.
- Hydraulic system pump type: Gear pump (NSH) for attachment drive and NSH for power steering operation.
- Maximum lifting capacity of the hitch mechanism: 420 kg.
- Ground clearance: 300 mm, wheelbase: 1700 mm.
- Wheel sizes: Front 6.50-16, rear 11.2-24; front track 1200 mm, rear track 1230 mm.
- Minimum turning radius: without brakes 3.0 m, with brakes 2.3 m.
- Travel speed: forward 2.11-32.19 km/h, reverse 1.68-7.75 km/h.
- Fuel tank capacity: 17.0 L.
- Comfort and additional equipment: Seat with shock absorber, hour meter, rear weights, trailer connector (socket).
The Forte RD-244R is optimally suited for plowing, cultivation, planting, and working with other mounted and trailed implements. The presence of four hydraulic outlets and a differential lock makes it a versatile solution for small farm owners, farmers, and municipal services who require reliability, ease of maintenance, and multifunctionality in a compact design.
| Engine power, hp (kW) | 24 (17.65) |
| Drive | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine start | electric starter |
| Engine cooling | liquid, with forced circulation of coolant |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 1531.33 |
| Cylinder bore / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g / kW * h | ≤275 |
| Nominal engine crankshaft speed, rpm | 2350 |
| Nominal traction force, kN | 5.8 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kW*h | 2.31 |
| Transmission | (4+4)x2 |
| Rear differential lock | + |
| Clutch | dry, single-disc, constantly closed type |
| Final drive | direct |
| Steering | hydraulic |
| Braking system | on the secondary shaft of the transmission, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (NSH) for attachment drive / NSH for power steering operation |
| PTO shaft speed, rpm | 540 / 1000 |
| Maximum lifting capacity of the hitch mechanism, kg | 420 |
| Ground clearance, mm | 300 |
| Wheelbase, mm | 1700 |
| Wheel track, mm | front 1200, rear 1230 |
| Wheel size | front 6.50-16, rear 11.2-24 |
| Minimum turning radius, m | without brakes 3.0, with brakes 2.3 |
| Travel speed, km/h forward | 2.11-32.19, reverse 1.68-7.75 |
| Fuel tank capacity, L | 17.0 |
| Engine crankcase capacity, L | 6.6 |
| Transmission and rear axle crankcase capacity, L | 11.0 |
| Front axle crankcase capacity, L | 4.0 |
| Engine cooling system capacity, L | 6.0 |
| Number of hydraulic outlets | 4 |
| Trailer connector (socket) | + |
| Power steering | + |
| Hour meter | + |
| Seat with shock absorber | + |
| Rear weights | + |
| Overall dimensions (L x W x H), mm | 3100x1500x1900 |
| Curb weight, kg | 1350 |
The Forte RD-244R is a practical choice for small farm owners, municipal enterprises, and farmers who need reliability, ease of maintenance, and multifunctionality in a compact design.
