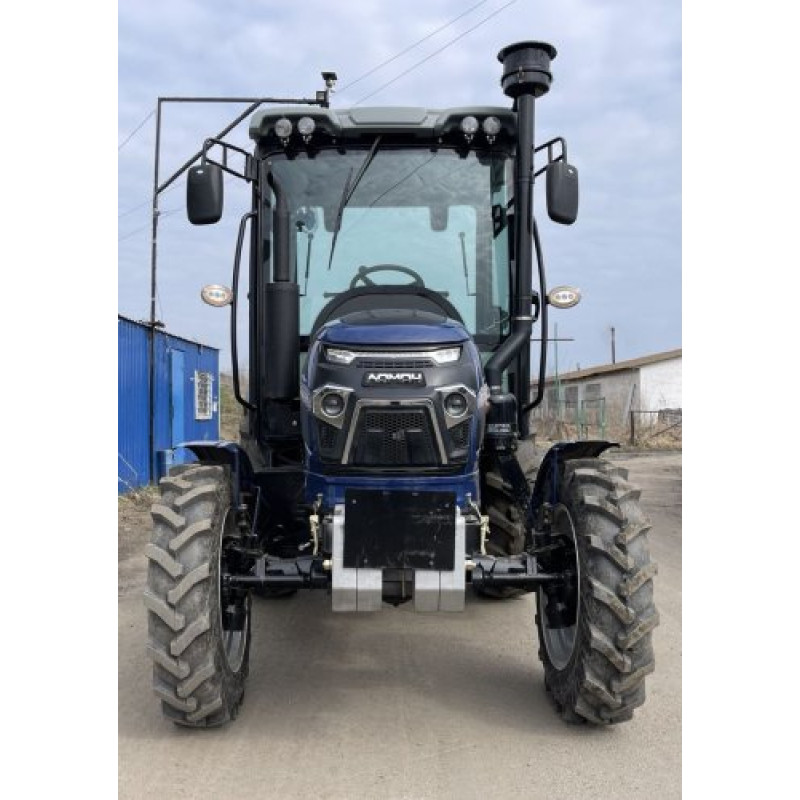

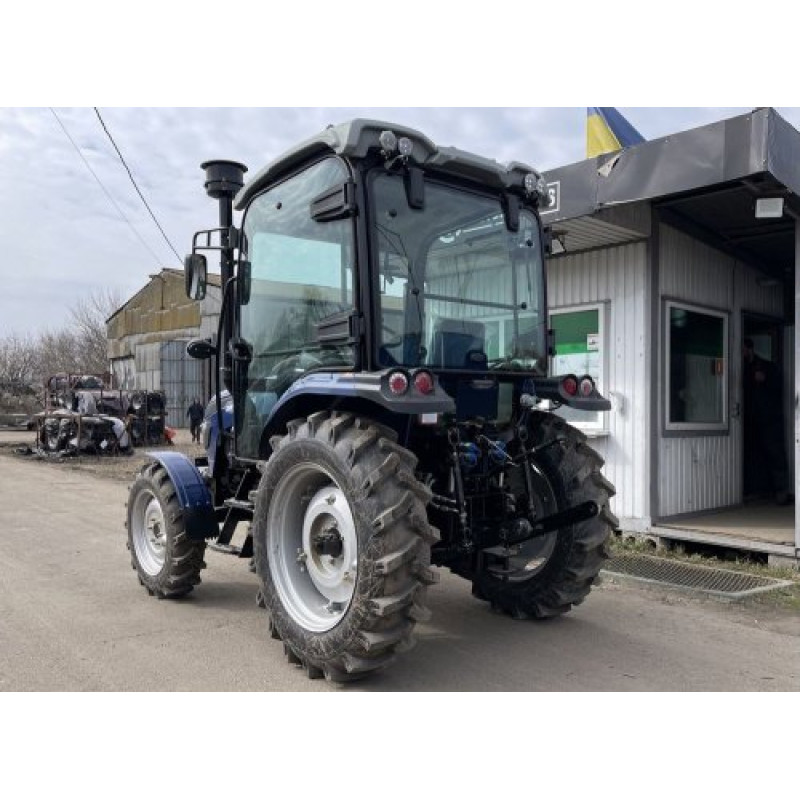

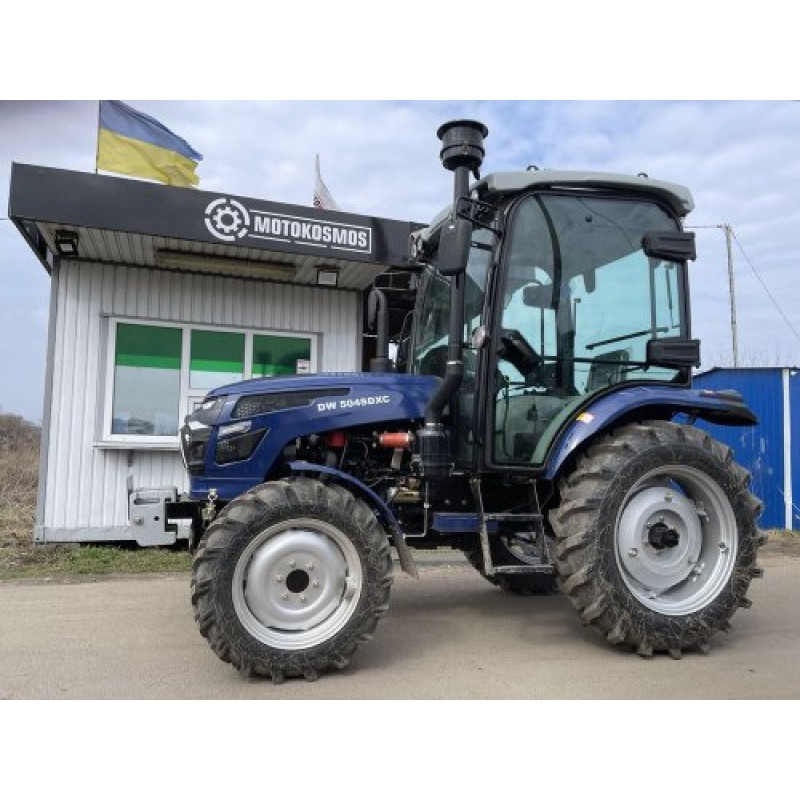

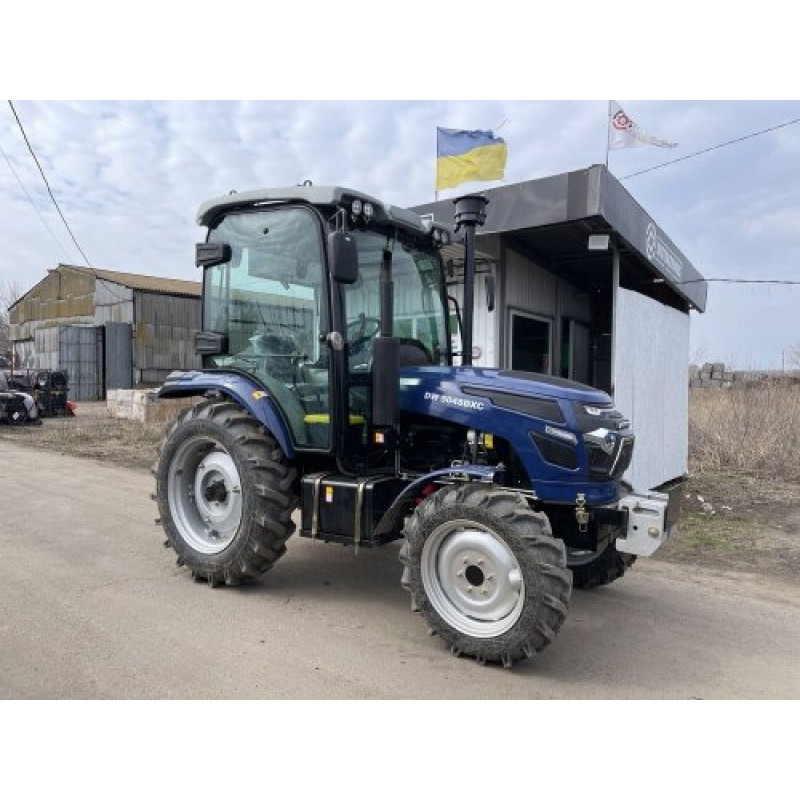

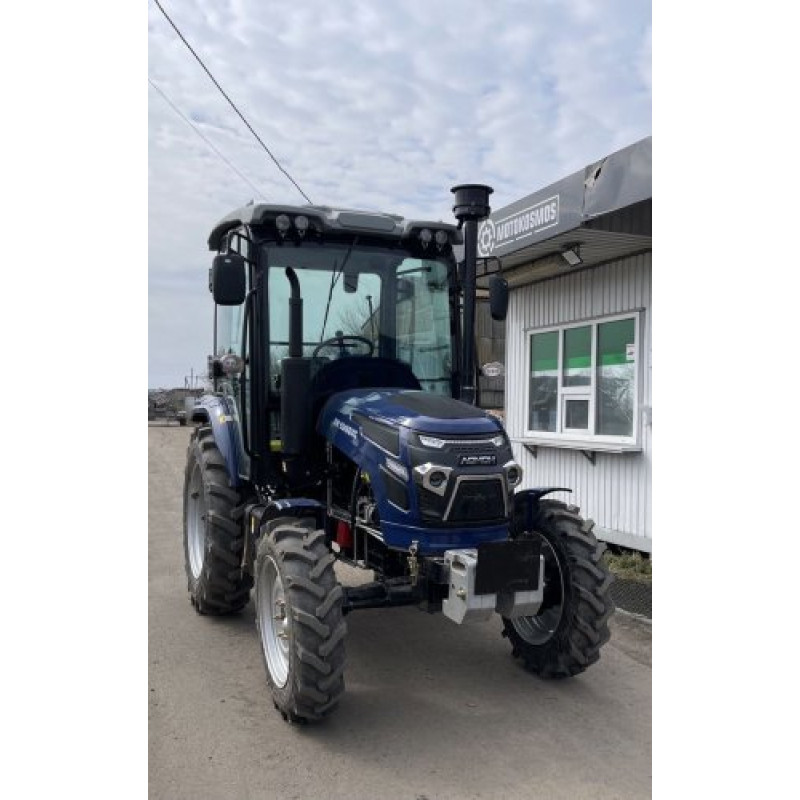

Mini Tractor DW 504 SDXC — Power, Reliability, and Versatility
The DW 504 SDXC mini tractor from the DW brand is a versatile and meticulously designed machine for agriculture, municipal services, and large private farms. The model is equipped with a 4-stroke, 4-cylinder 4L100BT-105A engine with a power output of 36.8 kW (50 hp), water cooling, and an electric starter for convenient ignition. The 50-liter fuel tank ensures long autonomous operation without frequent refueling.
Key Technical Parameters and Design Solutions
| Engine Type: | 4-stroke, 4-cylinder, 4L100BT-105A |
| Power, kW: | 36.8 |
| Power, hp: | 50 |
| Cooling: | Water |
| Fuel Tank Capacity, L: | 50 |
| Engine Speed, rpm: | 2350 |
| Engine Start: | Electric starter |
| Crankcase Oil Volume, L: | 3.5 |
| Cooling System Volume, L: | 5 |
| Bore and Stroke, mm: | 85/95 |
| Oil Consumption, g/kWh: | 2.04 |
| Fuel Delivery: | Direct injection |
| Oil Pump: | Plunger, inline |
| Clutch Type: | Dry, dual-disc |
| Ground Clearance, mm: | 460 |
| Differential Lock: | Yes |
| Brake System: | Drum brakes |
| Front Wheel Track, cm: | 1300-1400 |
| Rear Wheel Track, cm: | 1300-1600 |
| Turning Radius, m: | 4.2 |
| Wheel Formula: | 4x4 (all-wheel drive) |
| Front Tires: | 8.30-20 |
| Rear Tires: | 12.40-28 |
| Overall Dimensions L/W/H, mm: | 3550/1600/2100 |
| Steering: | With power steering |

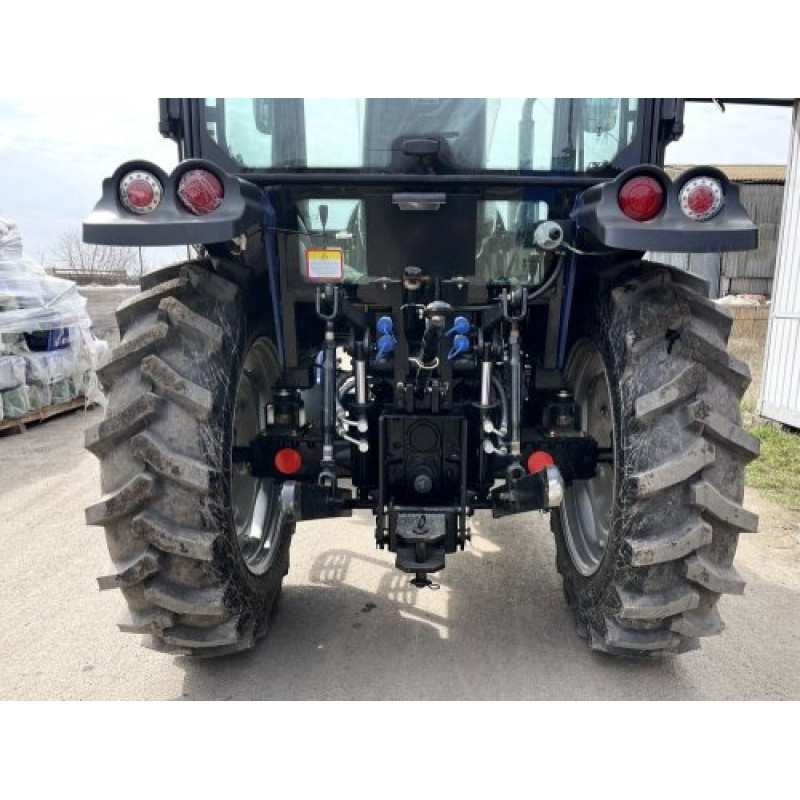

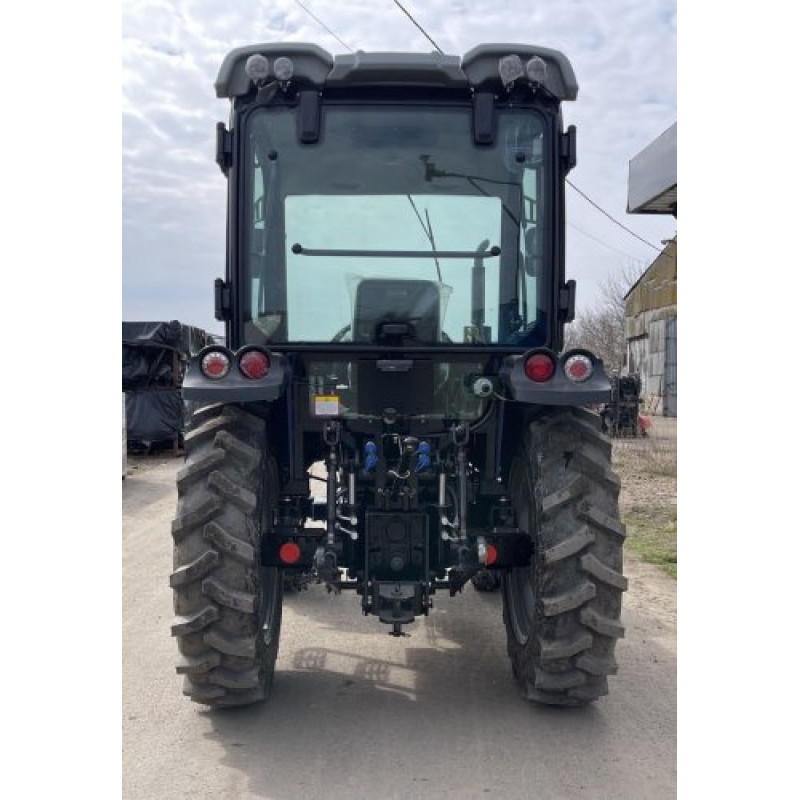

| PTO Speed: | 540/720 |
| Maximum Lifting Capacity of Hitch Mechanism, kg: | 650 |
| Wheelbase, mm: | 1985 |
| Weight, kg: | 2300 |
The DW 504 SDXC features 4x4 all-wheel drive, ensuring high cross-country capability in difficult conditions and off-road. A ground clearance of 460 mm allows operation on uneven terrain, while the differential lock and drum brakes enhance control and safety during maneuvering. A turning radius of 4.2 m makes this mini tractor agile in narrow rows and confined spaces.
Advantages and Applications
The mini tractor is ideal for soil cultivation, sowing, and harvesting with mounted and trailed implements, for maintenance of urban and private areas, cargo transportation, and gardening work. Thanks to its 50 hp power and direct injection system, the engine demonstrates economical fuel consumption and stable operation under load. The design includes a dry dual-disc clutch, a plunger inline oil pump, a crankcase oil volume of 3.5 L, and a 5 L cooling system for long and reliable operation.
- Power 36.8 kW (50 hp) — optimal for a wide range of tasks.
- 50 L fuel tank — long autonomous operation without refueling.
- PTO 540/720 rpm — compatibility with most agricultural implements.
- Maximum lifting capacity 650 kg — efficient work with mounted equipment.
Dimensions of 3550x1600x2100 mm and a weight of 2300 kg provide a stable platform for installing various equipment. Power steering reduces operator fatigue and facilitates maneuvering. Front tires 8.30-20 and rear tires 12.40-28, along with adjustable front track 1300-1400 mm and rear track 1300-1600 mm, allow the tractor to be adapted to various working conditions.
The DW 504 SDXC is a reliable choice for those seeking a productive mini tractor with all-wheel drive, high lifting capacity, modern engineering solutions, and a wide range of applications. Brand: DW. Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
Other technical details: oil consumption 2.04 g/kWh, engine speed 2350 rpm, bore/stroke 85/95 mm, wheelbase 1985 mm.
