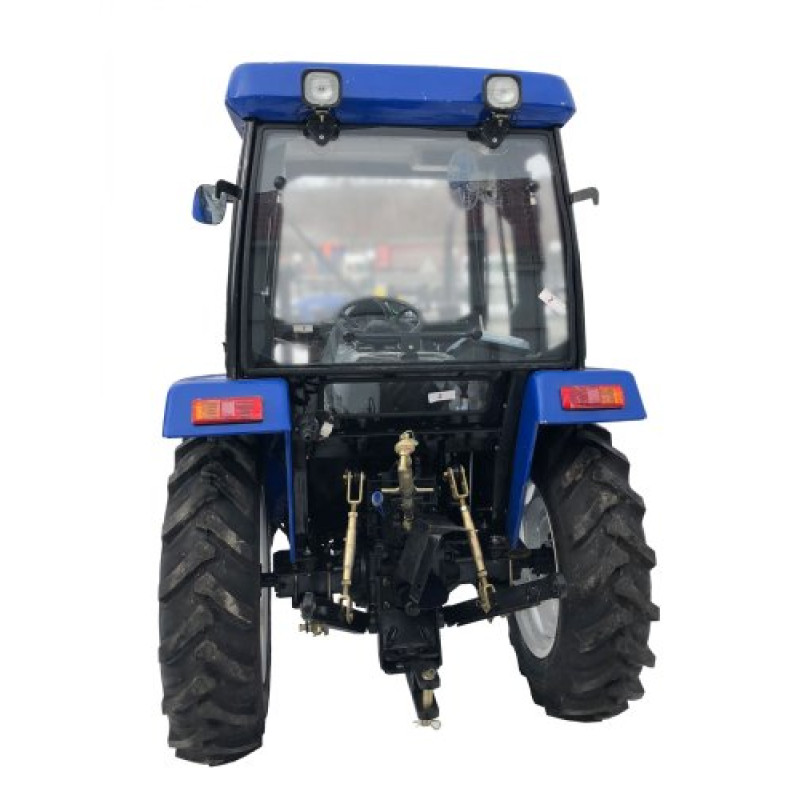

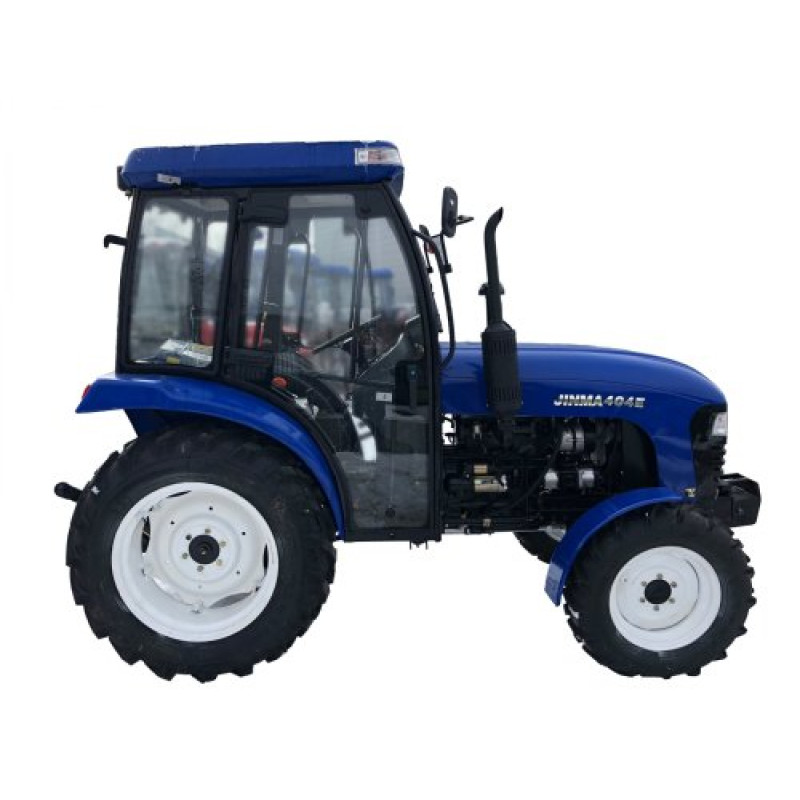

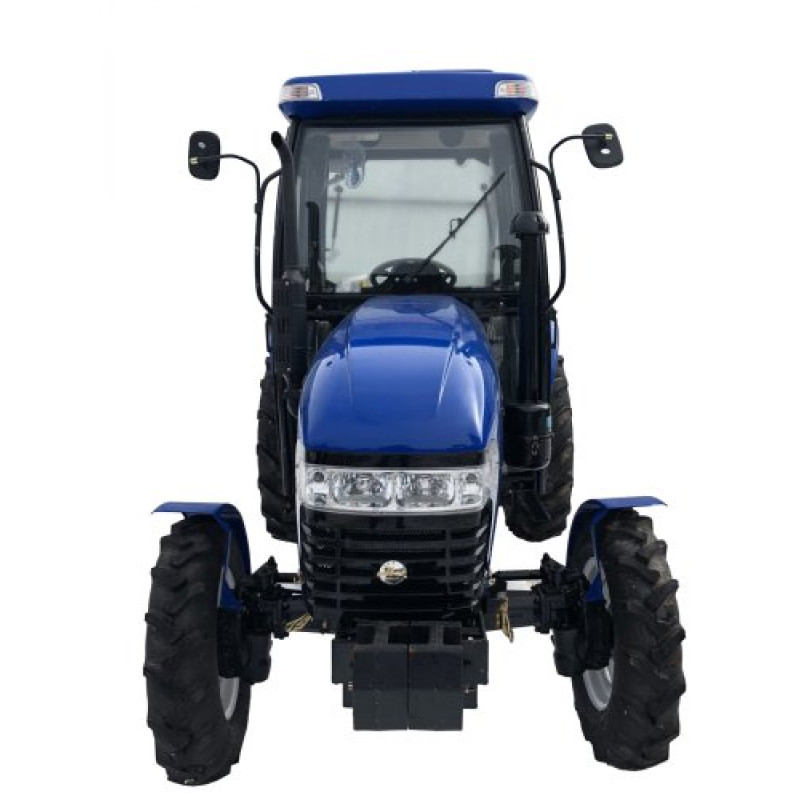

Jinma 404 E cab Mini Tractor Review
The Jinma 404 E cab mini tractor is a reliable representative of the Jinma brand in the "Tractors > Mini Tractors" category, designed for a wide range of tasks on farms, in gardens, and on homestead plots. The model combines functionality and operator comfort: a heated cabin with a radio allows work in cold weather, and power steering facilitates maneuvering. The source mentions that the tractor has a power of 24 hp, making it suitable for cultivating plots up to 10 hectares; at the same time, the technical specifications state a power of 40 hp (29.4 kW). Both of these figures are retained to fully match the original data.
The configuration and design solutions enhance cross-country capability and stability: large wheel treads, high ground clearance, rear differential lock, and self-locking front differential provide better traction on various soil types. A ground clearance of 295 mm and 4x4 all-wheel drive allow work in hilly terrain and on difficult plots. The dashboard monitors engine temperature, oil pressure, and battery charge, increasing control and operational safety.
- Heated cabin with radio for operator comfort.
- High ground clearance and large treads for challenging working conditions.
- Rear differential lock and self-locking front differential for better traction.
- Power steering for easier maneuvering.
- Dashboard with engine temperature, oil pressure, and battery charge status monitoring.
Price and Additional Equipment
The Jinma 404 E cab is a multifunctional model due to its ability to connect various mounted and trailed equipment via a 3-point hitch with a lifting capacity of up to 670 kg (6.7 kN). The tractor can be equipped with a plow, grain and vegetable seeder, cultivator, disc harrow, single-row and double-row potato planters and diggers, rakes, mowers, pumps, rotary tillers, and other equipment, making it versatile for various agricultural tasks.
Recommended alternative mini tractors: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244NRX, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Minitractor Shifeng, DW 244, DTZ 5404K, Solis 26 Tractor.
Technical specifications:
| Engine type | vertical three-cylinder four-stroke diesel with water cooling, pre-chamber injection |
| Wheel formula | 4×4 (all-wheel drive) |
| Heated cabin | + |
| Power steering | + |
| Engine power | 40 hp / 29.4 kW (24 hp also mentioned in the text for assessing capabilities on plots up to 10 hectares) |
| Displacement, cm3 | 2570 |
| Cylinder diameter / piston stroke | 90 / 100 mm |
| Number of cylinders | 4 |
| Fuel pump type | plunger, in-line |
| Crankshaft speed | 2200 rpm |
| Lockable differential | + |
| Diesel consumption | 250 g/kWh |
| Oil consumption | 2.72 g/kWh |
| Engine start | electric starter with safe start |
| Cooling system fan drive | V-belt drive |
| Transmission | (4+1)×2 |
| Main drive | pair of bevel gears |
| Rear axle differential | four-satellite, conical, closed type, with lock |
| Front axle differential | conical, satellite, self-locking |
| Minimum turning radius (with brake on one wheel / without brake) | 3.4 / 4.2 m |
| Tractor frame | frameless |
| Maximum lifting force of hitch mechanism | 6.7 kN (≈670 kg) |
| Tractive effort | 8.8 kN |
| Fuel tank capacity | 35 L |
| Engine crankcase capacity | 7 L |
| Transmission and rear axle crankcase capacity | 20.2 / 6.6 L |
| Lift housing capacity | 10 L |
| Engine cooling system capacity | 7.2 L |
| Oil type in transmission, rear / front axle | mineral for diesel engines |
| Oil type in engine | mineral or semi-synthetic for diesel engines |
| Wheelbase | 1833 mm |
| Forward speed | 0.32 - 26.4 km/h |
| Reverse speed | 0.26 - 11.34 km/h |
| Track width | front wheels - 1300 mm, rear wheels - 1150 - 1450 mm |
| Ground clearance | 295 mm |
| Clutch | dry, twin-disc |
| PTO (power take-off) | 540 / 1000 rpm, rear (2 rotation speeds) |
| Dimensions (length × width × height) | 3825 × 1625 × 2065 mm |
| Weight | 2000 kg |
In summary, the Jinma 404 E cab is a robust and functional mini tractor with a cabin and heating, capable of performing a wide range of agricultural and household tasks thanks to its 4x4 all-wheel drive, differential locks, power steering, and durable transmission. This model is suitable for cultivating fields, working in gardens, pastures, and homestead plots; if necessary, alternative models from the list can be chosen for comparison.
