Mini Tractor DW 244 AHTX — Overview, Technical and Operational Characteristics, and Price

Model: Mini Tractor DW 244 AHTX from manufacturer DW. Equipment Class: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. If you are looking for an affordable and versatile mini tractor, the DW 244 AHTX is worth considering: its price is slightly over 155,000 UAH, and this equipment has already received positive feedback from farms and experienced operators. The mini tractor is suitable for a wide range of agricultural and municipal tasks, helping to increase productivity with moderate operating costs.

Engine and Key Indicators. The DW 244 AHTX is equipped with a 3-cylinder diesel engine, engine marking — 244 A, with a power of 24 hp (17.65 kW). Engine displacement — 1530 cm3, cylinder bore/piston stroke — 85/90 mm. Nominal crankshaft speed — 2300 rpm. Nominal fuel consumption — ≤275 g/kWh, nominal engine oil consumption — 2.31 g/kWh. Recommended oil type — mineral or semi-synthetic for diesel engines.

Transmission, Drive, and Control. Gearbox — (4+1)x2. Clutch — dry single-disc, constantly closed type. Main drive — direct. Wheel formula — 4x4, with rear differential lock. Mechanical steering with power steering provides ease of control during heavy maneuvers. Brakes — drum brakes on the rear wheels.

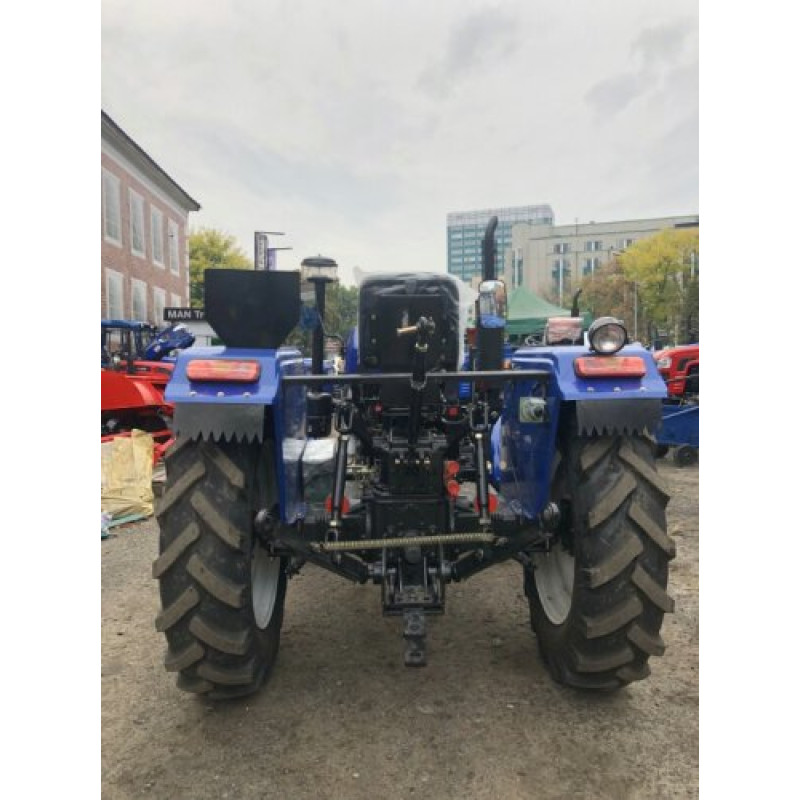

Attachments and Hydraulic System. Power take-off (PTO) shaft — rear, splined, PTO speed — 540/720 rpm. Hydraulic system pump type — gear pump. Marketing materials mention the presence of 2 hydraulic outlets and 2 independent pumps for attachments and power steering, as well as a trailer socket; the maximum lifting capacity in this description is stated as 423 kg. The technical table below indicates "Number of hydraulic outlets — 1" and "Maximum lifting capacity of the attachment mechanism, kg — 450". Both statements are retained in the final description for completeness of information; before purchasing, it is recommended to clarify the desired configuration, especially regarding the number of hydraulic outlets, the presence of additional pumps, and the actual lifting capacity of the attachment mechanism.

Off-road Capability, Tires, and Frame. The DW 244 AHTX has large-diameter wheels, which improve off-road capability. The text mentions front axle sizes 6.5-16 (elsewhere 7.50-16) and rear 9.5-24 (in the table 11.2-24). Minimum ground clearance — 350 mm, wheelbase — 1750 mm. Track: front 1220/1440 mm, rear 1120-1450 mm. Minimum turning radius without brakes — 3.5 m, with brakes — 3.1 m.

Starting, Cooling, and Fluid Capacities. Starting system — electric starter. Cooling system — liquid, closed, with forced circulation of coolant; fan drive — V-belt transmission. Fuel tank capacity — 18.5 L. Engine crankcase capacity — 3.0 L; gearbox and rear axle crankcase — 11.0 L; front axle crankcase — 3.0 L; engine cooling system capacity — 6.0 L.

Operational Characteristics. Nominal traction force — 7.2 kN. Travel speed: forward — 0.37–30.64 km/h, reverse — 0.49–12.23 km/h. Recommended transmission oils: Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90.

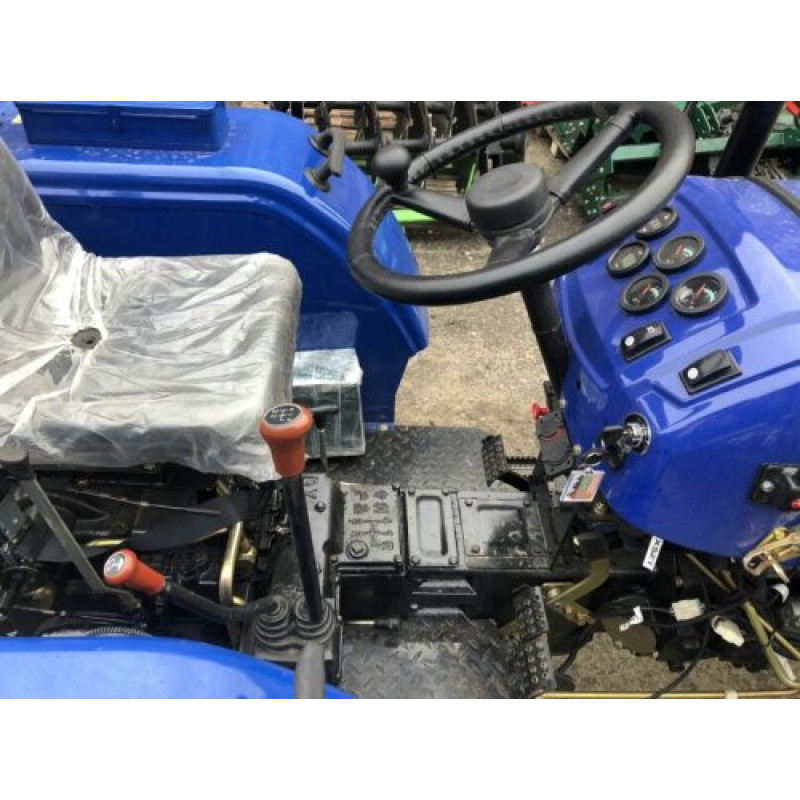

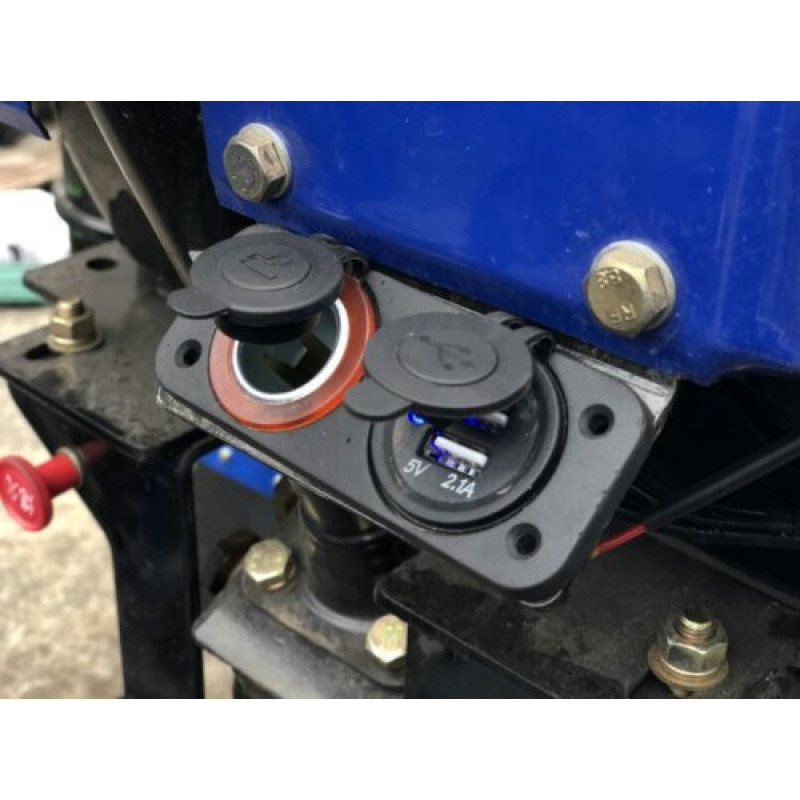

Operator Comfort and Equipment. A shock-absorbing seat ensures comfortable operator work. A roll bar is not included in the standard configuration. Rear weights are present. An hour meter and compressor are not included in the standard configuration. Power steering and a trailer connector (socket) are included in the standard configuration.

Free delivery is available throughout Ukraine. The mini tractor can be purchased with full payment or on credit. Before purchasing, we recommend clarifying the final configuration, additional equipment, and service terms.

Technical Specifications DW 244 AHTX

Summary: The DW 244 AHTX is an economical and functional mini tractor for small and medium-sized farms, combining a reliable diesel engine, all-wheel drive, thoughtful ergonomics, and the ability to work with various attachments. Before purchasing, we recommend clarifying the desired configuration, especially regarding the number of hydraulic outlets, the presence of additional pumps, and the actual lifting capacity of the attachment mechanism. Product code: 15296.
