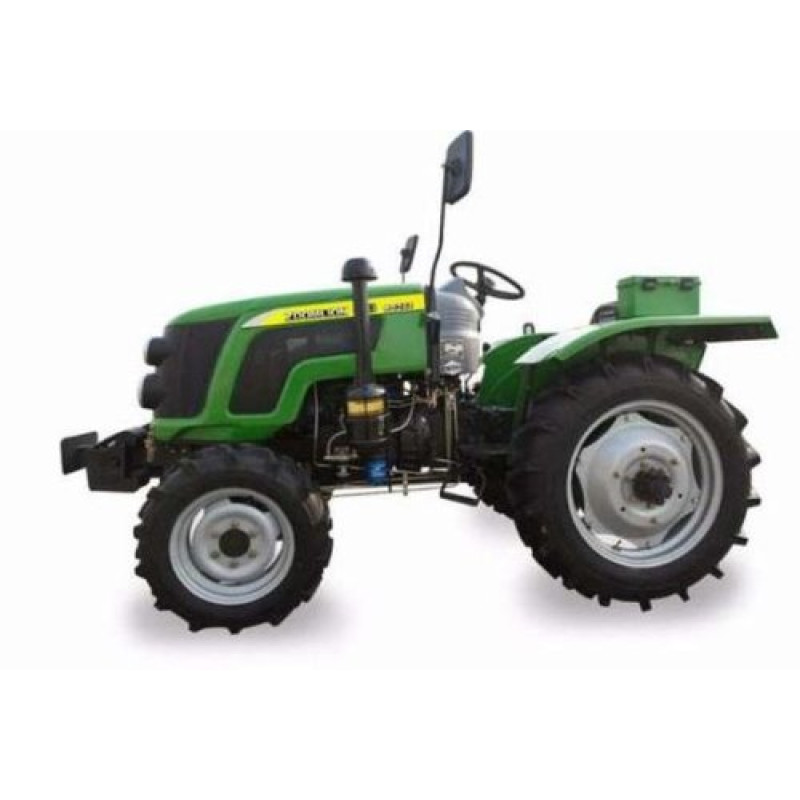

Mini Tractor Zoomlion RD-244 B
Brand: Zoomlion. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. This RD-244 B model is a compact, powerful, and reliable mini tractor designed for work in gardens, orchards, and small farms. Its 4x4 all-wheel drive combines high off-road capability with compact dimensions for working in confined areas.
Model Overview and Engine
Engine Power: 24 hp (17.6 kW). The engine is a three-cylinder, 4-stroke diesel with water cooling, a displacement of 1,532 cm3, and equipped with an electric starter for safe ignition. Two nominal fuel consumption estimates are provided in sources: 244 g/kWh (in the model description) and a technical value of ≤278 g/kWh — both parameters are officially presented.
Advantages and Capabilities
- Powerful 24 hp three-cylinder engine ensures efficient operation in a compact design.
- 4x4 all-wheel drive provides better traction on difficult and waterlogged terrain.
- Power steering (double-acting hydraulic cylinder) makes steering easy and precise, reducing operator fatigue.
- Mechanical gearbox: non-synchronized, (4 forward + 1 reverse) x 2 — effectively providing 8 forward and 8 reverse gears, allowing for optimal speed selection for various tasks.
- Rear differential lock and dry dual-disc clutch enhance control and traction.
- Reliable drum brakes; power take-off (PTO) shaft with speeds of 540/1000 rpm for connecting various mounted and trailed equipment.
- Versatility: compatibility with three-point mounted equipment makes the tractor a multifunctional assistant for agricultural and municipal work.
Useful technical features include a nominal crankshaft speed of 2,350 rpm, a nominal traction force of 6.3 kN, and wide operating speeds: forward 1.4-32.00 km/h, reverse 1.78-9.40 km/h. There is an option to connect mounted equipment via a traditional PTO and a three-point hitch.
The design accounts for operational fluid volumes: fuel tank 34 L, engine crankcase volume 4.5 L, gearbox and rear axle crankcase 20.2 L, lift housing 10 L, front axle crankcase 6.0 L, engine cooling system 10 L.
Dimensions and Weight: the text mentions dimensions L/W/H 3225/1440/1980 mm, while the technical table lists 3225/1440/2781 mm; structural weight — 1220 kg. These parameters confirm the tractor's compactness and suitability for work in confined areas.
Delivery, Warranty, and Purchase
The tractor comes with an official warranty from the manufacturer. Delivery is possible from Kyiv, Kharkiv, Vinnytsia, Chernihiv, Poltava with a term of 1-3 days. Payment can be made to the courier upon delivery; a credit option is also available. For details, please contact the sales department.
Recommended analogues and related models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.
Technical Specifications
| Engine power, hp (kW) | 24 hp (17.6) |
| Wheel formula | 4x4 |
| Engine type | 4-stroke diesel engine with water cooling |
| Engine start | electric starter with safe start |
| Engine displacement, cm3 | 1 532 |
| Nominal fuel consumption g/kWh | ≤278 |
| Nominal engine crankshaft speed rpm | 2 350 |
| Nominal traction force kN | 6.3 |
| Gearbox (КПП) | non-synchronized, mechanical (4 forward + 1 reverse) x 2 |
| Rear differential lock | Yes |
| Clutch | Dry, dual-disc |
| Power steering | Yes |
| Brake mechanism | drum type |
| Power take-off (PTO) shaft speed rpm | 540/1000 |
| Wheelbase, mm | 1706 |
| Front wheel track, mm | 1 215~1 050 |
| Rear wheel track, mm | 960~1 460 |
| Front tire size | 6.5-16 |
| Rear tire size | 11.2-24 |
| Theoretical forward speed, km/h | 1.4-32.00 |
| Theoretical reverse speed, km/h | 1.78-9.40 |
| Fuel tank volume L | 34 |
| Engine crankcase volume, L | 4.5 |
| Gearbox and rear axle crankcase volume, L | 20.2 |
| Lift housing volume, L | 10 |
| Front axle crankcase volume, L | 6.0 |
| Engine cooling system volume, L | 10 |
| Overall dimensions (LxWxH), mm | 3225/1440/2781 |
| Structural weight, kg | 1220 |
The Zoomlion RD-244 B model is ideal for those seeking a compact yet powerful mini tractor with versatile attachment capabilities and simple maintenance. For purchase or more detailed consultation, please contact the sales department.
