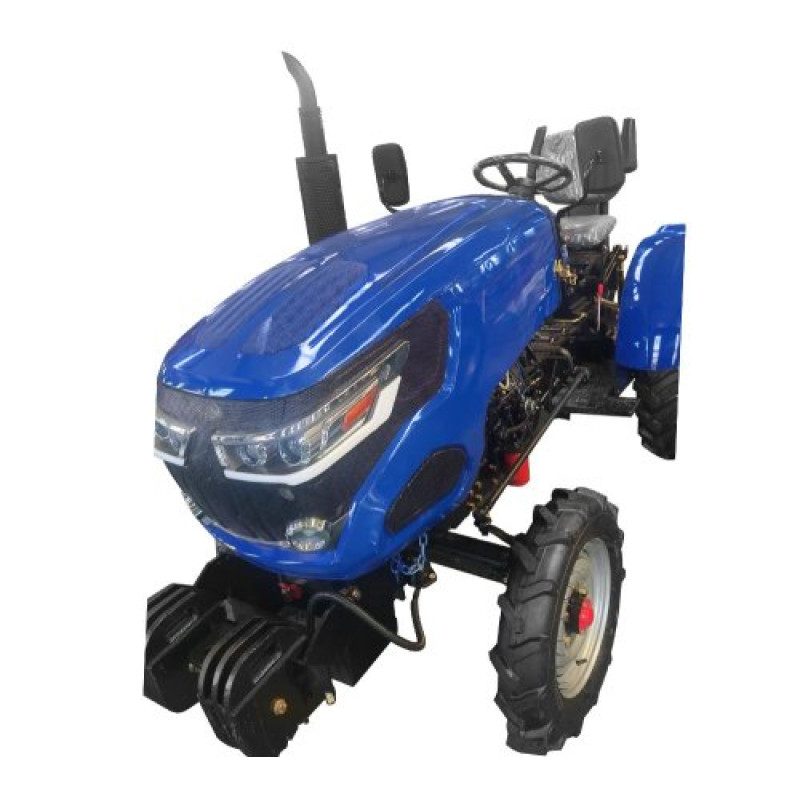

Xingtai 240 L Mini Tractor is a reliable and compact mini tractor from the manufacturer Xingtai, designed for private farms, horticulture, utility work, and cultivation of small agricultural plots. This model combines compact dimensions, maneuverability, and sufficient power to work with various mounted and trailed equipment, making it a versatile solution for owners who value ease of use and reliability.
Key Advantages
The Xingtai 240 L mini tractor is equipped with a three-cylinder diesel engine with a power output of 24 hp (17.6 kW). The four-stroke engine with direct fuel injection and liquid cooling system ensures stable operation under various temperature conditions and increased fuel efficiency. A reliable mechanical gearbox and a single-disc dry clutch make maintenance simple and operation durable.
Applications:
- soil cultivation and preparation of sowing areas;
- work in greenhouses and gardens, inter-row cultivation;
- transportation of goods on the plot and utility work;
- operation with various mounted implements (mowers, plows, tillage tools);
- harvesting in small areas.
Specifications:
| Engine type | Three-cylinder diesel, four-stroke, with direct fuel injection, non-turbocharged, liquid-cooled |
| Engine displacement, cm3 | 1532 cm3 |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder diameter | 85 mm |
| Piston stroke | 90 mm |
| Engine structural weight, kg | 234 kg |
| Wheelbase, mm | 1520 mm |
| Overall dimensions, mm | 2720x1260x1870 mm |
| Front wheel track, mm | 950 mm |
| Rear wheel track, mm | 990, 1340 mm |
| Ground clearance, mm | 220 mm |
| Drive type | 4x2 |
| Transmission type | Mechanical |
| Number of gears (forward/reverse) | (3+1)x2 |
| Clutch | Single-disc dry |
| Power take-off shaft, rpm | 540 |
| Front wheel size | 5.00x14 |
| Rear wheel size | 7.50x20 |
| Engine oil volume, L | 5 |
| Engine cooling system volume, L | 10 |
| Fuel tank volume, L | 20 |
Additional Information
Compact dimensions (2720x1260x1870 mm) and an engine weight of 234 kg provide an optimal balance of stability and maneuverability, allowing the mini tractor to be used in confined spaces. The front and rear wheel tracks (950 mm and 990/1340 mm) enable adaptation to various crop row spacings. A ground clearance of 220 mm improves passability over uneven surfaces. The mechanical gearbox with (3+1)x2 gear configuration and single-disc dry clutch simplify maintenance and are reliable in operation. The 540 rpm power take-off shaft is compatible with most standard mounted implements, making the Xingtai 240 L a versatile solution for many tasks.
The Xingtai 240 L is an optimal choice for those seeking an easy-to-use, economical, and reliable unit for daily agricultural, garden, and utility work. Manufacturer: Xingtai. Category: Mini Tractors.
