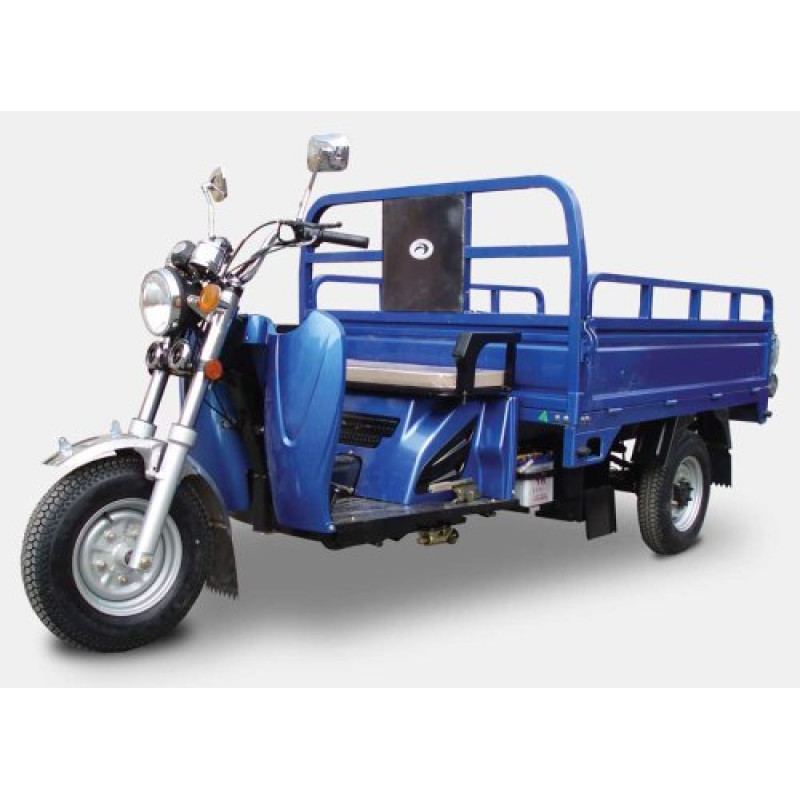

DTZ MT200-1 — cargo dump motorcycle for farmers and construction
Brand: DTZ. Vehicle type: dump truck. The MT200-1 model is designed for intensive use in agriculture, on construction sites, and for private transportation of small loads. It is a practical and affordable solution with simple operation and a well-designed body for quick loading and unloading.
The heart of the motorcycle is a 1-cylinder, 4-stroke gasoline engine with a volume of 200 cm3, carburetor fuel supply, and air cooling system. It can be started with both a kickstarter and an electric starter, adding convenience in various operating conditions. The transmission is semi-automatic, and the rear wheel drive is cardan, which makes the design more reliable and less demanding for regular service. The maximum speed is up to 65 km/h, average fuel consumption is 3.1 l/100 km, and the fuel tank capacity is 11 l, ensuring long operation without frequent refueling.
| Engine type | 1-cylinder, 4-stroke, gasoline |
| Engine displacement, cm3 | 200 |
| Fuel injection system | carburetor |
| Gearbox type | semi-automatic |
| Max. speed, km/h | 65 |
| Cooling system | air |
| Engine start | kickstarter / electric starter |
| Motorcycle type | dump truck |
| Number of seats | 1 |
| Rear wheel drive | cardan |
| Front brake type | drum |
| Rear brake type | drum |
| Min. turning radius, m | 3.43 |
| Front suspension | telescopic fork |
| Rear suspension | leaf spring with shock absorber |
| Fuel consumption, l/100 km | 3.1 |
| Body tipping | yes |
| Drop sides | rear/left/right |
| Front tire size, inches | 4.50-12 |
| Rear tire size, inches | 4.50-12 |
| Overall dimensions (LxWxH), mm | 3350x1270x1450 |
| Body dimensions (LxWxH), mm | 1700x1200x320 |
| Wheelbase, mm | 2200 |
| Min. turning radius, m | 3.43 |
| Engine and gearbox oil volume, l | 1.1 |
| Load capacity, kg | 800 |
| Fuel tank capacity, l | 11 |
| Weight, kg | 500 |
Key advantages of the DTZ MT200-1 model: a robust frame and body with a tipping mechanism for quick unloading, drop sides with three opening options (rear, left, right) for convenient loading of various cargo, and a reliable cardan drive that reduces routine maintenance compared to chain systems. The simplicity of the brake design (front and rear drum brakes) enhances maintainability in field conditions.
Compact overall dimensions of 3350x1270x1450 mm and a wheelbase of 2200 mm make the motorcycle maneuverable in narrow passages. A minimum turning radius of 3.43 m allows it to operate where larger equipment struggles to turn around. It is ideal for transporting bulk materials, garden and farm equipment, and construction materials over short distances.
Who is the DTZ MT200-1 suitable for?
- Farmers and private households needing inexpensive and reliable cargo equipment;
- Construction crews for local transportation of materials on site;
- Utility services and dacha owners for transporting garden waste, fertilizers, and other inventory.
Technical simplicity and high maintainability allow the MT200-1 to be operated in remote areas without the need for complex service. A load capacity of 800 kg, a spacious body of 1700x1200x320 mm, engine and gearbox oil volume of 1.1 l, unit weight of 500 kg, and tire size of 4.50-12 — all make this model an effective tool for daily tasks.
