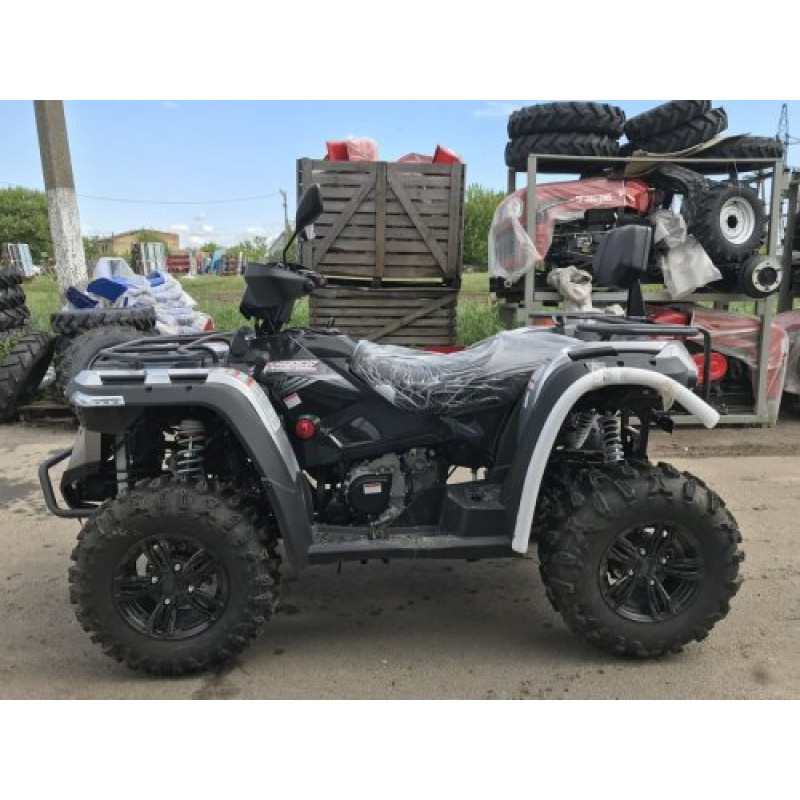

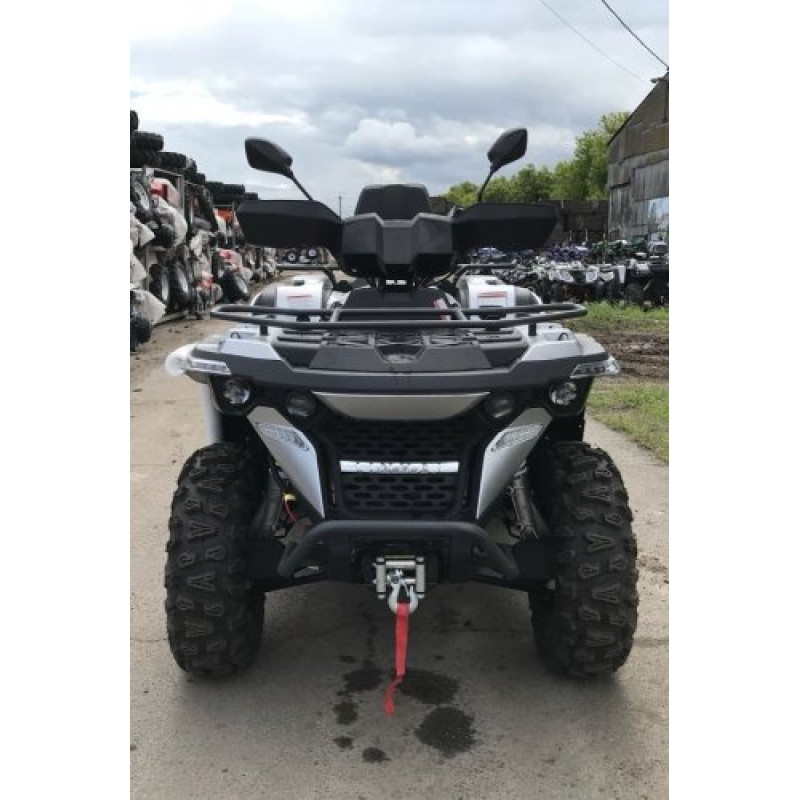

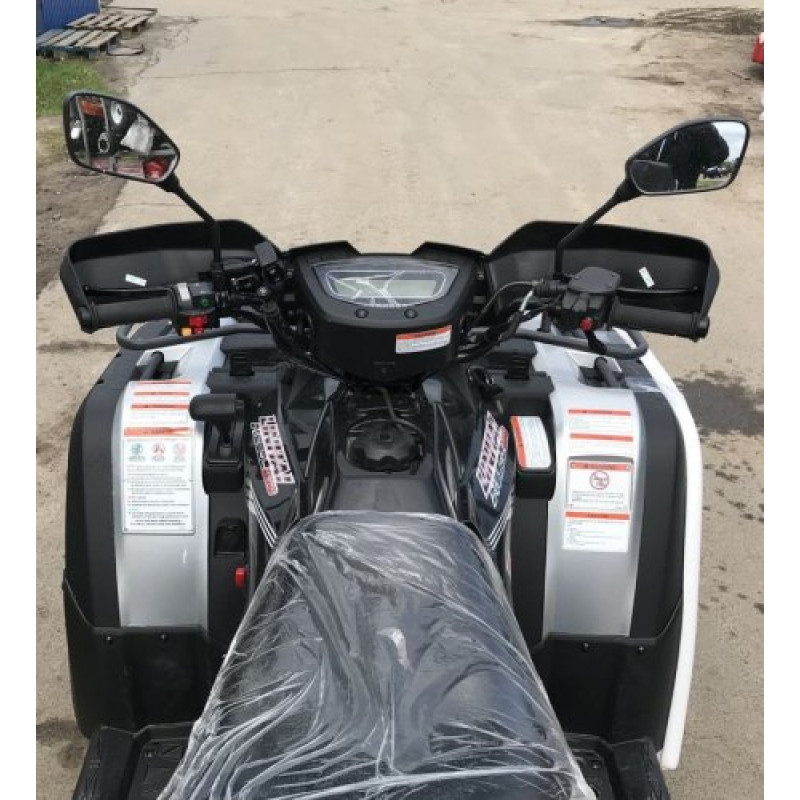

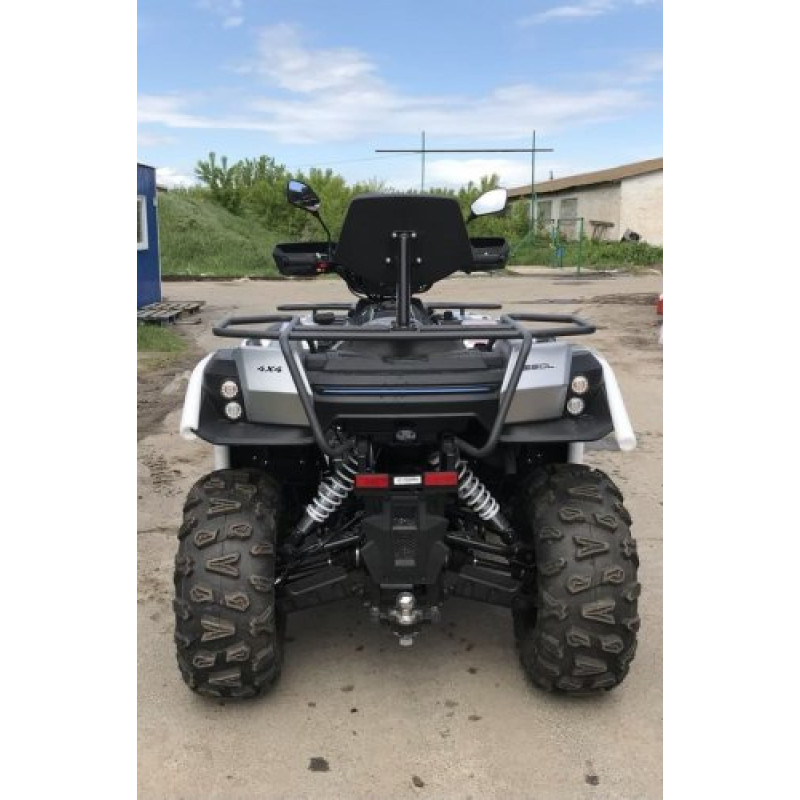

LINHAI M550 EFI — a versatile all-wheel drive ATV for work and leisure
The LINHAI M550 EFI ATV from the LINHAI brand combines aggressive modern design, thoughtful construction, and an affordable price. It is a versatile ATV in the category Motor Vehicles > ATVs, suitable for extreme off-road conditions as well as for agricultural or utility tasks. The basic configuration includes a winch and the possibility of installing a tow hitch, as well as optional equipment such as a snow plow bucket, trailers, and other attachments.
The design emphasizes ease of maintenance and fuel efficiency: in the promotional description, the model is characterized as equipped with an EFI (fuel injection) system, which improves fuel consumption and cold starting. At the same time, the technical data includes an entry about the LH188MR-A engine with a volume of 493 cm3 and a carburetor system, so we recommend clarifying the actual engine configuration with a manager before purchasing.
Model advantages
- all-wheel drive transmission with the option of connecting a cardan drive;
- powerful transmission with CVT variator and F-L-N-R reverse;
- adjustable suspension and comfortable seating for two;
- installed winch, possibility of installing a tow hitch and additional equipment;
- available purchase terms: delivery across Ukraine, payment upon receipt, credit purchase, cashless payment with VAT, warranty, promotions and discounts.
To get a consultation or place an order, leave a request on the website or contact a Flash Army store manager.
Technical specifications
Engine
| Volume, engine model | LH188MR-A, 493 cm3 |
| Engine type | carburetor, 4-stroke, 1-cylinder, liquid cooling |
| Rated power | 24 kW/33 hp at 6500 rpm |
| Maximum torque | 39 N.m. at 5500 rpm |
| Fuel type | gasoline, not lower than A92 |
| Cooling system | liquid cooling |
| Starting system | electric start |
| Transmission | CVT variator and F-L-N-R reverse |
| Drive | selectable all-wheel, cardan |
Chassis
| Frame | steel, tubular |
| Front suspension | independent McPherson |
| Rear suspension | independent Twin-A suspension |
| Brakes | dual ventilated disc |
| Tires, size | front 25x8-12, rear 25x10-12 |
Main characteristics
| Number of seats | 2 |
| Wheel formula | 4x4 |
| Ground clearance, mm | 280 |
| Maximum speed | 90 km/h |
| Fuel consumption | 5.5 l/100 km |
| Fuel tank capacity | 14.5 l |
| Maximum payload capacity | 250 kg |
| Curb weight | 365 kg |
| Seat height | 900 mm |
| Overall dimensions (LxWxH), mm | 2283x1300x1293 |
| Winch | installed |
The LINHAI M550 EFI model stands out for its durability, easy handling, and good performance in various operating conditions. Thanks to the tow hitch and additional options, you can use the ATV for both recreation and practical tasks on your property or farm. Brand: LINHAI. Model: M550 EFI. Purpose: versatile all-wheel drive ATV for leisure and work.
Please clarify other details and availability with Flash Army store managers before ordering.
