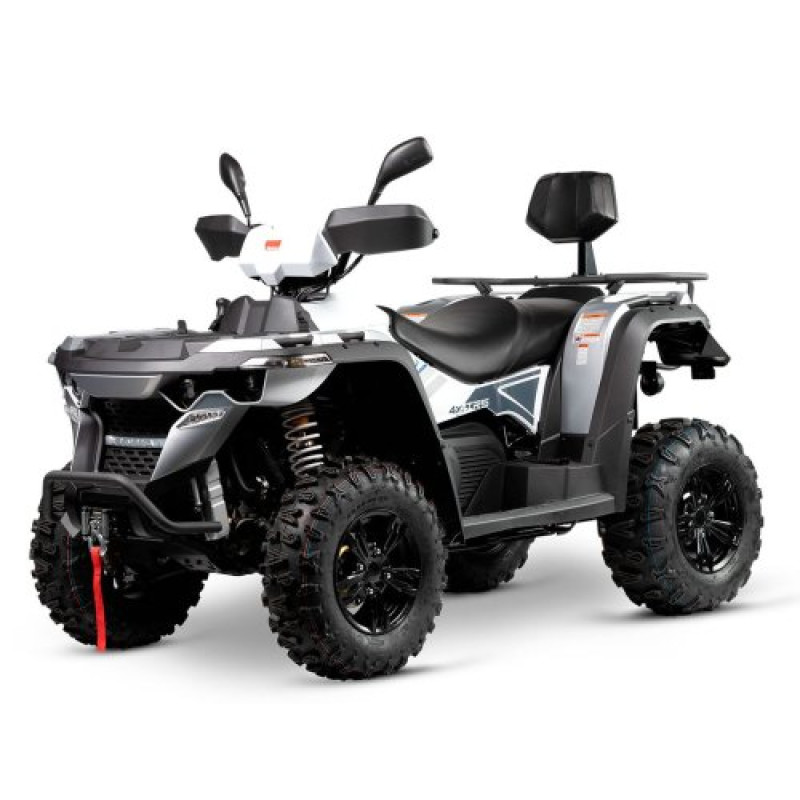

Linhai ML850ATV Quad Bike from the LINHAI brand is a powerful and reliable representative of the Motor Vehicles > Quad Bikes category, designed for active recreation, work on the property, and overcoming challenging off-road routes. This off-road vehicle combines a modern fuel-injected engine, a liquid cooling system, and a well-designed suspension, ensuring a comfortable ride, stability, and high проходимость in various conditions.
Technical Specifications:
| Engine power, hp | 41 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 700 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Rated engine speed, rpm | 6900±150 |
| Torque, Nm / rpm | 59 at 5000 |
| Gearbox (transmission) | automatic (V-belt variator) |
| Gearbox modes | L/H/neutral/reverse |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | hydraulic, disc on each wheel with lever actuation (combined with rear brake) |
| Rear brake | hydraulic, disc on wheel axle with pedal actuation (combined with front brakes) |
| Parking brake | locks rear caliper with manual actuation and handlebar lock |
| Brake hoses | reinforced |
| Wheelbase, mm | 1350 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 14.2 |
| Dimensions, LxWxH mm | 2370x1185x1265 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent on double A-arms with anti-roll bar |
| Average fuel consumption, L / 100 km | 6 |
| Equipment | rearview mirrors, handguards, LCD instrument panel, winch, alloy wheels, tow hitch |
| Electrics | Front lenses with H4 halogen lamps 35W (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid, 12V 18Ah |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguard, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional cases |
Description and Advantages
The Linhai ML850ATV is equipped with a 700 cm3 fuel-injected engine with 41 hp, providing confident acceleration and stable operation at a nominal 6900±150 rpm. Liquid cooling allows the vehicle to be operated in intensive mode without overheating, which is important for long trips and demanding working conditions.
The automatic transmission with a V-belt variator makes control simple and smooth, and the availability of L/H/neutral/reverse modes allows you to choose the optimal mode for the route — from maneuvering on the property to conquering off-road terrain. The rear differential lock increases проходимость on difficult sections and provides additional confidence when starting on slippery surfaces.
A reliable braking system with disc brakes on each front wheel and a disc on the rear, combined brake control, and reinforced brake hoses ensure safety and durability. The parking brake locks the rear caliper and has manual actuation with a lock on the handlebars — a convenient solution for parking on slopes.
The suspension with front McPherson struts and independent rear suspension on double A-arms with a stabilizer guarantees stable handling, good wheel geometry, and load resistance on rough terrain. The 1350 mm wheelbase and dimensions of 2370x1185x1265 mm make the quad bike maneuverable yet stable.
Practical equipment includes rearview mirrors, handguards, an LCD instrument panel, a winch, alloy wheels, and a tow hitch for towing — everything you need for work and active recreation. The ABS plastic body kit and tubular metal body kit integrated into the frame provide reliable protection for components and the possibility of mounting additional cases.
A fuel tank capacity of 14.2 L combined with an average consumption of about 6 L/100 km ensures good range autonomy. Tire sizes — front 25x8-12 and rear 25x10-12 — are suitable for off-road operating conditions.
Electrics: H4 halogen 35W for low/high beam, marker lights, brake lights, turn signals, horn, and speedometer. Power from a sealed 12V 18Ah lead-acid battery guarantees reliable starting and operation of the onboard network.
The Linhai ML850ATV is a versatile choice for those looking for a practical, durable, and well-equipped quad bike for work and recreation on any route.
