Linhai Z180 (2020) — a reliable and versatile ATV from LINHAI
The Linhai Z180 ATV, a 2020 model from LINHAI, combines ease of use, thoughtful ergonomics, and technical solutions adapted for off-road and water fords. The Z180 is suitable for farm work, outdoor recreation, and urban routes with rough terrain.
Technical specifications and design features
Engine: a single-cylinder 4-stroke unit with a displacement of 177 cm3 (updated 63rd modification), developing 12 hp. This power provides a maximum speed of up to 65 km/h off-road. The cooling system is forced air with an additional radiator, which protects components from overheating and extends their service life.
- 1. Front independent suspension: two transverse arms and shock absorbers with five-position preload adjustment for fine-tuning the load.
- 2. Rear suspension: reinforced swingarm with a three-position shock absorber, increasing stability under load.
- 3. Braking system: efficient front and rear disc brakes; front discs are reinforced compared to previous versions.
- 4. Gearbox: automatic, reinforced transmission with a snorkel for safe operation in fords.
- 5. Drive: 4x2 with chain final drive and a tensioner on the rear axle for smooth operation.
- 6. Wheels and tires: alloy wheels; front tire size 22x7-10, rear 22x10-10; tires are designed for heavy loads.
- 7. Fuel tank capacity: 8 L; economical fuel consumption of about 3 L/100 km.

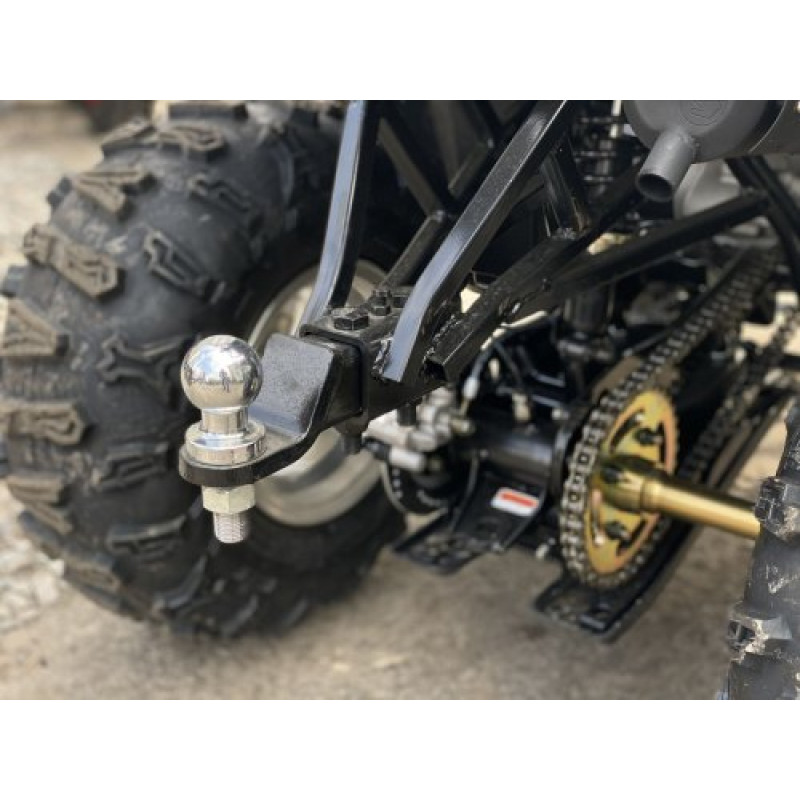

The ATV weighs 190 kg; dimensions (LxWxH) — 1815×1025×1290 mm. The body is made of solid cast high-quality plastic, available in four colors: white, green, red, and black. For convenience on the farm, the model is equipped with a tow hitch.
Comfort and safety

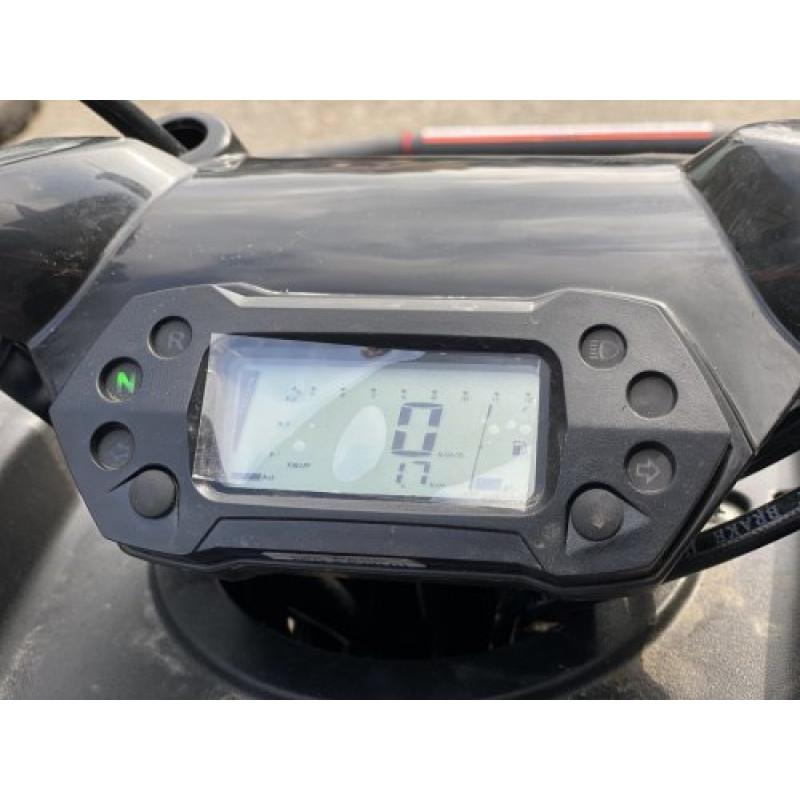

The model features heated handlebars for comfortable riding in cold weather. An LCD display is installed on the panel, showing speed, remaining fuel, oil pressure, and mileage, allowing control over the vehicle's condition during trips. The seat with a backrest is the longest in its class of 2WD ATVs, ensuring comfort on long routes. The package may include winter tires for operation on snow and ice.
The model is suitable for experienced riders, as well as beginners and teenagers who meet the technical safety requirements and have the necessary driving skills.
Maintenance, durability, and operation
The reinforced automatic transmission and proven chassis guarantee reliable operation under intensive loads. Alloy wheels and durable tires extend the unit's service life. The economical engine with low fuel consumption makes operation cost-effective: about 3 L per 100 km with an 8 L tank ensures long rides without frequent refueling.
| Engine displacement, cm3 | 177 |
| Engine type | 4-stroke, 1-cylinder |
| Drive | 4x2 |
| Cooling system | air |
| Max speed, km/h | 65 |
| Engine power, hp | 12 |
| Front / rear wheels | 22x7-10/22x10-10 |
| Front / rear brakes | disc/disc |
| Final drive | chain |
| Weight, kg | 190 |
| Dimensions, LxWxH mm | 1815×1025×1290 |
| Tank volume, L | 8 |
This table contains key parameters that will help make an informed choice of ATV for work, recreation, or training.
Where to buy and delivery terms
The Linhai Z180 ATV is available on the "Flash Army" website with one-click ordering. Available payment methods: prepayment, cash on delivery (COD), installment payment, and credit. After placing an order, delivery is carried out within 2–3 business days, depending on the destination's remoteness. On the website, you can also choose rider equipment: helmet, elbow pads, and knee pads.
The model combines an attractive price and proven technical solutions, making the Linhai Z180 an excellent choice for those looking for a reliable and versatile 2WD ATV.
