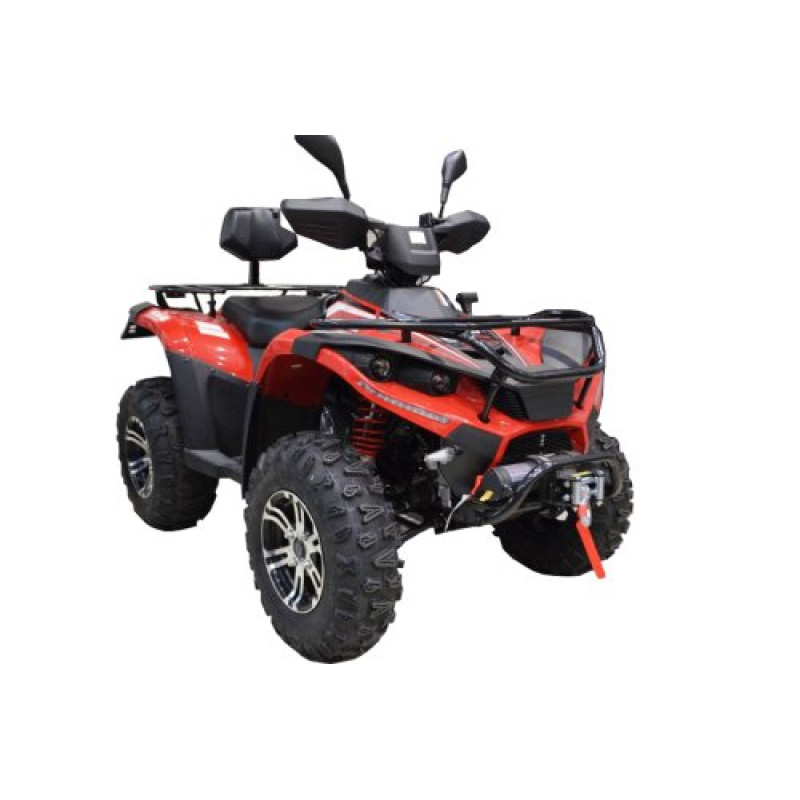

Linhai LH550 Quad Bike from the LINHAI brand is a reliable solution in the category Motor Vehicles > Quad Bikes for those seeking a combination of power, durability, and affordability. The LH550 model upholds Linhai's reputation, which has been producing quad bikes since 2001: it's a balanced combination of a quality engine, well-designed chassis, and ergonomics for comfortable and extreme use.
Who is the Linhai LH550 suitable for?
This is an all-wheel drive (4x4) quad bike designed for challenging terrains — swamps, fields, climbs, and obstacles. It is ideal for owners who need versatile transport for both active recreation and off-road work. Product category: Motor Vehicles > Quad Bikes.
Key Technical Features
The heart of the model is a four-stroke gasoline engine LH188MR with a displacement of 493 cm3 and a nominal power of 26 kW (33 hp) at 6500 rpm. The maximum torque is 38.8 N.m. at 5500 rpm. The engine is carbureted, 4-stroke SOHC, 1-cylinder, liquid-cooled, ensuring stable operation and lower noise levels. Engine start is implemented via an electric starter, and additional engine protection safeguards it when encountering obstacles. Fuel type — gasoline not lower than A92. Transmission — automatic variator scheme F-L-N-R; drive — selectable all-wheel drive, cardan.
Technical Specifications
Engine
| Displacement, engine model | LH188MR, 493 cm3 |
| Engine type | carbureted, 4-stroke SOHC, 1-cylinder, liquid cooling |
| Nominal power | 26 kW/33 hp at 6500 rpm |
| Maximum torque | 38.8 N.m. at 5500 rpm |
| Fuel type | gasoline, not lower than A92 |
| Cooling system | liquid cooling |
| Starting system | electric start |
| Transmission | automatic variator F-L-N-R |
| Drive | selectable all-wheel drive, cardan |
Chassis
| Frame | steel, tubular |
| Front suspension | independent McPherson |
| Rear suspension | independent Twin-A suspension |
| Brakes | dual ventilated disc |
| Tires, size | front 25x8-12, rear 25x10-12 |
Main Characteristics
| Number of seats | 2 |
| Wheel formula | 4x4 |
| Ground clearance, mm | 280 |
| Maximum speed | 90 km/h |
| Fuel consumption | 5.5 L/100 km |
| Fuel tank capacity | 20 L |
| Maximum payload capacity | 200 kg |
| Curb weight | 350 kg |
| Seat height | 915 mm |
| Overall dimensions (LxWxH), mm | 2120x1185x1215 |
| Winch | installed |
The LH550's design features independent front and rear suspension, ensuring a smooth ride and confident grip on uneven terrain. The selectable all-wheel drive with cardan transmission allows it to overcome difficult terrain, while robust aluminum wheels and modern design enhance the model's appearance.
By purchasing the Linhai LH550 from the Flash Army online store, you receive an official warranty, service maintenance, professional consultations, and payment options: online order, by phone, credit or installment plan, cashless payment with VAT. Fast delivery available in Kyiv and throughout Ukraine.
The Linhai LH550 model is an excellent choice for those who need a powerful, reliable, and versatile quad bike: liquid cooling, electric start, quality transmission, and a well-designed chassis ensure a long and stable service life.
