EW KVERTUS AD COUNTER FPV 130-1350 MHz
*with 24 V, 15 A-h battery - 134 000 UAH

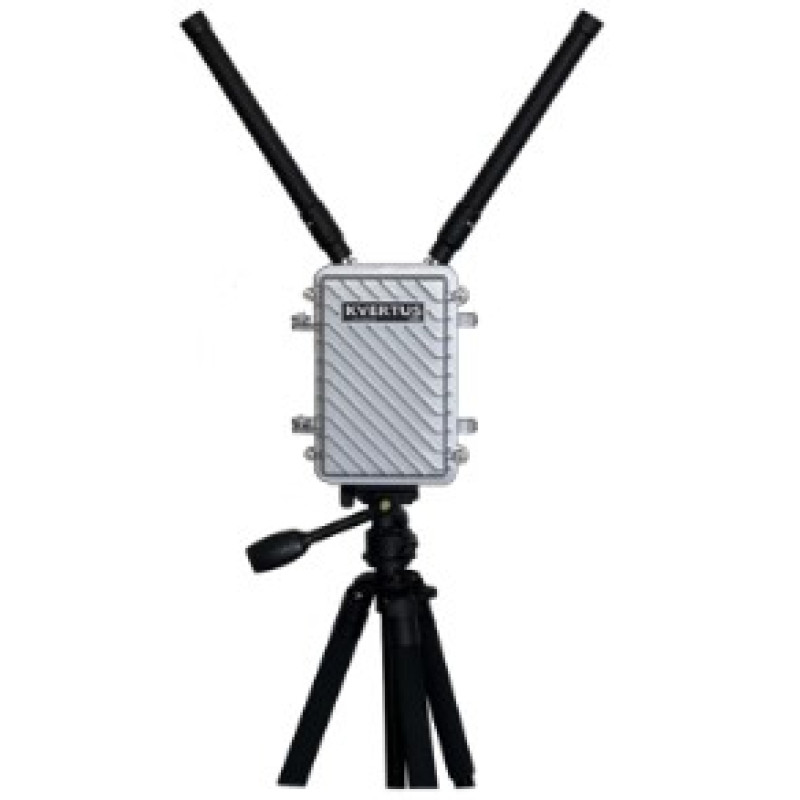

The EW KVERTUS AD COUNTER FPV is a specialized device for combating FPV drones in one selected radio frequency range. Manufactured by the Kvertus brand, the device is designed to create radio interference and provide protection for objects against remote control by unmanned aerial vehicles. Product category: EW Jammers > Trench EW Jammers.
The device can be installed on vehicles, making it convenient for rapid deployment. The delivery set includes the IP-1 field indicator, which allows for quick and reliable detection of radio interference emission in any operating conditions.
SELECTION OF JAMMING RANGES
| No. | Jamming Range, MHz | Module Power |
| 1 | 130-180 | 2 modules, 30 W each |
| 2 | 220-300 | 2 modules, 30 W each |
| 3 | 300-400 | 2 modules, 30 W each |
| 4 | 400-500 | 2 modules, 30 W each |
| 5 | 500-600 | 2 modules, 30 W each |
| 6 | 600-700 | 2 modules, 30 W each |
| 7 | 700-850 | 2 modules, 30 W each |
| 8 | 850-940 | 2 modules, 30 W each |
| 9 | 940-1050 | 2 modules, 30 W each |
| 10 | 1050-1150 | 2 modules, 30 W each |
| 11 | 1150-1250 | 2 modules, 30 W each |
| 12 | 1250-1350 | 2 modules, 30 W each |
From the listed range options, the client selects any one for delivery and operation. Each range is implemented as two 30 W modules, ensuring stable jamming power in the selected spectrum.
Technical Specifications
- Effective operating distance: from 150 m (depending on application conditions).
- Power supply (without battery option): 220 V, 50 Hz AC source; vehicle's onboard electrical system.
- Power supply (with battery option): 220 V, 50 Hz AC source; 24 V, 15 A-h rechargeable battery; vehicle's onboard electrical system.
- Power consumption: not more than 220 W.
- Weight in deployed state: not more than 7 kg (not more than 9 kg with battery).
- Antennas: collinear omnidirectional.
- Continuous operation time from mains power — 24 hours, followed by a 1-hour break; from onboard electrical system — depends on the onboard electrical system's operating time, but not more than 24 hours, followed by a 1-hour break.
- Battery operation time: not less than 120 min.
- Cooling: active.
The KVERTUS AD COUNTER FPV from Kvertus — a mobile and reliable solution for countering FPV drones: easy to deploy on vehicles, equipped with an IP-1 indicator for emission control, and available with an autonomous power option (24 V, 15 A-h battery) at an additional cost. The device is recommended for security units, military formations, and special services that need to quickly localize and block drone control channels.
Other characteristics and delivery options should be clarified with the seller; the model is supplied with one selected jamming range according to the table.
