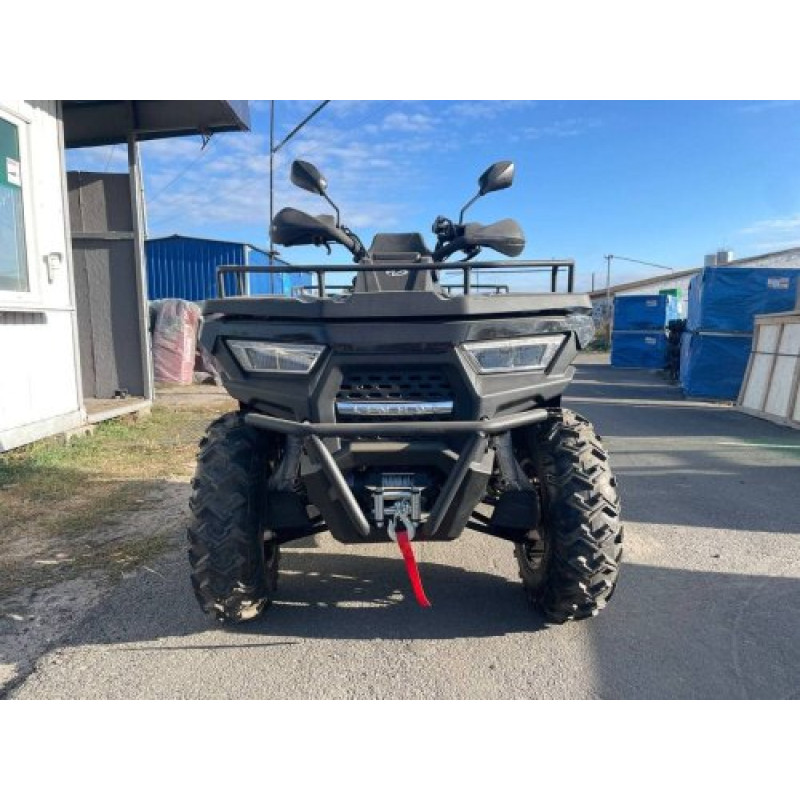

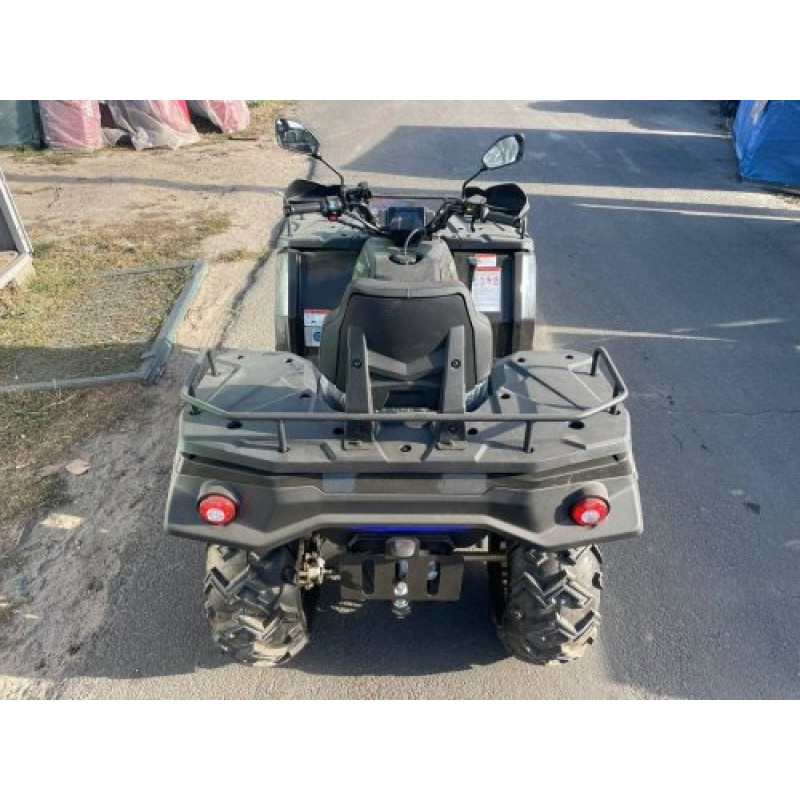

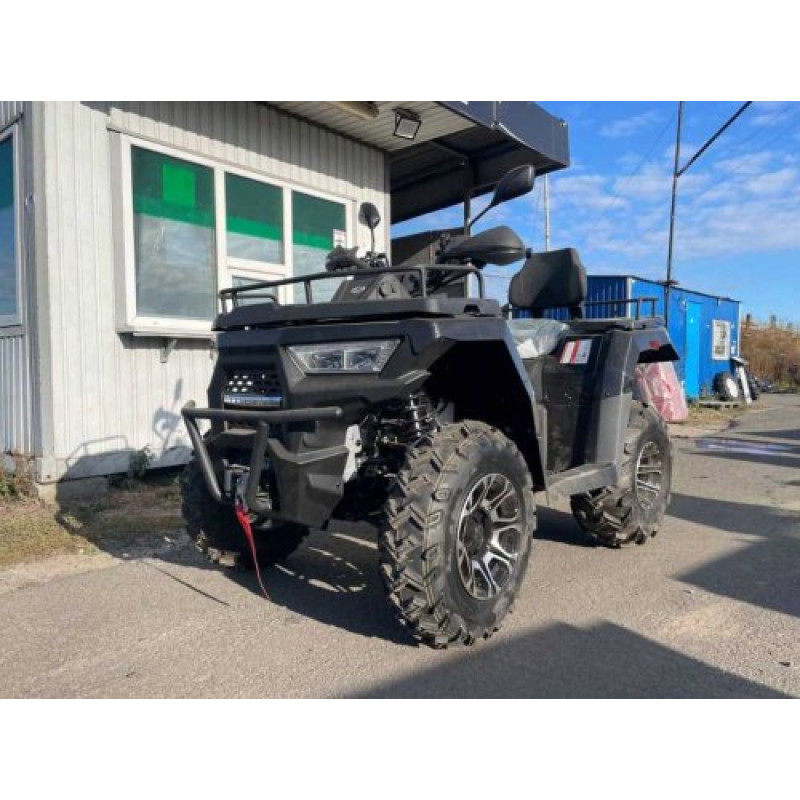

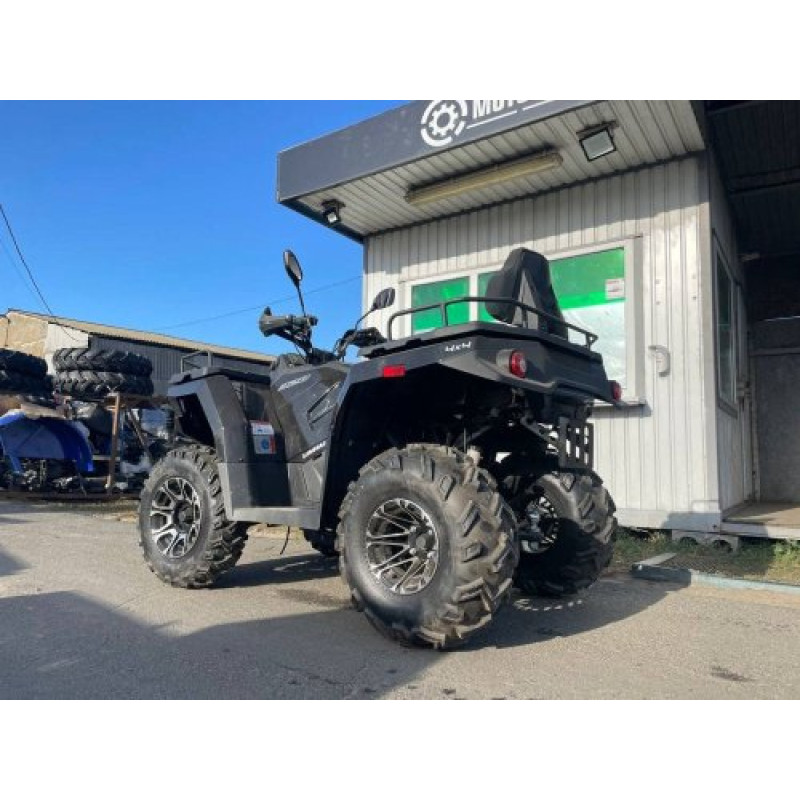

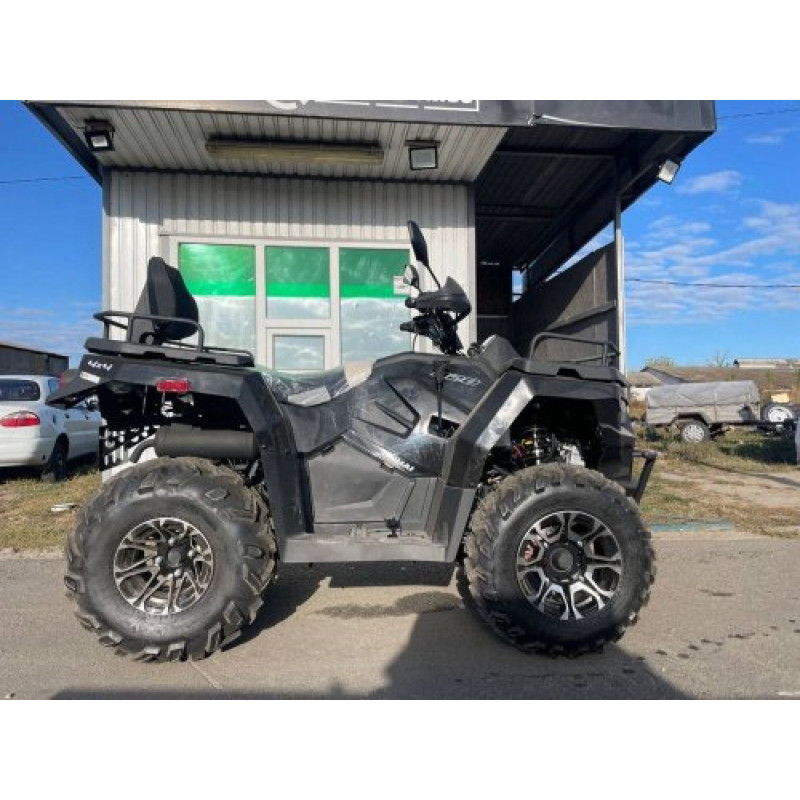

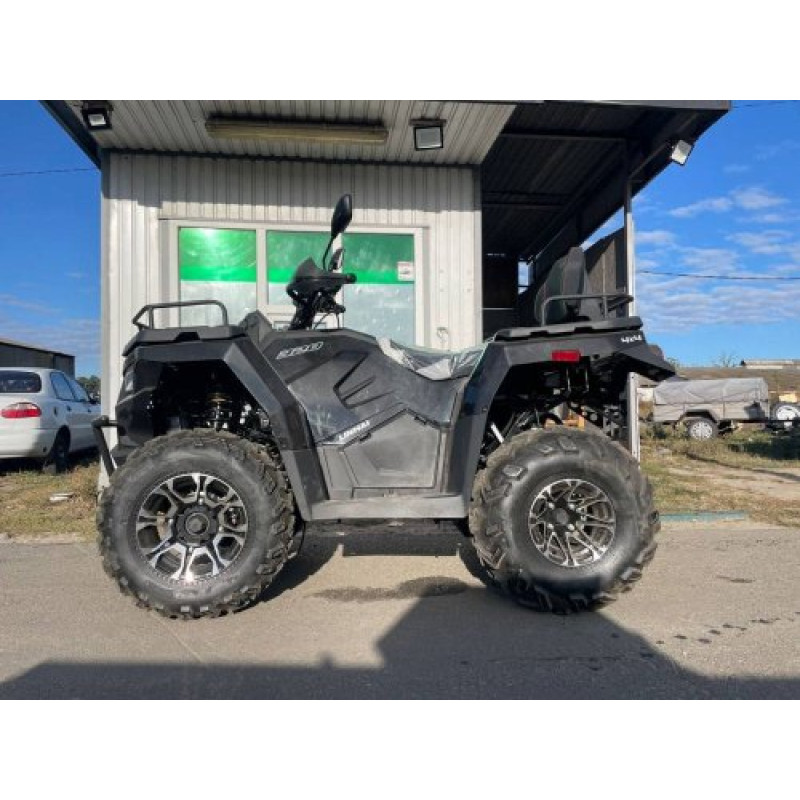

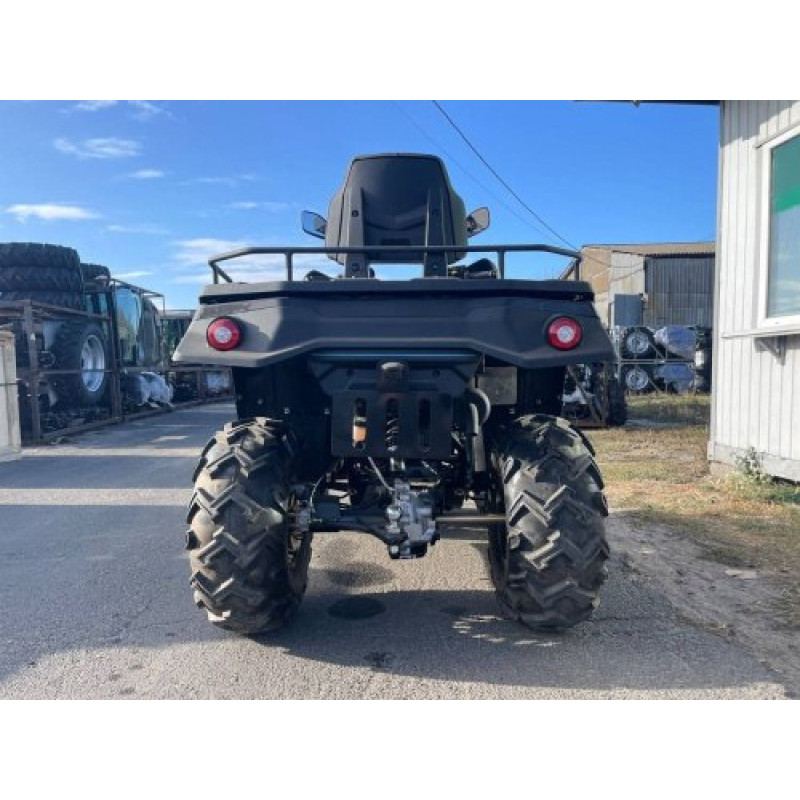

Linhai F320 ATV — a powerful assistant for recreation and work
The Linhai F320 ATV from the manufacturer LINHAI in the category Motor Vehicles > ATVs combines modern technical solutions, a reliable frame, and rich equipment. This model is equipped with a gasoline 4-stroke engine with an EFI injection system, a volume of 275 cm3, and a power of 21 hp, which guarantees confident acceleration with economical fuel consumption. The starting system is electric starter, the cooling system is liquid.
The Linhai F320 is equipped with an automatic transmission (V-belt variator), has L/H/N/R mode positions, and the ability to lock the rear differential. The final drive is direct. The nominal engine speed is 6900±150 rpm, torque is 23 Nm at 5500 rpm.
Key advantages and equipment
- Electronic fuel injection (EFI) — stable engine operation in various conditions.
- Automatic transmission (variator) — convenient control without gear shifting.
- Rear differential lock — increased off-road capability on difficult terrain.

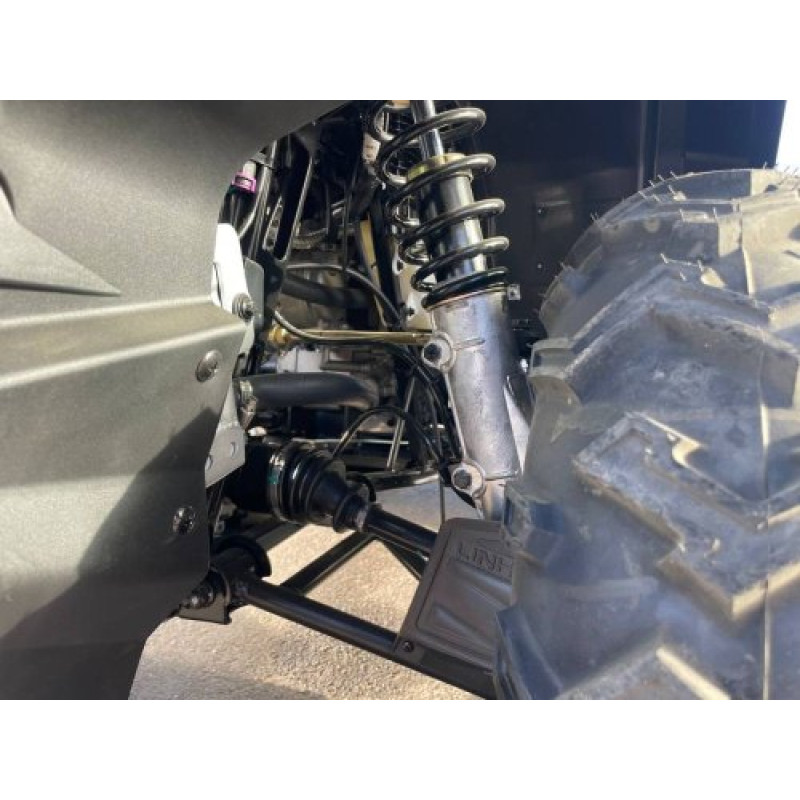

- Independent front and rear suspensions for high comfort: front — McPherson struts, rear — double A-arms.
- Effective hydraulic disc brakes on each front wheel and a rear disc brake on the axle with reinforced brake hoses.
- Parking brake with manual drive and handlebar lock.
- Durable ABS plastic body kit and tubular metal frame protection with the possibility of installing additional cases.

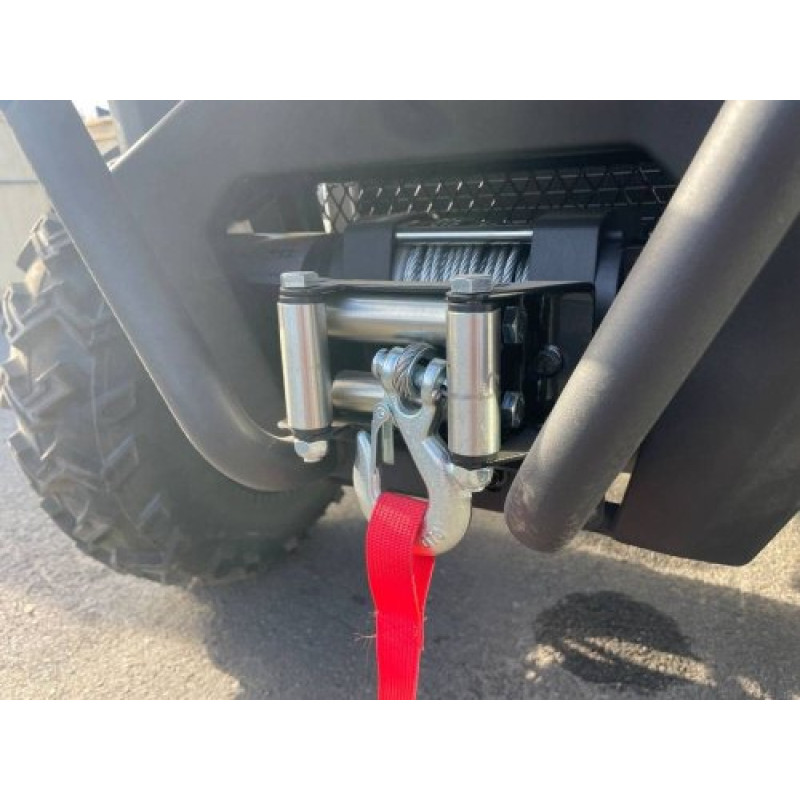

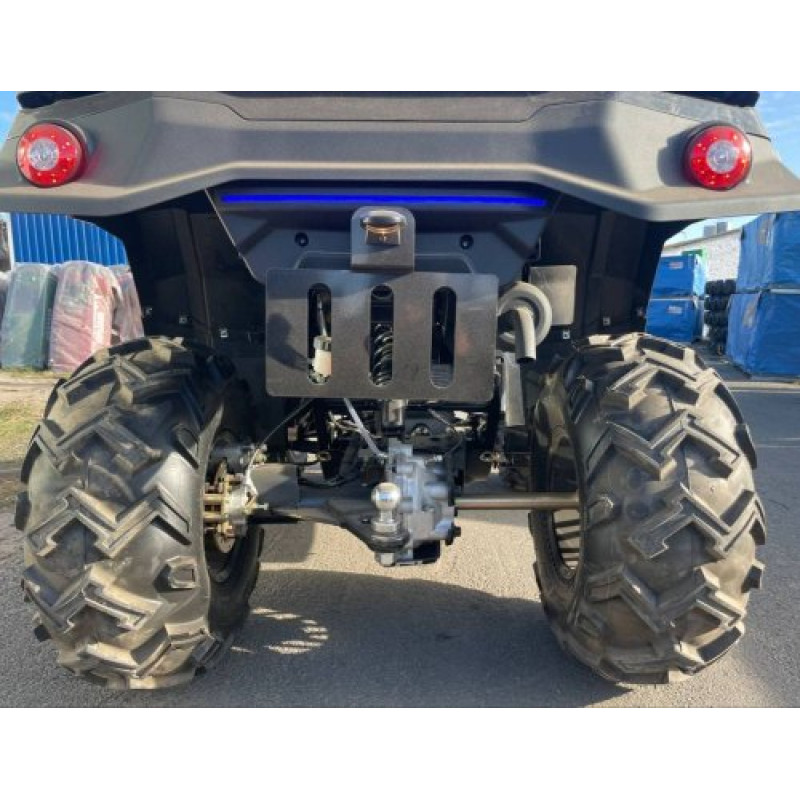

- Equipment includes rearview mirrors, handguards, an instrument panel with an LCD screen, a winch, alloy wheels, and a tow hitch.
- Electrics: front lenses with halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer.
| Engine power, hp | 21 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 275 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Nominal engine speed, rpm | 6900±150 |
| Torque, Nm/rpm | 23 at 5500 |
| Transmission (КП) | automatic (V-belt variator) |
| Modes | L/H/N/R |
| Rear differential lock | Yes |
| Final drive | direct |
| Front brakes | hydraulic, disc on each wheel |
| Rear brake | hydraulic, disc on wheel axle |
| Parking brake | locks rear caliper with manual drive and handlebar lock |
| Brake hoses | reinforced |
| Wheelbase, mm | 1215 |
| Tire size | front 24x8-12, rear 24x11-10 |
| Fuel tank capacity, L | 14 |
| Dimensions, LxWxH mm | 2120x1140x1270 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent on double A-arms |
| Equipment | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrics | front lenses with halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional cases |
The Linhai F320 is designed for those who need a versatile 4x4 ATV with an injected engine and full equipment: both for active off-road recreation and for performing work tasks. The front tire size 24x8-12 and rear 24x11-10, combined with a 1215 mm wheelbase, provide excellent off-road capability and stability in turns. The 14 L fuel tank allows for significant distances without frequent refueling, and the dimensions of 2120x1140x1270 mm and thoughtful ergonomics guarantee a comfortable seating position and machine control.
If you need a reliable ATV with electronic injection, automatic transmission, effective disc brakes, and a full set of useful equipment — the Linhai F320 meets these requirements and is ready for operation in challenging conditions.
