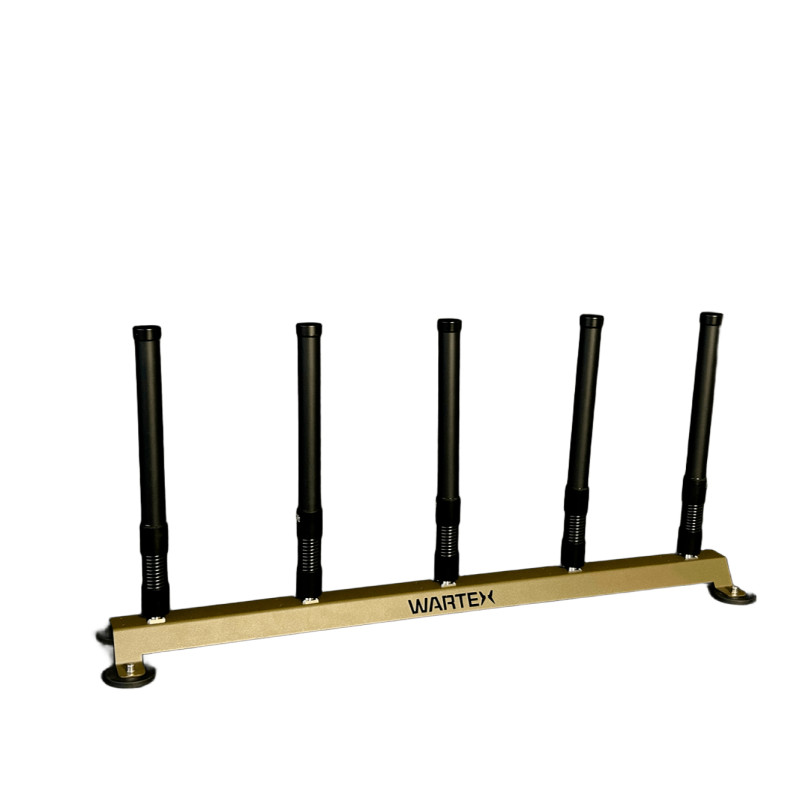

SHTANGA Wartex Magnetic Antenna Mount

The SHTANGA magnetic antenna mount from Wartex — a professional solution for mounting antenna-feeder systems on vehicles and stationary positions. This product belongs to the EW > EW Antenna Mounts category and is designed for use in modern electronic warfare systems where rapid deployment, reliable fixation, and compatibility with professional interfaces are required.

Description and Purpose

The SHTANGA Wartex is designed for mounting antennas on armored and other mobile equipment, as well as for installation on temporary or permanent positions. The design features a combined mounting system: a magnetic base for quick installation and threaded fixation for additional reliability and stability during operation. The N-Type Female interface ensures broad compatibility with professional antennas and coaxial adapters.

Technical Specifications

• Number of extensions: 5 pieces
• Interface: N-Type Female
• Cable length: 2 meters each
• Mounting type: threaded/magnetic
• Weight (without antennas): approx. 3 kg
• Dimensions (without antennas): 260x167x85 mm

Cable Attenuation

• LMR240 (900 MHz) – 23.5 dBi per 100 meters
• LMR400 (900 MHz) – 12.8 dBi per 100 meters

Package Contents: The package includes 5 SLR or LMR240 coaxial cables with N-Type Male interface, each 2 meters long. Antennas are not included.

The mount is compatible with EW and SIGINT systems, making it versatile for a wide range of tasks: field testing, operational equipment replacement, integration into complex EW systems. The design features well-thought-out housing geometry, ease of installation, quick cable replacement capability, and resistance to vibrations and climatic loads.

Thanks to its compact size and moderate weight, the product is suitable for mounting even in confined spaces where mass and space savings are important. During installation, it is recommended to check the reliability of the threaded connection and the correct placement of the magnetic base to avoid possible slippage during operation on mobile equipment.

Advantages of SHTANGA Wartex: reliable magnetic fixation, additional threaded lock for secure mounting, universal N-Type Female interface, included cables (5 pcs) SLR/LMR240 2m each, optimized attenuation characteristics for 900 MHz frequency. Using best mounting practices ensures stable operation of the antenna-feeder system in challenging conditions.

Brand: Wartex. Product type: EW > EW Antenna Mounts. The product is supplied without antennas, but includes mounting cables, which significantly simplifies preparation for operation.

Instructions for use: check the condition of the magnetic base and threaded elements before mounting, install the SHTANGA in the selected location, fix it with the magnet, if necessary, additionally secure with the thread, connect the cables via the N-Type interface. It is recommended to periodically check the mount during operation on mobile platforms.
