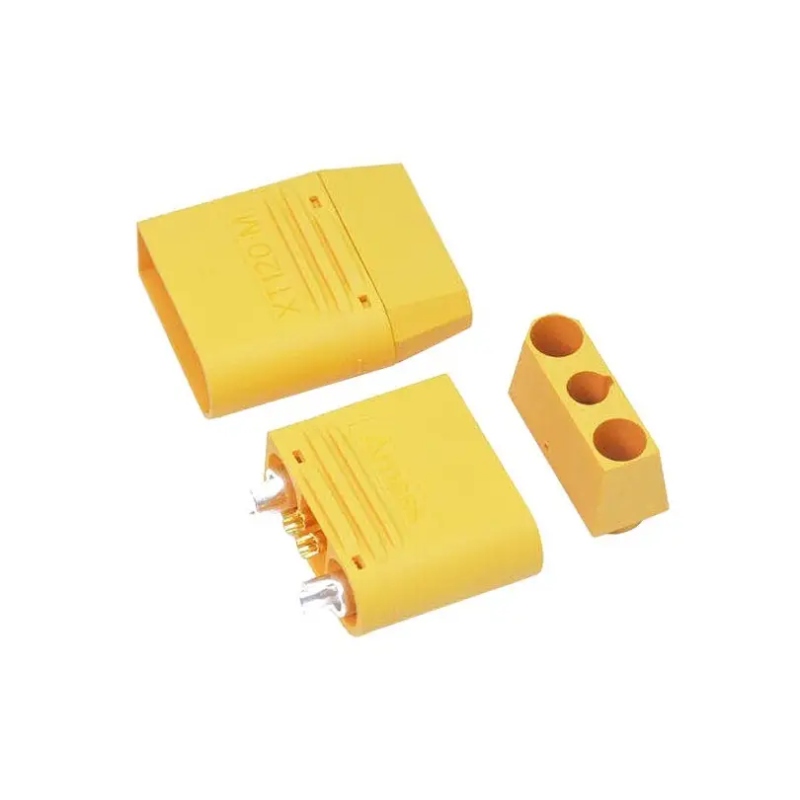

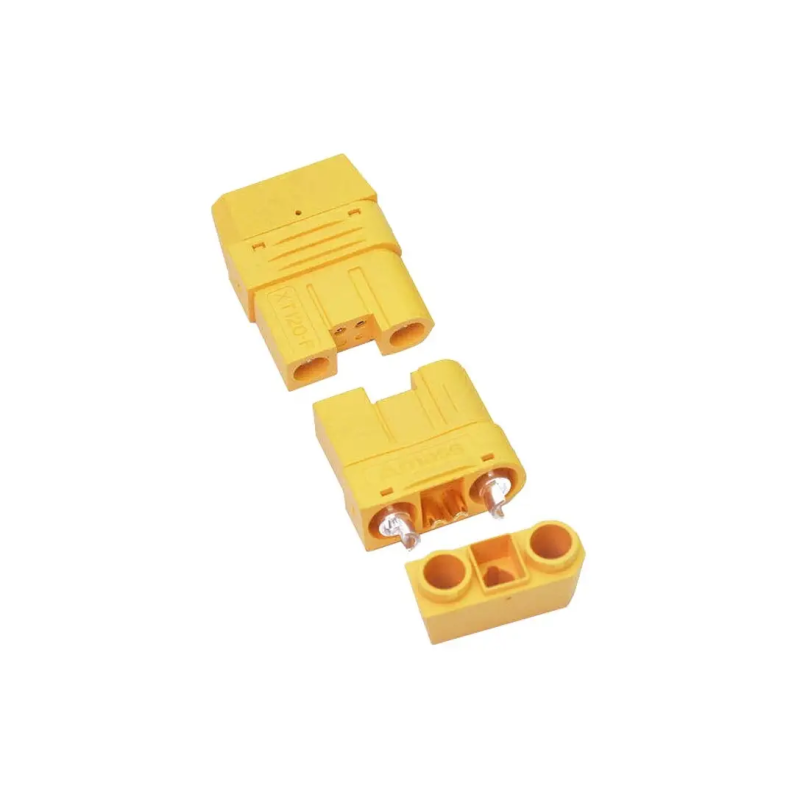

AMASS XT120 Connector Pair/M/F
The reliable XT120 series connector from AMASS is designed for safe and efficient connection of lithium batteries in drone models and other devices. This connector pair (Pair/Male/Female) combines high rated current, low contact resistance, and durable materials, ensuring a long service life even in harsh conditions. Recommended cable: 8 AWG. Product category: Drones and Quadcopters > Drone Accessories.
| AMASS XT120 Pair/Male/Female Specifications | Value |
|---|---|
| Manufacturer | AMASS |
| Model | XT120-F2.S.Y |
| Application Areas | Lithium batteries |
| Group | XT120 |
| Insulator Color | Yellow |
| Rated Current | 60 A |
| Peak Current | 120 A |
| Maximum Voltage | 500 V (DC) |
| Recommended Wire Gauge | 8 AWG |
| Mounting | Cable mount |
| Number of Main (Power) Lines | 2 |
| Number of Auxiliary (Signal) Lines | 2 |
| Conductor Material | Gold-plated brass |
| Insulator Material | Polyamide |
| Contact Resistance (max) | 1 mOhm |
| Flammability Rating | UL94-V0 |
| Additional Options | Cover for contact group |
| Operating Temperature | -20 – 120 °C |
| Rated Number of Reconnections (max) | 1000 times |
Description and Advantages: The AMASS XT120 connector combines a compact design with high current capacity: a rated current of 60 A and a peak of up to 120 A make it ideal for power-intensive battery packs. Gold-plated brass contacts ensure excellent electrical conductivity and minimal contact resistance (up to 1 mOhm), while the yellow polyamide insulator provides mechanical strength and increased resistance to temperature and environmental influences. The UL94-V0 flammability rating enhances safety when used with lithium batteries. The connector is equipped with two main power lines and two auxiliary signal lines, allowing for power and telemetry in a single housing.
- Maximum voltage: 500 V DC.
- Recommended wire gauge: 8 AWG for optimal current capacity.
- Operating temperature range: -20 to 120 °C.
- Reconnection cycles: up to 1000 cycles.
- Additional cover for the contact group to protect against dust and mechanical damage.
Application: Ideal for model making, drones, power systems, and any projects using lithium batteries with high current load requirements. Simple cable mounting ensures quick integration into existing systems.
Package Contents:
1 x AMASS XT120 Connector Pair/M/F
