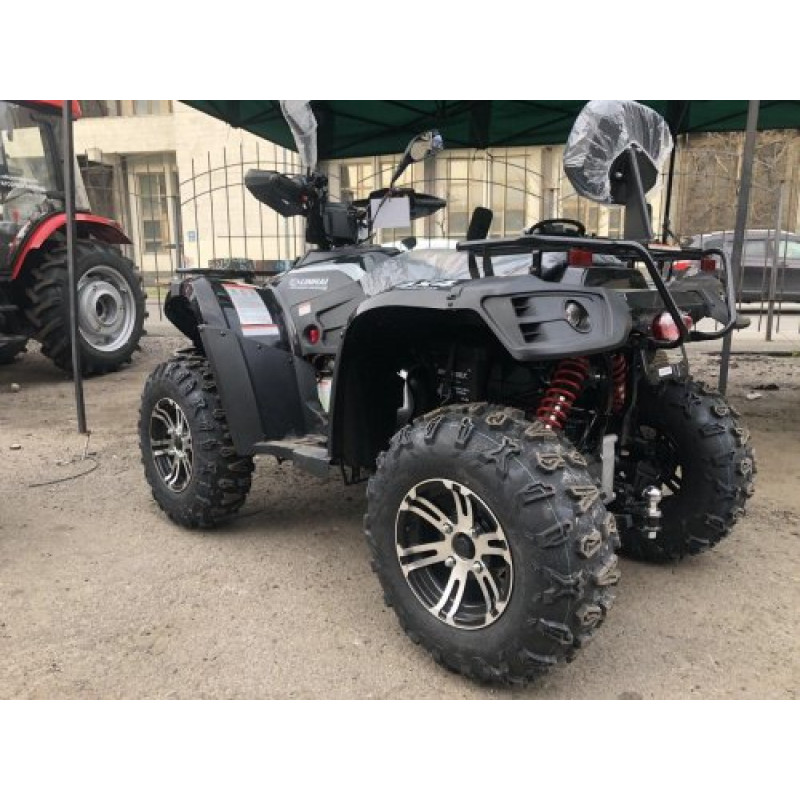

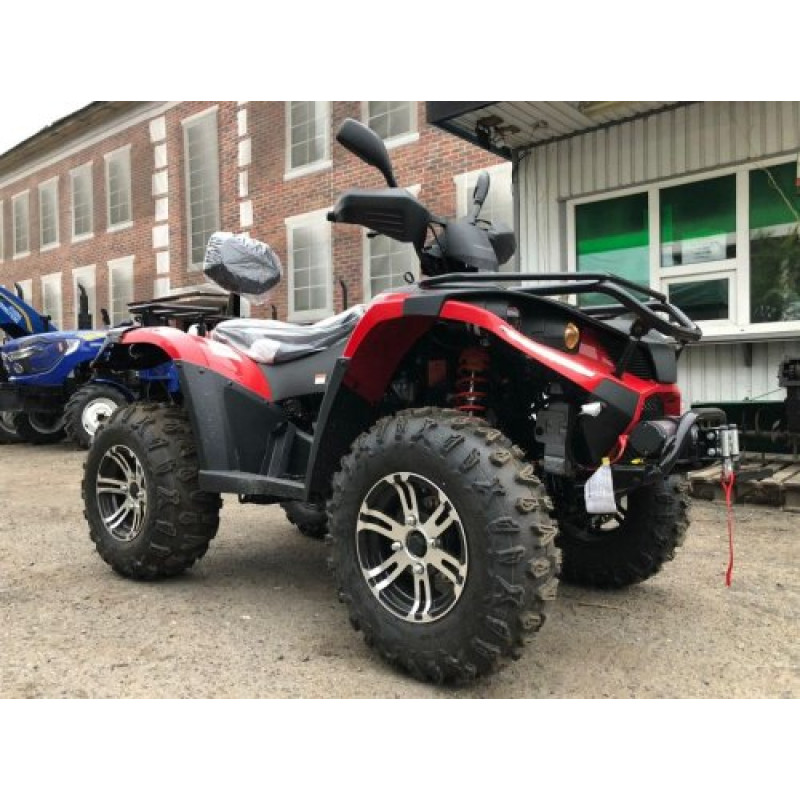

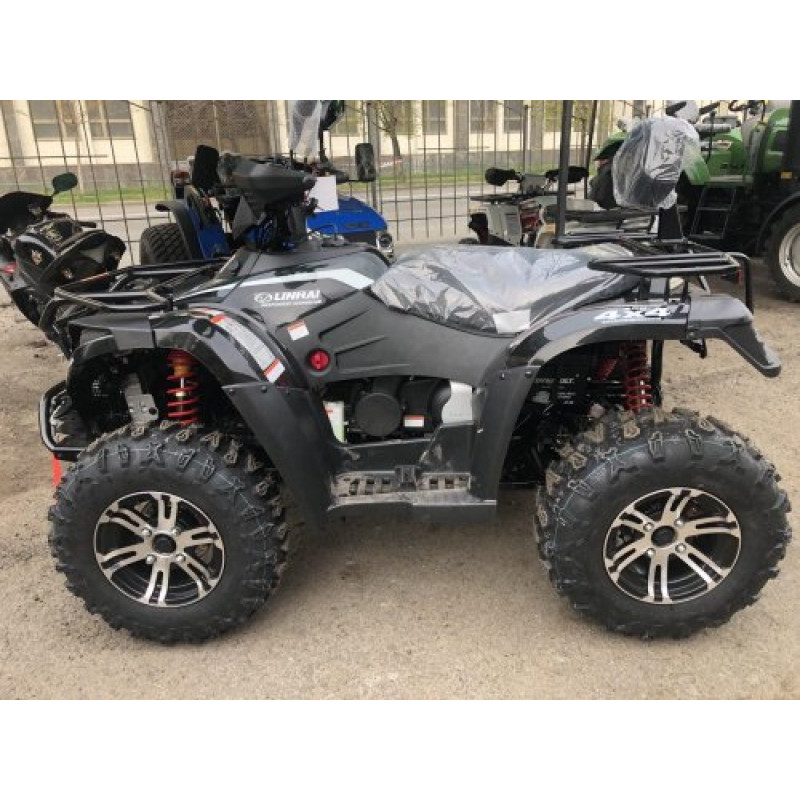

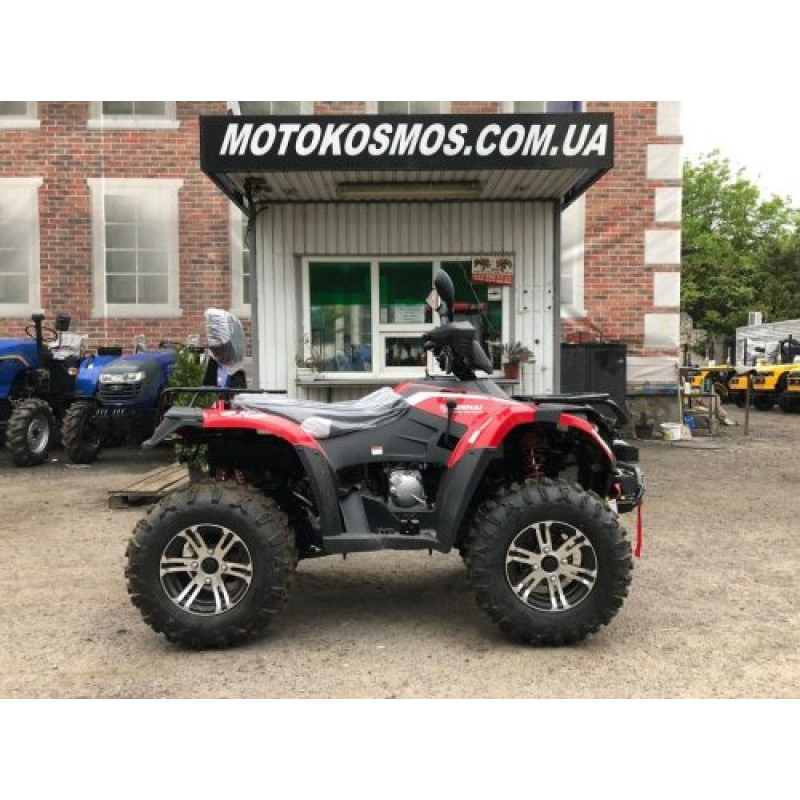

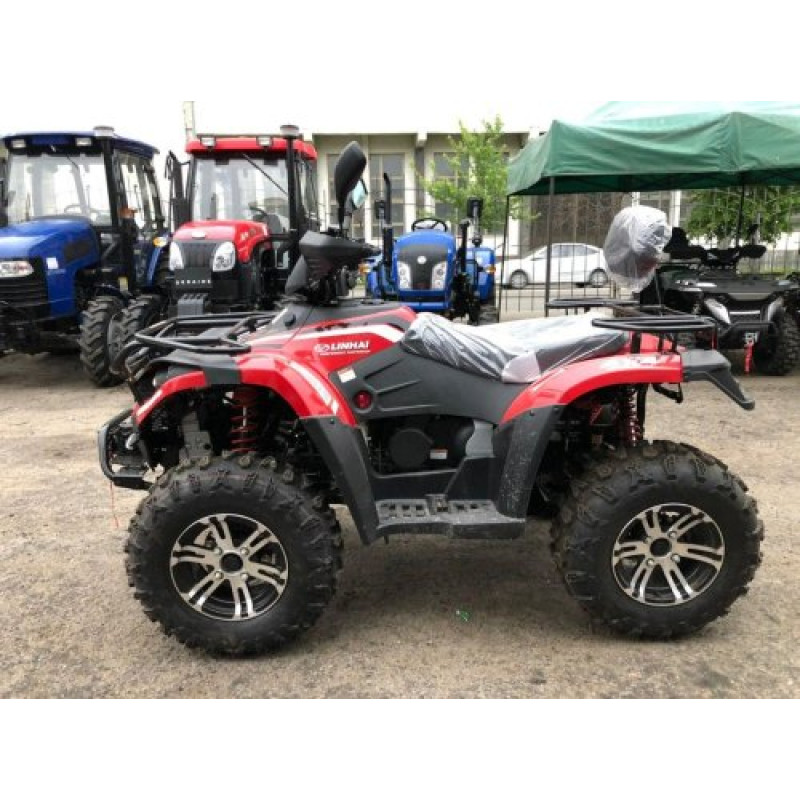

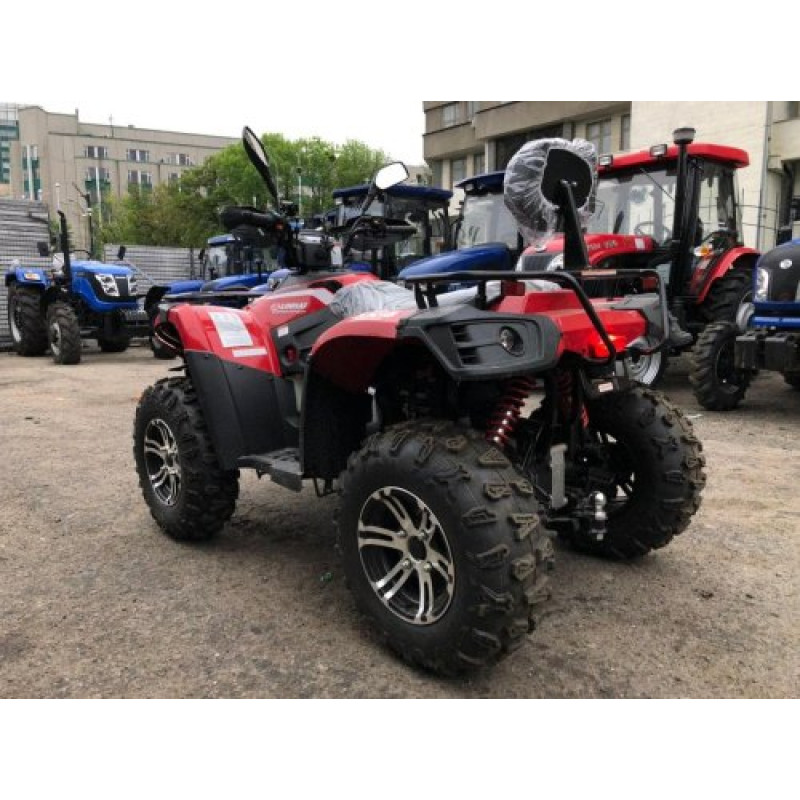

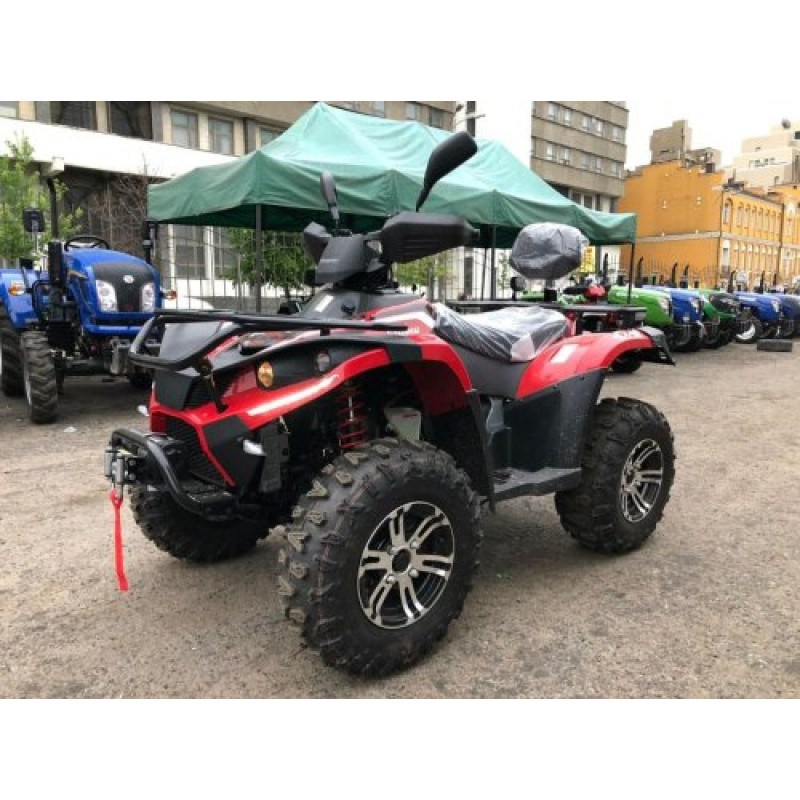

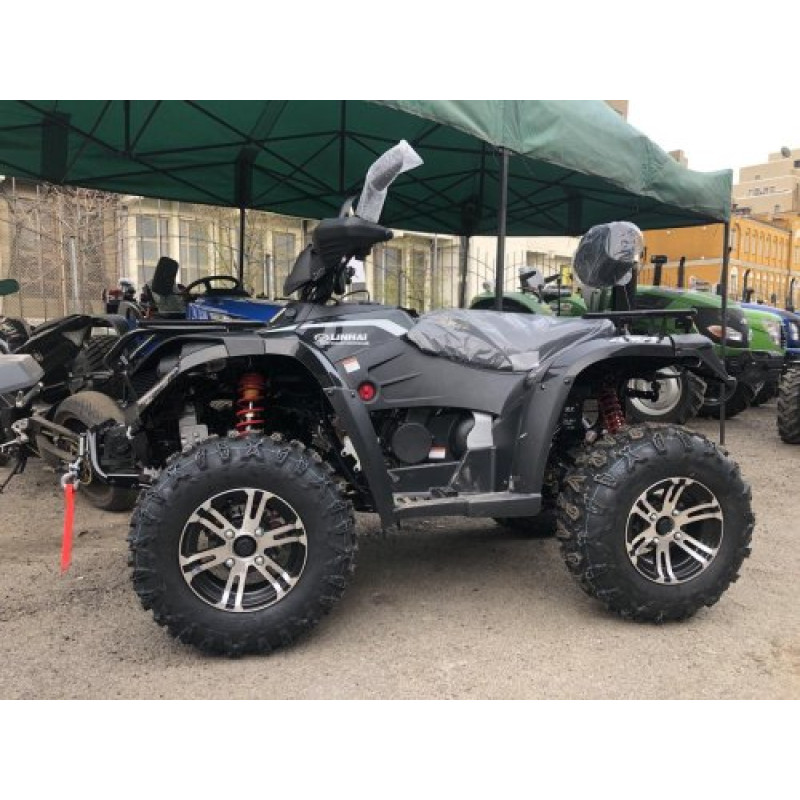

LINHAI LH400ATV-D Quad Bike — 2023 All-Wheel Drive ATV
The LINHAI LH400ATV-D quad bike from the LINHAI brand is a reliable all-wheel drive ATV designed for active recreation, tourism, hunting, fishing, and commercial rental use. The 2023 model offers a robust construction, modern technical features, and a wide range of factory equipment: a pre-installed winch, handguards, a tow hitch, projector optics for improved visibility, front and rear luggage racks, a digital speedometer, and additional options that make this quad bike versatile for challenging off-road conditions.
Engine and Transmission
At the heart of the LH400ATV-D is a four-stroke, single-cylinder, carbureted engine with a displacement of 352 cm3 (model LH180MQ) with liquid cooling. The nominal power is 17.7 kW (20 hp) at 8000 rpm, and the maximum torque is 27 N.m at 5000 rpm. The ignition system is TCI. The recommended fuel is gasoline no lower than A92. Power is transmitted via an automatic transmission (variator), and the drive is a selectable full cardan type with high and low gear modes and neutral, ensuring optimal off-road capability and ease of control in various conditions.
Equipment and Ergonomics

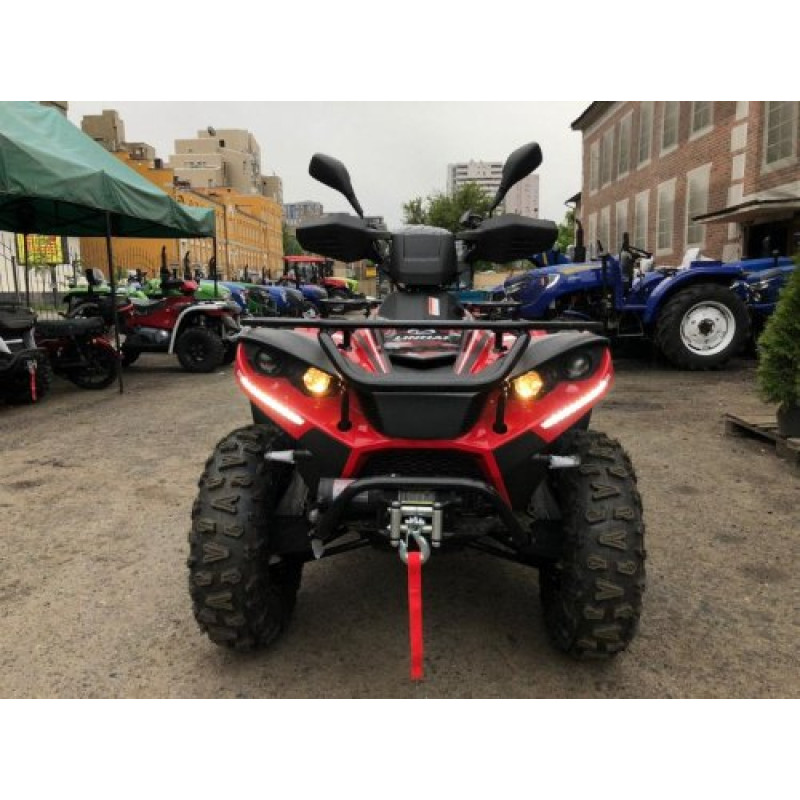

The quad bike comes equipped with a factory winch (pre-installed), rider handguards, a tow hitch, and front and rear luggage racks. Projector optics improve illumination in the dark, and a digital speedometer displays key driving parameters. The wheels are made of aluminum alloy, and the tires are special low-pressure tires with an aggressive tread for use in challenging off-road conditions.
Model Advantages
- Versatile application: suitable for adults and teenagers, touring, family recreation, hunting, fishing, and commercial rental use.
- High-quality Japanese-origin four-stroke engine, guaranteeing long engine life and reliability.
- Automatic variator transmission makes control simple and intuitive in various driving modes.
- Reliable chassis: independent McPherson front suspension and independent Twin-A rear suspension, robust tubular steel frame ensure comfort and stability.
- Modern design with projector optics and a functional LCD display.
- Luggage racks, winch, handguards, tow hitch, and remote control are included in the extensive standard equipment.
- Optimal price-to-equipment ratio at this model level.
Sales in Ukraine
The Flash Army online store is an official representative of LINHAI in Ukraine. The LINHAI LH400ATV-D quad bike is available in our catalog at a favorable price. We deliver nationwide without prepayment, payment upon receipt is possible, and credit or installment plans are available. Delivery is to the address specified by the buyer.
Technical Specifications
Engine| Displacement, engine model | 352 cm3, LH180MQ |
| Engine type | carbureted, 4-stroke, 1-cylinder, liquid-cooled |
| Nominal power | 17.7 kW/20 hp at 8000 rpm |
| Maximum torque | 27 N.m at 5000 rpm |
| Fuel type | gasoline, no lower than A92 |
| Cooling system | liquid cooling |
| Starting system | TCI |
| Transmission | automatic |
| Drive | selectable full, cardan |
| Frame | steel, tubular |
| Front suspension | independent McPherson |

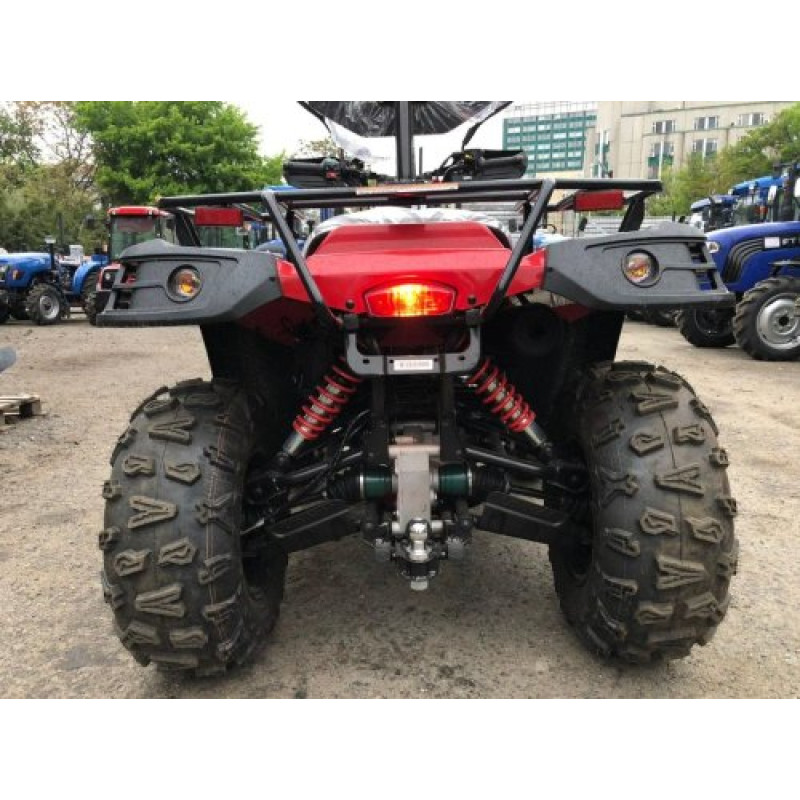

| Rear suspension | independent Twin-A |
| Brakes | dual ventilated disc |
| Tires, size | front 25x8-12, rear 25x10-12 |
| Number of seats | 2 |
| Wheel formula | 4x4 |
| Ground clearance, mm | 280 |
| Maximum speed | 90 km/h |
| Fuel consumption | 5.5 l/100 km |
| Fuel tank capacity | 20 l |
| Maximum payload capacity | 200 kg |
| Curb weight | 330 kg |
| Seat height | 900 mm |
| Overall dimensions (LxWxH), mm | 2105 x 1140 x 1270 |
| Winch | installed |
If you are looking for a well-equipped and durable quad bike for daily tasks and outdoor adventures, the LINHAI LH400ATV-D offers an excellent balance of power, comfort, and functionality. Contact Flash Army for consultation, a test drive, and purchase arrangements.
