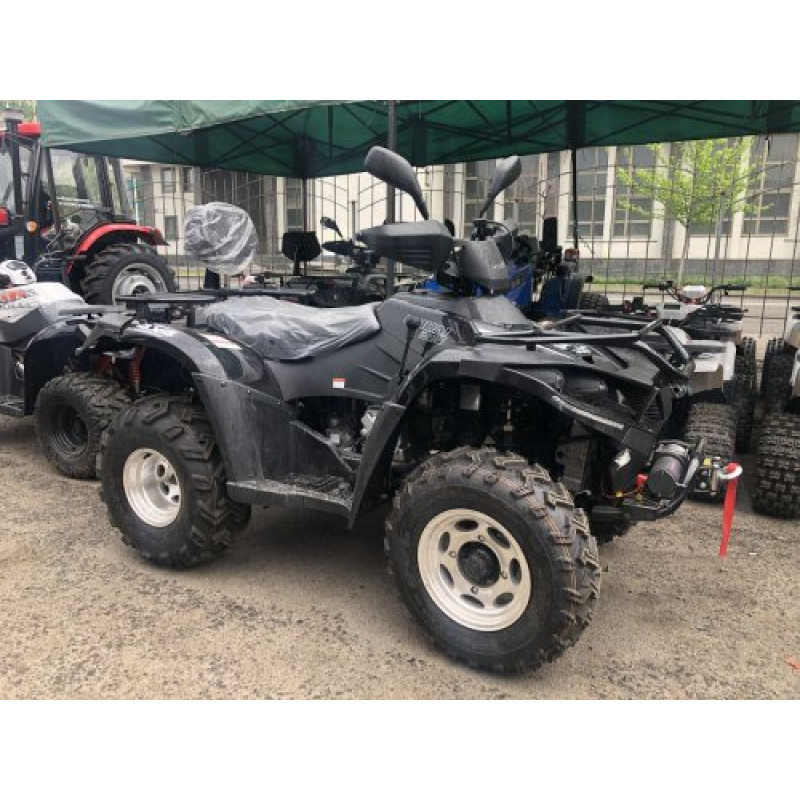

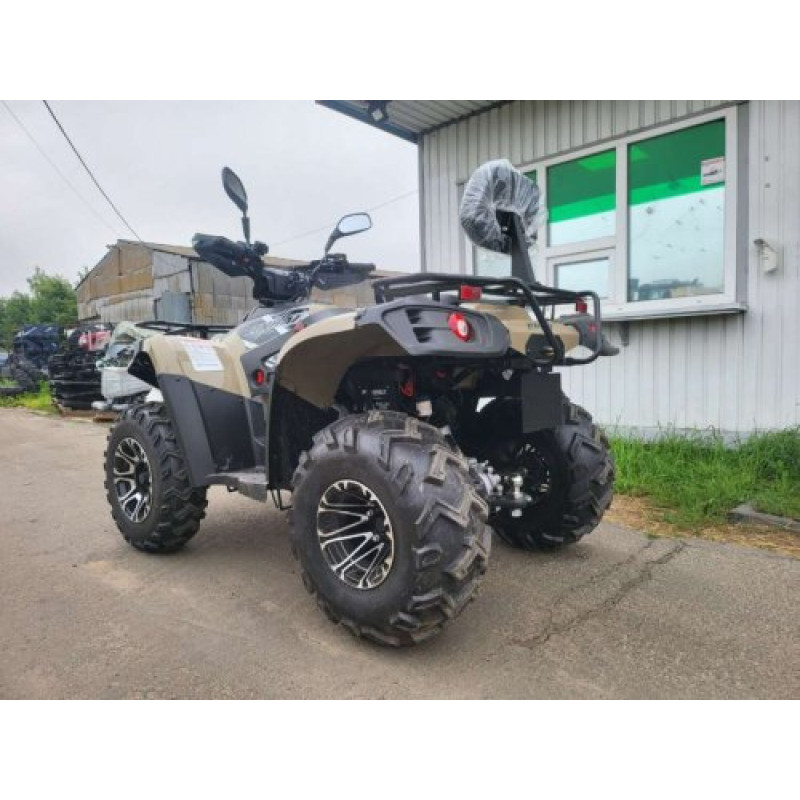

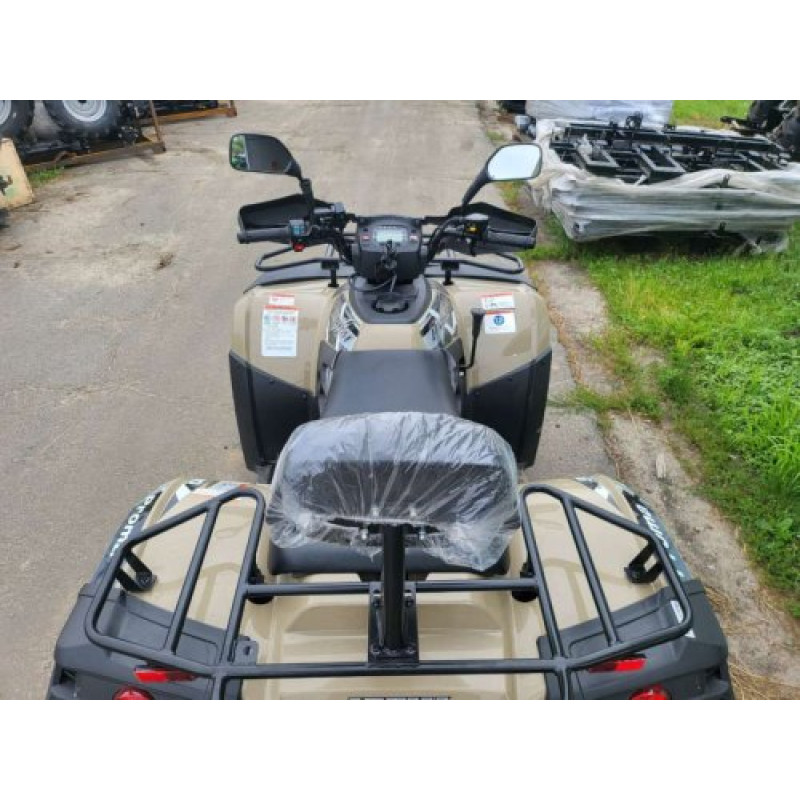

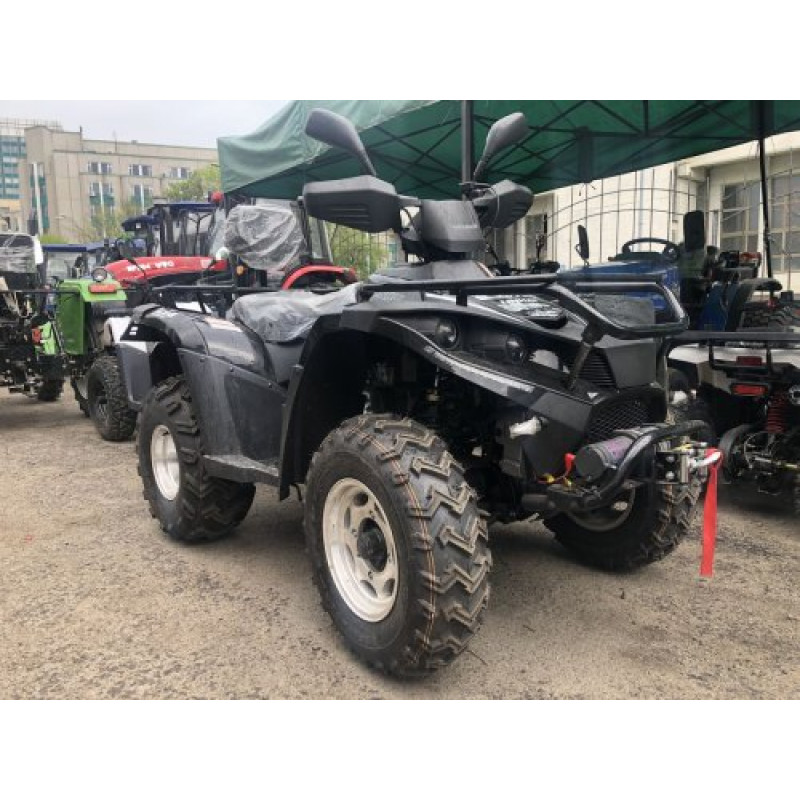

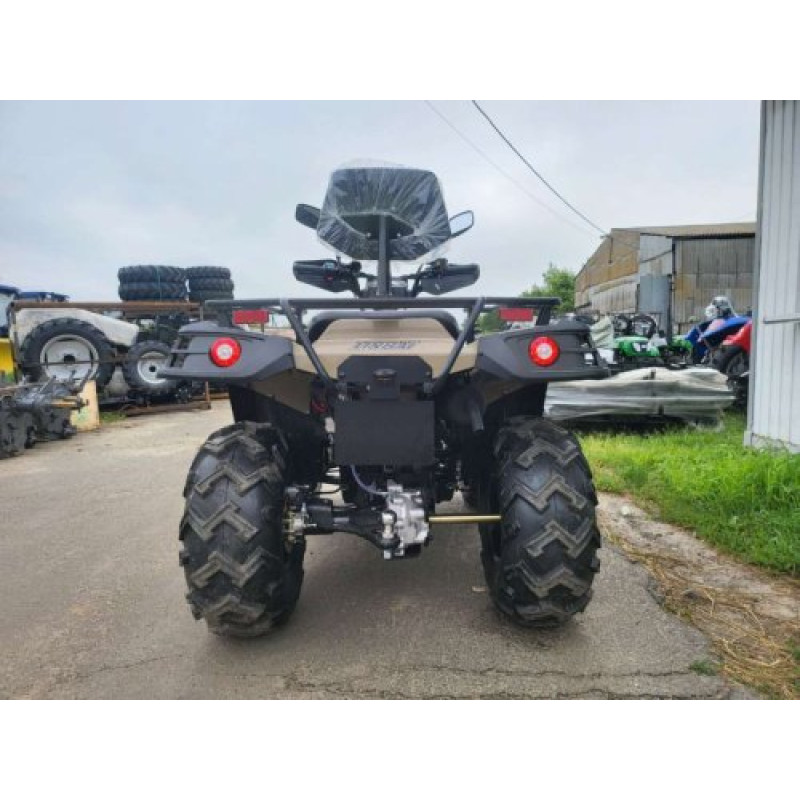

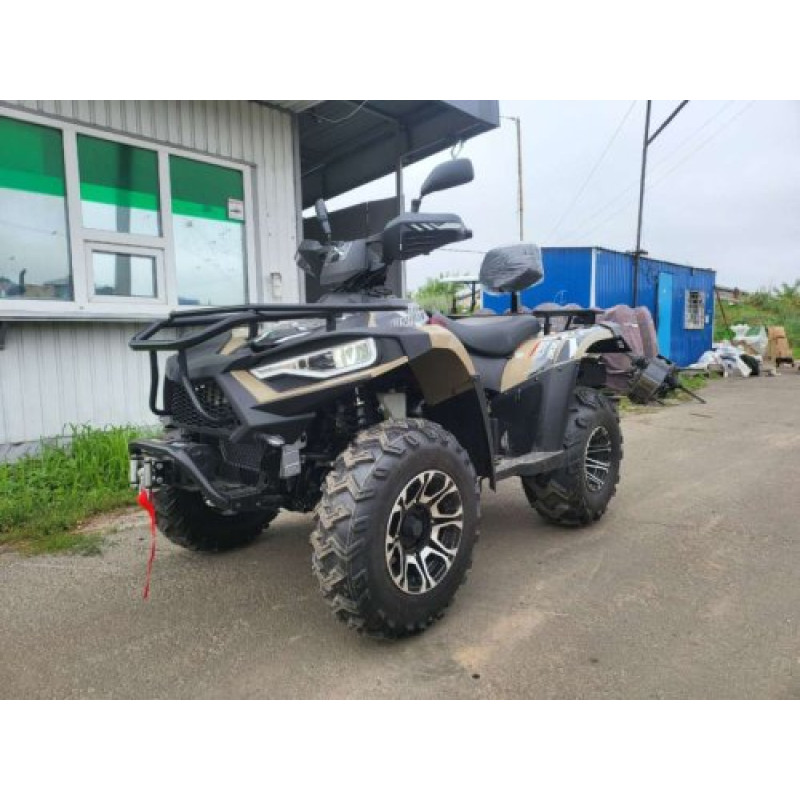

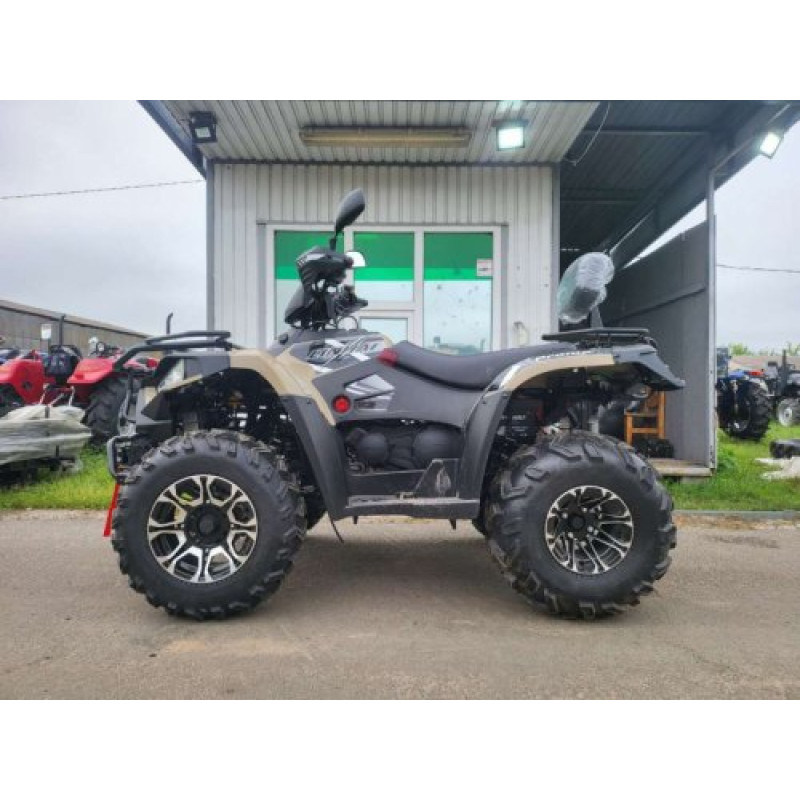

Linhai LH300ATV-3D Quad Bike — a versatile model from LINHAI
The Linhai LH300 series quad bike (LH300ATV-3D and LH300 ATV-3B variants) from LINHAI is a combination of modern design, reliable construction, and an affordable price. Brand: LINHAI. Product type: Motor vehicles > Quad bikes. This model is designed for both active recreation and utility work, ensuring long-term operation thanks to its durable frame, well-engineered electronics, and quality components.
Key Features
Engine: single-cylinder four-stroke gasoline, 275 cm3 displacement, maximum power 19 hp. Nominal engine speed 7200±150 rpm, torque 23 Nm at 6500 rpm. Liquid cooling system, electric starter. The machine weighs approximately 300 kg, with dimensions of 2160x1170x1280 mm, ensuring stability and maneuverability on various surfaces.
Transmission: automatic gearbox (V-belt variator) with L/H/neutral/reverse modes and 2WD/4WD drive selection. Final drive — direct. Wheel formula 4x4.
Braking system: front disc brakes on each wheel actuated by the hand lever (combined with the rear), rear disc brake on the axle actuated by the foot pedal (combined with the front). The parking brake locks the rear caliper with manual actuation and a handlebar lock. Brake hoses are reinforced.
Chassis: independent front suspension, McPherson struts; independent rear suspension with double A-arms and an anti-roll bar. Wheelbase 1290 mm. Tire size: front 24x8-12, rear 24x10-10.
Fuel and Power
The description retains two sets of fuel consumption and tank volume indicators: the range can be determined by either 3.8 l/100 km and a 20 l tank volume, or by the technical table data — average consumption of 6 l/100 km and a fuel tank volume of 14.2 l. Battery: lead-acid, sealed, 12V 14Ah.

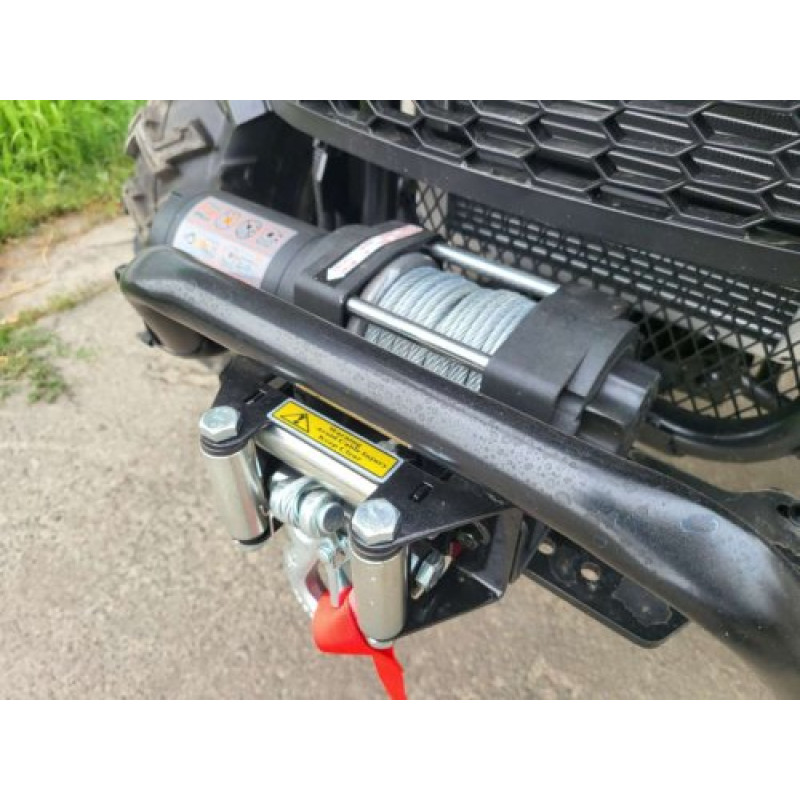

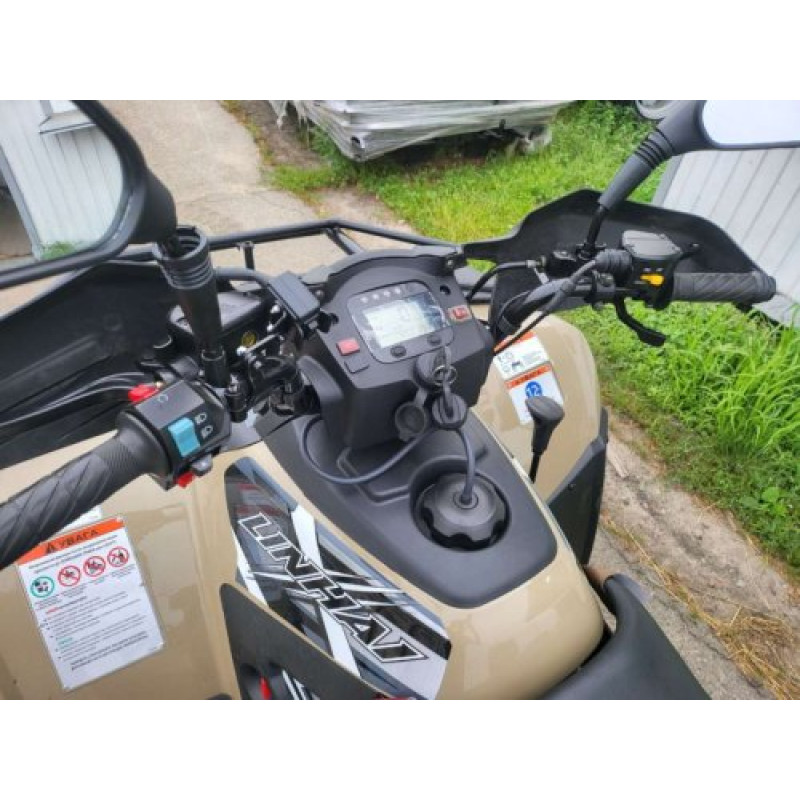

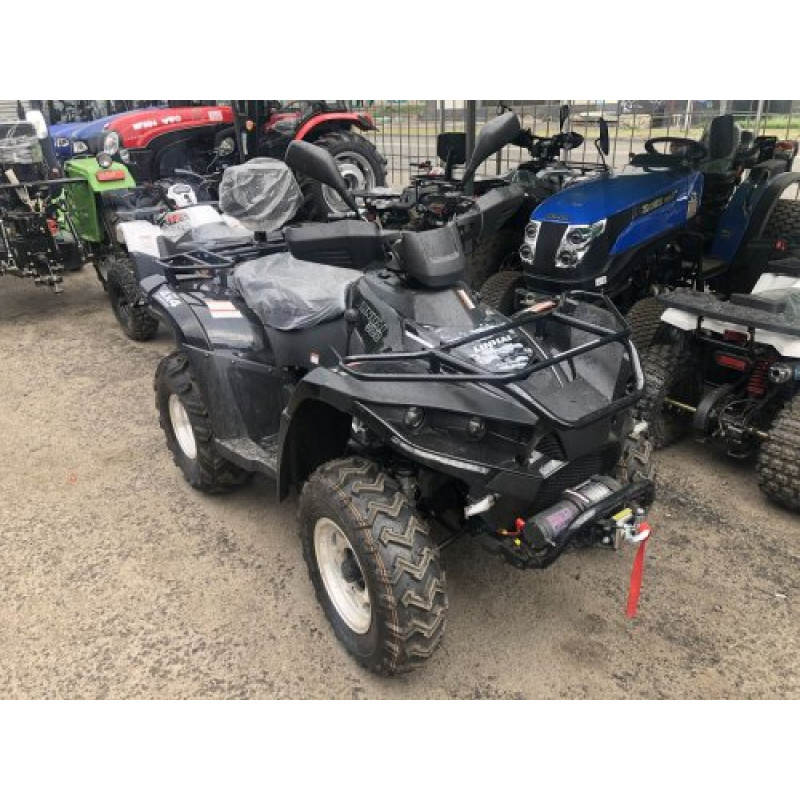

Equipment and additional options: rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch. The plastic body kit is made of high-strength ABS plastic (front bumper, side mudguards, fender flares). The metal body kit is tubular, integrated into the frame with the possibility of installing additional storage boxes. Electrical equipment: front lenses with H4 format 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer.
This model is equipped with alloy wheels, a winch, a tow hitch, and handguards, making it convenient for both recreation and work on a plot or in the forest. Reliable front and rear disc brakes, reinforced brake hoses, and a parking brake with a lock enhance safety.
Specifications:
| Engine power, hp | 19 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, carburetor |
| Engine displacement, cm3 | 275 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Nominal engine speed, rpm | 7200±150 |
| Torque, Nm / rpm | 23 at 6500 |
| Gearbox (transmission) | automatic (V-belt variator) |
| Gearbox modes | L/H/neutral/reverse, 2WD/4WD |
| Final drive | direct |
| Front brakes | disc on each wheel actuated by hand lever (combined with rear brake) |
| Rear brake | disc on wheel axle actuated by foot pedal (combined with front brakes) |
| Parking brake | locks rear caliper with manual actuation and handlebar lock |
| Brake hoses | reinforced |
| Wheelbase, mm | 1290 |
| Tire size | front 24x8-12, rear 24x10-10 |
| Fuel tank volume, l | 14.2 |
| Dimensions, LxWxH mm | 2160x1170x1280 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent with double A-arms and anti-roll bar |
| Average fuel consumption, l / 100 km | 6 |
| Equipment | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrical equipment | Front lenses with H4 format 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | lead-acid, sealed, 12V 14Ah |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional storage boxes |
If you are looking for a maneuverable, powerful, and relatively economical quad bike, the Linhai LH300 series 3B/3D is worth considering. Evaluate the model in photos and videos, clarify the configuration with a manager, and take advantage of Flash Army's delivery and warranty support conditions.
