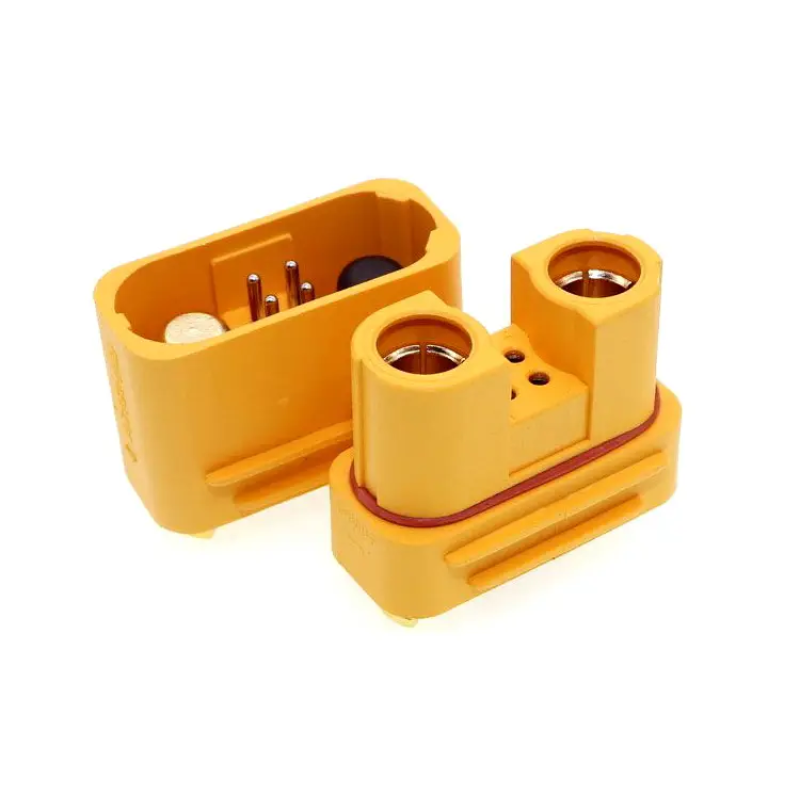

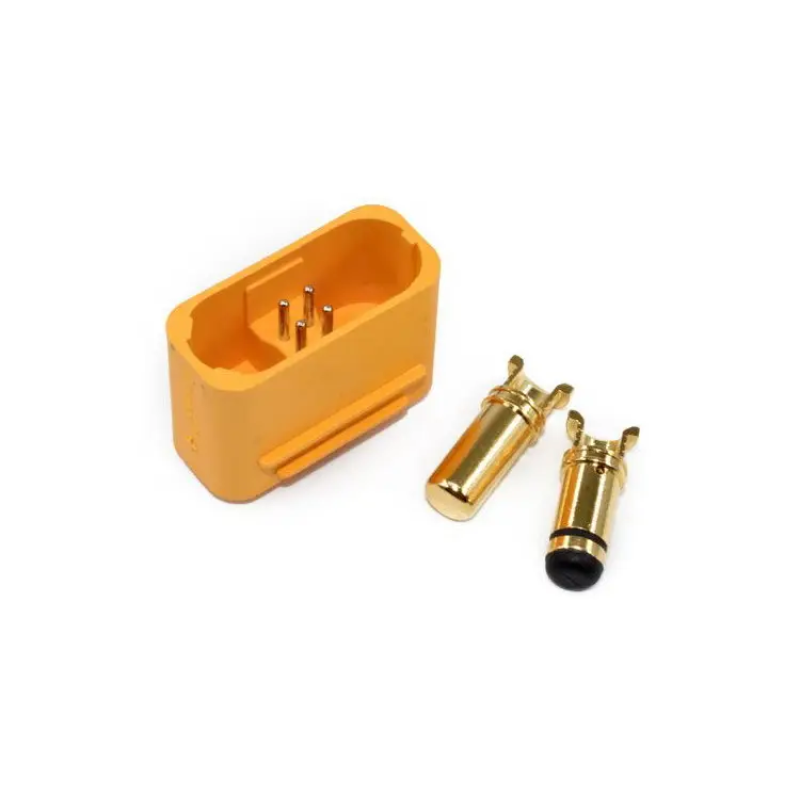

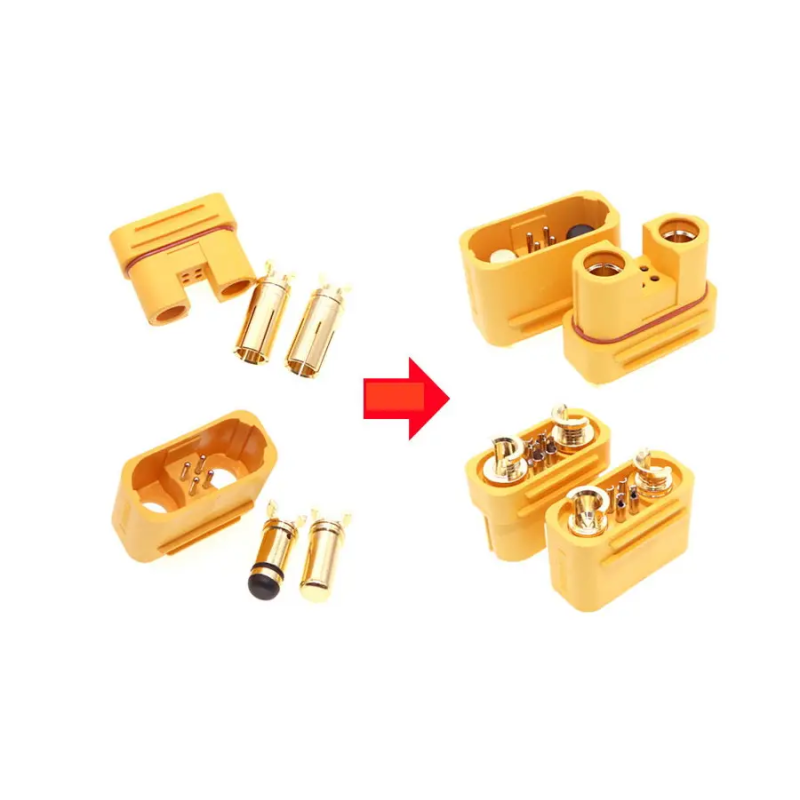

AMASS AS150U Connector (Pair/Male/Female) — A Reliable Solution for Power Controllers
The AMASS AS150U connector is designed for use in power controllers and other power circuits where high contact reliability, low resistance, and safety at high currents are critical. This kit includes a pair of connectors (Male and Female) and has a compact weight of only 17 g, making it convenient for use in drones, quadcopters, and other portable electronic devices.
Key Advantages
- Rated current up to 75 A and peak current up to 140 A.
- Maximum voltage 500 V DC.
- Gold-plated copper contacts for reduced contact resistance (≤ 0.2 mΩ).
- Polyamide insulator and UL94-V0 flame retardancy rating.
- Recommended wire gauge 8 AWG and wire-mount installation.
A full list of specifications is provided below in the table, which contains all technical parameters of the AS150U (Pair, Male, Female) model.
| AMASS AS150U (Pair / Male / Female) Specifications | Value |
|---|---|
| Manufacturer | AMASS |
| Model | AS150U (Pair, Male, Female) |
| Application Areas | Power Controllers |
| Group | AS150U |
| Insulator Color | Yellow |
| Rated Current | 75 A |
| Peak Current | 140 A |
| Maximum Voltage | 500 V (DC) |
| Recommended Wire Gauge | 8 AWG |
| Mounting | Wire-mount |
| Number of Main (Power) Lines | 2 |
| Number of Auxiliary (Signal) Lines | 4 |
| Conductor Material | Gold-plated copper |
| Insulator Material | Polyamide |
| Contact Resistance (max) | 0.2 mΩ |
| Flame Retardancy Rating | UL94-V0 |
| Additional Options | Anti-spark resistor |
| Operating Temperature | -20 – 120 °C |
| Rated Number of Reconnections (max) | 1000 times |
| Weight | 17 g |
Package Contents: 1 x AMASS AS150U Connector Pair/M/F
This connector is ideal for projects requiring a combination of high current capacity with compactness and reliability. Gold-plated contacts ensure a stable electrical connection even with intensive use, while the polyamide insulator and UL94-V0 rating guarantee an increased level of safety. The recommended 8 AWG gauge allows the AS150U to be used in medium and high-current power systems. The model is equipped with two main power lines and four auxiliary signal lines, enabling complex connections within a single module.
The high peak current limit (140 A) and low contact resistance make this connector an excellent choice for controllers, regulators, and systems where brief peak loads are possible. The additional anti-spark resistor option enhances the system's resistance to sparking during connection/disconnection under load. The connector is rated for no more than 1000 reconnection cycles, emphasizing its operational durability.
By ordering the AMASS AS150U Connector, you receive a high-quality component from the renowned manufacturer AMASS, ready for wire-mount installation with a recommended 8 AWG gauge and operation in a temperature range from -20 to 120 °C.
