A mini 1kW solar power station for a dacha or home can provide:

• autonomous electricity to electrical equipment during daylight hours;
• backup power for household and computer equipment in case of prolonged emergency power outages.

Why is a "turnkey" solar power station an effective replacement for fuel generators and other backup power sources?

• The system does not require additional technical maintenance and does not need fuel, as the sun is an inexhaustible source of electricity;
• The solar power plant equipment connects to the power grid of an apartment/house/office. Switching to backup power mode does not require much time and effort;
• Convenient system for monitoring operating parameters;
• Long-term operation of equipment without repair and maintenance;
• Ability to offset utility bill costs by consuming electricity from solar panels during daylight hours.

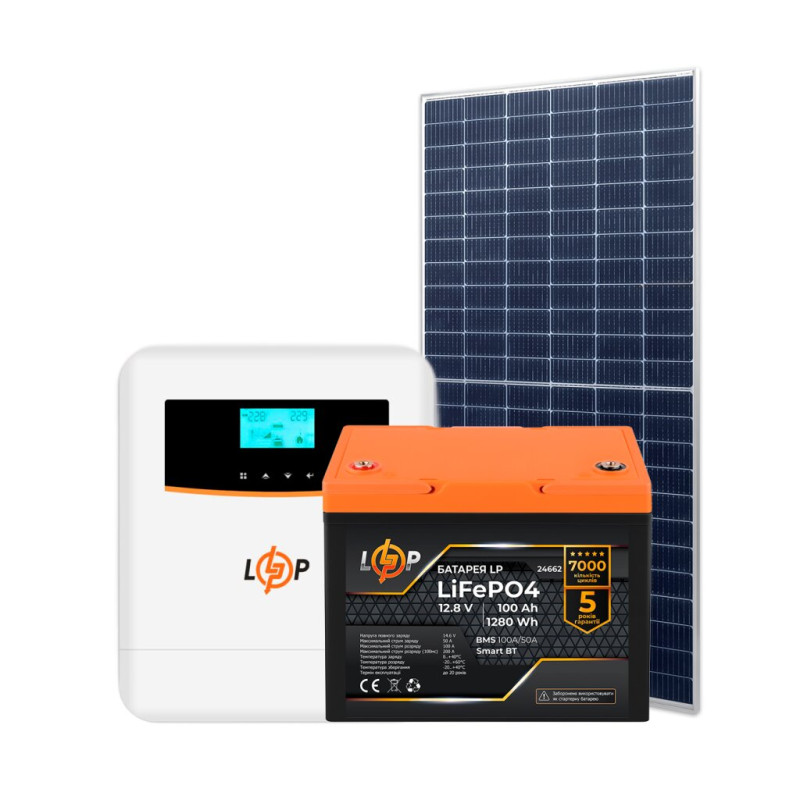

1kW Solar Power Station - Includes:

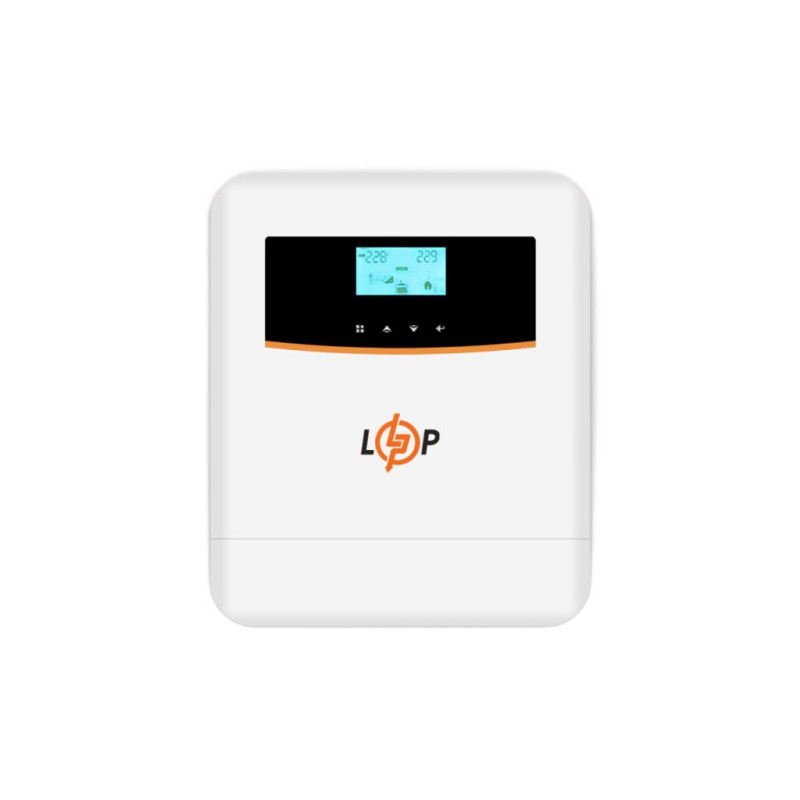

• Hybrid Solar Inverter (UPS) LPW-HY-1000VA (1000W) 12V 40A MPPT 20-150V OFF GRID - 1 pc.

• Solar Panel LP Longi Solar Half-Cell 550W (35 prof. monocrystal)​ - 1 pc.

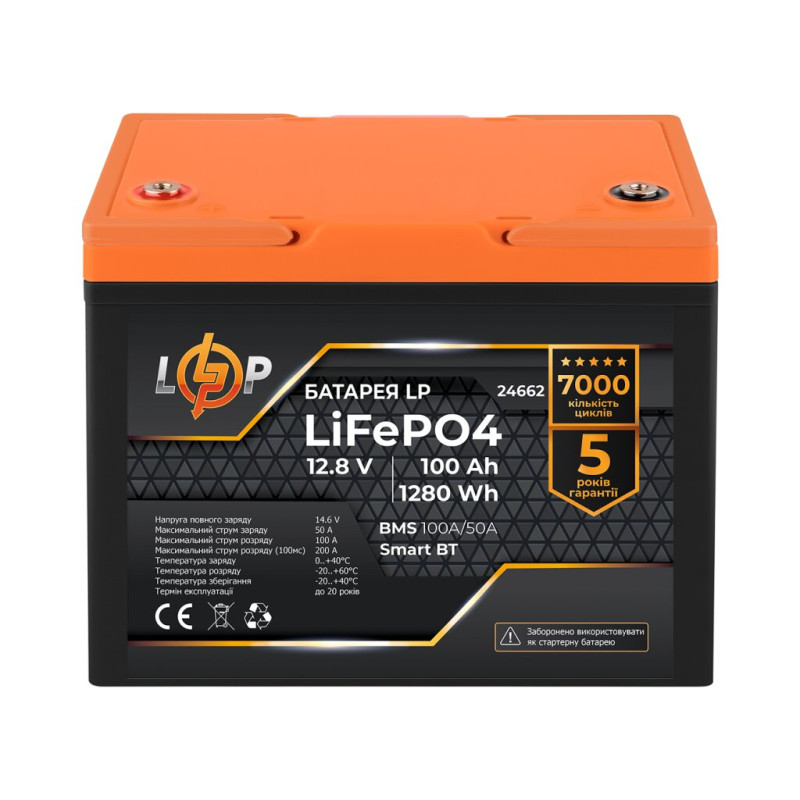

• Battery LP LiFePO4 12.8V - 100 Ah (1280Wh) (BMS 100A/50A) plastic Smart BT - 1 pc.

• Z Solar Guide Rail 41x41x1.5 mm - 3 m.

• End Clamp for Solar Panel Mounting 35 mm - 4 pcs.

• Cylindrical Head Screw with Internal Hex M8-35 - 4 pcs.

• M8 Mounting Nut with Lock for Solar Panel Mounting - 4 pcs.

• Copper Wire for Battery Connection 25 sq. mm - 100 cm (with terminals) red - 1 pc.

• Copper Wire for Battery Connection 25 sq. mm - 100 cm (with terminals) black - 1 pc.

• Cable for Solar Power Stations H1Z2Z2-K 1*4 30 m black (male) - 1 pc.

• Cable for Solar Power Stations H1Z2Z2-K 1*4 30 m red (female) - 1 pc.

• 1690890 Disconnector ETI KVL 00 1P 160A (Terminals M8-M8) - 1 pc.

• 4110084 Fuse ETI NH-00 Battery 160A 80V DC - 1 pc.

Solar Power Station: Kit for Ukraine, How is the Price Formed?

The cost of a solar power station kit for a home depends on the type of battery.

1kW "Premium" category "turnkey" solar power stations include lithium iron phosphate batteries (LiFePO4) with a capacity of 52 Ah.

Alternative Energy Sources for Home: Advantages of Using LiFePO4 Batteries

• LiFePO4 batteries have 7000 charge-discharge cycles. You won't have to think about replacing the battery for at least 10 years.
• A full charge of a lithium iron phosphate battery takes no more than 2 hours. In addition, the battery has no "memory effect", meaning the battery can be charged at any time without waiting for a full discharge.
• The capacity loss of lithium iron phosphate batteries is about 20% when stored for more than 10 years. In addition, this type of battery can remain in a discharged state for a long time without serious consequences for further operation.

Can I install a home solar power plant myself?

The solar photo modules included in the kit are fully ready for self-installation. You do not need to install additional solar panel protection devices.

We recommend placing solar panels in areas with plenty of sunlight. Avoid shadows from trees or buildings falling on the working surface of the photocells.

Solar panels can be mounted on the roof, on the ground, and on special welded structures. When installing photo modules, orient them to the south.

The mounting of the solar panel support structures is carried out using appropriate fasteners on aluminum frames. Mounting holes are provided on the back of the frames.

Observe polarity when connecting all DC electrical connections. Carefully check the polarity of solar panels and batteries with a tester before installation.

For safe operation of the solar power station, install grounding for the mounting structures, casing, and inverter.
