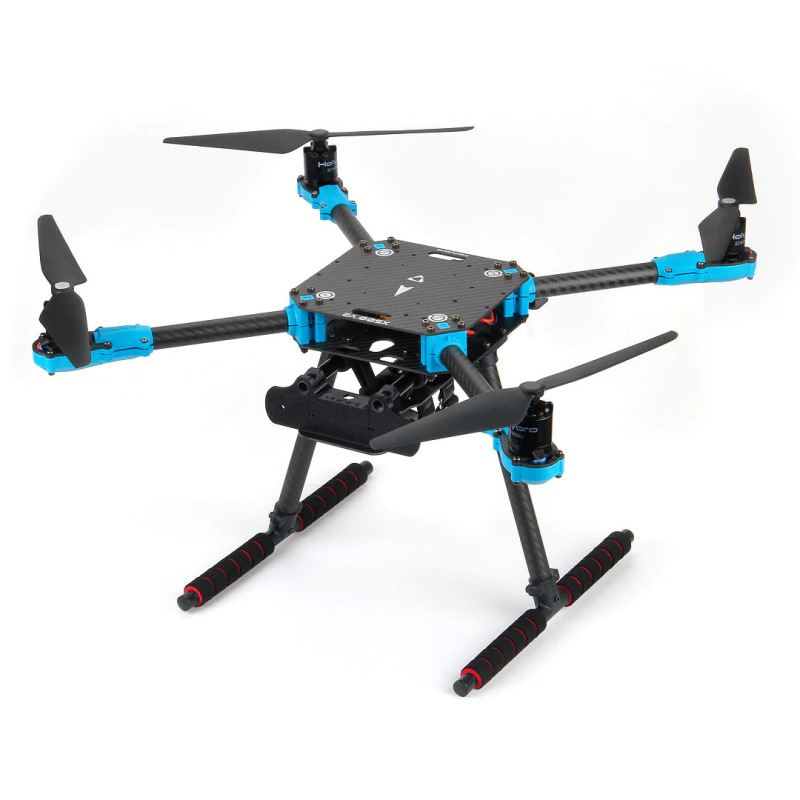

HolyBro X500 V2 Kit 500mm Frame KIT
Brand: Holybro. Type: Drones & Quadcopters > Frames. The HolyBro X500 V2 Kit 500mm is a versatile frame for those planning to build their own medium-sized quadcopter with the possibility of future functional expansion.
Description and Key Advantages
The HolyBro X500 V2 Kit is designed for quick assembly, reliable operation, and easy modification. The frame combines durable structural elements with minimal weight, increasing flight time and maneuverability. The design allows for easy installation of additional modules: FPV systems, GPS, autopilot, single-board computers like Raspberry Pi 4 or Jetson Nano.
Kit Features
- 1. 500mm Size: optimal 500mm wheelbase for medium-class multicopters, sufficient for mounting sensors and additional equipment.
- 2. Lightweight Material: carbon fiber top and bottom plates and tubes provide high rigidity with minimal weight.
- 3. Convenient Assembly: the kit includes fasteners and tools for quick assembly, simplifying project implementation even for beginner enthusiasts.
- 4. Modifiability: includes mounting points for additional modules, a two-position mount, and spaces for installing popular boards and modules.

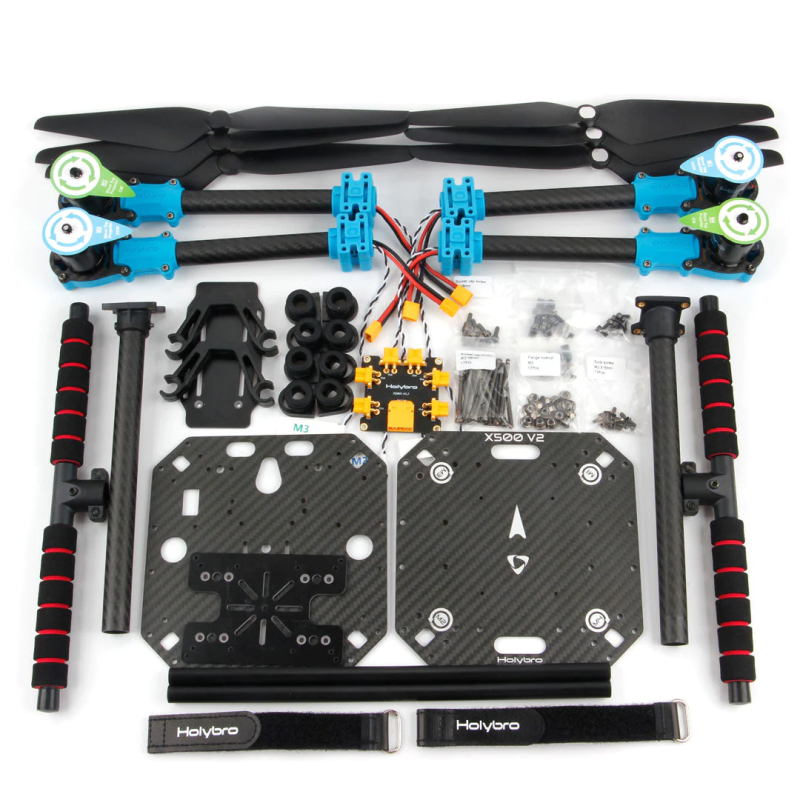

X500 V2 ARF Kit Contents (SKU30125)
The kit contents include pre-installed elements necessary for basic assembly:

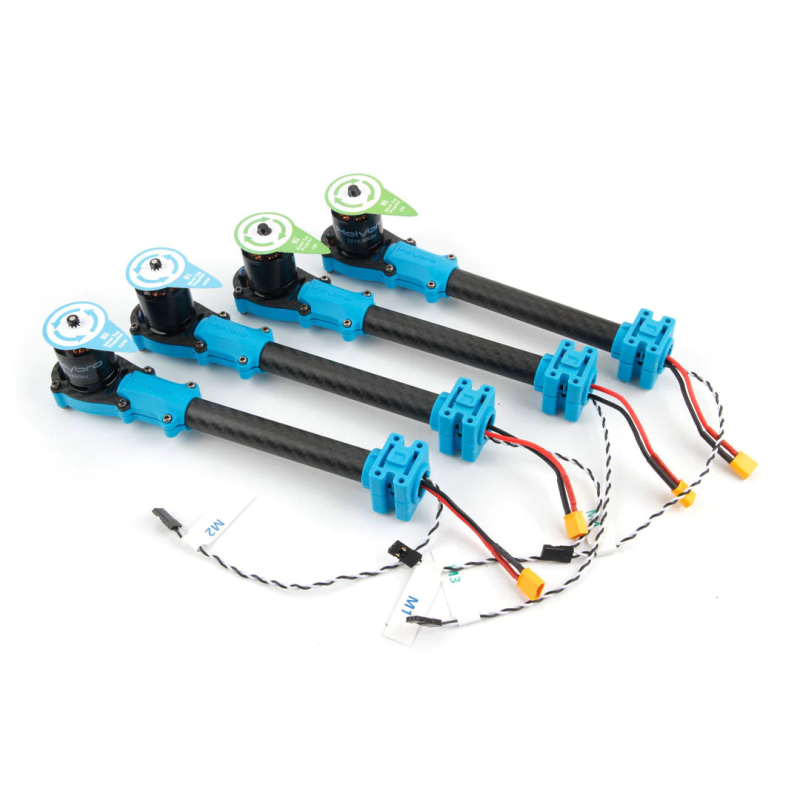

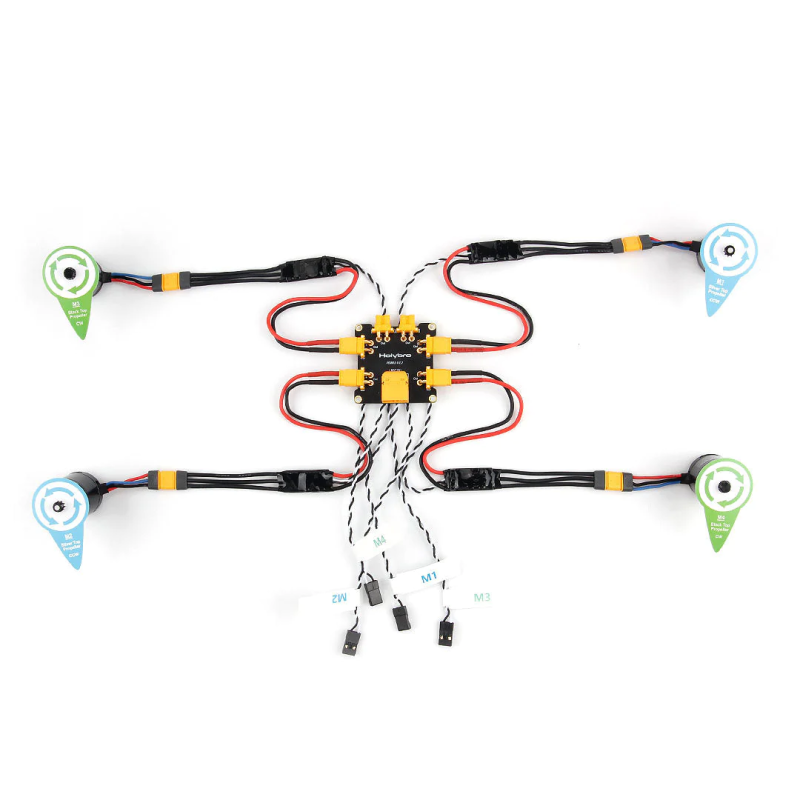

- Motors: Holybro 2216 KV920 — 4 pcs with XT30 connector (motor specification available from the manufacturer).
- ESCs: BLHeli S ESC 20A — 4 pcs.
- Propellers: 1045 — 6 pcs.
- Power distribution board with XT60 connector for battery and XT30 connectors for ESCs and other devices.

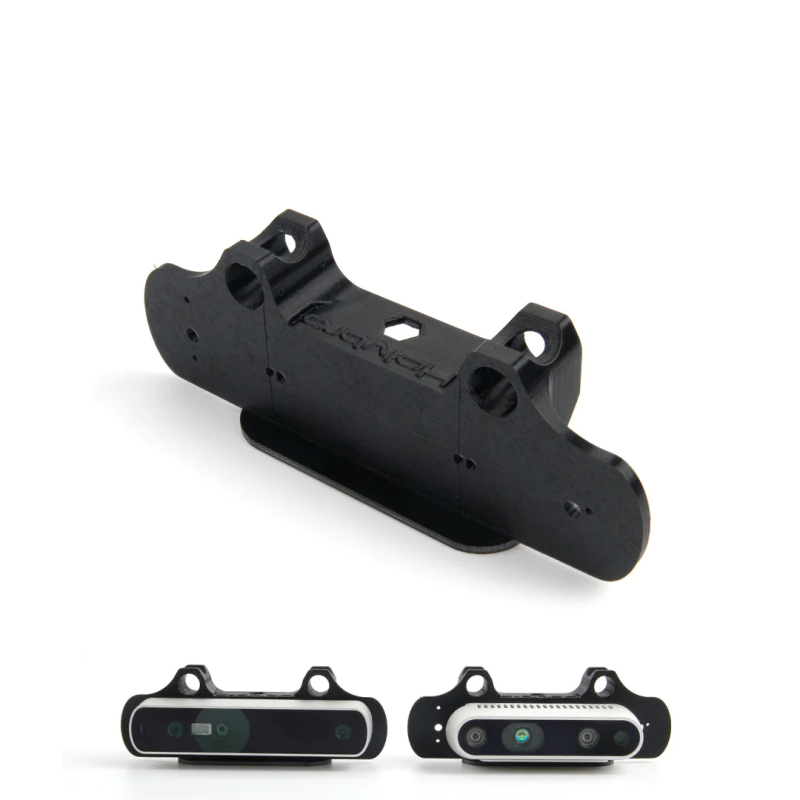

- Note: depth camera bracket sold separately.

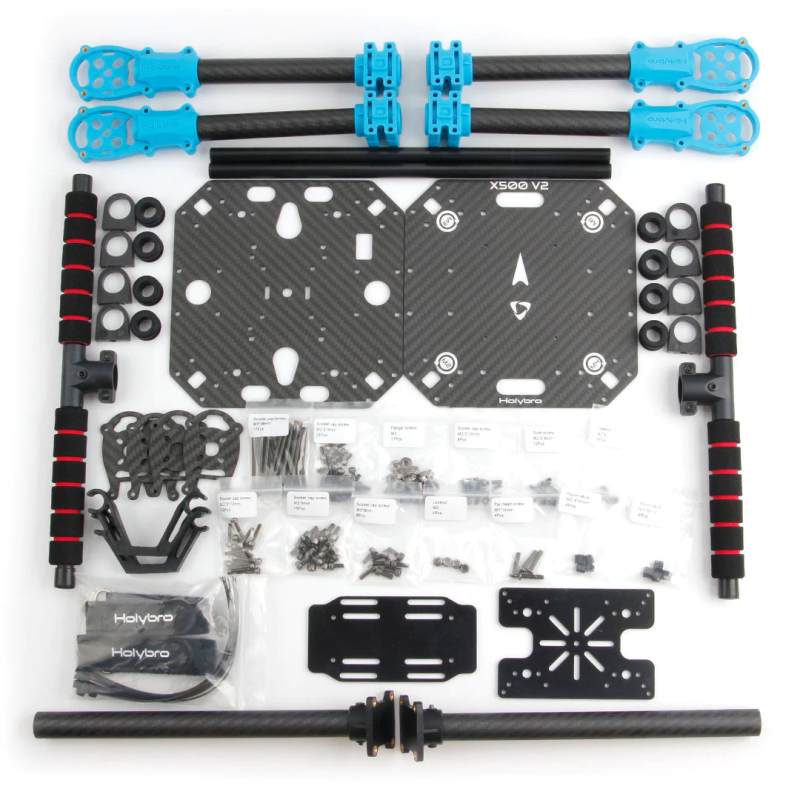

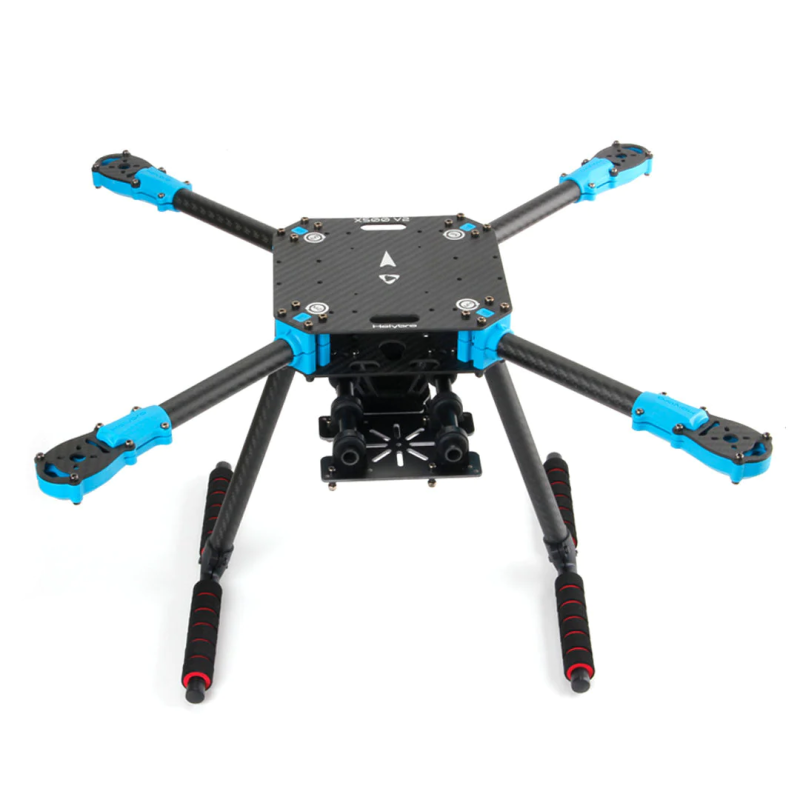

X500 V2 Frame Details (SKU30120)
Structural elements of the frame and their features:
- Body: full carbon fiber top and bottom plates, 144 x 144 mm, 2 mm thick.

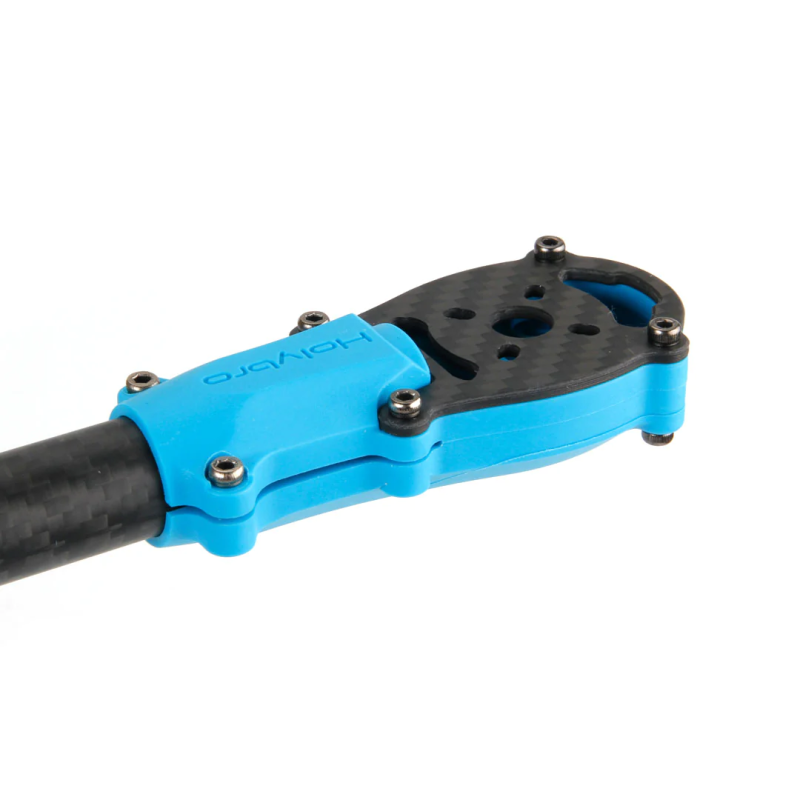

- Arms: high-strength ultralight 16 mm diameter carbon fiber tubes with new reinforced nylon connectors.
- Landing Gear: 16 mm and 10 mm diameter carbon fiber tubes with reinforcement and improved plastic connectors.
- Platform: mounting holes for GPS and popular single-board computers (Raspberry Pi 4, Jetson Nano).

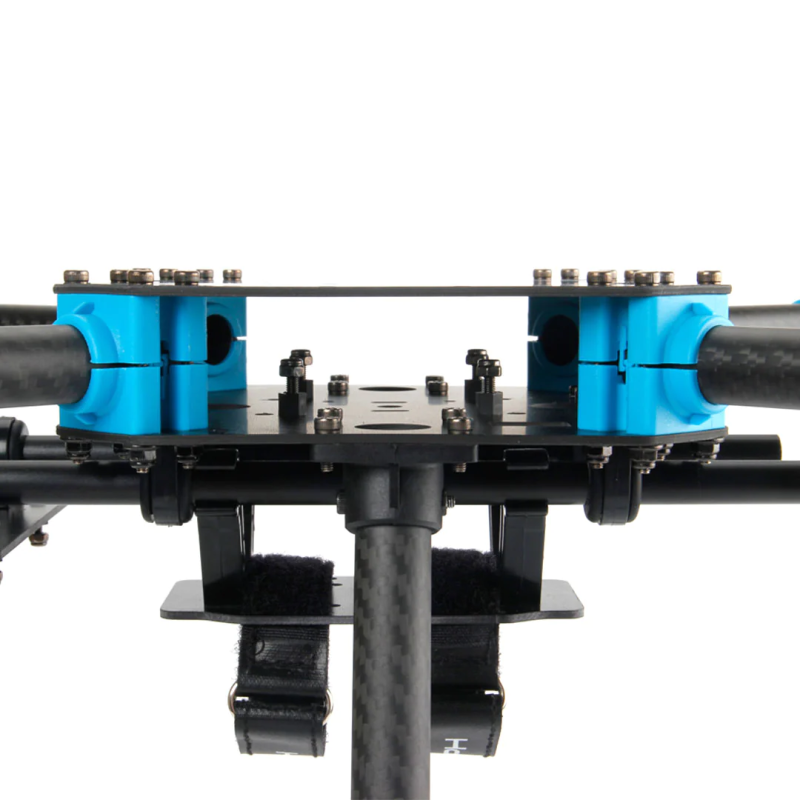

- Dual mounting system on long 10 mm diameter, 250 mm long rails.
- Battery mount with two straps and manual assembly tools.
Mechanical Specifications
X500 V2 Mechanical Specifications| Parameter | Value |
|---|---|
| Wheelbase | 500 mm |
| Motor Mount Pattern | 16×16 mm |
| Frame Body | 144×144 mm, 2 mm thick |
| Landing Gear Standoff Height | 215 mm |
| Distance Between Top and Bottom Plates | 28 mm |
| Weight | 610 g |
| Flight Time | approx. 18 minutes in hover mode without additional payload (tested with 5000 mAh battery) |
| Maximum Payload | approx. 1 kg (with 4S 5000 mAh battery at 70% throttle) |
| Recommended Battery | 4S 3000–5000 mAh 20C+ with XT60 connector (not included) |
Recommended Compatible Components (not included in kit)
- Flight Controllers: Pixhawk 6C, Pixhawk 6x.
- Power Modules: PM02D, PM03D Power Module, PM02 V3.
- GPS: DroneCAN M8N/M9N GPS, Holybro M8N/M9N GPS, H-RTK F9P Rover Lite & Helical.
The HolyBro X500 V2 Kit is an excellent choice for engineers, hobbyists, and professional operators who value durability, upgradeability, and ease of assembly. The frame combines high-rigidity carbon fiber elements, thoughtful mechanics, and compatibility with popular controllers and modules, making it a foundation for a reliable and flexible unmanned solution.
