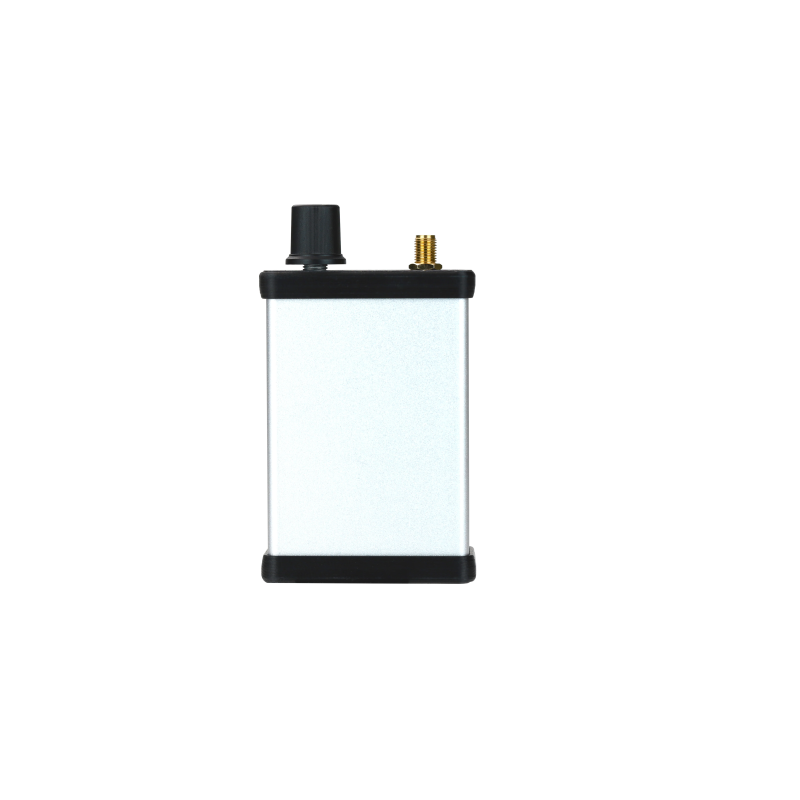

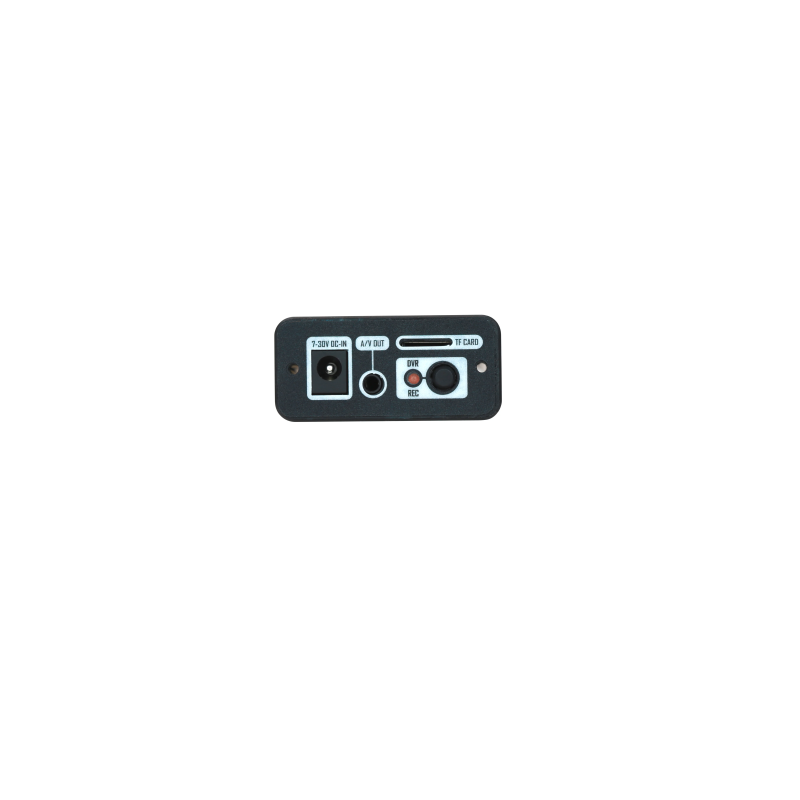

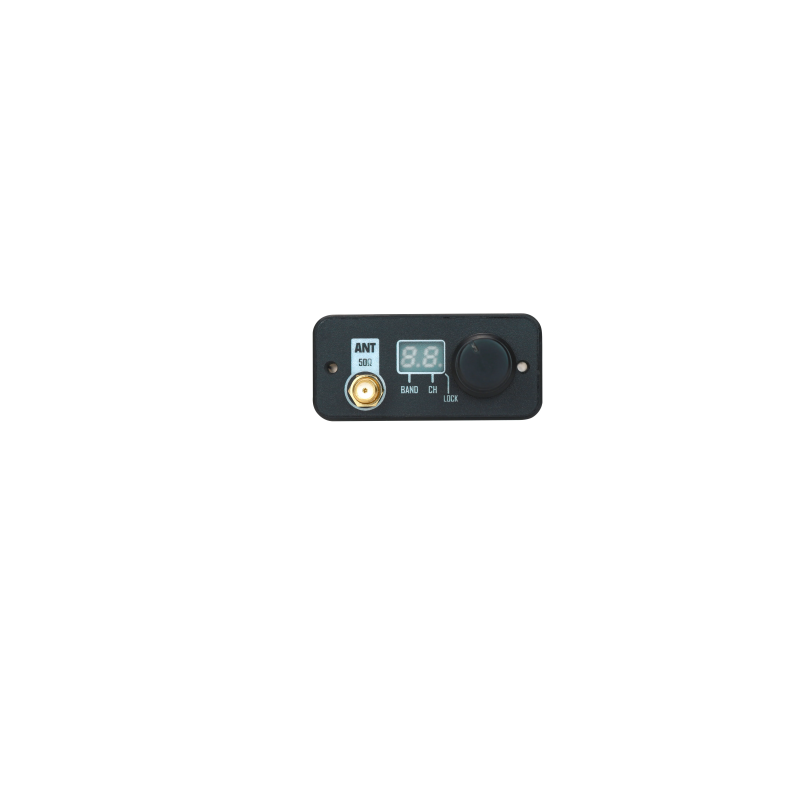

RushFPV 3.3G VRX Ground Kit Video Receiver with Antenna
RushFPV 3.3G VRX Kit — a professional FPV video receiver kit from RushFPV, designed to operate in the less-congested 3.3 GHz band. This kit combines a high-sensitivity 3.3G video receiver and a high-gain directional antenna, ensuring stable, low-latency transmission even over significant distances. The kit is suitable for pilots who require a clean video signal with minimal interference compared to standard 5.8 GHz systems.
Key Advantages and Features
- Less-congested 3.3 GHz band: reduced risk of interference from nearby devices compared to 5.8 GHz.
- High sensitivity: ensures clear and high-quality image even at long distances.
- Low latency: fast video transmission for precise real-time maneuvers.
- Compact design: simplifies installation and integration with existing FPV systems.
- Reliability and durability: high-quality casing and components guarantee stable operation in challenging flight conditions.
- Easy setup: intuitive interface and pre-made cables for quick system launch.
Technical Specifications RUSHFPV 3.3GHz VRX Module
| Video Output | CVBS NTSC/PAL |
|---|---|
| Frequency Bands | Band A: 3330–3470 MHz (8 channels); Band B: 3170–3310 MHz (8 channels) |
| Sensitivity | < -95 dBm |
| Digital Video Recorder (DVR) | CVBS 30Fps (not included) |
| Input Voltage (DC) | 7–30 V |
| Connector | SMA |
| Receiver Dimensions | 58×27×101 mm |
| Receiver Weight | 103 g |

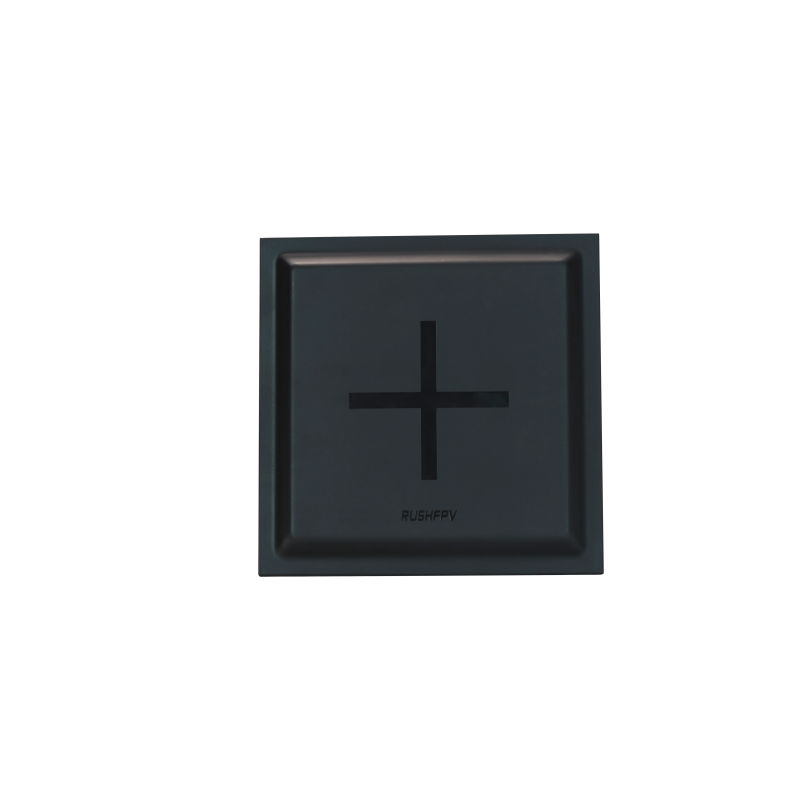

Technical Specifications RUSHFPV 3.3GHz Directional Antenna
| Polarization | LHCP or RHCP |
|---|---|
| Operating Frequency Band | 3150–3500 MHz |
| Gain | 15.8 dBi |
| Voltage Standing Wave Ratio (VSWR) | < 1.3 |
| Cable | RG178 |
| Connector | SMA |
| Antenna Dimensions | 174×174×16 mm |
| Antenna Weight | 196 g |

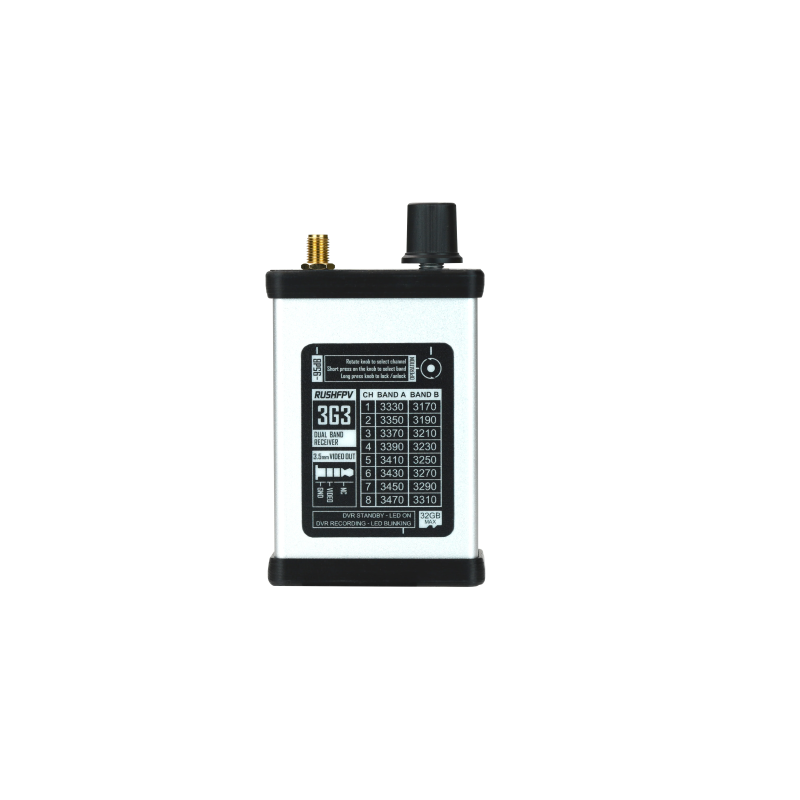

Channel Frequency Table
Band A (3330–3470 MHz)
| Channel | Frequency |
|---|---|
| CH1 | 3330 MHz |
| CH2 | 3350 MHz |
| CH3 | 3370 MHz |
| CH4 | 3390 MHz |
| CH5 | 3410 MHz |
| CH6 | 3430 MHz |
| CH7 | 3450 MHz |
| CH8 | 3470 MHz |
Band B (3170–3310 MHz)
| Channel | Frequency |
|---|---|
| CH1 | 3170 MHz |
| CH2 | 3190 MHz |
| CH3 | 3210 MHz |
| CH4 | 3230 MHz |
| CH5 | 3250 MHz |
| CH6 | 3270 MHz |
| CH7 | 3290 MHz |
| CH8 | 3310 MHz |

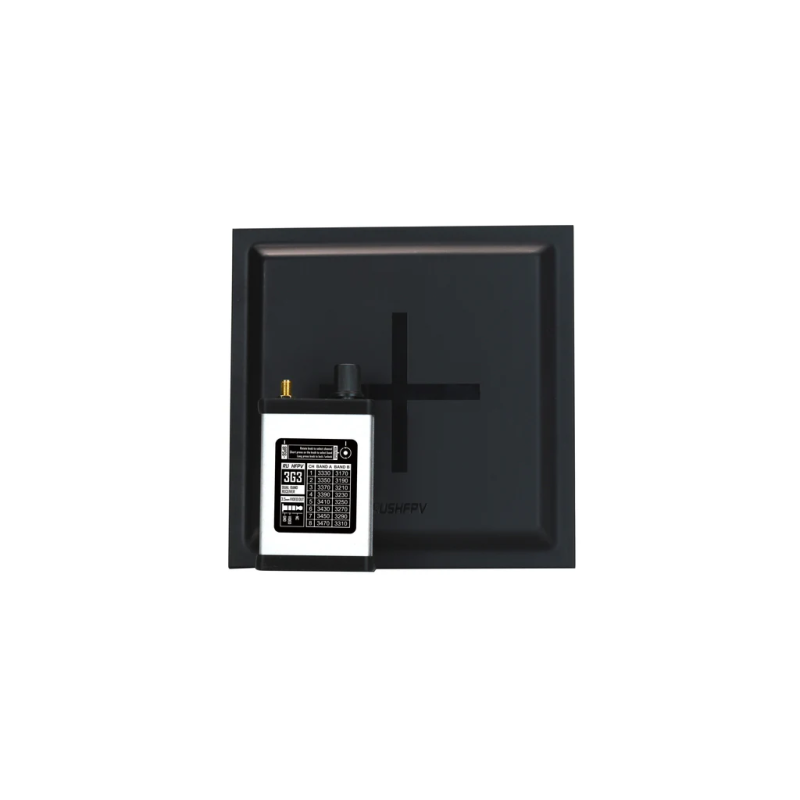

Package Contents
- 1 × 3.3G Video Receiver
- 1 × XT60 to DC Power Cable
- 1 × Video Signal Cable
- 1 × 3.3G Receiver Patch Antenna
- 1 × SMA to SMA Adapter Cable 215 mm
Additional Information
- The 3.3 GHz frequency is less commonly used in standard FPV kits, reducing the likelihood of interference from adjacent channels.
- When operating at 3.3 GHz, it is essential to comply with local regulations regarding radio frequency spectrum usage.
- The high gain of the antenna ensures a stable signal and high image detail even in the presence of interference.
