EW System "Pysets" against FPV in 6 bands (393-1050 MHz)

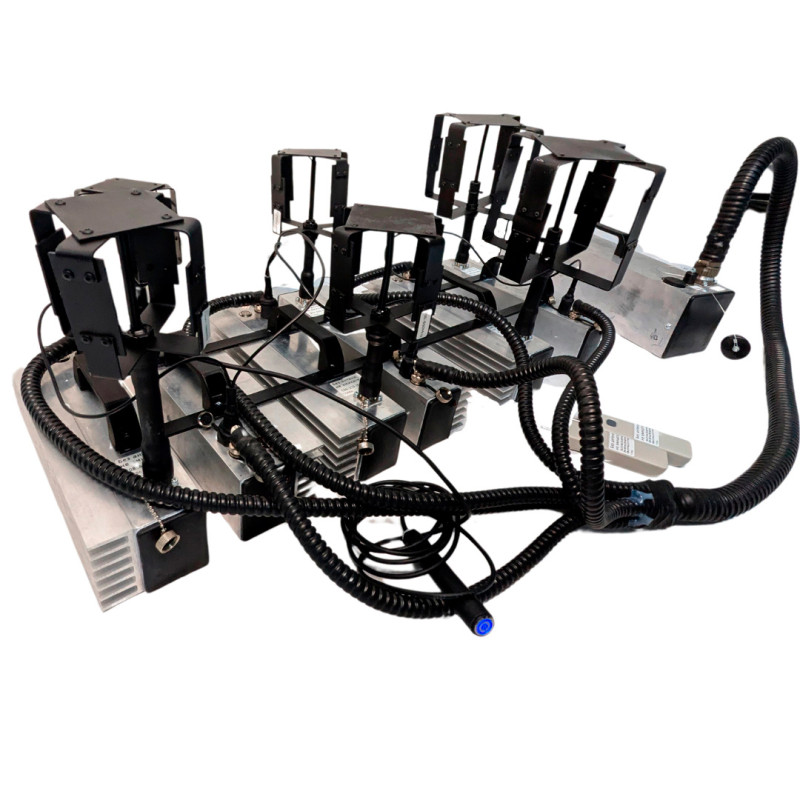

The modular electronic warfare system Pysets from manufacturer ZAVADA is designed for effective suppression of FPV drone signatures in a wide frequency range of 393–1050 MHz. This is a versatile vehicle-mounted or trench EW solution, combining mobility and high performance thanks to its modular architecture with 6 channels and a set of quadrifilar omnidirectional antennas.

Key Features

• Number of channels: 6
• Frequency range: 393–1050 MHz (sub-bands: 393–505 MHz, 508–610 MHz, 613–717 MHz, 720–827 MHz, 830–937 MHz, 940–1050 MHz)
• Antennas: quadrifilar, set of 6 (omnidirectional)
• Casing: sealed, IP65 protection rating
• Power supply: 12–24V; vehicle version includes a 12–24V adapter and optional magnetic mount

Technical Parameters

The radio jamming power is 40–60 W (80–110 MHz). The power consumption of one module is 150–180 W/h; for six modules, the total power consumption reaches 924 W. The capacity of the built-in battery is 2220 Wh, providing an operating time of 40–140 minutes depending on temperature and load; for six modules, the battery lasts approximately 2 hours.

Package Contents

• Remote On/Off button for one EW system
• Connection bar
• Remote radio controls
• Mounting for EW (bolt-on)
• Quadrifilar antennas — 6 pcs

Dimensions and Weight

One module measures 34×10×10 cm and weighs 5 kg. The weight of the entire device without battery is 20 kg. The vehicle version includes a 12–24V adapter and optional magnetic mount for quick installation on a vehicle body.

The Pysets EW system is ideal for units requiring a reliable, rapidly deployable, and modular solution for suppressing FPV control and video transmission channels at distances within the specified ranges. Thanks to its quadrifilar antennas and IP65-rated protective casing, the device withstands operation in field conditions and provides omnidirectional radio jamming.

Brand: ZAVADA. Product type: EW systems. Category: Trench EW systems.
