Ceramic Filter 433 MHz (360 - 560 MHz) and 915 MHz (730- 1020 MHz), 2.4 GHz - SMA-M - SMA-F Aeronetix
Name: Ceramic Filter 433 MHz (360 - 560 MHz) and 915 MHz (730- 1020 MHz), 2.4 GHz - SMA-M - SMA-F Aeronetix. Brand: Aeronetix. Category: Drone Detectors and Accessories > Communication Stations and Components. Product Type: Drones, EW, Drone Detectors, Components > Drone Detectors and Accessories > Communication Stations and Components.

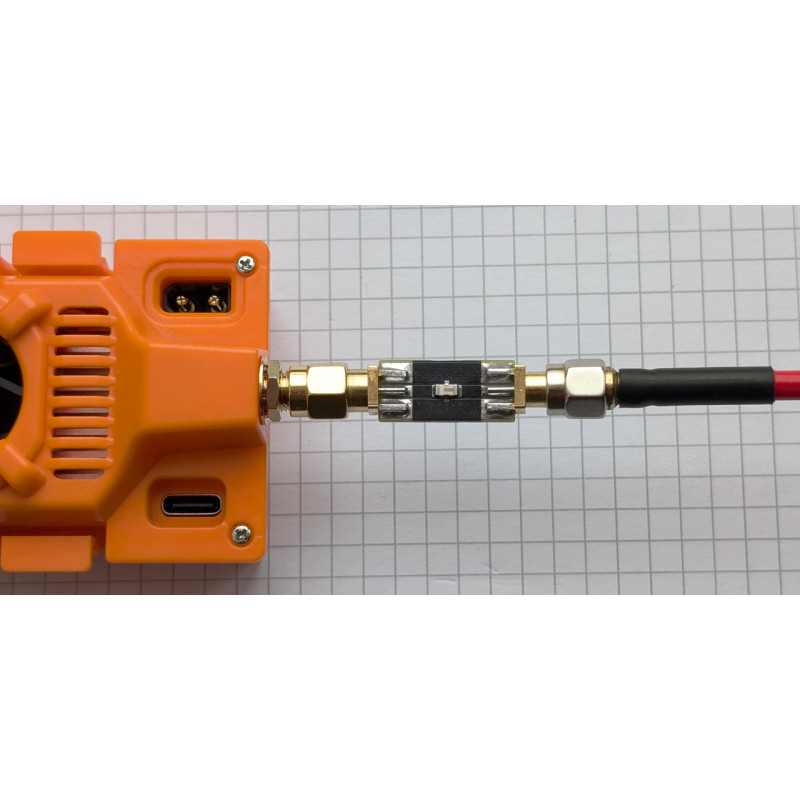

Purpose: The compact ceramic filter is designed to suppress spurious emissions and is installed at the output of the control transmitter to prevent interference with the video receiver. Using the filter ensures a cleaner control signal and reduces interference for video transmission systems, which is especially important in unmanned systems and remote control systems.
Key Features
- Control Transmitter Operating Frequency: 360–560 MHz, 730–1020 MHz, 2.4 GHz.
- Control Transmitter Power: up to 3.5 W.
- Video Receiver Operating Frequency: 5 GHz, 5.8 GHz.
- Weight (according to technical description): 5.4 g.
- Dimensions (according to technical description): 42 × 9 × 8 mm.

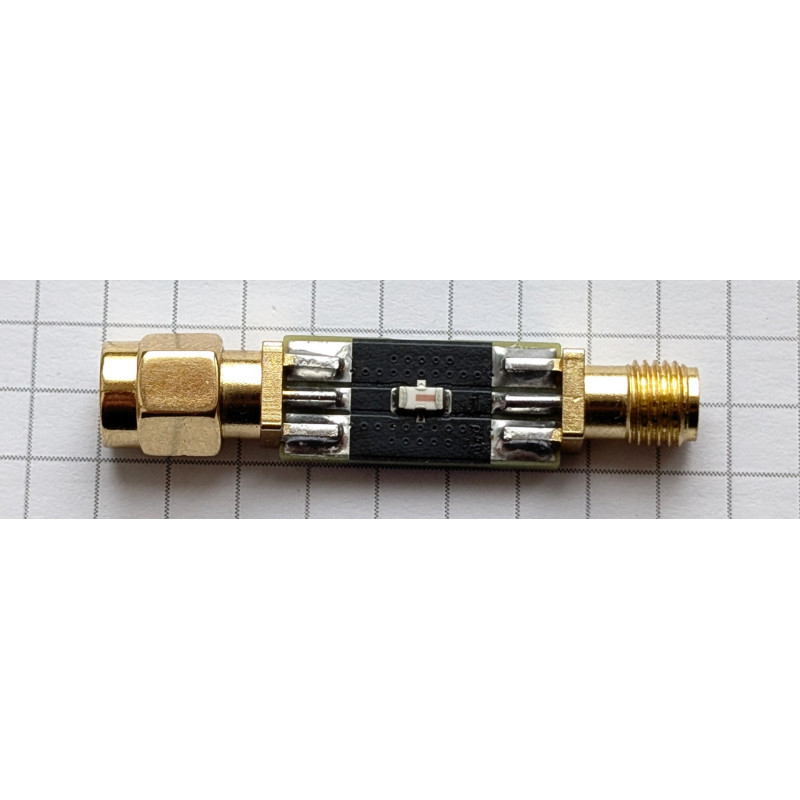

- Connectors: SMA-Male → SMA-Female.
The filter has compact dimensions and low weight, making it convenient for installation without significantly increasing the mass or dimensions of the transmission line. The use of an SMA-M → SMA-F adapter ensures simple integration into typical antenna and transmission circuits, as well as quick connection in field conditions.
Additional Technical Parameters
| Parameter | Value |
|---|---|
| Length | 4.0 |
| Weight, kg (additional attribute) | 0.100 |
| Height | 1.0 |
| Width | 1.0 |
Please note that the technical data includes two sets of values: from the main description — weight 5.4 g and dimensions 42 × 9 × 8 mm, as well as additional product attributes — Weight, kg: 0.100; Length: 4.0; Height: 1.0; Width: 1.0. We recommend considering both sets of data when planning installation and clarifying the necessary dimensions with the supplier or technical support before installation, especially if high placement accuracy or calculation of the total structure mass is required.
Advantages of using this ceramic filter: increased stability of the control line to interference, reduced impact of spurious signals on video receiver operation, compatibility with a wide range of control transmitter frequencies (360–560 MHz, 730–1020 MHz, 2.4 GHz), and convenient connection via SMA connectors. The filter is suitable for use in industrial and amateur data and video transmission systems, particularly in unmanned systems where signal quality and minimization of interference are crucial.
Examples of application: integration into communication stations and component blocks, installation at the output of the command channel transmitter to reduce spurious emissions, use in wireless video surveillance systems to reduce cross-interference between control and video channels. If you need assistance in selecting a compatible component or clarifying parameters — contact the seller's technical support or equipment supplier.
The Aeronetix model will be a reliable addition to your communication system and will help reduce unwanted interference, ensuring a cleaner control signal and stable operation of video reception channels.
