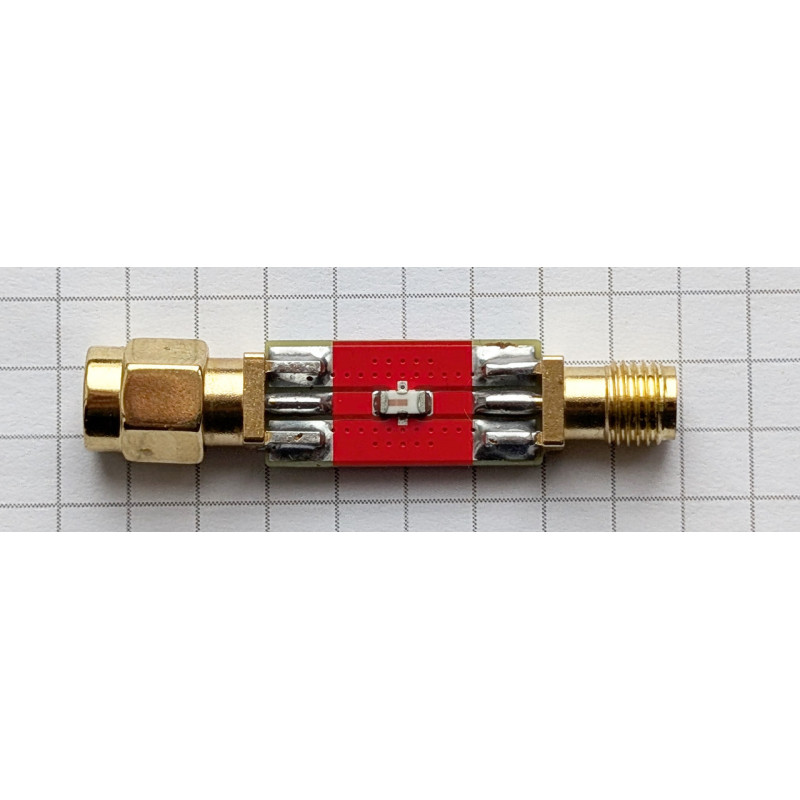

Ceramic Filter 433 MHz (360 - 560 MHz) - SMA-M - SMA-F Aeronetix

Product Overview: The Aeronetix ceramic filter is designed to suppress spurious emissions at the output of the control transmitter, reducing interference on the video receiver and improving video transmission stability when using UAVs and other radio-electronic systems.

Purpose and Advantages

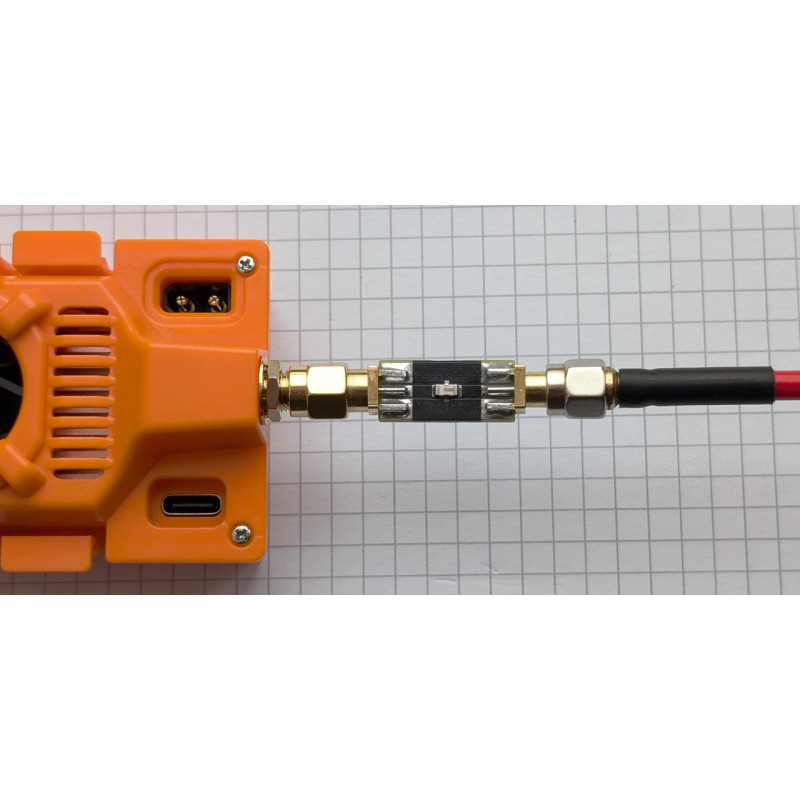

The filter connects directly to the control transmitter output to prevent interference with adjacent radio channels. Thanks to its ceramic design, it provides effective attenuation of unwanted signals within the operating range without causing significant loss of the useful signal. Its lightweight and compact housing allows the filter to be integrated into designs with limited space and weight.

Key Specifications

• Control Transmitter Operating Frequency: 360–560 MHz
• Control Transmitter Power: up to 3.5 W
• Video Receiver Operating Frequency: 1.2 GHz, 3.3 GHz
• Weight (according to manufacturer's description): 5.4 g
• Dimensions: 42 × 9 × 8 mm
• Connectors: SMA-Male → SMA-Female

Additional Parameters (Attributes)

• Manufacturer: Aeronetix
• Length: 4.0
• Weight, kg (from attribute data): 0.100
• Height: 1.0
• Width: 1.0

The filter is ideal for professional and semi-professional drone control systems, ground communication stations, and other applications where video reception quality and interference minimization are critical. The design with standard SMA connectors ensures a convenient and reliable connection to an antenna or cable assembly, and the permissible power of up to 3.5 W meets the requirements of many control transmitters.

Compact dimensions of 42 × 9 × 8 mm and low weight (5.4 g according to the manufacturer) allow the filter to be installed without significant load on the device's structure. The operating range of 360–560 MHz makes the device compatible with a wide range of control transmitters, and support for video receiver frequencies of 1.2 GHz and 3.3 GHz ensures its use in systems with various video signal transmission configurations.

Summary: The Aeronetix ceramic filter — a compact, lightweight, and reliable solution for improving video transmission quality and reducing interference from the control transmitter. Included: filter with SMA-Male → SMA-Female connectors; technical parameters match those listed above. Product type: Drone Detectors & Accessories > Communication Stations & Components; brand: Aeronetix.
