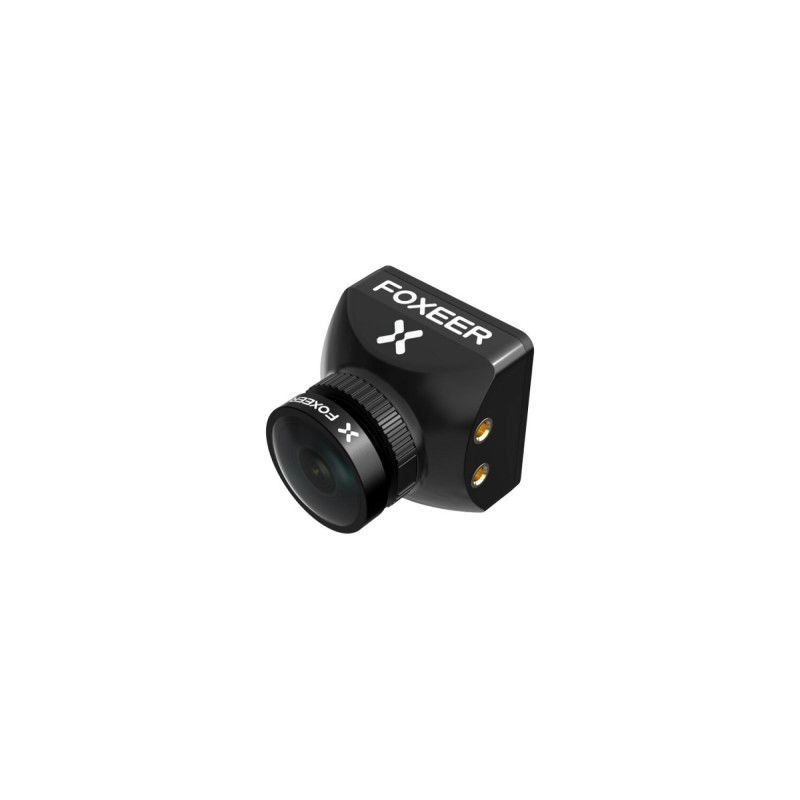

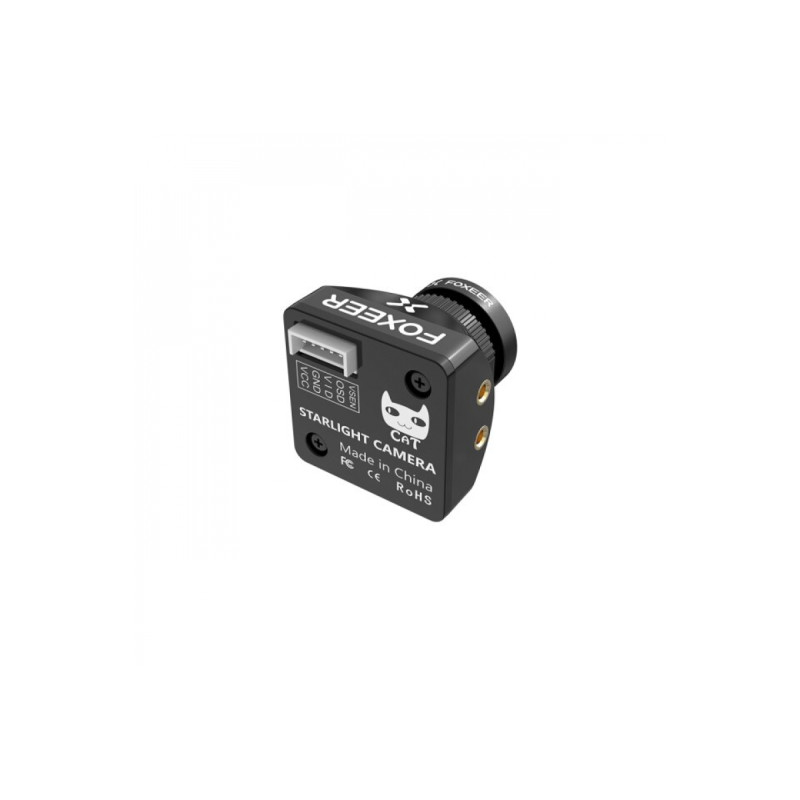

Foxeer Mini Cat 3 Camera — Compact Analog Camera for Drones
The Foxeer Mini Cat 3 is a lightweight and functional analog camera designed specifically for racing and freestyle quadcopters. It features a high-quality Sony 1/3″ CMOS sensor with 1200TVL resolution, ensuring a clear image even in challenging lighting conditions. The camera supports a wide input voltage range of 4.6V~20V and has low power consumption of 95mA±15% @ DC12V, making it ideal for compact builds with various video transmitters.
Key advantages of the Mini Cat 3 include: automatic white balance, 3DNR for noise reduction, powerful 100dB WDR for correcting high-contrast scenes, day/night modes (EXT/Auto/Color/B&W), and OSD displaying voltage, camera name, and time. The minimum illumination of 0.00001Lux allows for shooting in twilight and very low light conditions. The camera is compatible with most analog video transmitters thanks to its CVBS output.
| Parameters | Value |
|---|---|
| Sensor Type | Sony 1/3″ CMOS Sensor |
| Scale | 4:3 (Default) / Switchable 16:9 |
| TV System | PAL (Default) / Switchable NTSC |
| Resolution | 1200TVL |
| Lens | M12 2.1mm Low Illumination Lens |
| Field of View | 4:3 FOV-H: 100° FOV-D:125°; 16:9 FOV-H: 100° FOV-D:115° |
| Shutter Speed | PAL 1/251/10000s; NTSC 1/301/10000s |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.00001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| Day/Night Modes | EXT/Auto/Color/B&W |
| OSD (On-Screen Display) | Voltage/Camera Name/Time |
| Input Voltage | 4.6V~20V |
| Language | English / Chinese / Russian / Spanish / Italian / French / Polish / Portuguese / Japanese / Greek |
| Operating Temperature | -10°~50°C RH90% MAX |
| Operating Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Power Consumption | 95mA±15% @ DC12V |
| Dimensions | 22×22 mm; 28×22 mm (with bracket) |
| Weight | 12.2g (without cable) |
The Foxeer Mini Cat 3 allows switching between 4:3 and 16:9 formats, enabling you to choose the optimal view for your flight. The built-in 100dB WDR combined with 3DNR provides a clear image with sharp contrast and reduces digital noise, which is especially important during fast maneuvers. The OSD displays voltage, camera name, and time, helping to monitor equipment status during flight.
Package Contents:
- 1 x Foxeer Mini Cat 3 camera
- 1 x OSD remote control
- 1 x bracket
- 1 x set of bolts and nuts
- 1 x servo cable for TBS Unify VTX
Brand: Foxeer. Category: Drones & Quadcopters > Cameras. If you are looking for a compact, lightweight, and technologically advanced camera with high sensitivity and a wide range of OSD/WDR functions, the Foxeer Mini Cat 3 will be an excellent choice for racing and freestyle builds.
