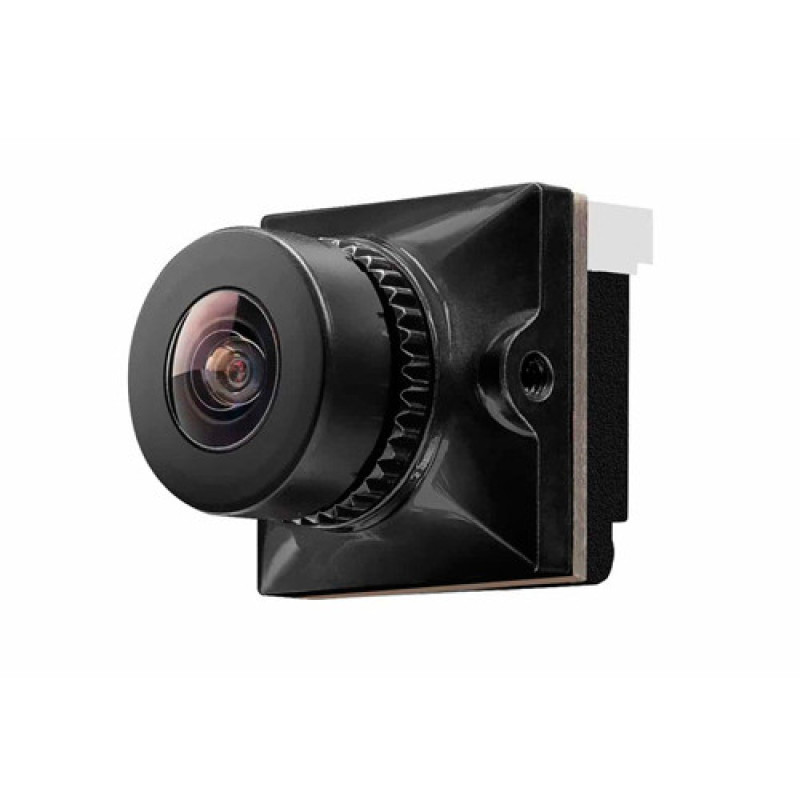

The Caddx Ratel 2 is a high-quality FPV drone camera that performs well in both low-light and daytime conditions. It features a high-quality Japanese-made DJI Air Unit lens with 5 MP resolution and thickened glass, resulting in a sharper image without distortion.
To configure the camera, use the included remote control, which needs to be connected to the corresponding port on the camera. Then, power on the camera, video transmitter, goggles, or monitor. The camera's menu will then appear on the screen, allowing you to adjust the settings.

Sensor: 1/1.8" CMOS Starlight HDR
Horizontal Resolution: 1200TVL
Lens: 2.1 mm
Field of View: 165° (16:9)
Aspect Ratio: 4:3 / 16:9
Image Flip: Yes
Image Mirror: Yes
Video System: PAL / NTSC (switchable)
Synchronization: Internal
Minimum Illumination: 0.0001 lux
Signal-to-Noise Ratio: > 60dB (AGC OFF)
Shutter Speed: 1/50 s (PAL) / 1/60 s (NTSC) – 1/100000
WDR Mode: Super WDR
DNR Mode: 3DNR
Day/Night Mode: Auto / Color / B&W / EXT
Video Output: CVBS
Minimum Latency: 8 ms
Power Supply: 4.5 – 27 V
Color: Black
Housing Material: Magnesium-aluminum alloy
Dimensions: 19 x 19 x 20 mm
Weight: 7 g

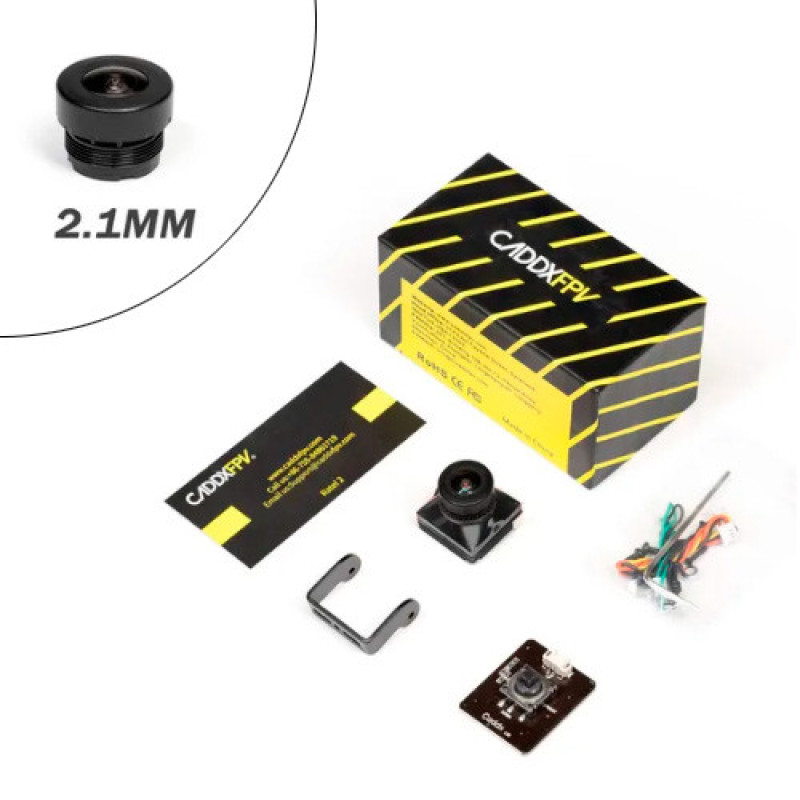

Package Contents:

Caddx Ratel 2 camera

aluminum bracket

configuration keyboard

FPV silicone cable A (3-pin double-sided)

FPV silicone cable B (2-pin double-sided)

hex key

set of screws and washers
