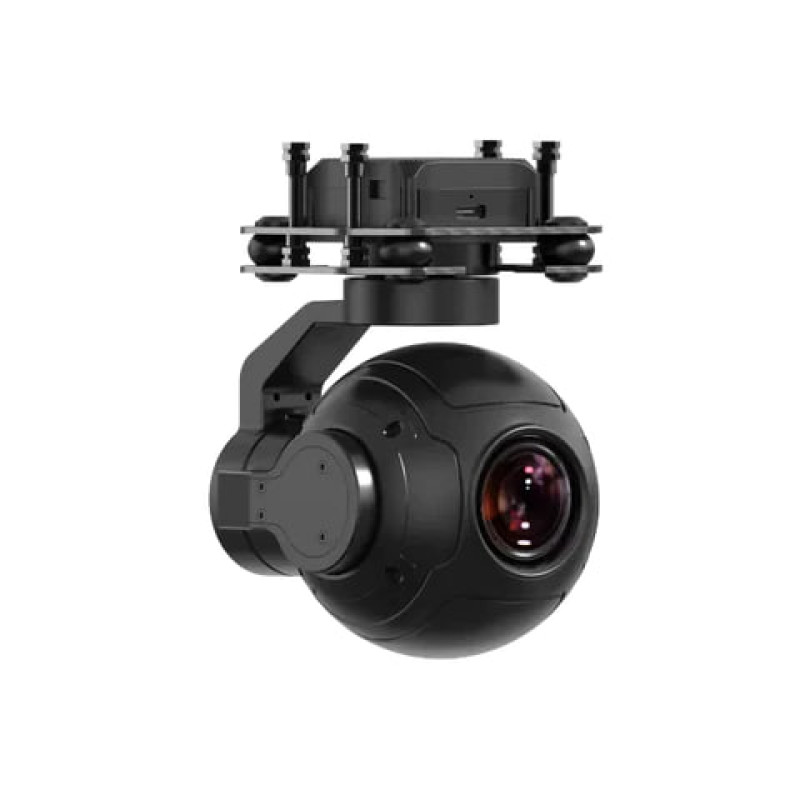

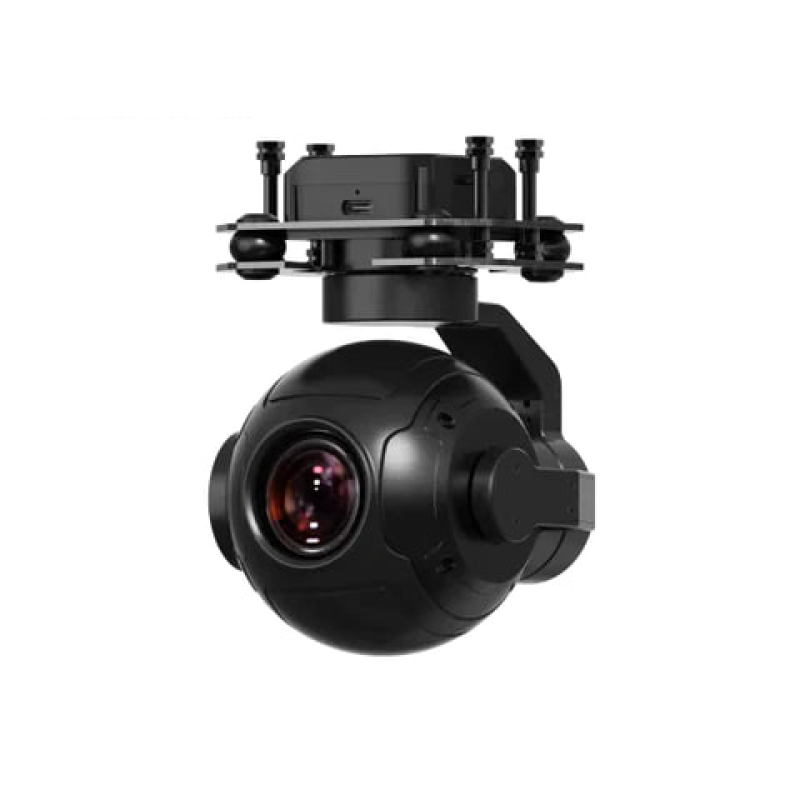

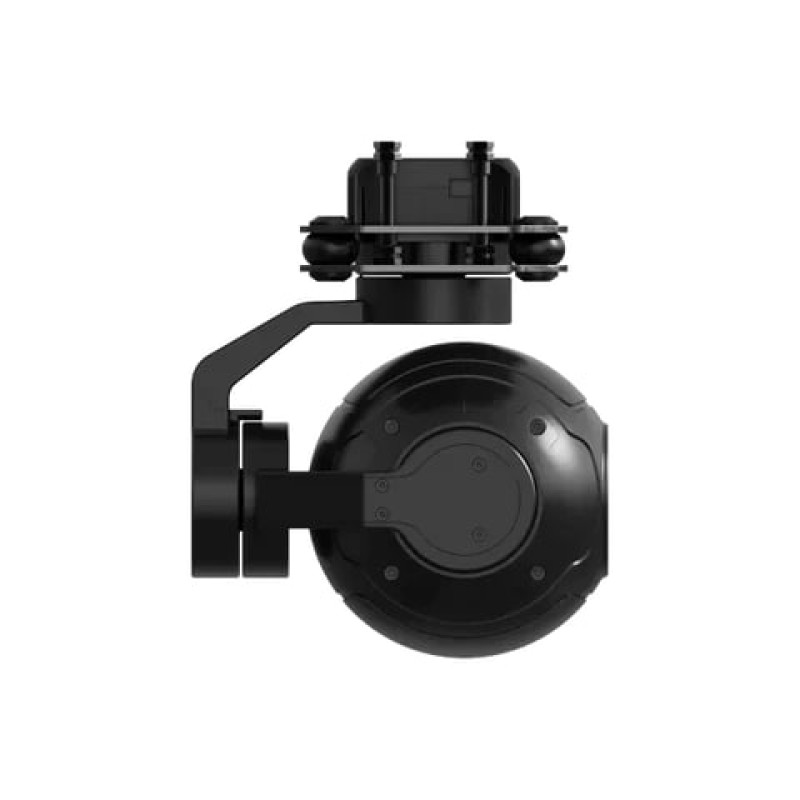

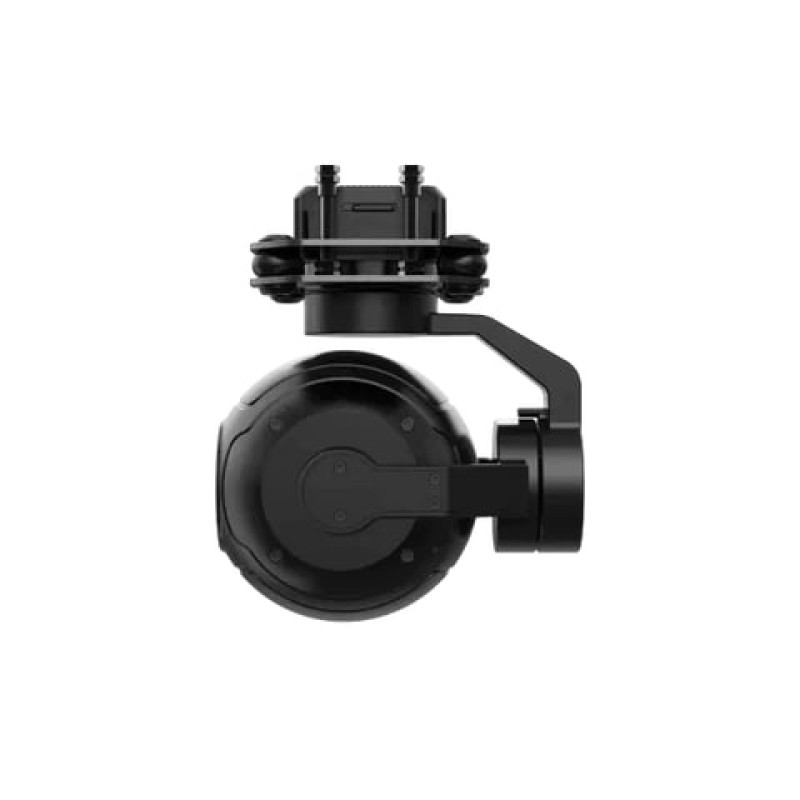

SIYI ZR10 2K 4MP QHD 30X Hybrid Zoom Gimbal Camera
The SIYI ZR10 2K 4MP QHD 30X Hybrid Zoom Gimbal Camera is a high-tech drone camera developed by the SIYI brand for video surveillance, inspection, and night shooting tasks. This module combines a 3-axis stabilizer, powerful optics with hybrid zoom, and 2K recording support, making it a versatile choice for commercial and industrial applications.
Specifications
| Parameter | Value |
|---|---|
| Brand | SIYI |
| Model | ZR10 |
| Type | Drone Gimbal Camera |
| Video Output Port | — |

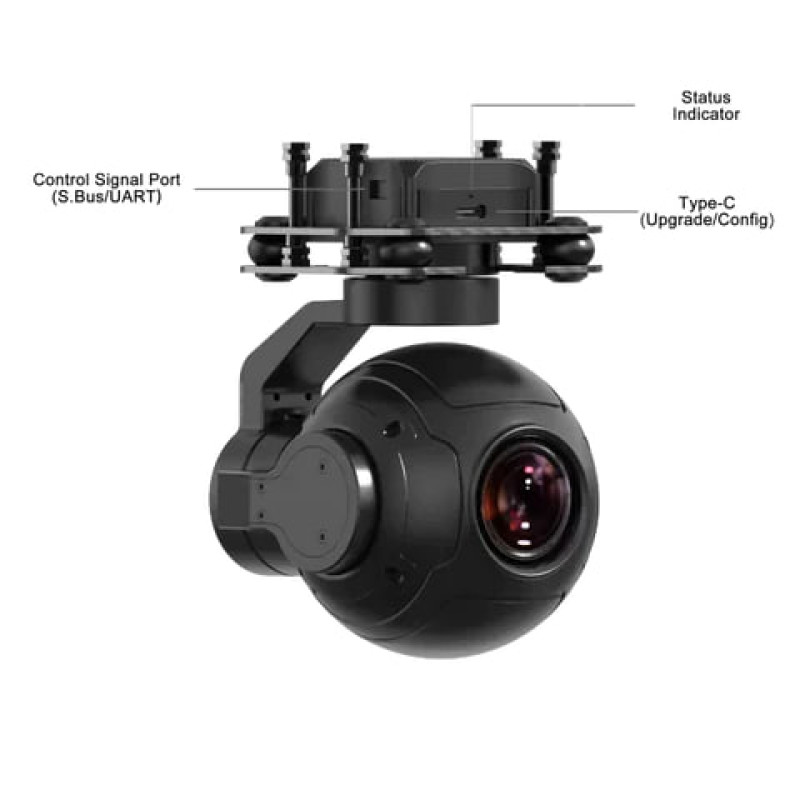

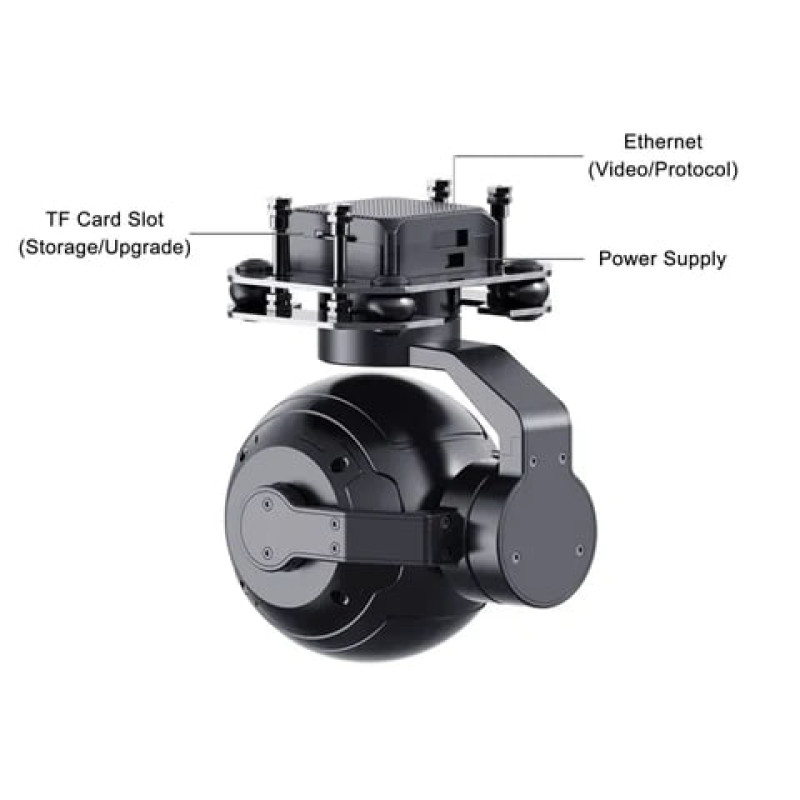

| Control Signal Input Port | Ethernet: S.Bus / PPM / UART / UDP |
| Operating Voltage | 11–25.2 V |
| Power Consumption | 3 W |
| Operating Temperature | -10 ~ 50 °С |
| Waterproof Rating | IP4X |
| Size | 121×101×78 mm |
| Weight | 381 g |
Gimbal
- Angular Vibration Range: ±0.01°
- Adjustable Pitch Angle: -90° to +25°
- Mechanical Pitch Angle: -135° to +45°
- Controllable Yaw Angle: -45° to +45°
- Mechanical Yaw Angle: -90° to +90°
Camera
- Lens: 10x Optical Zoom (30x Hybrid Zoom)
- Additionally mentioned: 10x Optical Zoom / 3x Digital Zoom
- Focal Length: 5.15 ±5% to 47.38 ±5% mm
- Minimum Focus Distance: 200 mm
- Image Sensor: 1/2.7″, effective resolution 4 MP
- Aperture: F1.8–F2.5
- Field of View: Diagonal 79.5°, Horizontal 71.5°
Recording and Storage
- Recording Resolution (TF): 2K (2560×1440) at 30 fps
- Video Storage Bitrate: 12 Mbps
- File Storage Format: FAT32
- Image Format: JPEG
- Video Format: MP4 (H.265 recording, automatically converted to MP4 after restart)
- Supported MicroSD Cards: MicroSD Class10, max. 128 GB
- Photo Mode: Single Shot
- Metering Mode: Evaluative Metering
Key Features
- 3-axis Gimbal Stabilizer for smooth in-flight footage
- High-precision FOC control for fast and accurate aiming
- HDR (High Dynamic Range) for better detail in high-contrast scenes
- Starlight night vision technology for low-light shooting
- F1.8 aperture for greater light sensitivity
- TF card support and 2K video/photo
The SIYI ZR10 is designed to meet the demands of professional operators and engineers who require a reliable, compact, and lightweight drone camera. The combination of optical zoom with hybrid magnification methods, a high-quality 4 MP sensor, and advanced storage modes makes this camera an effective tool for inspections, patrolling, and aerial photography even in challenging conditions. Thanks to its wide operating voltage range and low power consumption, it is easy to integrate into various drone platforms.
