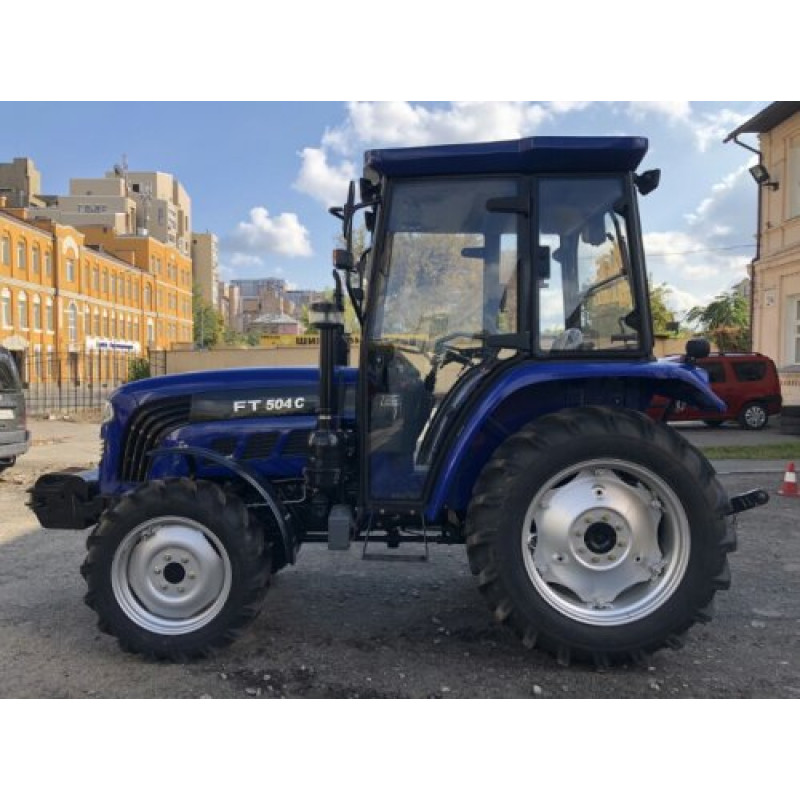

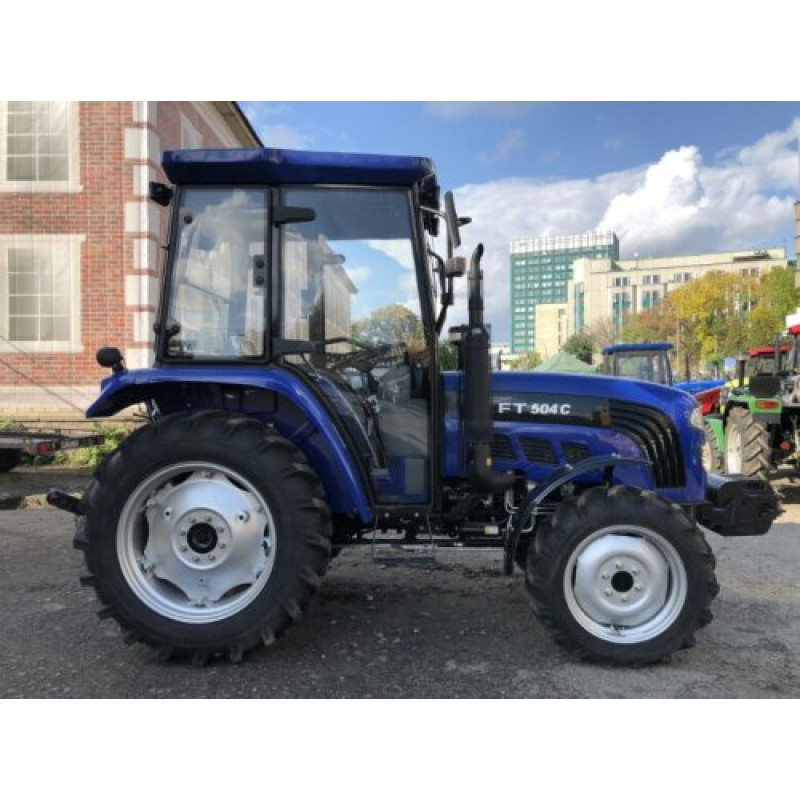

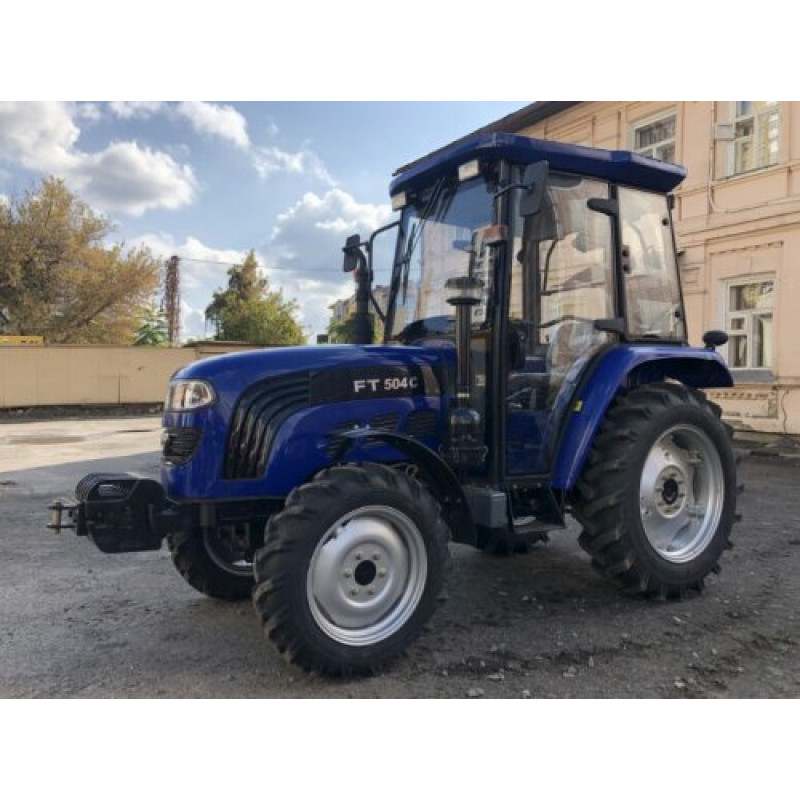

Foton FT 504C — powerful mototractor with a cab for field and transport work

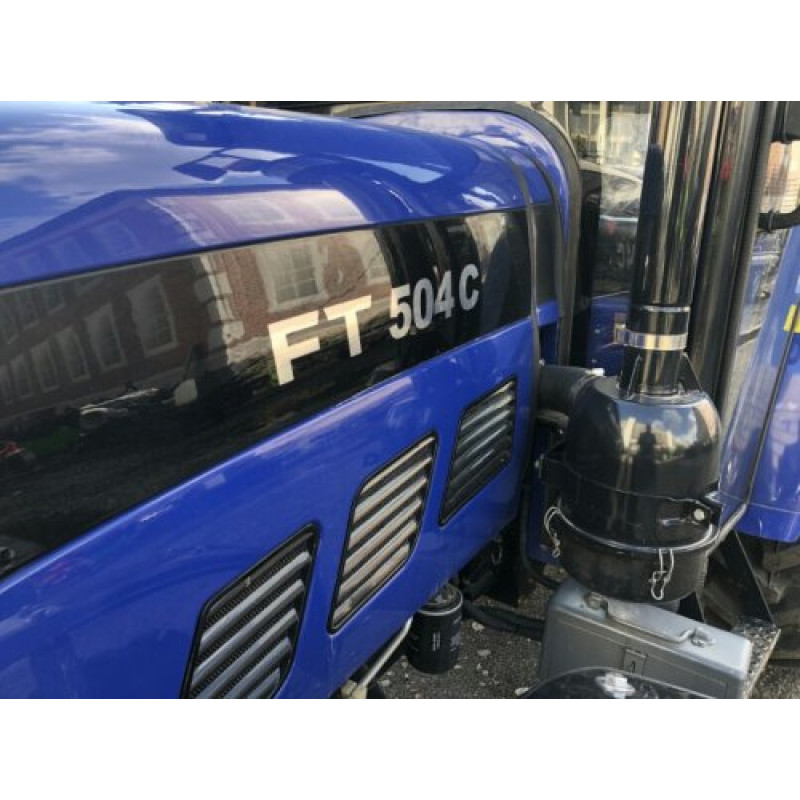

Model: Foton FT 504C. Manufacturer: Foton. Product type: Tractors > Mototractors. This tractor combines a reliable design, versatility in application, and operator comfort: it is equipped with a 4-cylinder diesel engine with 50 hp (36.8 kW) with forced water cooling and direct injection, ensuring stable operation under load even in hot conditions.
Advantages and purpose

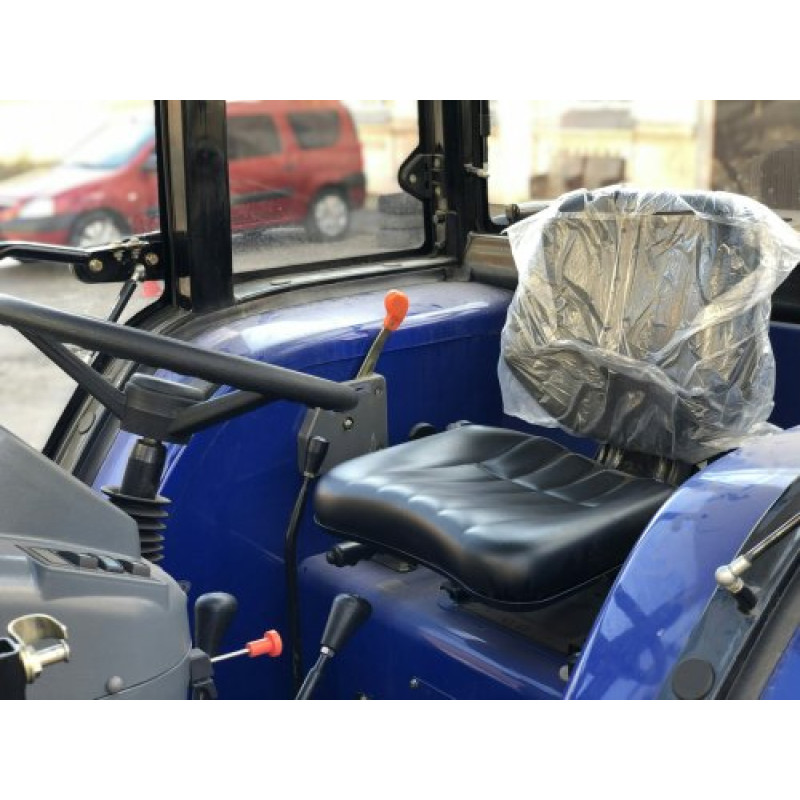

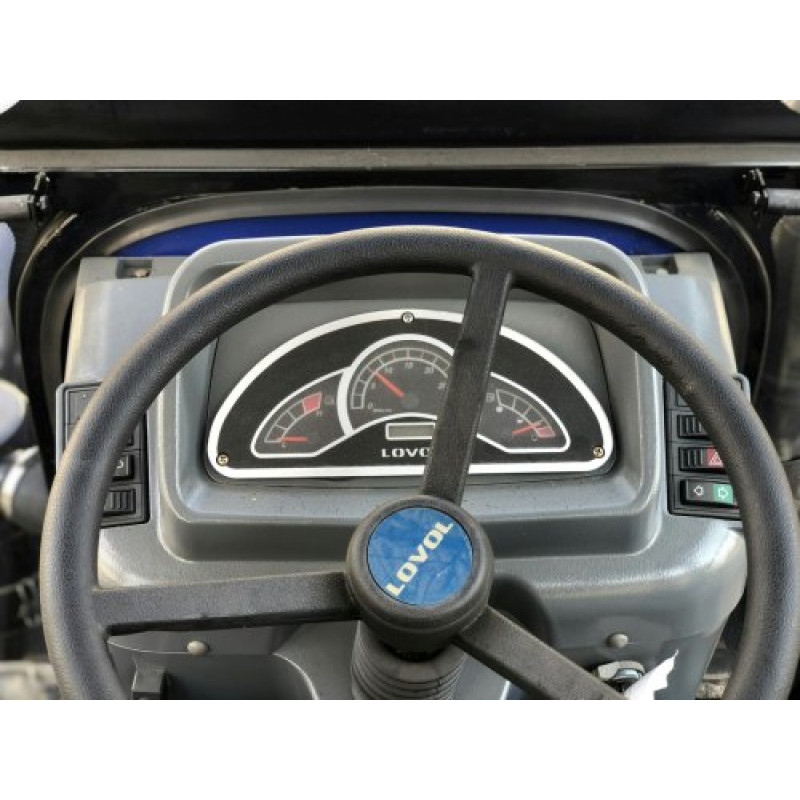

The Foton FT-504 C is ideal for agricultural work, transportation, and utility services. The 4x4 all-wheel drive guarantees high cross-country ability in the field and hard-to-reach areas. The spacious enclosed cab protects the operator from the weather and increases productivity throughout the workday. The tractor is equipped with power steering and an informative instrument panel with sensors: voltmeter, hour meter, coolant temperature sensor, and oil pressure sensor.

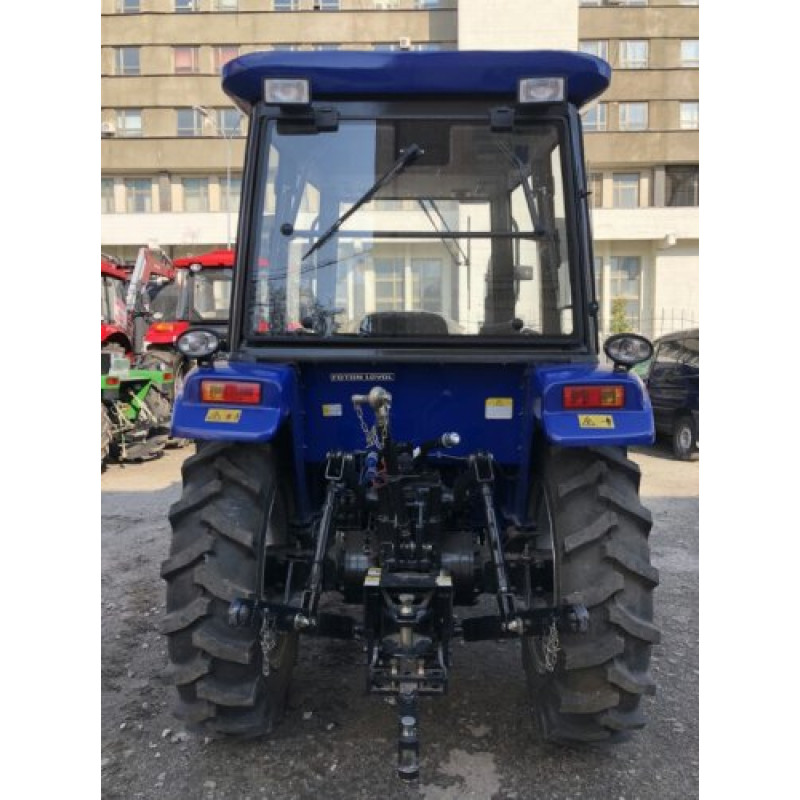

The power take-off (PTO) shaft is independent, with 8 splines, operating at 540 and 1000 rpm, which, combined with the three-point hitch, makes the FT-504 C a versatile unit for working with tillers, plows, harrows, seeders, excavators, haymaking equipment, and other attachments.
Service and purchase conditions: Flash Army online store offers delivery in Kyiv and throughout Ukraine. Address delivery in the shortest possible time, purchase on credit, or cashless payment with VAT are available. The equipment is covered by a manufacturer's warranty. Contact a manager to clarify purchase conditions, delivery, and additional equipment.
Technical specifications and parameters specified by the manufacturer:
| Engine model | 4-cylinder | |
| Number of cylinders | 4 | |
| Diesel engine power, hp / kW | 50/36.8 | |
| Engine displacement, cm³ | 3039 | |
| Specific fuel consumption, g / kWh | 245 | |
| Engine start type | electric starter | |
| Tractor traction force, kN | 12.5 | |
| Transmission type | 4x4 | |
| PTO shaft type | independent | |
| Number of PTO splines | 8 | |
| PTO speed, rpm | 540/1000 | |
| Steering | hydraulic | |
| External hydraulics | two-channel distributor, with 4 quick-release connectors | |
| Maximum speed, km/h | forward - 36 km/h, reverse - 31 km/h | |
| Clutch | dry dual-disc | |
| Track, mm | 1200-1500 | |
| Wheelbase, mm | 1990 | |
| Minimum ground clearance, mm | 280 | |
| Fuel tank capacity, L | 42 | |
| Overall dimensions, mm | length | 3680 |
| width | 1650 | |
| height | 2520 | |
| Number of gearbox speeds | 8+8 | |
| Cab | yes | |
| Front wheel size | 8.30-20 | |

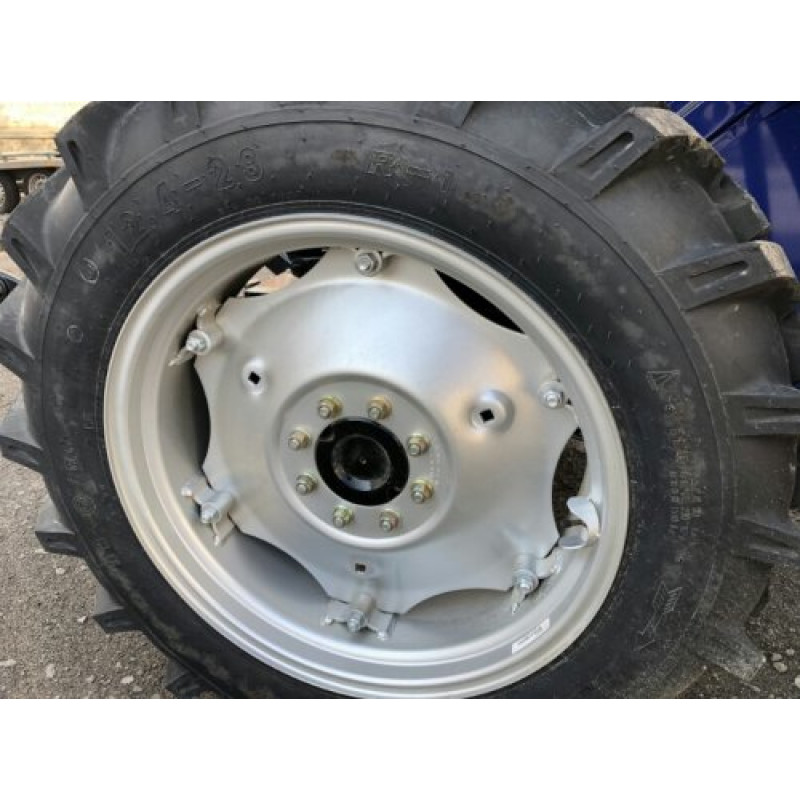

| Rear wheel size | 12.20-28 | |
| Weight | 2165 | |
The documentation also states that the gearbox operates according to the formula (4 + 1) x2, meaning it has 8 forward speeds and 2 reverse speeds — this highlights different ways of displaying gearbox configuration in technical descriptions.
Briefly about the main parameters: engine — 4-cylinder, 3039 cm³ displacement, specific fuel consumption 245 g/kWh, electric starter for easy starting; traction force — 12.5 kN; transmission — 4x4; PTO — independent, 8 splines, 540/1000 rpm. Hydraulics — two-channel distributor with 4 quick-release connectors; steering — hydraulic; clutch — dry dual-disc. Track adjustable 1200-1500 mm, wheelbase 1990 mm, minimum ground clearance 280 mm. Fuel tank capacity 42 L. Dimensions: length 3680 mm, width 1650 mm, height 2520 mm. Tractor weight 2165 kg. Wheel sizes: front 8.30-20, rear 12.20-28.
The Foton FT-504 C is a practical choice for farmers, utility services, and enterprises looking for a machine with a cab that is balanced in price and characteristics, with wide capabilities for working with various attachments.
