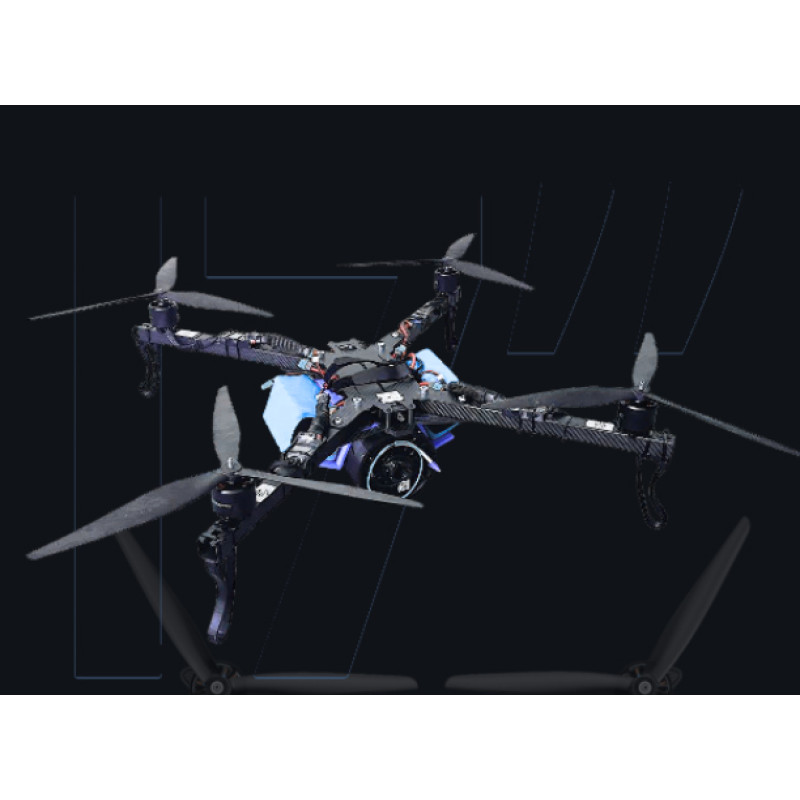

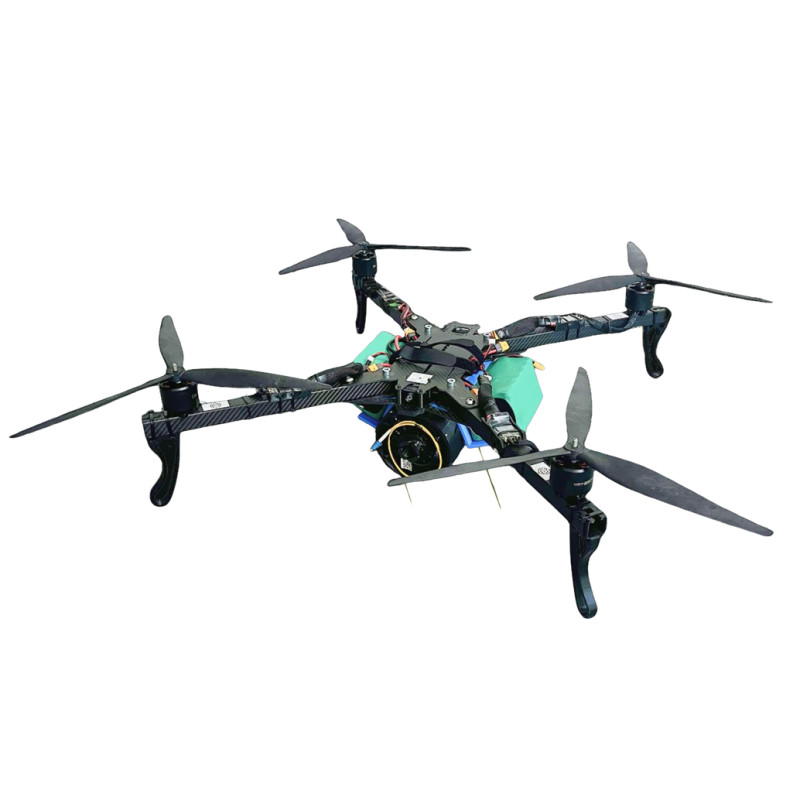

EOC 17" Kamikaze FPV Drone with Fiber Optic Frame

EOC presents a powerful and agile 17" kamikaze FPV drone, built on a fiber optic frame for enhanced durability and interference resistance. This model combines high thrust, compact dimensions, and the ability to carry a significant payload, making it a versatile tool for tasks where speed, range, and reliability are crucial.

The drone is optimized for complex missions: fast flights at a stable cruising speed with the ability to accelerate to maximum for operational tasks. The autopilot, based on proven PX4 software, and the Pixhawk 6X flight controller ensure precise control and integration with modern navigation and telemetry systems.

Key Technical Specifications

• Max. takeoff weight: 11-13 kg
• Maximum thrust: up to 24 kg (depending on battery)
• Aircraft weight: 3 kg (empty drone; 2.7 kg with 2x6S3P battery)
• Payload capacity: 5 kg (excluding coil weight)
• Flight speed: cruising — 60 km/h; max. — 120 km/h
• Flight controller: Pixhawk 6X
• Autopilot software: PX4
• Battery configuration: 12S (from 2 x 6S); standard battery: 6S3P 21700 Li-ion, 12600 mAh
• Electronic Speed Controller (ESC): 90 A
• Motors: 240 kV
• Propellers: 17"
• Camera: Digatal MIS5001, 5-megapixel wide-angle lens, 95.5° field of view
• Dimensions: 25×24×17 cm

This FPV drone from EOC is designed for applications requiring a combination of high thrust and compactness. The robust fiber optic construction reduces weight while maintaining chassis rigidity; advanced 240 kV motors paired with 90A ESCs enable increased loads and rapid maneuvers. The 12S battery configuration (from two 6S batteries) and 6S3P 21700 batteries are a standard solution for long and energy-intensive missions.

The integrated Digatal MIS5001 camera with a wide-angle 5 MP module provides high-quality video recording with a 95.5° field of view, which is important for targeting and observation during flight. With Pixhawk 6X and PX4, fine-tuning of flight parameters, route planning, and integration with additional sensors are possible.

With a payload capacity of up to 5 kg and a maximum thrust of up to 24 kg, the drone is suitable for tasks requiring the delivery of heavier elements or the installation of specialized equipment. The dimensions of 25×24×17 cm make the platform quite compact for transport and rapid deployment.

Brand: EOC. Category: Kamikaze Drones. The model meets the technical parameters listed above and is ready for integration into various equipment sets and control systems.
