SOYGEN SGB 88 KVA Diesel Generator is a powerful and reliable power station from the Soygen brand, designed to provide continuous and backup power for commercial facilities and critical infrastructure. This unit has a nominal power of 80 kVA (64 kW) and a maximum power of 88 kVA (70 kW), operating in a three-phase network with an output voltage of 400 V, making it a versatile solution for industrial needs. The unit is equipped with a French BAUDOUIN liquid-cooled generator engine, ensuring long-term and stable operation under load.

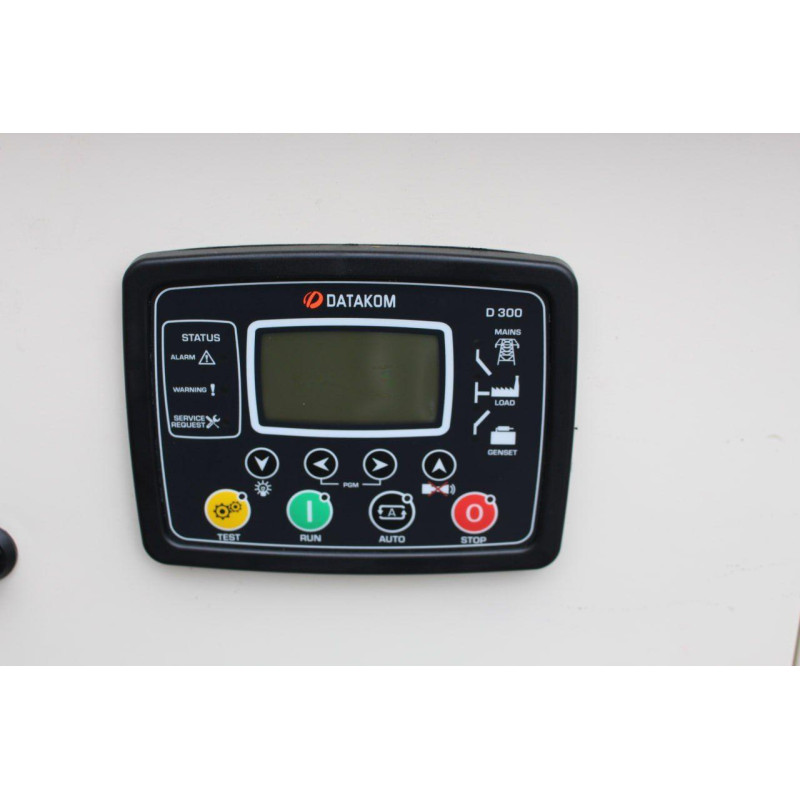

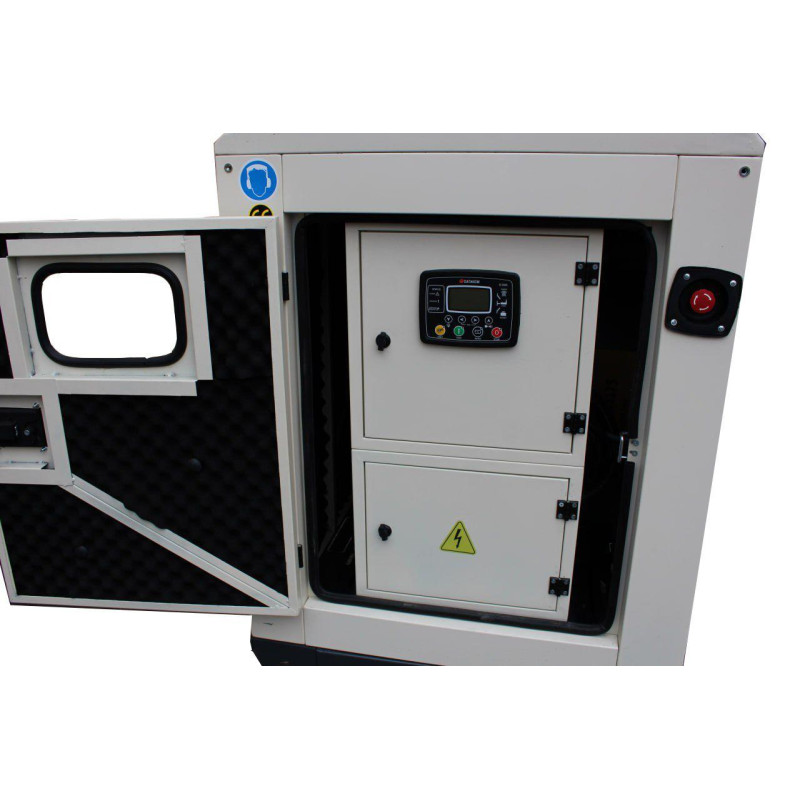

High-quality power supply is guaranteed by a Surirella alternator (analog of Stamford) with copper winding in combination with an automatic voltage regulator. The standard configuration includes an automatic transfer switch (ATS) unit, which allows automatic switching to backup power and ensures uninterrupted power supply without operator intervention. The DATAKOM control panel provides convenient monitoring of generator operating parameters and real-time control of key indicators.

Key Features

• Three-phase output: 400 V
• Rated power: 80 kVA / 64 kW
• Maximum power: 88 kVA / 70 kW

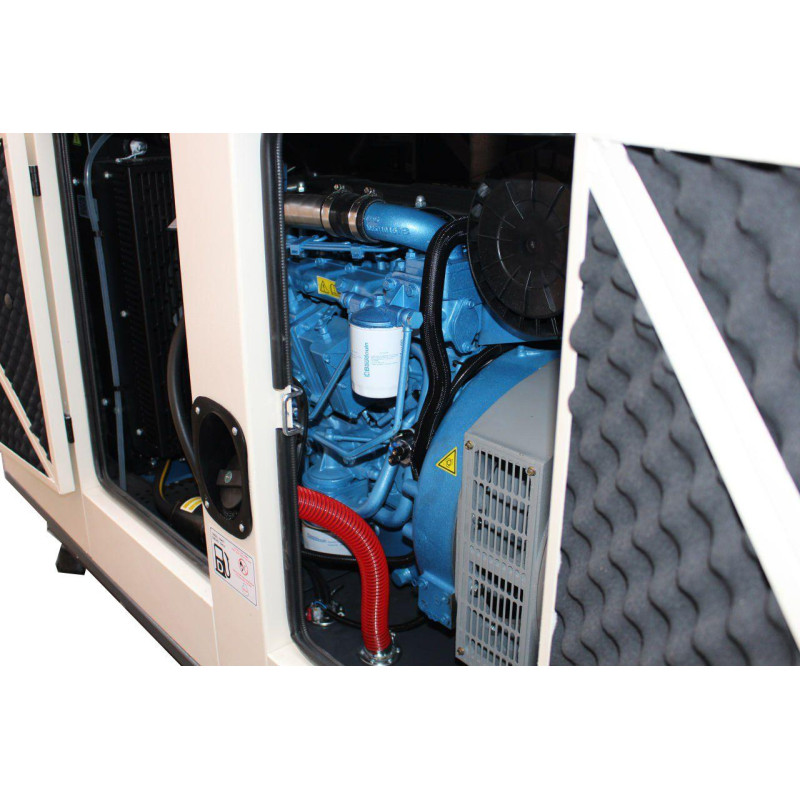

• Engine: BAUDOUIN (France)
• Engine cooling: liquid
• Alternator: Surirella (analog of Stamford) with copper winding
• Automatic voltage regulator
• Automatic transfer switch unit included
• Coolant preheater function for easier starting in cold weather
• Automatic battery monitoring and charging

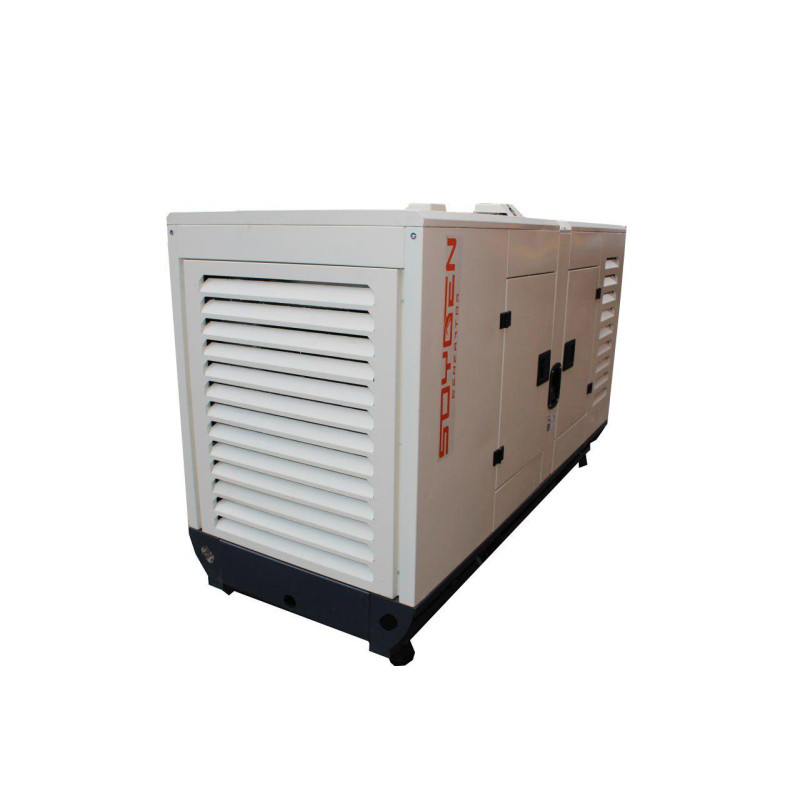

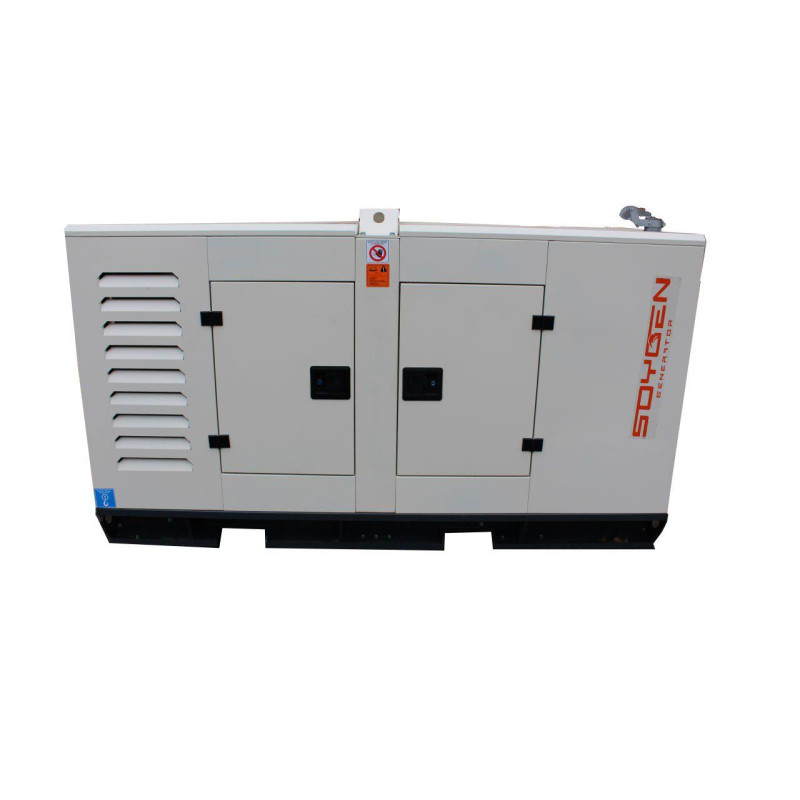

• Thick-walled steel casing with anti-corrosion coating, all-weather

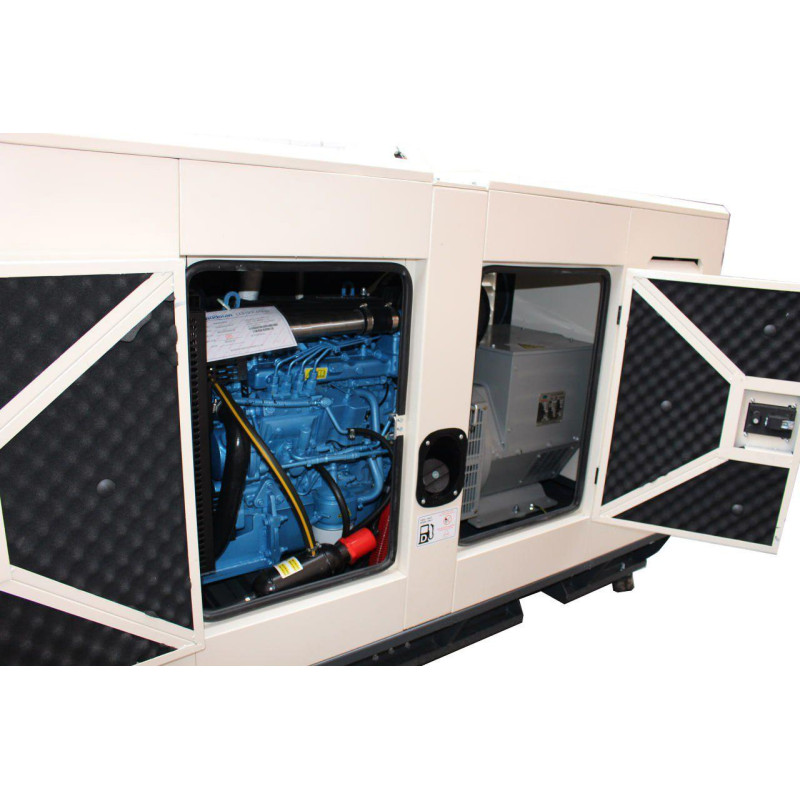

• Access doors in the casing for convenient maintenance of internal components

Advantages of the SOYGEN SGB 88 KVA model

This diesel generator combines quality components and a well-thought-out design: a reliable French BAUDOUIN engine guarantees smooth operation under heavy loads; an alternator with copper winding provides stable electrical characteristics; an automatic voltage regulation system minimizes fluctuations and protects connected equipment. The advanced casing with anti-corrosion coating allows the unit to be installed outdoors without additional shelters, and the built-in coolant preheater and automatic battery charging ensure reliable starting and operation in winter conditions.

Package Contents

The delivery set includes everything necessary for commissioning:

• Battery
• Automatic charger
• Coolant preheater
• Automatic transfer switch (ATS) unit

Application and Operation

SOYGEN SGB 88 KVA is suitable for enterprises of various profiles: production workshops, commercial complexes, warehouses, medical and other facilities where continuity of power supply is critical. Thanks to the automated control system and built-in ATS, the generator is easily integrated into the existing power grid, providing quick switching between central power and a backup source.

Frequently Asked Questions

What types of industrial diesel power plants exist?

Industrial diesel power plants can be stationary — installed on a permanent basis, and mobile — mounted on a chassis for transportation. SOYGEN SGB 88 KVA belongs to stationary industrial solutions but can be integrated into mobile systems if necessary.

How long can the generator run without stopping?

The duration of continuous operation depends on the engine type, fuel tank volume, and load. For specific operating time, data on fuel reserve and load mode are required; approximately, the operating time can range from 8 hours to several days with a sufficient fuel supply.

What to consider when choosing an industrial generator?

When choosing, it is important to evaluate power and reserve (20-30% reserve is recommended to cover inrush currents), phase (three-phase solutions for industrial facilities), cooling type (liquid in this model), noise level, power quality (presence of an automatic voltage regulator), and automation capability (ATS).

Can multiple facilities be powered simultaneously?

Yes, if the generator has sufficient power for the combined load. For proper organization of power supply to multiple facilities, it is necessary to install distribution boards and automatic switches between the grid and the generator for each connection.

Product category: Energy Independence > Generators. If you need a reliable industrial diesel generator with an automatic transfer switch, copper alternator winding, and a high-quality French engine — SOYGEN SGB 88 KVA will be an excellent choice for continuous and backup power.
