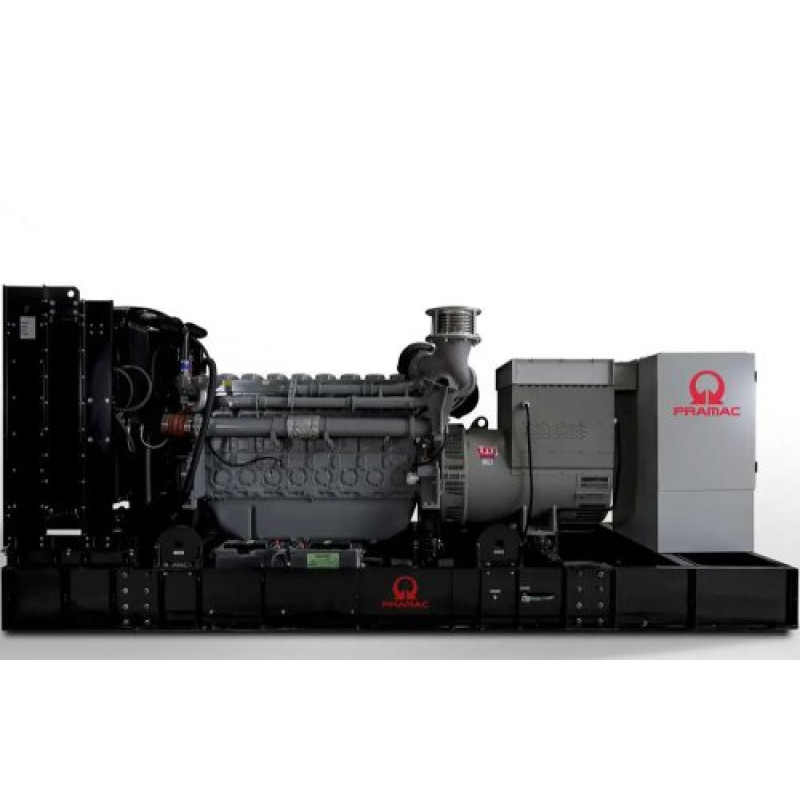

Pramac CES 1400P Diesel Generator (1108 kW)
The Pramac CES 1400P diesel generator is a powerful and reliable source of autonomous power supply for industrial facilities, construction sites, and critical infrastructure. This model from the PRAMAC brand provides a peak power of 1385 kVA (1108 kW) and a nominal power of 1250 kVA (1000 kW), making it an ideal solution for needs requiring stable high power. The generator can be supplied with 400V/230V voltage or manufactured according to specific customer requirements.
Brand: PRAMAC
Category: Energy Independence > Generators
Features and Purpose
The Pramac CES 1400P is equipped with a 12-cylinder V-type Perkins 4012-46TWG2A diesel engine with a displacement of 45,800 cm3 and a bore and stroke of 160x190 mm. Thanks to the turbocharger with intercooler, high efficiency under load and stable operation in various climatic conditions are ensured. The electronic speed governor guarantees precise 50 Hz frequency maintenance and reliable operation with changing loads.
Technical Specifications
| Voltage: | 400V/230V (can be manufactured according to specific customer requirements) |
| Engine Type: | 12-cylinder, V-type |
| Engine Model: | Perkins 4012-46TWG2A |
| Engine Displacement: | 45,800 cm3 |
| Bore and Stroke: | 160x190 mm |
| Compression Ratio: | 13:1 |
| Air Intake System: | turbocharger-intercooler |
| Speed Governor: | electronic |
| Cooling System: | liquid cooling, 50℃ |
| Total Oil System Capacity: | 177 L |
| Coolant Capacity (without radiator): | 201 L |
| Fuel Consumption at 100% Load: | 288 L/h |
| Start-up: | electric starter |
| Fuel Tank Capacity: | 1000 L |
| Peak Power: | 1385 kVA / 1108 kW |
| Nominal Power: | 1250 kVA / 1000 kW |
| Voltage Regulation Range: | ≥5% |
| Frequency: | 50 Hz |
| Noise Level: | 78 dB |
| Dimensions, LxWxH | 8500x2500x2775 mm |
| Weight: | 13,500 kg |
Advantages of Pramac CES 1400P
- High power for industrial loads: peak 1385 kVA, nominal 1250 kVA.
- Efficient Perkins 4012-46TWG2A engine with turbocharger and intercooler.
- Reliable cooling system and large oil capacity (177 L) for extended operation.
- Large 1000 L fuel tank ensures long-term autonomous operation without frequent refueling.
- Electronic speed governor and electric starter for convenient start-up and precise 50 Hz frequency stabilization.
This generator is suitable for use as a primary or backup power source in enterprises, telecommunication centers, construction sites, and critical power grids. Dimensions of 8500x2500x2775 mm and a weight of 13,500 kg require careful logistics during installation, but the design ensures stable and long-term operation even in harsh operating conditions.
If you require custom voltage or additional options — the model can be adapted to specific customer requirements. For optimal configuration selection and consultations, please contact specialists who will help consider all technical parameters and operating conditions.
