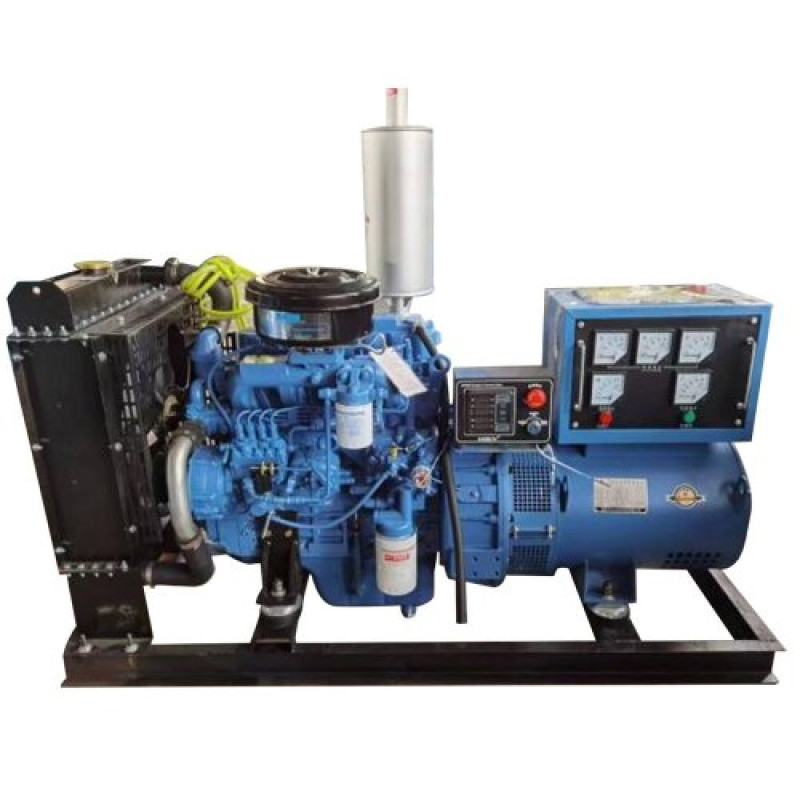

EDON 30 KW (30 kW) Diesel Generator
Model Overview: The EDON 30 KW Diesel Generator is a powerful and reliable power unit from the EDON brand, designed to provide energy independence for private facilities, industrial sites, and commercial premises. The unit delivers a continuous power output of 30 kW at a nominal power factor of 0.8 (cos φ) and a frequency of 50 Hz, making it an optimal solution for loads with cos φ = 0.8.
Features and Purpose: The generator is equipped with a 4-cylinder, water-cooled diesel engine, model YCD4V22DA-55, and an electric starter for convenient ignition. The three-phase power scheme with a voltage of 400V / 230V allows powering both three-phase and single-phase consumers. Compact dimensions of 1600x600x1000 mm and a weight of 500 kg make it suitable for stationary or mobile placement in containers or on a foundation.
| Voltage: | 400V / 230V |
| Engine Type: | 4-cylinder, water-cooled |
| Engine Model: | YCD4V22DA-55 |
| Starting System: | Electric starter |
| Continuous Power: | 30 kW |
| Generator Type: | Three-phase |
| Nominal Power Factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise Level: | 75 dB |
| Fuel Consumption (75% load) | 257 g/kWh |
| Insulation Class: | H |
| Protection Degree: | IP22 |
| Dimensions, LxWxH | 1600x600x1000 mm |
| Weight: | 500 kg |
Operational Characteristics: When operating at 75% load, fuel consumption is approximately 257 g/kWh, reflecting its economic efficiency in its class. The noise level of 75 dB is typical for diesel units of this power; if necessary, additional sound insulation or placement in a container is recommended to reduce environmental impact. Insulation class H ensures reliable operation of the electrical part under prolonged load, and the IP22 protection degree provides basic protection against foreign objects and water droplets — this should be considered for outdoor installation.
Advantages of the EDON 30 kW Model: The reliable YCD4V22DA-55 engine with water cooling guarantees stable operation under high loads. The electric starter ensures quick and easy ignition in various climatic conditions. The versatility of the three-phase scheme and the ability to operate with 400V/230V voltage allows connecting a wide range of equipment and loads. Compact dimensions of 1600x600x1000 mm allow mounting the generator on a foundation or a special stand, while the weight of 500 kg requires careful lifting and installation.
Installation and Maintenance Recommendations: For a long service life, plan regular technical inspections, timely replacement of filters and oil according to the manufacturer's instructions. Ensure adequate ventilation of the room or container, as well as protection from atmospheric precipitation for outdoor installation, considering the IP22 protection degree. To increase durability, use the fuel grades and technical fluids recommended by the manufacturer.
Who It's For: The EDON 30 kW is suitable for small and medium-sized enterprises, construction sites, farms, medical facilities, and commercial properties where stable three-phase power with a backup capacity of 30 kW is required. It is an optimal choice for those who value a combination of price, reliability, and operational efficiency.
Brand: EDON. Category: Energy Independence > Generators. Model: EDON 30 KW (30 kW) Diesel Generator.
