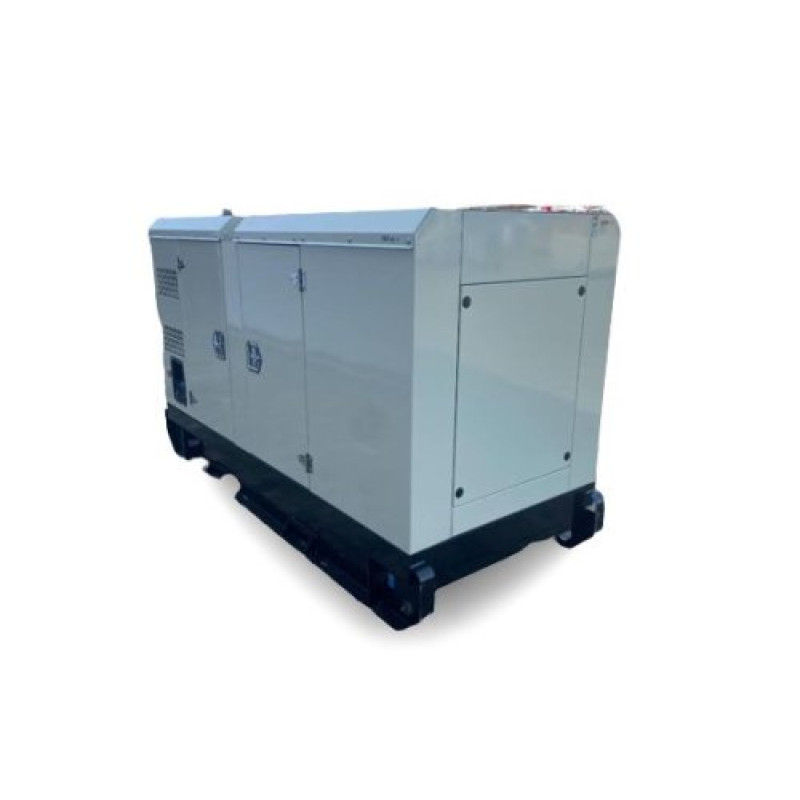

Perkins 1103A-33TG2 Diesel Generator (53 kW)
Overview: The Perkins 1103A-33TG2 diesel generator with a power output of 53 kW is a reliable solution for providing energy to enterprises, construction sites, and critical infrastructure facilities. Manufacturer: Perkins. This unit combines a high-quality engine, an efficient Leroy Somer alternator, and a modern Deepsea controller, ensuring stable operation under load and protection against emergency situations.
Key Advantages
- Power: 53 kW peak, 48 kW continuous — provides backup and long-term power.
- Efficient Perkins 3-cylinder diesel engine with turbocharging and water cooling.
- High-quality Leroy Somer alternator (model TAL-A42-H) with ±0.5% voltage regulation and IP23 protection class.
- Modern Deepsea controller (DSE 6120) with advanced protection and monitoring functions.
Detailed technical specifications are listed below:
| Voltage: | 400 / 230 V |
| Engine type: | 3-cylinder, four-stroke, water-cooled, turbocharged |
| Engine displacement: | 3300 cm3 |
| Start: | electric |
| Fuel tank capacity: | 140 L |
| Peak power: | 53 kW |
| Continuous power: | 48 kW |
| Rated current: | 86.4 A |
| Rated voltage: | 230/400 V |
| Frequency: | 50 Hz |
| Dimensions (LxWxH): | 2280x950x1300 mm |
| Weight: | 1200 kg |
| Alternator (AC generator): | Model - TAL-A42-H Alternator manufacturer - Leroy Somer Phase - 3 Voltage - 230/400 V Connection type - 12 wires Power factor - 0.8 Voltage regulation - ±0.5% Protection class - IP 23 |
| Deepsea Controller: | Model DSE 6120, 7 configurable digital inputs Built-in regulator and AVR control Base load function (kW export) Mains failure protection (utilities) Generator power control (kW, kVA) Overload protection (kW and kVAr) Emergency shutdown Start inhibit on failure |
This unit is suitable for applications where high reliability and stable power supply are crucial: backup power for industrial facilities, medical institutions, communication facilities, as well as for long-term operation in construction or field conditions. Proven components (Perkins + Leroy Somer + Deepsea) ensure a long service life and ease of maintenance.
Before purchasing, it is recommended to clarify installation conditions, dimensional restrictions, and requirements for the output power grid. Pay attention to the 140 L fuel tank capacity for planning operation duration without refueling and the 1200 kg weight when organizing transportation and installation.
Other technical questions, service options, or additional equipment (sound-attenuating enclosure, automatic mains failure start system, etc.) can be discussed with pre-order specialists.
