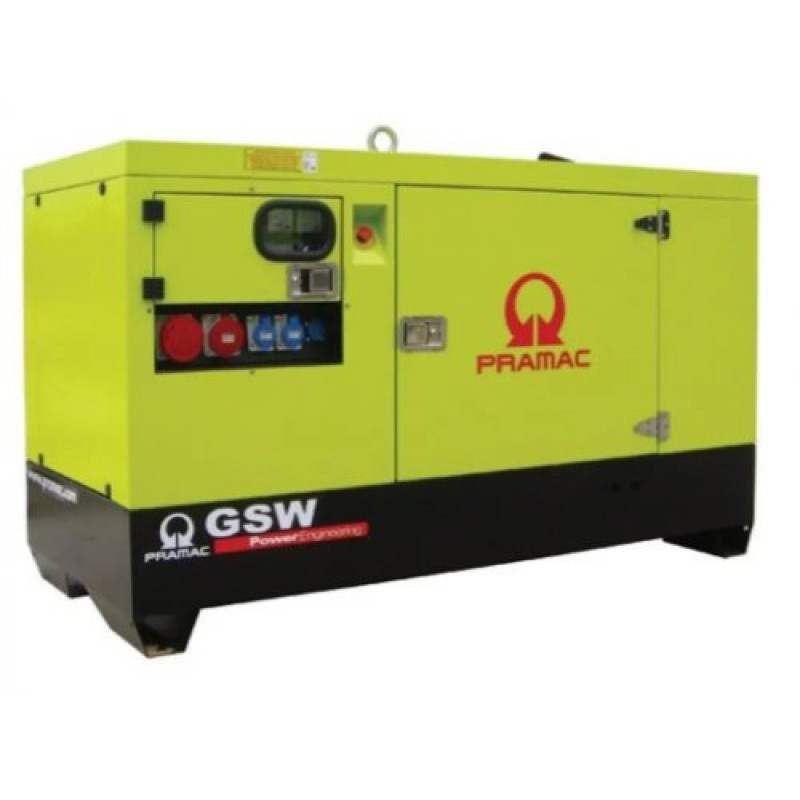

PRAMAC GSW35Y Diesel Generator (26.4 kW)

Introducing the PRAMAC GSW35Y diesel generator — a reliable and powerful unit from the PRAMAC brand (Italy). This generator is ideal for power supply to industrial facilities, construction sites, farms, and as a backup power source for commercial and domestic needs. The model combines a high-quality Yanmar engine, a reliable electric start system, and a high-quality Mecc Alte generator, ensuring stable 3-phase voltage.

Technical Specifications

Key parameters of the PRAMAC GSW35Y model:

• Voltage: 400/230V
• Frequency: 50 Hz
• Generator Type: 3-phase, Mecc Alte
• Rated Power Factor: 0.8 cos φ
• Engine Type: 4-cylinder, four-stroke, water-cooled
• Engine Model: Yanmar 4TNV88-BGPGE
• Engine Displacement: 2190 cm3
• Starting System: Electric starter
• Fuel Tank Capacity: 68 L (approximate run time at 100% load ≈ 12.9 hr)
• Fuel Consumption (100% load): 5.27 L/hr
• Peak Power: 15.22 kW
• Continuous Power: 14.44 kW
• Noise Level: 64 dB
• Insulation Class: H
• Protection Degree: IP21
• Dimensions (LxWxH): 2000x920x1310 mm
• Weight: 773 kg
• Brand Country: Italy

Please note: the value (26.4 kW) in the model name may reflect a different engineering category or serial configuration of the unit; the main operational parameters are listed above according to the technical specifications.

The PRAMAC GSW35Y is equipped with a reliable Yanmar 4TNV88-BGPGE diesel engine, ensuring long-term operation under significant loads. The combination of the engine with the Mecc Alte generator provides a stable three-phase voltage of 400/230V at a frequency of 50 Hz, making this unit versatile for various electrical consumers.

The model features an electric starter for convenient startup, a capacious 68-liter fuel tank, and economical fuel consumption — 5.27 L/hr at full load. A noise level of 64 dB allows the generator to be used in close proximity to work areas with limited noise levels. Insulation class H and protection degree IP21 ensure the reliability of the electrical part under standard operating conditions.

Dimensions of 2000x920x1310 mm and a weight of 773 kg indicate that the unit is designed for stationary or semi-stationary installation; when planning installation, consider the dimensions and weight for selecting an appropriate foundation or mounting.

This generator is suitable for those who value durability, efficiency, and stable power supply. If you need a powerful diesel unit from an Italian brand with a proven Japanese engine aggregate base, the PRAMAC GSW35Y will be an optimal choice.
