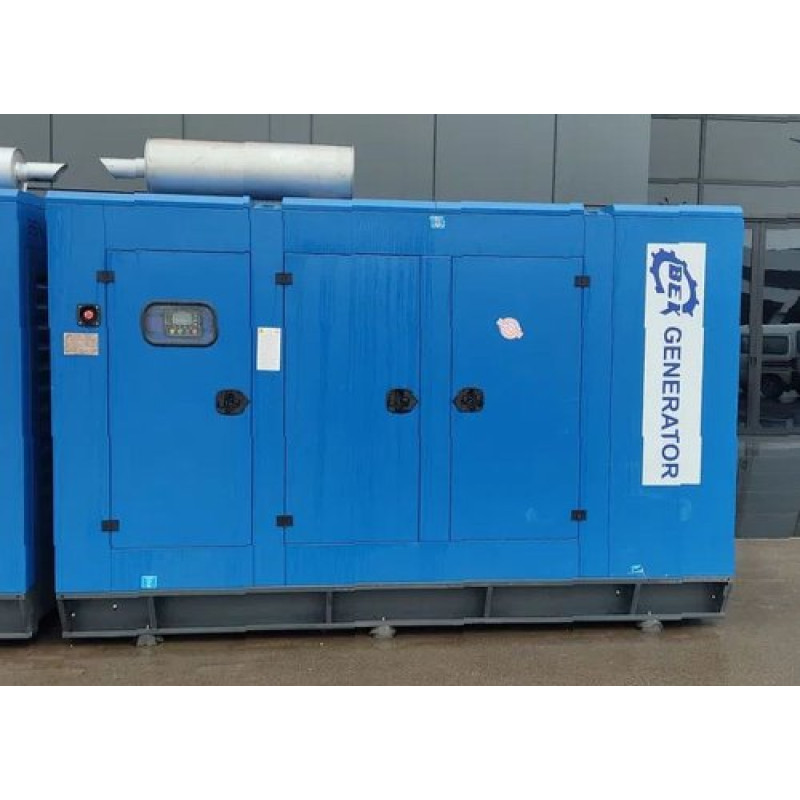

BEK MOTOR BGR-275 Diesel Generator (220 kW) is a powerful and reliable solution from the manufacturer BEK for ensuring energy independence of enterprises, construction sites, and critical infrastructure facilities. This unit combines high output power, efficiency, and a well-thought-out design for long-term operation.
Brief Overview
Generator model: BGR-275. Peak power is 275 kVA, continuous power is 250 kVA at a power factor of 0.8. The technical specification also indicates values in kilowatts: Prime power 200 kW at 1500 rpm and standby power 220 kW at 1500 rpm, which corresponds to the "220 kW" title. Voltage can be supplied in 400V/230V or 480V variants upon individual customer request. Frequency: 50 Hz. System controller: Deepsea DSE7320 AMF or DATAKOM DKG309, providing automatic control, protection, and AMF mode operation.
Design and Engine
The diesel unit is equipped with a 6-cylinder, four-stroke turbocharged engine. Engine model: RICARDO R6126ZLD with a displacement of 12,900 cm3. Bore and stroke: 135x150 mm, compression ratio: 16:1. Starting system: DC24V electric starter. The electronic speed governor ensures stable RPM and precise frequency maintenance, while NL-FL voltage regulation ≤±0.5% guarantees reliable operation of sensitive electronics and equipment.
Key technical specifications:
| Voltage: | 400V/230V, 480V (can be manufactured according to specific customer requirements) |
| Engine type: | 6-cylinder, four-stroke, turbocharged |
| Engine model: | RICARDO R6126ZLD |
| Engine displacement: | 12,900 cm3 |
| Bore and stroke: | 135x150 mm |
| Compression ratio: | 16:1 |
| Prime power/speed (kW/rpm): | 200/1500 rpm |
| Standby power/speed (kW/rpm) | 220/1500 rpm |
| Peak power | 275 kVA |
| Continuous power: | 250 kVA |
| Power factor: | 0.8 |
| Speed governor: | electronic |
| Voltage regulation range: | ≥5% |
| NL-FL voltage regulation: | ≤±0.5% |
| Insulation class: | H |
| Protection level: | IP23 |
| Controller: | Deepsea DSE7320 AMF, DATAKOM DKG309 |
| Frequency: | 50 Hz |
| Noise level: | 78 dB |
| Dimensions, LxWxH | 3650x1300x2050 mm |
| Weight: | 2950 kg |
| Cooling system: | liquid cooling, 50℃ |
| Total lubrication system capacity: | 50 L |
| Coolant capacity (without radiator): | 30 L |
| Fuel consumption at 100% load: | 62.5 L/h |
| Fuel tank capacity: | 500 L |
Advantages and Purpose
The BEK MOTOR BGR-275 is designed for stable power supply to industrial equipment, heating and ventilation systems, medical, and utility facilities. Thanks to the RICARDO turbo engine, a large fuel reserve (500 L), and a consumption of 62.5 L/h at full load, the unit is suitable for long autonomous shifts without frequent refueling. The lubrication system holds 50 L, and the coolant (without radiator) holds 30 L.
Deepsea DSE7320 AMF or DATAKOM DKG309 controllers provide automatic start/stop, protection system, and AMF mode operation, making the unit convenient for use as both a backup power source and for continuous electricity supply. The IP23 protection level and H insulation class meet the requirements for operation in various conditions.
The noise level of 78 dB requires consideration of acoustic insulation when installing in populated areas. The unit's dimensions are 3650x1300x2050 mm, and its weight is 2950 kg, which should be taken into account when planning installation and transportation.
Typical applications: industrial enterprises, construction, backup power for commercial and medical facilities, mobile energy solutions. We will help adapt the BEK MOTOR BGR-275 to your technical requirements: we will select voltage options, controllers, and other options.
Contact us for configuration selection and consultation on operation, maintenance, and delivery.
