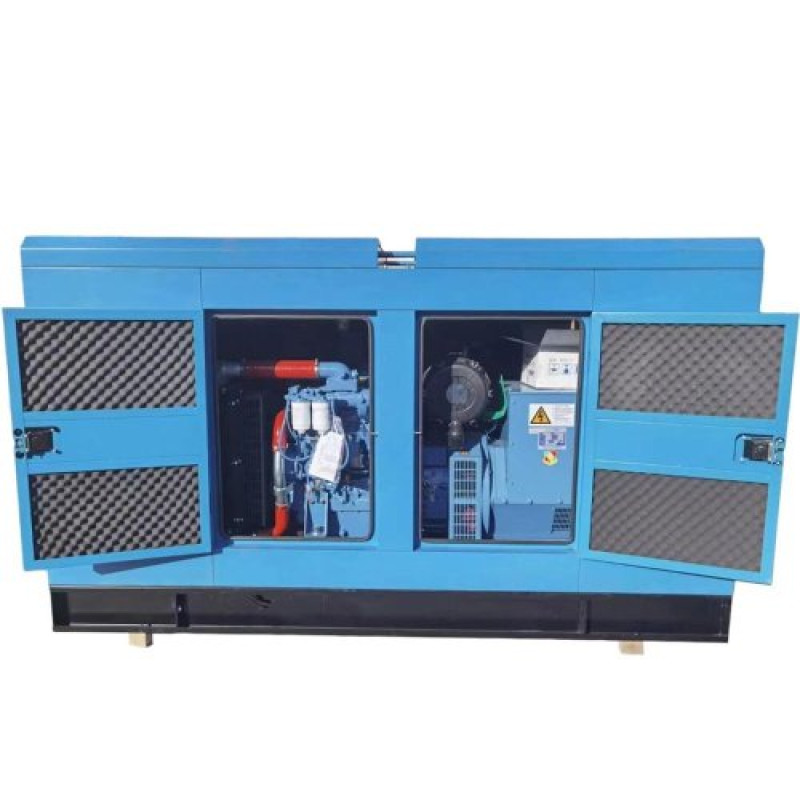

EDON 100 kW Diesel Generator with Enclosure (100 kW)
Brand: EDON. Category: Energy Independence > Generators. This EDON 100 kW diesel generator with enclosure is designed for reliable and long-term power supply to industrial facilities, commercial premises, and construction sites. Combining high performance, fuel efficiency, and a protective enclosure, the unit reduces noise levels and is reliably protected from atmospheric influences, making it suitable for operation in demanding conditions.
Key advantages of this solution include a reliable 6-cylinder water-cooled engine, quick and safe electric starter ignition, stable continuous power of 100 kW, and three-phase generation, allowing connection of a wide range of industrial and commercial equipment. The enclosed design provides sound insulation and additional protection against dust and precipitation, which is especially important for installations near residential areas or in open spaces.
Application
The EDON 100 kW generator is suitable for emergency and primary power supply to buildings, medical institutions, shopping centers, agricultural complexes, construction sites, and industrial enterprises. The device is designed for a standard frequency of 50 Hz and rated for a nominal power factor of 0.8 (cos φ), ensuring compatibility with various types of three-phase loads.
Key Characteristics and Technical Parameters
Below are the official technical parameters of the device, allowing evaluation of its compliance with industrial operating requirements:
| Voltage: | 400V / 230V |
| Engine Type: | 6-cylinder, water-cooled |
| Starting System: | Electric starter |
| Continuous Power: | 100 kW |
| Generator Type: | Three-phase |
| Nominal Power Factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise Level: | 75 dB |
| Fuel Consumption (75% load): | 257 g/kWh |
| Insulation Class: | H |
| Protection Rating: | IP22 |
| Weight: | 950 kg |
Technically, the unit complies with standards for industrial diesel generators: insulation class H guarantees the durability of windings at elevated temperatures, and IP22 protection rating protects against the ingress of solid objects and limited water access. Fuel consumption of 257 g/kWh at 75% load indicates an optimal combination of power and economy, which is important for long-term operation and reduced operating costs.
A noise level of 75 dB in the enclosure reduces discomfort for personnel near the generator set, making the device acceptable for urban and semi-urban areas. A weight of 950 kg indicates a robust, monolithic construction and a reliable chassis that withstands long-term loads and ensures operational stability.
Operating Recommendations
To ensure long-term and trouble-free operation, regular maintenance of the engine and generator, timely diagnostics, and the use of high-quality fuel and consumables are recommended. Adherence to the service schedule will help maintain fuel consumption and noise levels at the stated values, as well as extend the unit's service life.
If you need a powerful, reliable, and protected diesel generator for stable power supply, the EDON 100 kW with enclosure will be an optimal choice for industrial and commercial needs.
